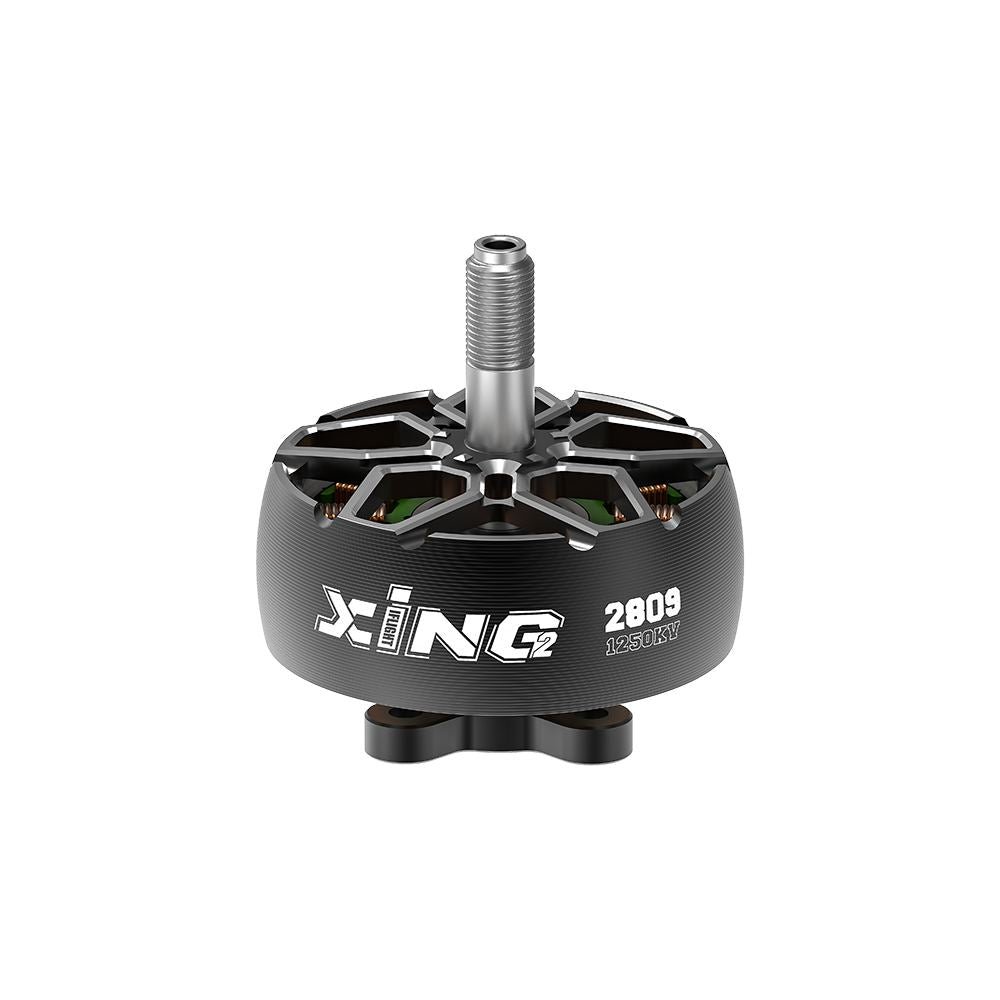

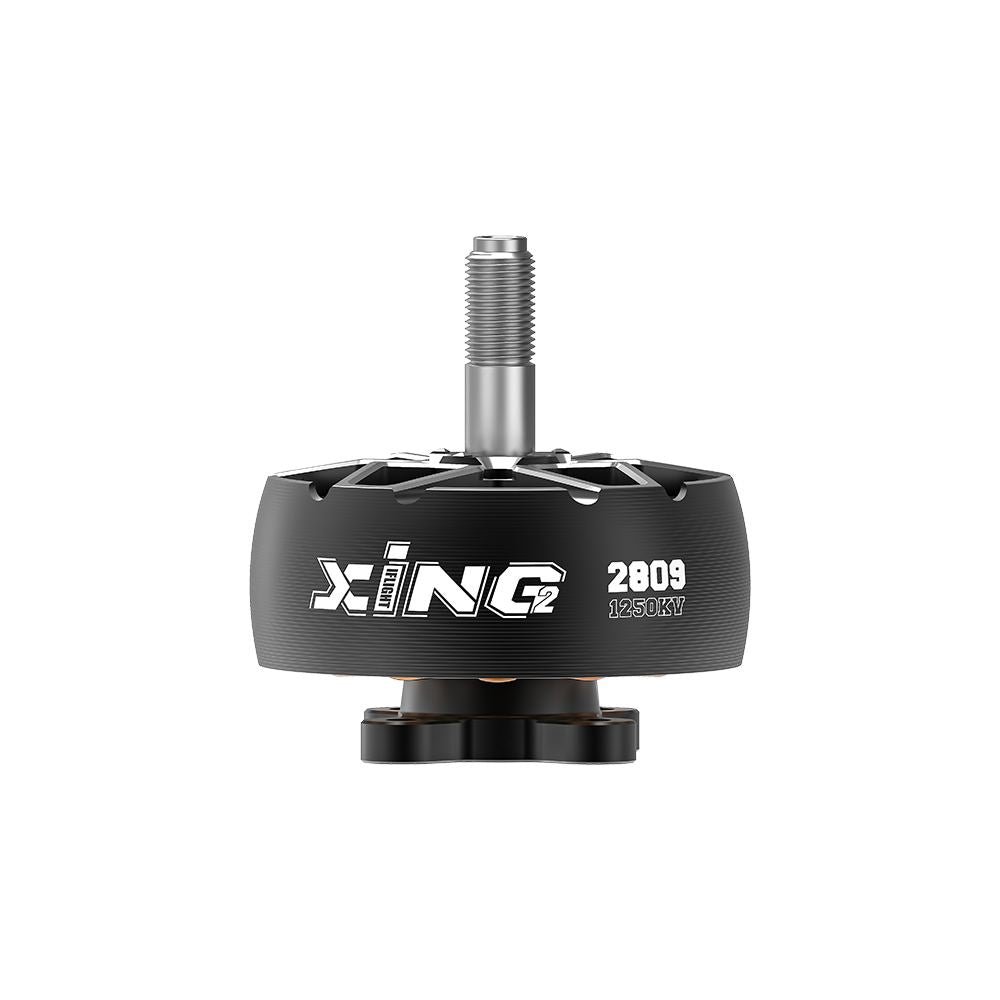

iFlight Xing2 2809 1250KV Brushless Cinelifter Motor – Black
$46.99
| Weight | 0.076 kg |
|---|
Out of stock
Description
Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We’ve been copied and compared all these years, but now it’s time to set a new standard again! We’re finally ready to announce our predecessor the XING2!
The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it’s translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
Check out all our Motors and the rest of our iFlight Products!
Features:
- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 11x5x5 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced
Specifications:
- KV: 1250KV
- Weight(included wire): 60.7g
- Dimension: φ35.33*21.7mm
- Interphase Resistance: 65.46mΩ
- Input Volts: 24V
- Peak Current: 49.23A
- Max Watt: 1147.1W
- Mounting Holes: 19*19 φ3mm
- Rotor Specifications: Unibell
- Shaft Diameter: 4mm
- Shaft Protruding Length: 15mm
- Lead: 260mm/18AWG
- Magnet: N52H Curved
- Configuration: 12N14P
- Bearing Type: NSK
- Bearing Specification: φ11*φ5*5
- Winding: Single Strand copper winding
Package Includes:
- 1 x iFlight Xing2 2809 1250KV Brushless Cinelifter Motor – Black
- 4 x M3x8 screws
- 1 x M5 Flange Nut
