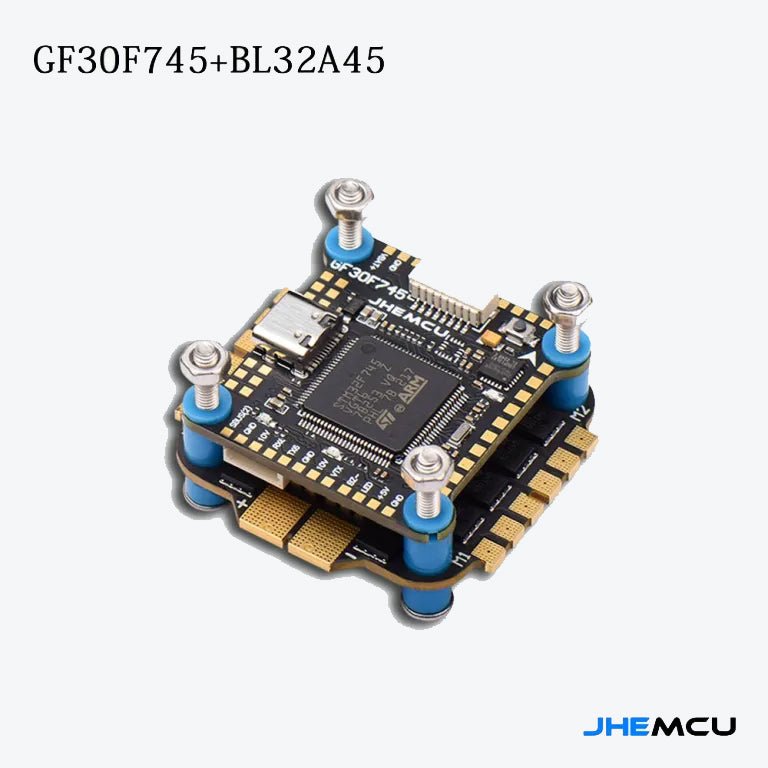

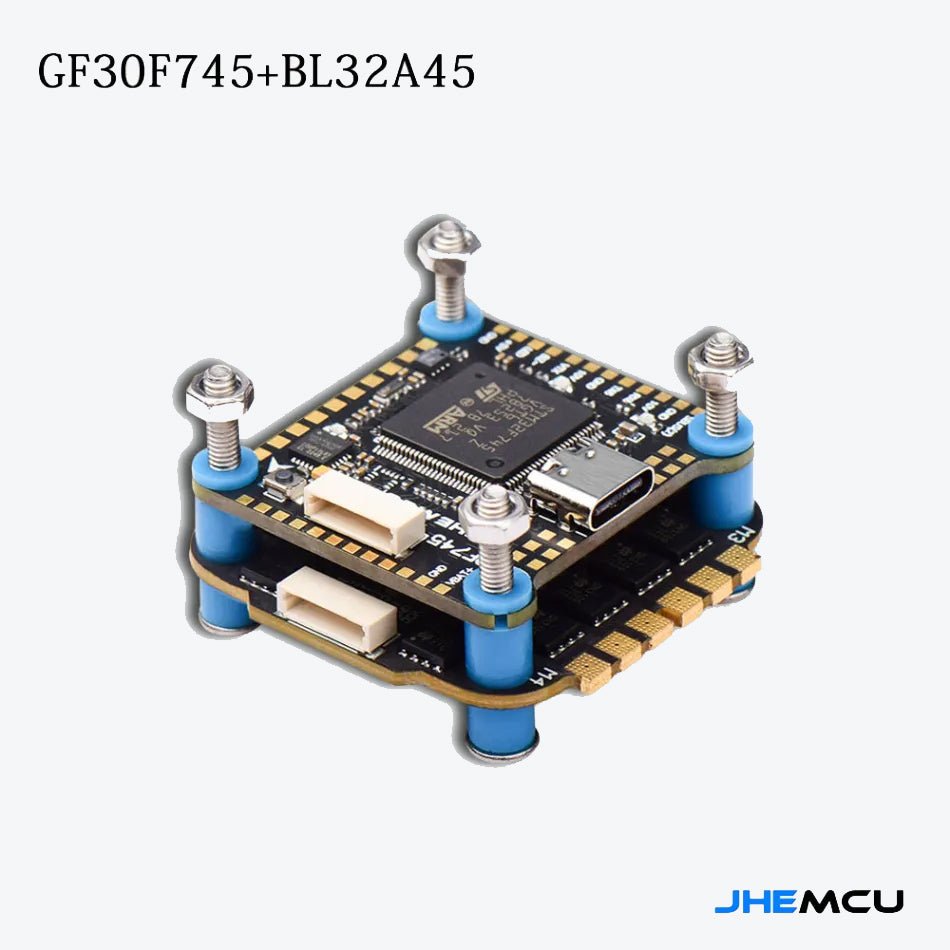

JHEMCU GF30F745-MPU Flight Controller with BL32 45A 3-6S 4in1 ESC Stack – 30x30mm

The JHEMCU GF30F745-MPU Flight Controller, combined with the BL32 45A 3-6S 4in1 ESC is a compact 30x30mm package providing reliable, high-performance Stack.

Check out all our FPV Stacks Collection?and the rest of our JHEMCU Products!

Specifications:

FC

• Chip:STM32F745VG(216MHZ)

• Gyro:MPU6000

• Barometer:DPS310

• OSD Chip:AT7456E

• Black box:16MM

• LED Program:Support

• BB buzzer:Support

• Input voltage:3-6S

• I2C Connector:Support

• BEC:5V/2.5A

• BEC:10V/2.0A

• Cam Input:Support

• USART:UART1,UART2.UART3.UART4.UART6.UART7

• Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

• GPS:YES

• COMPASS:YES

• HD O3:YES

• ESC Signal:Dshoot150.Dshot300,Dshot600

• USB:TYPE-C

• Current Port:Yes.

• Voltage Sensor:Yes

• DFU Button:YES

• FC firmware:betaflight_4.4.2_JHEF745.HEX

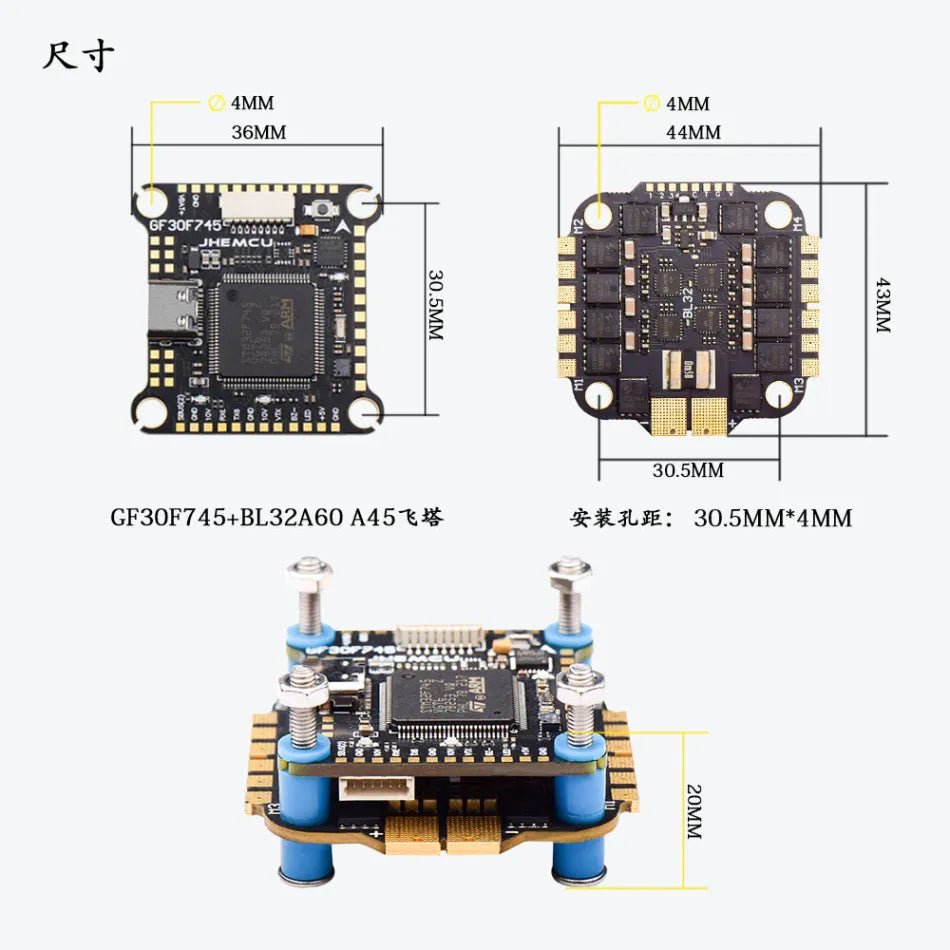

• Instal hole:30.5*30.5*4MM

• Board size:36*36MM

• Weight:7.5g

ESC

• Input Power 3-6S(11-27V)
• Current: 45A
• BEC:NO
• Instal Hole:30.5*30.5*M4
• Size??44*43MM
• Firmware:BLHELI_32 JHEMCU_ESC32_MULTI_32_9.HEX
• Weight:15.4g

Package Includes:

• 1 x?JHEMCU GF30F745-MPU Flight Controller with BL32 45A 3-6S 4in1 ESC Stack – 30x30mm

?
