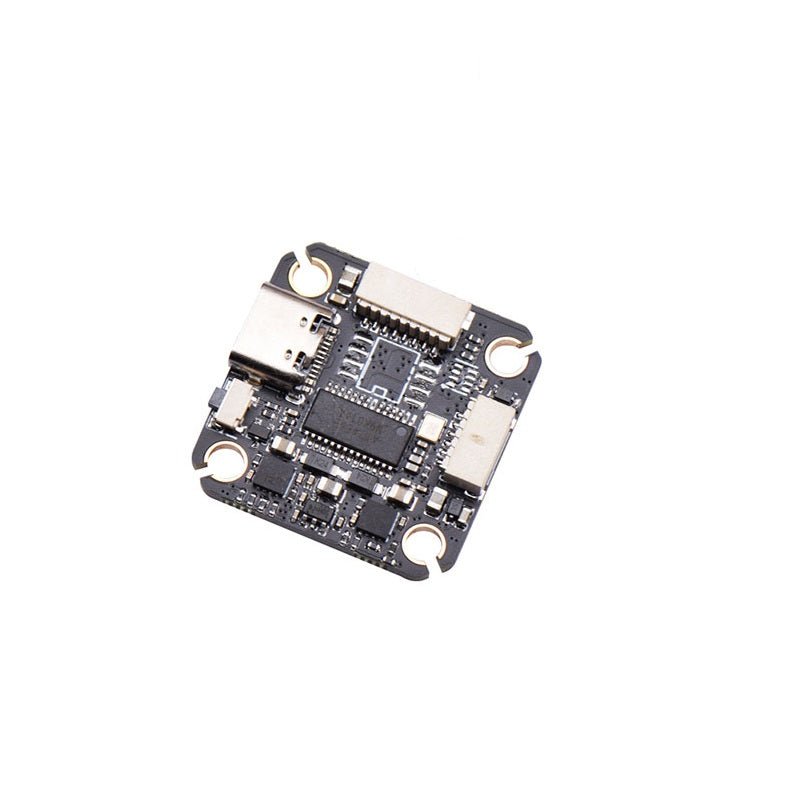

JHEMCU NOXE F4 V2 Standard 3-6S V2 Flight Controller For DJI – 20x20mm

New 20x20mm flight controller line from JHEMCU available as standard and deluxe.
Deluxe verion features blackbox and barometer.

Standard: No Barometer
Deluxe: With Baromete

Check out all our 20x20mm Flight Controllers and the rest of our JHEMCU Products!

Specifications:

JHEMCU F4 NOXE 3-6S 20*20 Flight Controller for DJI

• · CPU: STM32F411
• · Power supply: 2-6S/7-26V (2S power supply cannot output 10V)
• · Signal protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.
• · Sensor: MPU6000
• · Size: 27* 27mm (20mm mounting hole, diameter 3MM)
• · Firmware version: Betaflight JHEF411
• · Black box: Deluxe supports16MB ,Standard does not support
• · Barometer: Deluxe supports BMP280, Standard does not support
• · OSD: Support
• · DJI VTX: reserved interface and wiring, support
• USB: TYPE-C interface
• · IIC: Support
• · UART: 2 channels, UART1: receiver, UART1, 2
• · BEC: BEC 5V/3A and 10V/2A
• · DJIVTX: Support, reserved dedicated socket, equipped with plug wire.
• · Receiver: SBUS, IBUS, DSM2/X, TBS, etc.
• · Support WS2812 programmable LED
• · Support buzzer
• · Built-in voltage sensor, socket reserved for current meter interface
• · Weight: 4.5 grams
• Note: The DJIVTX interface and RX2 on the ESC interface are multiplexed, so you can only choose one of them,
• and the two functions cannot be connected or turned on at the same time.

Package Includes:

• 1 x JHEMCU NOXE F4 V2 Standard 3-6S V2 Flight Controller For DJI – 20x20mm
