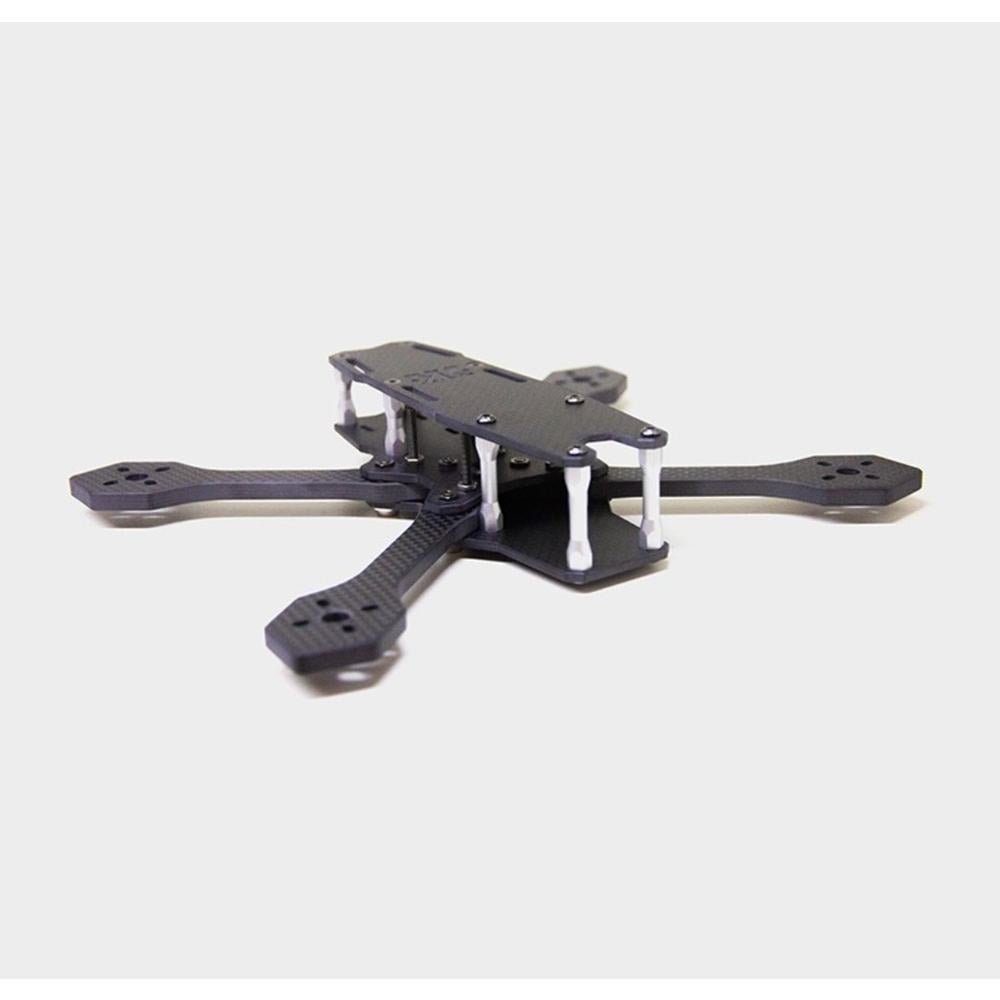

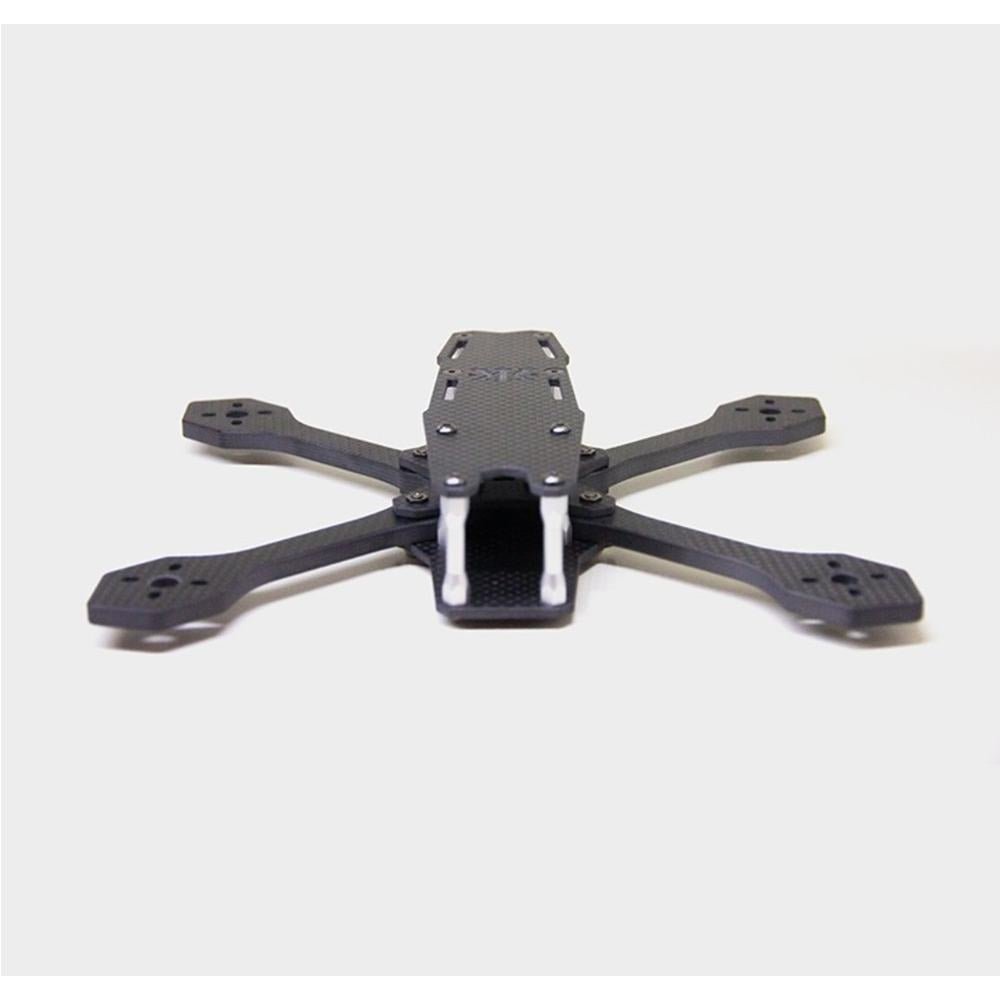

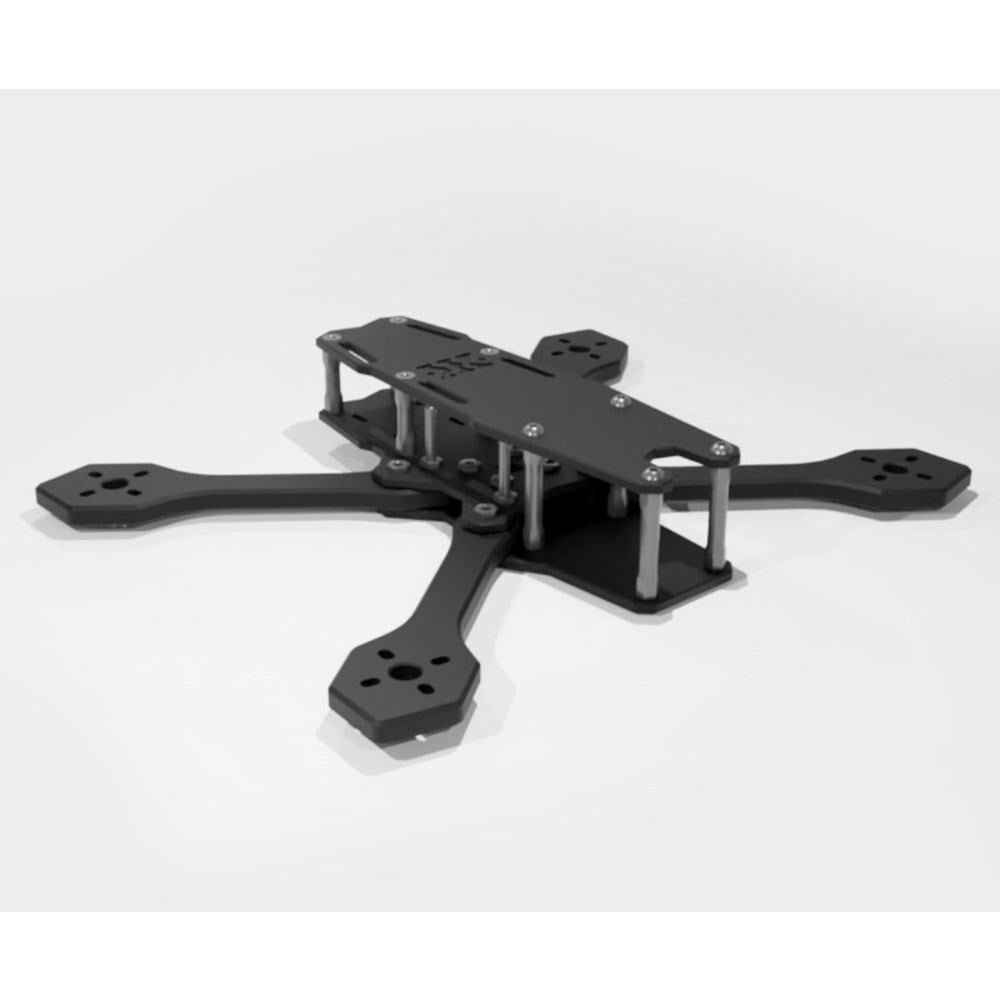

Kayou Frames Kayoudur 5 Inches HD Freestyle Quadcopter Frame Kit

Check out all our Frames Collection and the rest of our Kayou Frames Collection!

Features:

• Beefy 6*12mm Arms: Built to handle the harshest impacts, these robust arms provide unmatched strength and durability.

• Solid 3mm Top and Bottom Plates: No compromises on strength and rigidity.

• Quickly Interchangeable Arms: Designed for convenience, our frame allows you to swap arms independently of your stack. Plus, all arms are identical, making replacements a breeze.

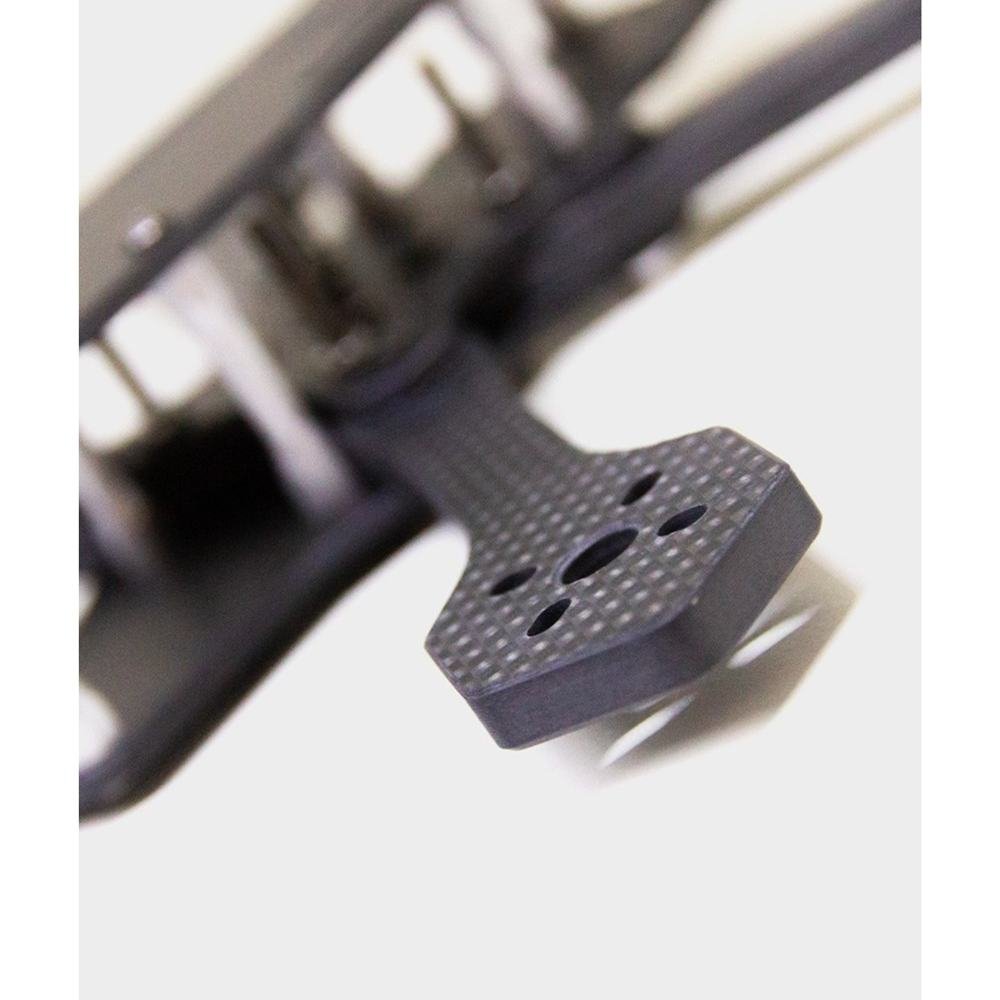

• Wide Motor Pads with Increased Bell Protection: Our thoughtfully designed motor pads provide ample protection to your precious motors, even during aggressive flights (and crashes).

• No Cam Plates, No Worries: Say goodbye to annoying jello and forget about camera damage from frontal impacts! The Kayoudur’s TPU FPV cam mount keeps things smooth and your camera safe.

Frame Specifications :

• High Quality T700 3K Toray Carbon (Fully Chamfered)

• Hexa M3 12.9 graded Steele Screw

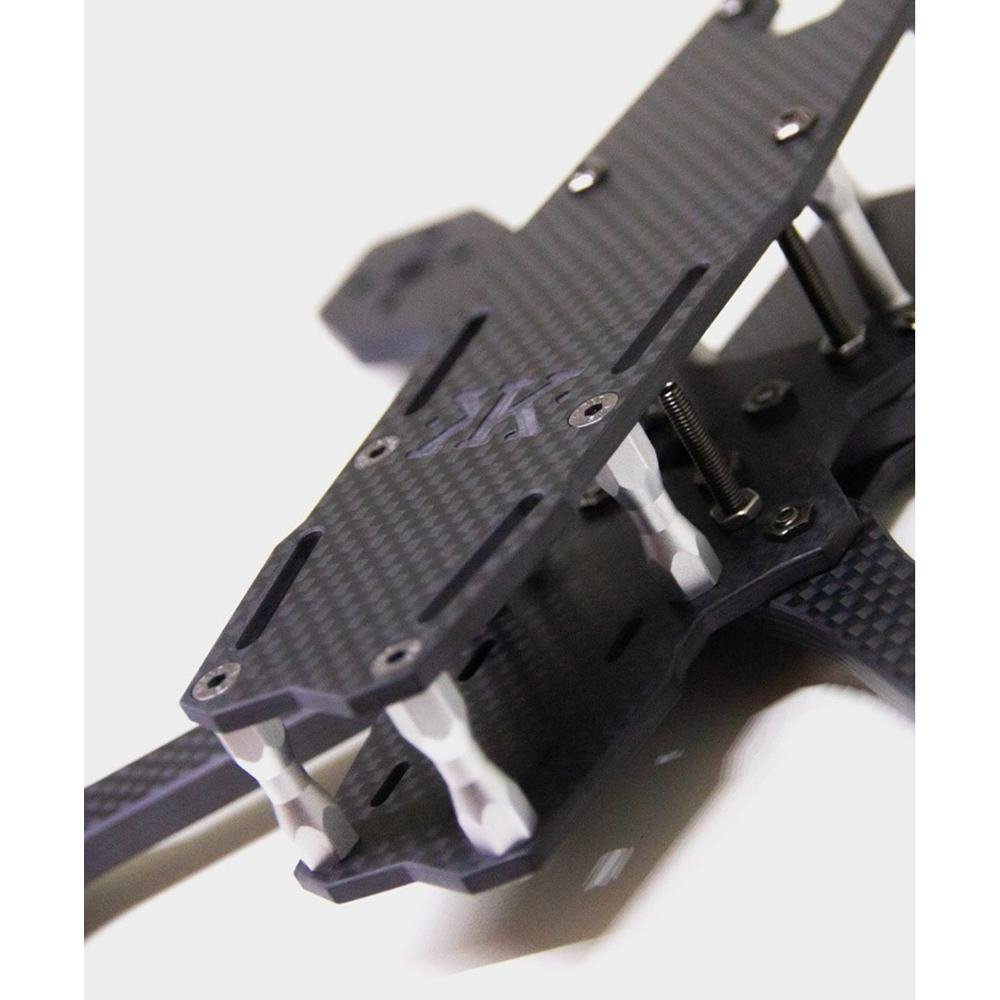

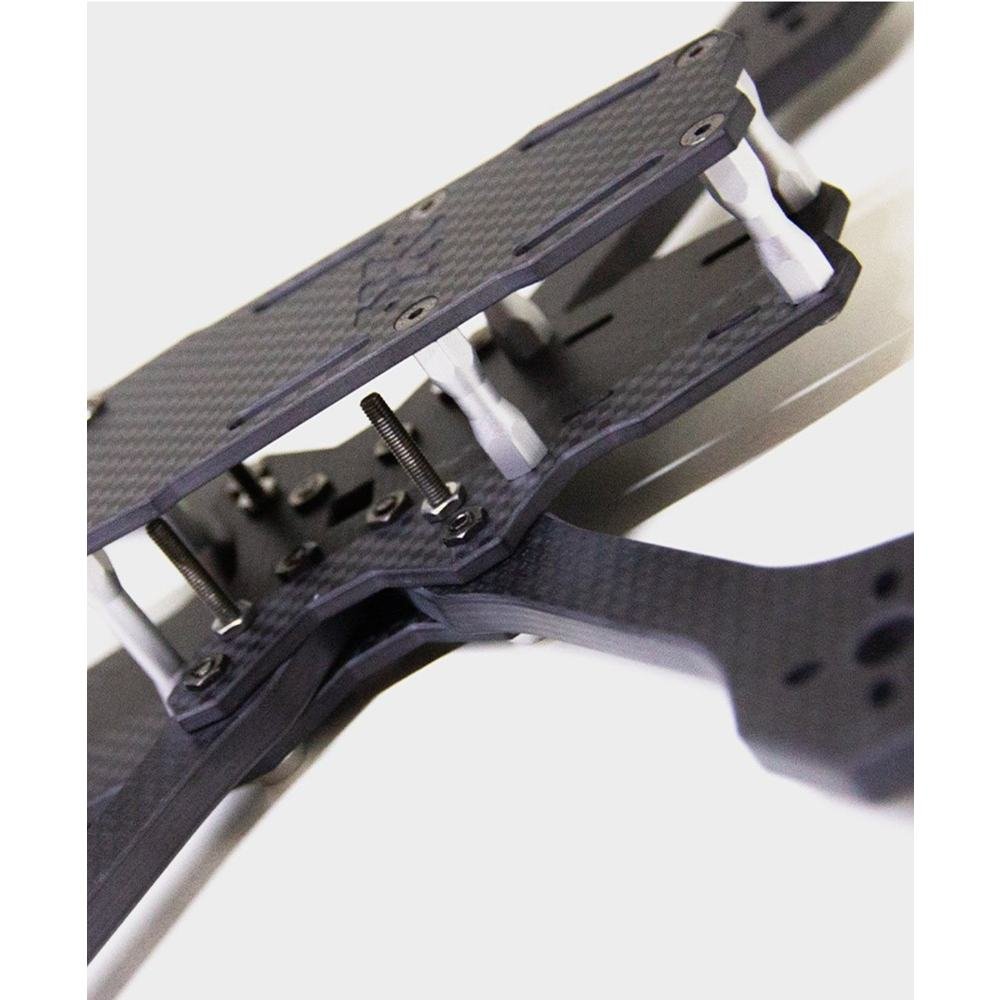

• Custom high quality Aluminium standoffs

• Weight 167g

• 3mm Top Plate

• 3mm Middle Plate

• 3mm Bottom Plate

• 6mm Arms

Build Specifications :

• 30×30 Main Stack

• 20×20 Back Stack  (Fits Caddx Vista, Air Unit O3, Walksnail)

You can download the Build Guide here.

Sounds too good to be true right ? Check out these analog DVRs in bando + Kayoudur with a linear VTX Antenna :

If your electronics allows (typically on an Analog build), you can lower the deck by reducing the length of the standoffs by 5mm.

This modification lowers the center of gravity and increases the rigidity of the standoffs (although they’re already stiff enough!). Beyond that, the Low Profile mod is, above all, incredibly sexy from an aesthetic point of view.

Package Includes:

• 1 x  Kayoudur 5 Inches HD Freestyle Quadcopter Frame Kit (Without TPU)
