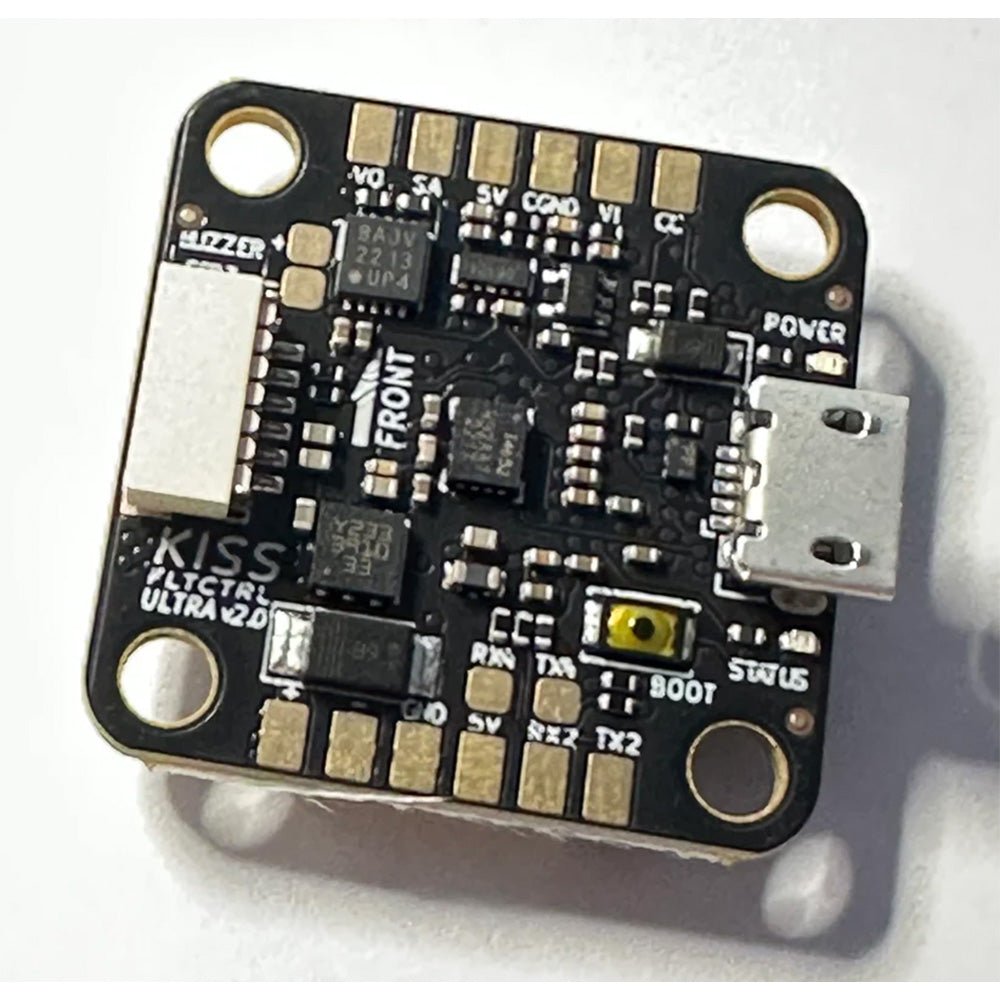

KISS Ultra Mini V2 FPV Drone Flight Controller – 20x20mm

We are extremely happy to be an official retailer for the fan favorite KISS Ultra V2! The Anuta Software KISS Ultra Mini V2 features the latest STM32H743 processor. Providing unparalleled processing power to your aircraft. Along with an IIM-42652 SPI gyro, 5v 2A BEC, 6-27V (2-8S) power handling, and a host of other features, the Ultra Mini V2 from Anuta Software is on the cutting edge of Flight Controller technology and in 20x20mm Package.

Check out our large variety of Flight controllers and KISS Compatible Products!

Hardware Features:

• STM32H743 processor 480 MHz, 2MB FLASH, 1.28MB RAM
• IIM-42652 gyro, SPI
• BMP388 barometer
• 8 pin ESC connector, backward compatible with KISS (!!!not with FETTEC!!!). Includes current sensor pin.
• 2 serial ports on 6 pin connectors (SER1 / SER3), KISS compatible
• Overcurrent protection on all data lines
• ESD protection on USB
• 5v bec (2A) with separate power on lipo and on usb. 8s capable.
• Integrated spike absorber
• Dedicated current sensor pad

Software Improvements:

• Firmware is based on LATEST version from PATREON
• New STM32 H7 bootloader, VCP driver
• One HEX to rule them all… ??
• Smart config storage… NEVER loose your configuration…
• Optimized hardware interface layer code
• Optimized adaptive filter code (CPU load is about 8% fully loaded!!!)
• Added BLHELI Passthrough
• IRC Ghost support
• TBS CSRFv3 support (ultra code)
• Improved RTH with BARO support
• KISS Weather Station (its fun)
• NO soft serial ports anymore!
• 7 serial ports exposed (dedicated serials for SA and RC telemetry)
• Camera control (analogue, real DAC)
• UBX protocol GPS support
• Battery capacity/alerts
• DSHOT router (free routing between software and hardware channels)
• Up to 4 motors support with DSHOT2400/ (1wire – 8)
• Full support of all HD systems (DJI MSP, DJI WTF, DJI O3, Walksnail, HD0)

OSD Features:

• Integrated Graphical OSD
• No OSD firmware update required
• Configurable Black and White levels, transparency
• FULL KISS configuration from OSD
• ESC configuration
• No serial port required, 50fps refresh rate
• Battery cell voltage sensor
• Crossfire tools
• Hardware test tools (rc test, gps test, video test, motor test etc)

GUI Improvements:

• Forked GUI code (With permission of Flyduino)
• Design facelift, code cleanup.
• Removed odd things like pentacopters, cars and other noise.
• Web GUI without installation available at https://kiss-ultra.com/
• OSD Mirror https://youtu.be/aUqtCTAt8ik
• Native support of Apple Silicon

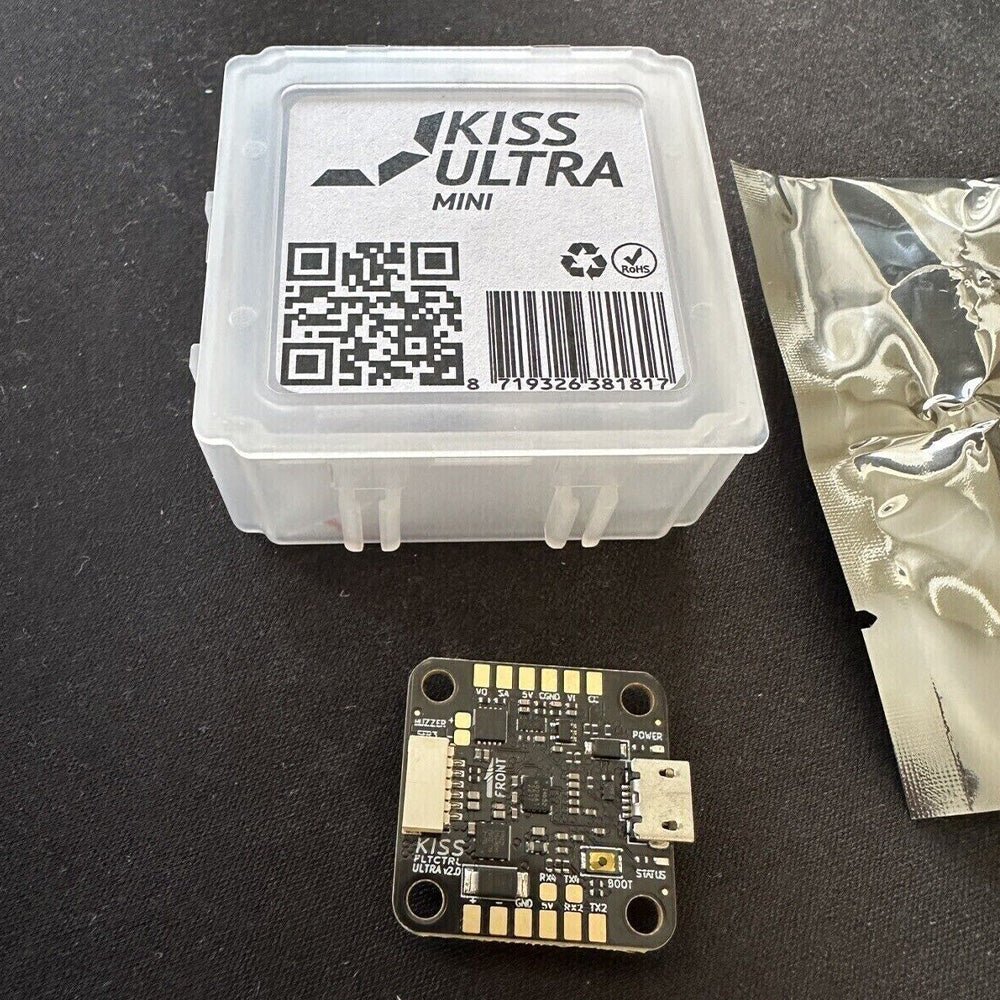

Includes:

• Kiss FCFC Ultra Mini v2
• 8-8 cable
• 8-6 cable (legacy)

Support and Warranty needs:

• If any setup, support, or warranty needs should arise with this KISS product, please be aware that KISS is one of the manufacturers we carry that requests the pilot to email or contact them directly for any troubleshooting or possibly defective items at:
  fedor@anuta.org
  … or via their discord at this link:  https://discord.com/invite/egHCzgNjH3
