Lumenier AXII 2 Right-Angle 5.8GHz Antenna (RHCP) – 105mm

Improved Features

• Significantly Improved Range with a Higher Gain (2.2dBic Gain)
• Wider Bandwidth (5.3-6.2GHz)
• Cleaner Signal And Better Rejection to Interference
• More Durable – Improved Injection Molded Housing
• Virtually Perfect Axial Ratio

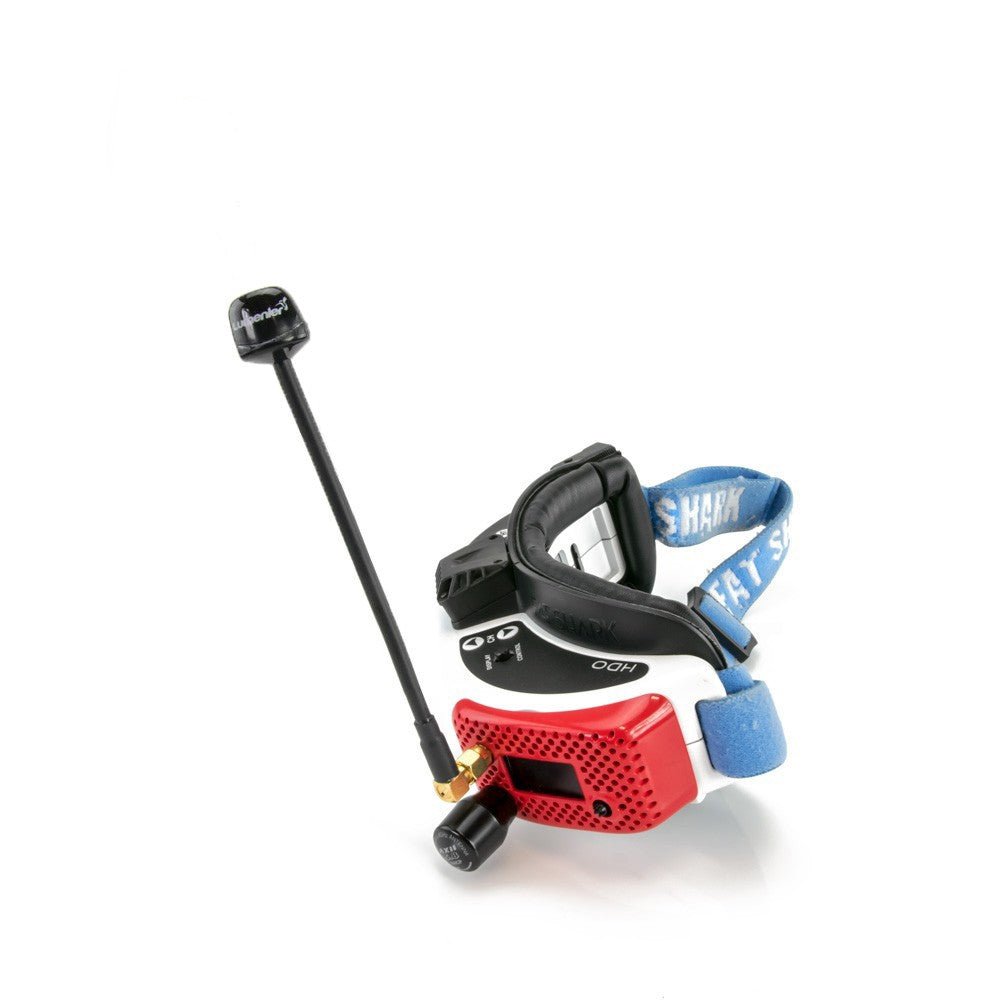

While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for lightweight racing builds, freestyle quads, and your FPV goggles!

The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Super Tough

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2’s robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 160mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Specifications

• Gain: 2.2dbic
• Axial ratio: 1.0 (near perfect)
• Bandwidth: 5.3GHz-6.2GHz
• Radiation Efficiency: 98%
• SWR: <=1.5:1
• Weight: 12.7g
• Size: 105mm x 17.5mm
• Cable: Semi-rigid RG402
• Connector: Right-Angle SMA
• Works great as both a transmitting or receiving antenna
• Compatible with other styles of 5.8GHz RHCP antennas

Polarization

• Right Hand Circular (RHCP)

Includes

• 1x Lumenier AXII 2 Right-Angle SMA 5.8GHz Antenna (RHCP)

Design by  and manufactured by  Patent Pending.
