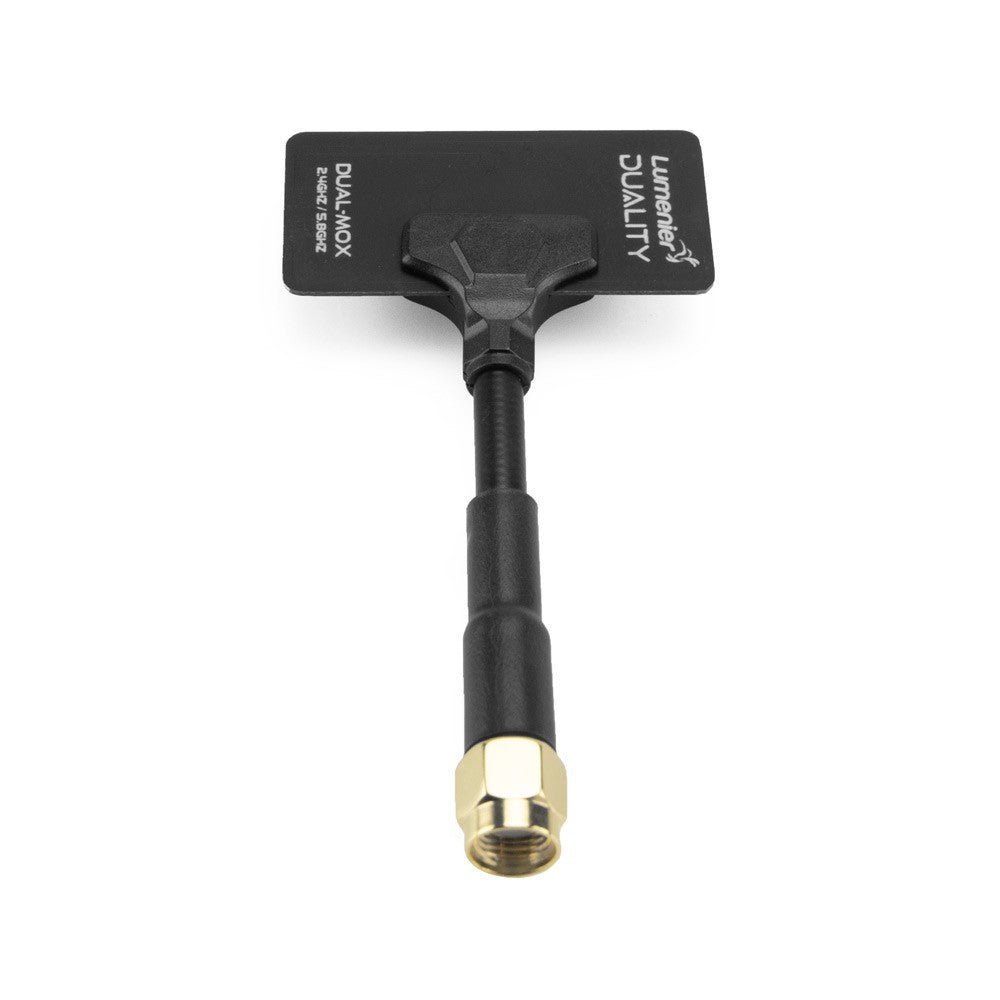

Lumenier Duality DUAL-MOX HD 2.4/5.8GHz Dual-Band High-Gain Antenna (1pc)

The Lumenier Duality DUAL-MOX HD 2.4/5.8GHz Dual-Band High-Gain Antenna is the best upgrade for the DJI FPV Goggles V2. The DUAL-MOX is a linear directional antenna specifically designed as an upgrade for the DJI FPV Drone Goggles. Duality antennas provide improved 2.4/5.8Ghz reception in a compact form factor. That’s right, this antenna will work on both 2.4GHz or 5.8GHz frequencies!

The Lumenier Duality DUAL-MOX HD Antenna was created in partnership with world-renown antenna designer Hugo of TrueRC to bring you this Dual-Band aftermarket antenna designed as a direct replacement and upgrade for your stock DJI antennas found on the DJI FPV Goggles V2.  The Duality antenna was made from the ground up to be a perfect match for the DJI goggles. Duality antennas are form-fitting, low profile, color matching, direct connect RP-SMA, and all this with improved performance.

The Duality DUAL-MOX HD is a linear directional antenna, designed with digital HD transmission/reception in mind. On top of that, it is also 2 antennas in one being able to effectively function as both a 2.4GHz and a 5.8GHz antenna. The Lumenier Duality DUAL-MOX HD has been further customized to be a direct fit for the DJI FPV Goggles V2. The Duality DUAL MOX HD comes with a plug and play ready RP-SMA connector designed to directly and securely screw onto the DJI Goggles. No adapters are needed! This makes for an ultra-compact and efficient setup since you don’t need to lose any dB with extra adapters.

Also available as a set of 4 antennas.

Checkout all our FPV Antennas and our entire Lumenire Collection!

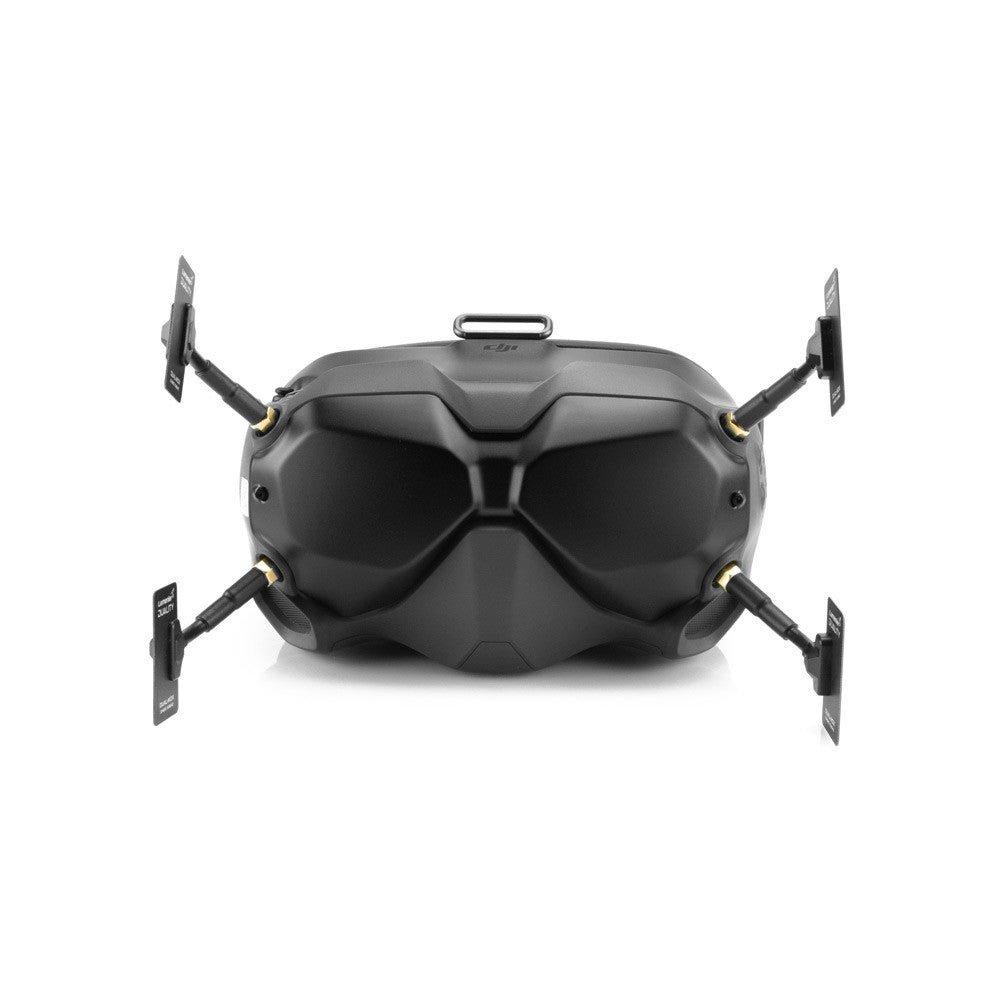

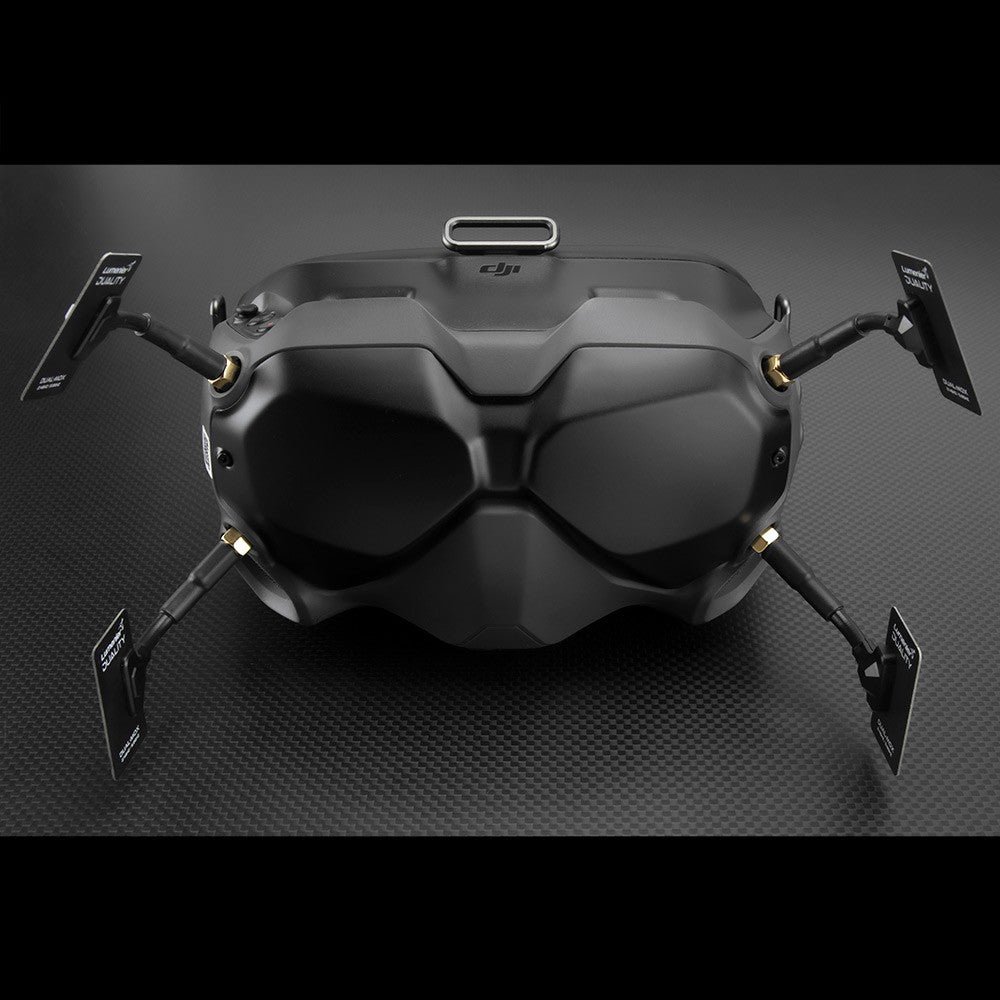

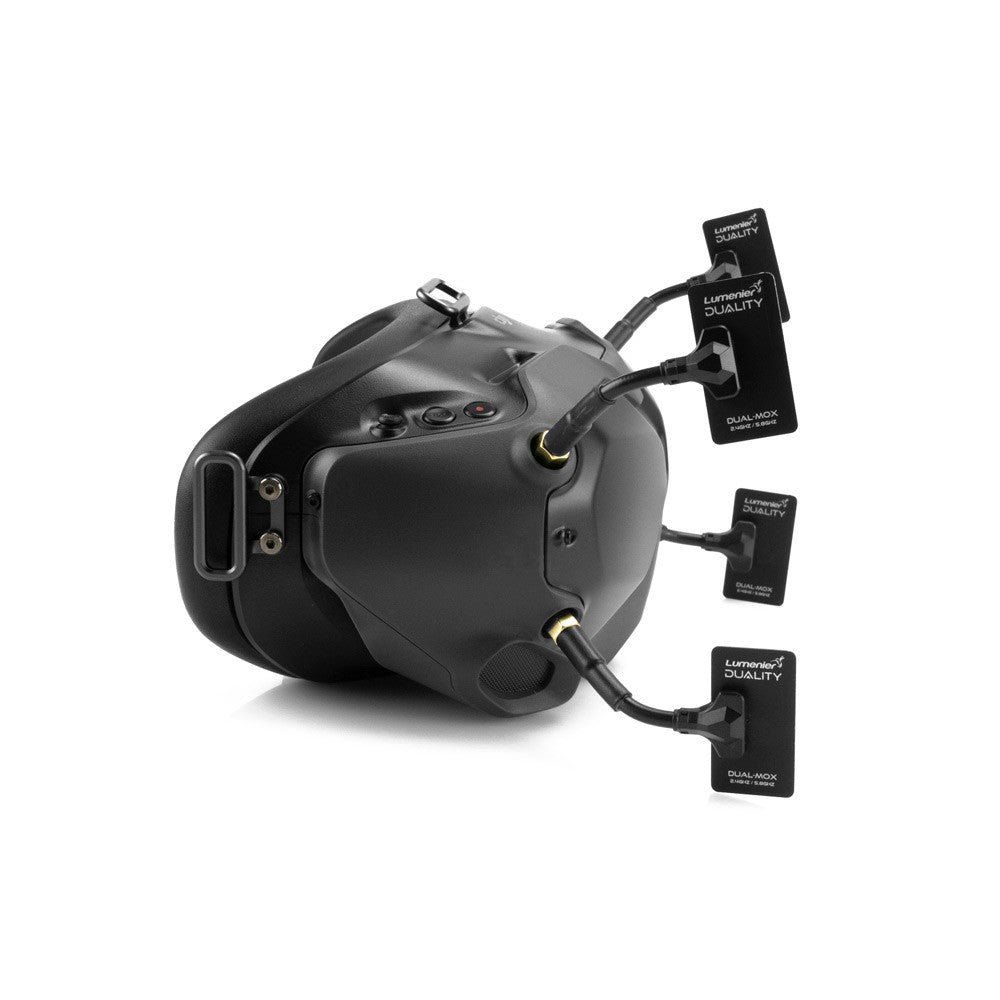

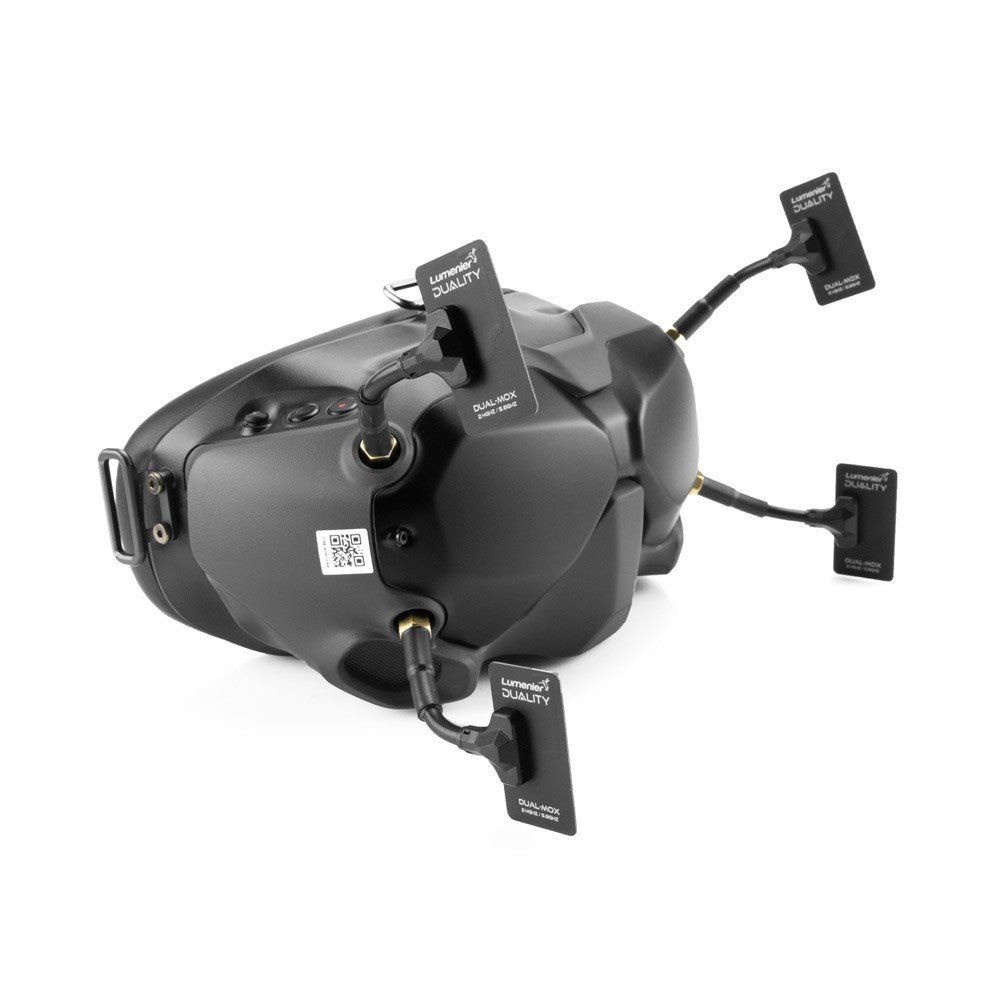

Note: Goggles are NOT included. (4x combo shown in photo below, this product is sold as a single piece antenna)

Features

• High Gain Directional Antenna
• Dual-Band Technology (2.4/5.8GHz)
• Quality Engineering
• Precision Tuning
• Best Long Range Dual-Band Goggle Antenna upgrade for the DJI FPV Drone
• Also works great as a 2.4GHz long range transmitter antenna upgrade for TBS Tracer TX

Dual-Band Antenna Technology

Designing a single band antenna of such incredible performance is hard enough, but doing this in a dual-band network is near impossible. Until now!

The Duality antenna features one of the most advanced Dual-Band networks available today. Not only does it have unrivaled performance but it managed to do this in an ultra-compact, 5g package. Where other antennas make sacrifices to reduce the size the Duality antenna’s design is able to keep all of the benefits while at the same time be incredibly small.

Precision Tuning

Every Duality antenna comes from the factory having been precisely QC checked during and after assembly. The molded plastic retaining clamps add extra support to the semi-rigid cable at the solder connection point. Good isn’t good enough, Lumenier and TrueRC have stepped it up to the next level of precision manufacturing.

Quality Engineering with High-Grade Materials

The Lumenier Duality antennas are produced with high quality, low loss materials. The material is key to a good quality antenna, and even more so when it comes to performance. This technology along with precision manufacturing results in a top-of-the-line receiving antenna. It is designed to work with the DJI HD FPV Goggles for 2.4 and 5.8GHz, and it is capable of receiving signals up to many miles away.

Specifications

• Bandwidth: 2.4GHz-2.5GHz & 5.65GHz-5.925GHz
• Gain: 5.9dBic
• Beam Width: Horizontal: 120deg Vertical : 80deg
• Weight: 7g (Per Piece)
• Radiation Efficiency: up to 99%
• Dimensions: 78x39mm
• Connector: RP-SMA
• Polarization: Linear
• SWR: <=1.5:1

*Patent Pending Design

Includes

• 1x Lumenier Duality DUAL-MOX HD 2.4/5.8GHz Dual-Band High-Gain Antennas
