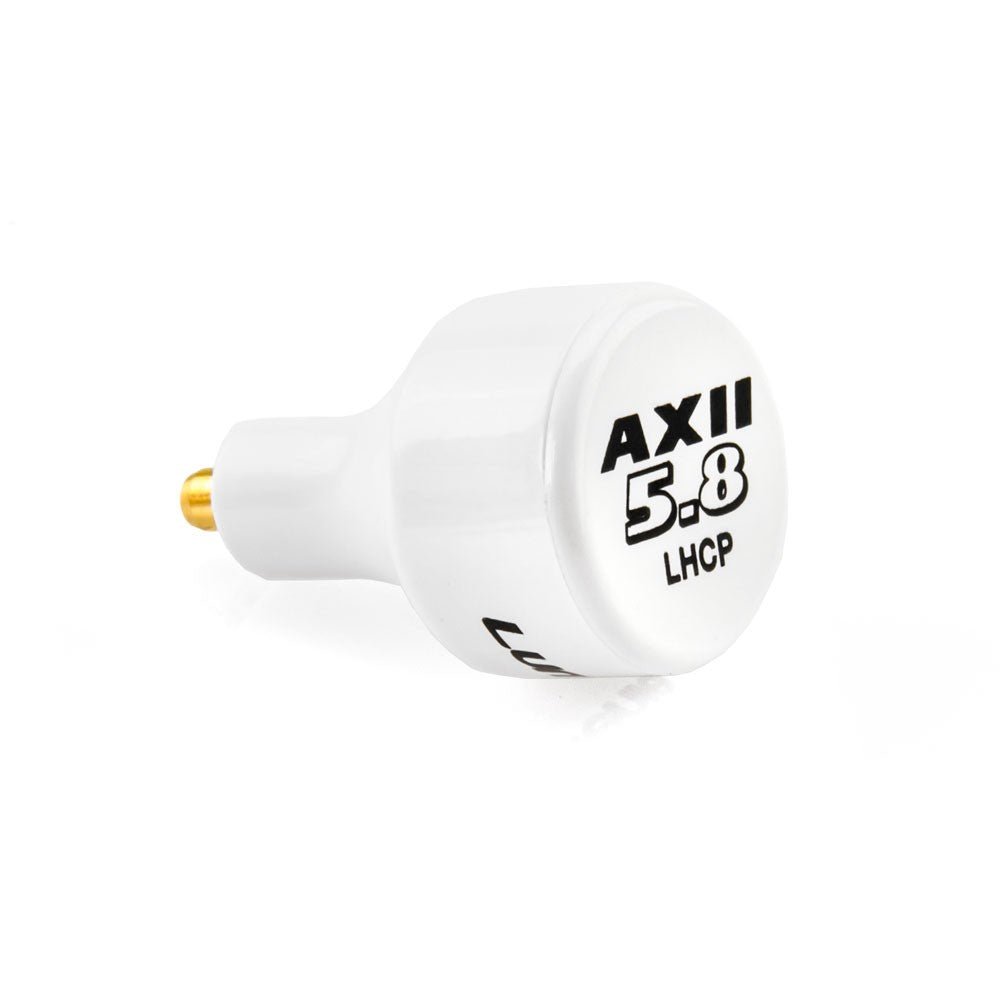

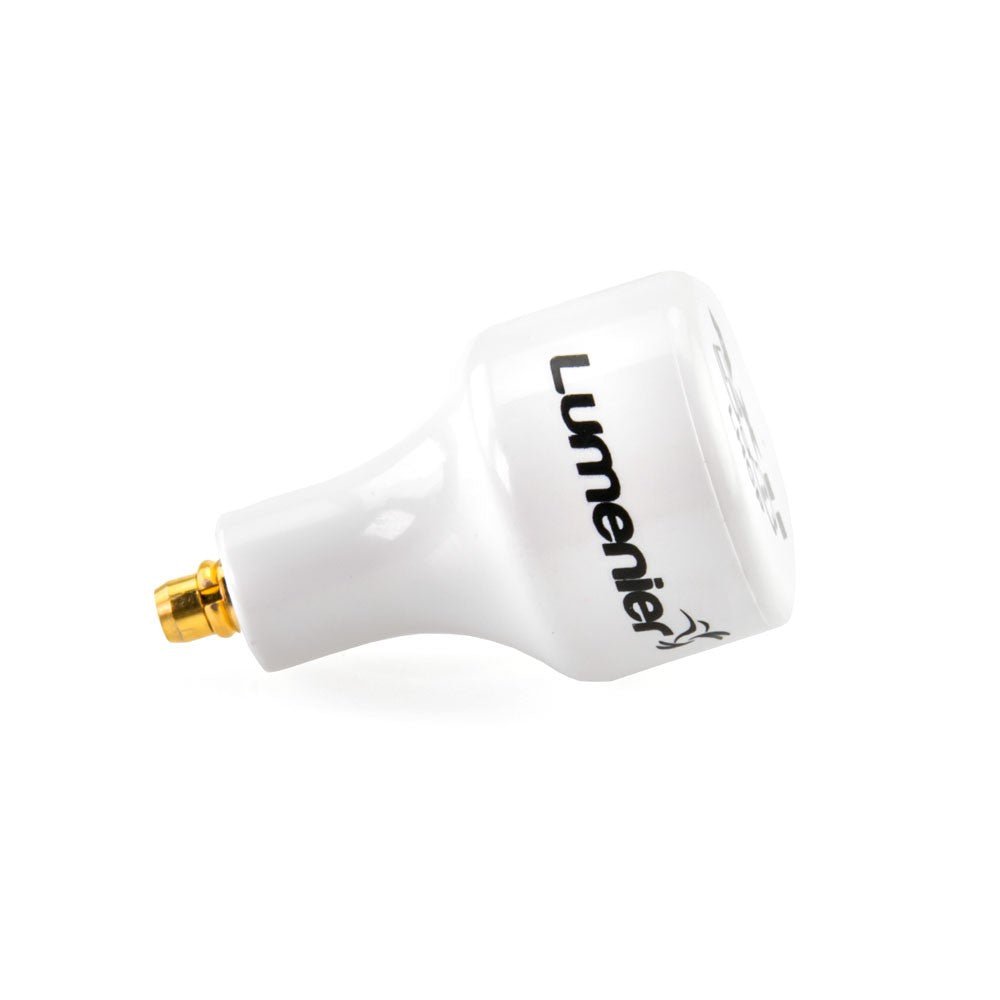

Lumenier Micro AXII Stubby MMCX 5.8GHz Antenna (LHCP)

The Lumenier Micro AXII Stubby antenna takes things down to the next level (smaller that is). Lumenier, in collaboration with renowned FPV antenna designer Hugo of TrueRC, continues to bring you the smallest, lightest and best-performing FPV antennas in the world.

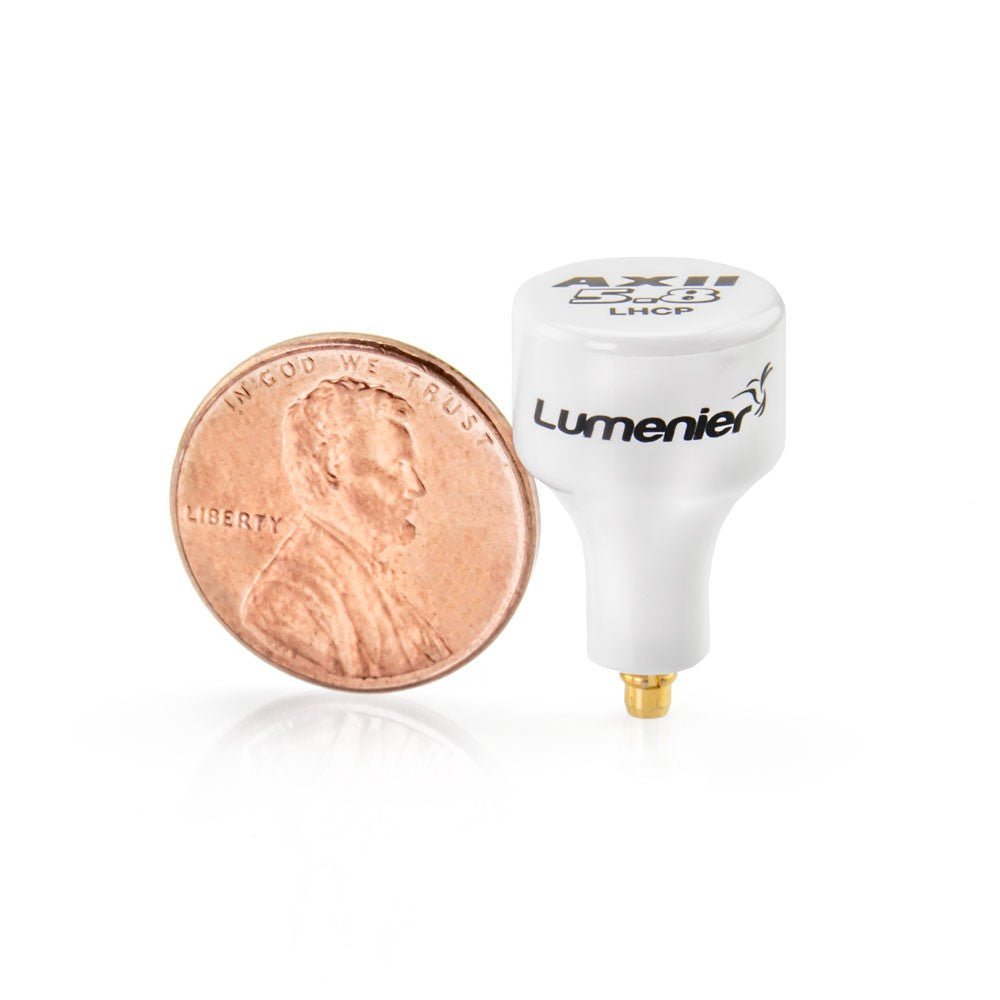

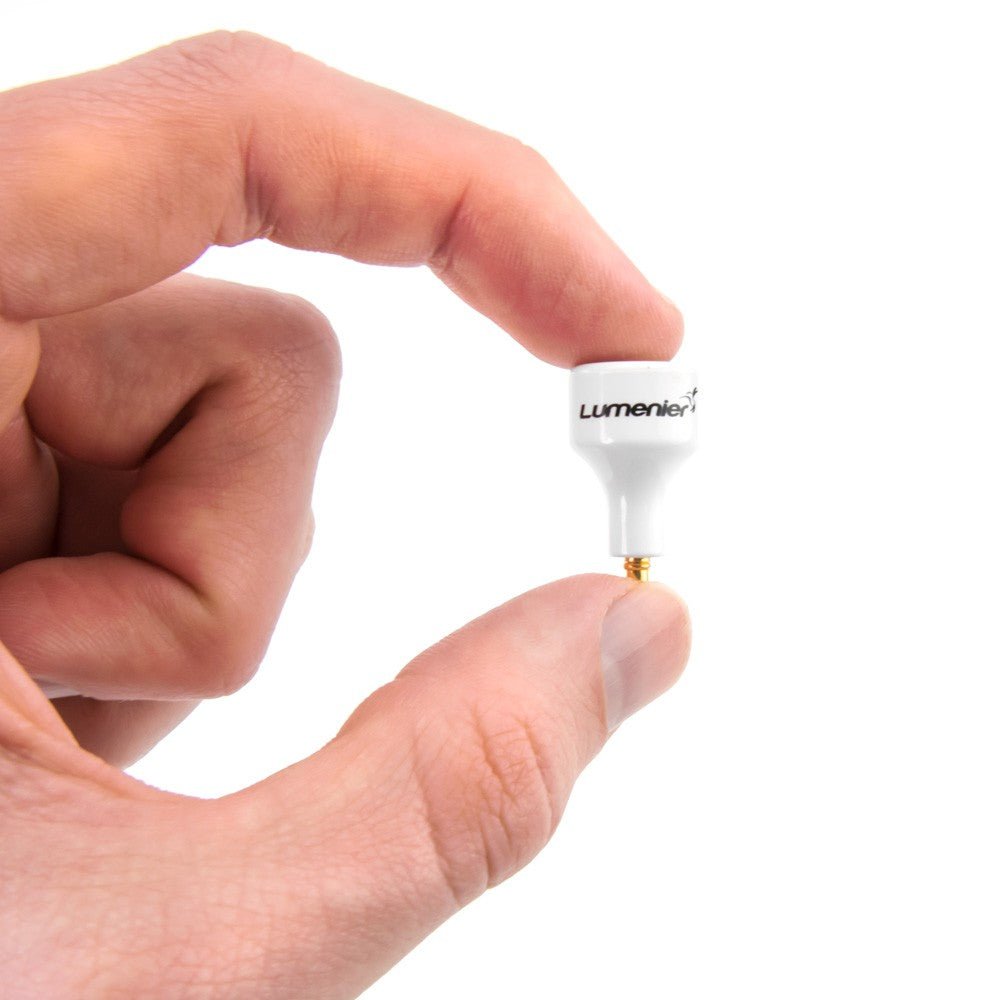

The Micro AXII Stubby antenna is a further innovation of the Micro AXII line. Made to be incredibly versatile with its one-of-a-kind direct antenna element to MMCX connector, the Micro AXII Stubby keeps things lightweight (2g) and low-profile, especially for a circularly polarized antenna.

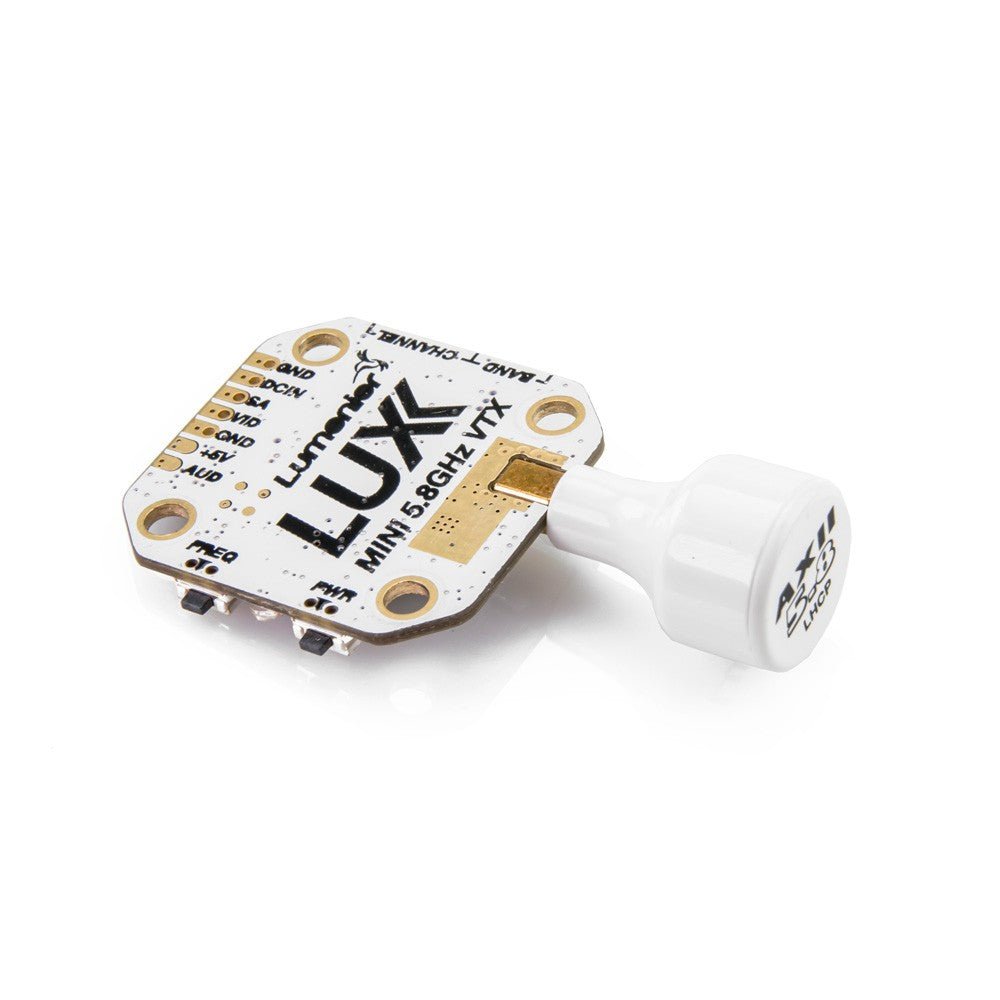

With the same internals as the Micro AXII, you’ll get uncompromised circular polarized performance on your full-size or micro quad, brushed whoop or cinewhoop. The beauty of the Micro AXII Stubby is the MMCX connector. You can attach the Micro AXII Stubby directly to the VTX for a ridiculously compact antenna setup. For more flexibility in antenna placement, use the included MMCX adapter cable to place your antenna exactly where you want!

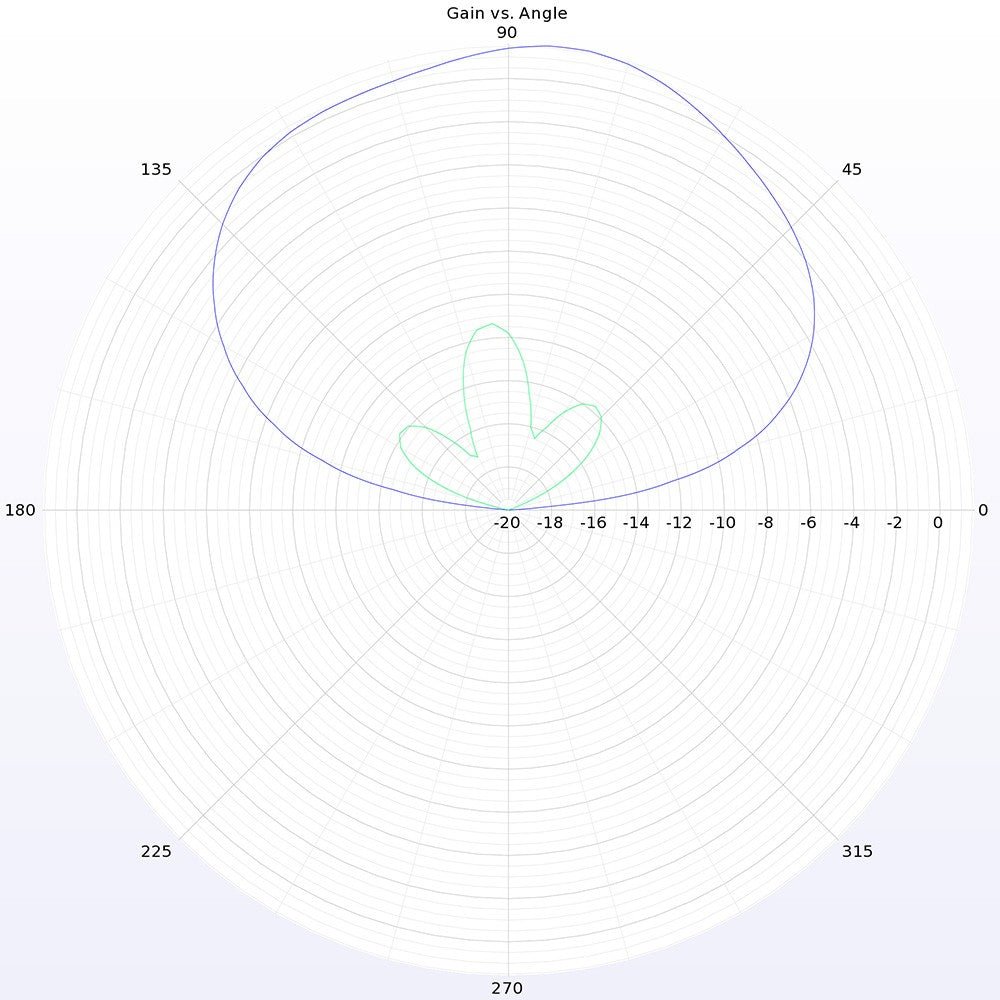

Even though the Micro AXII is both small and lightweight, it does not sacrifice performance. In fact, it outperforms most other antennas in all categories. Precision engineering has given this antenna a near perfect Cross-Polar Rejection resulting in a true circularity. This means an RHCP Micro AXII antenna rejects nearly 100% of LHCP signals, giving you a crystal clear image free of multi-pathing noise. On top of that, the Micro AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you’re on.

The Micro AXII is designed to be ultra-durable and put up with the beatings FPV pilots put on their antennas. The entire antenna array is securely protected inside the injection molded outer casing. The outer shell case is made from impact-resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside.

Specifications

• Gain: 1.6dbic
• Cross-Polar Rejection: -10 to -28dB (2.4%)
• Bandwidth: 5.5GHz-6.0GHz
• Radiation Efficiency: 98%
• SWR: <=1.5:1
• Weight: 2g
• Size: 22.1mm x 13.5mm
• Connector: MMCX
• Compatible with other styles of 5.8GHz RHCP antennas

Polarization

• Left Hand Circular (LHCP)

Includes

• 1x Lumenier Micro AXII Stubby MMCX 5.8GHz Antenna (LHCP)

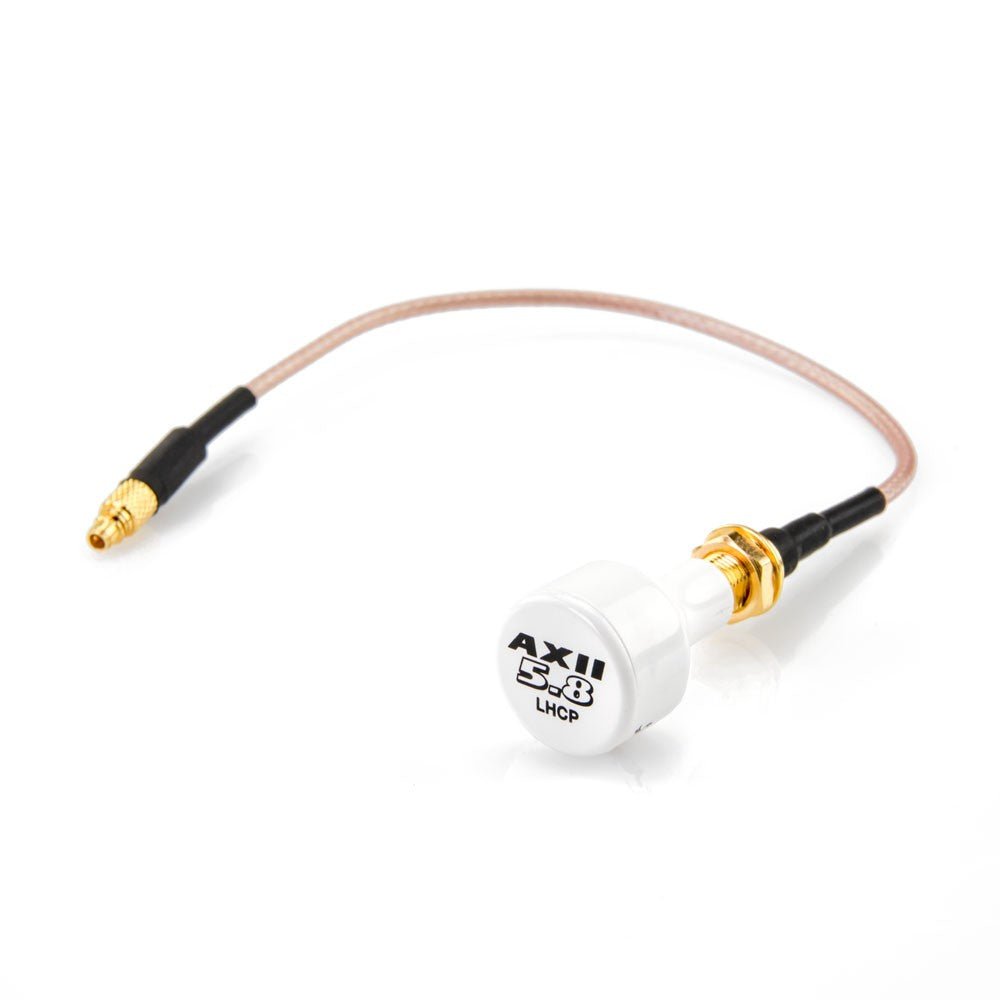

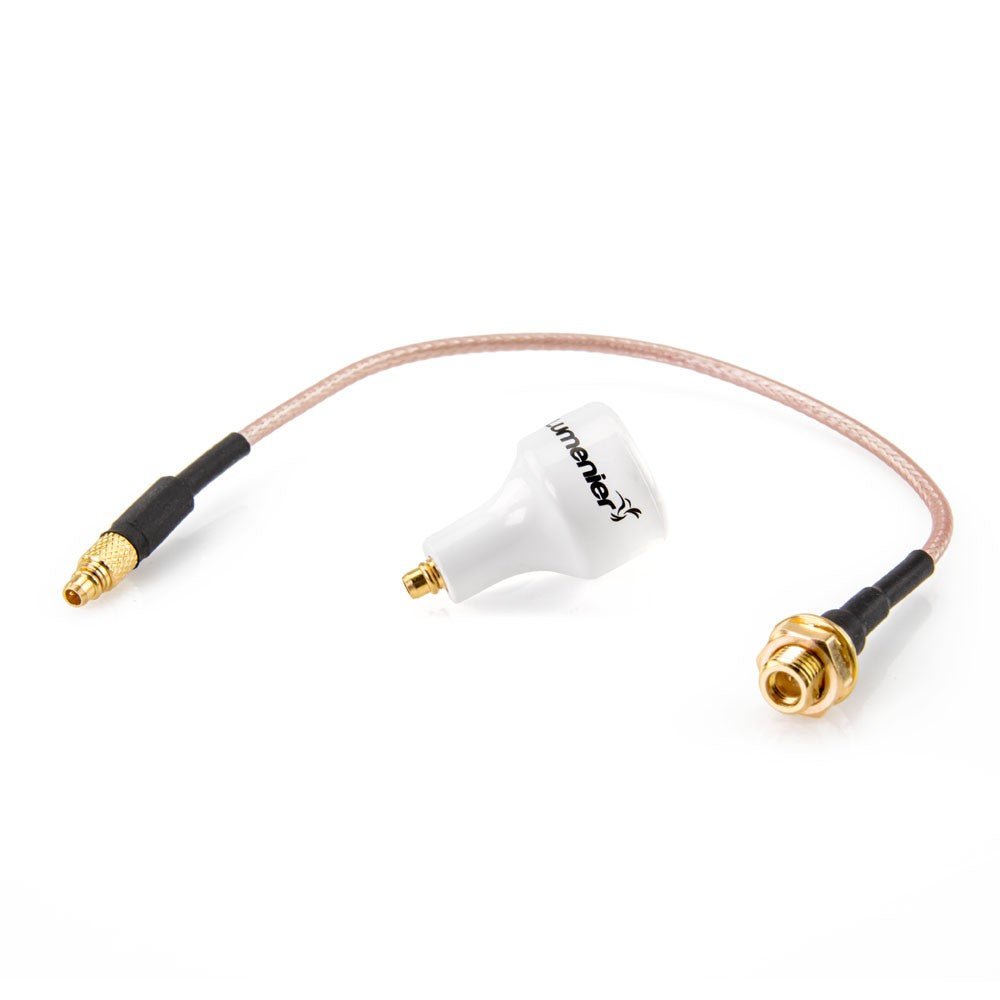

• 1x MMCX Female to MMCX Male 145mm Adapter Cable

Design by  and manufactured by  Patent Pending.
