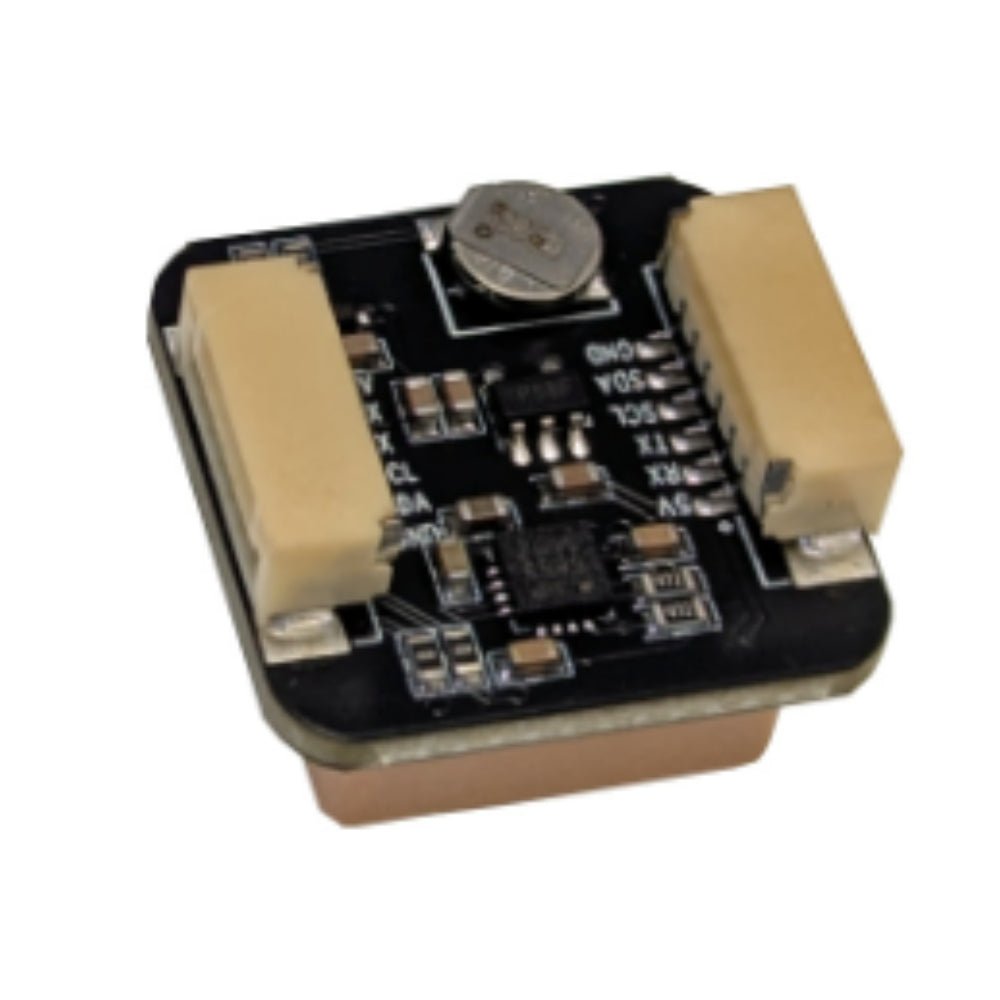

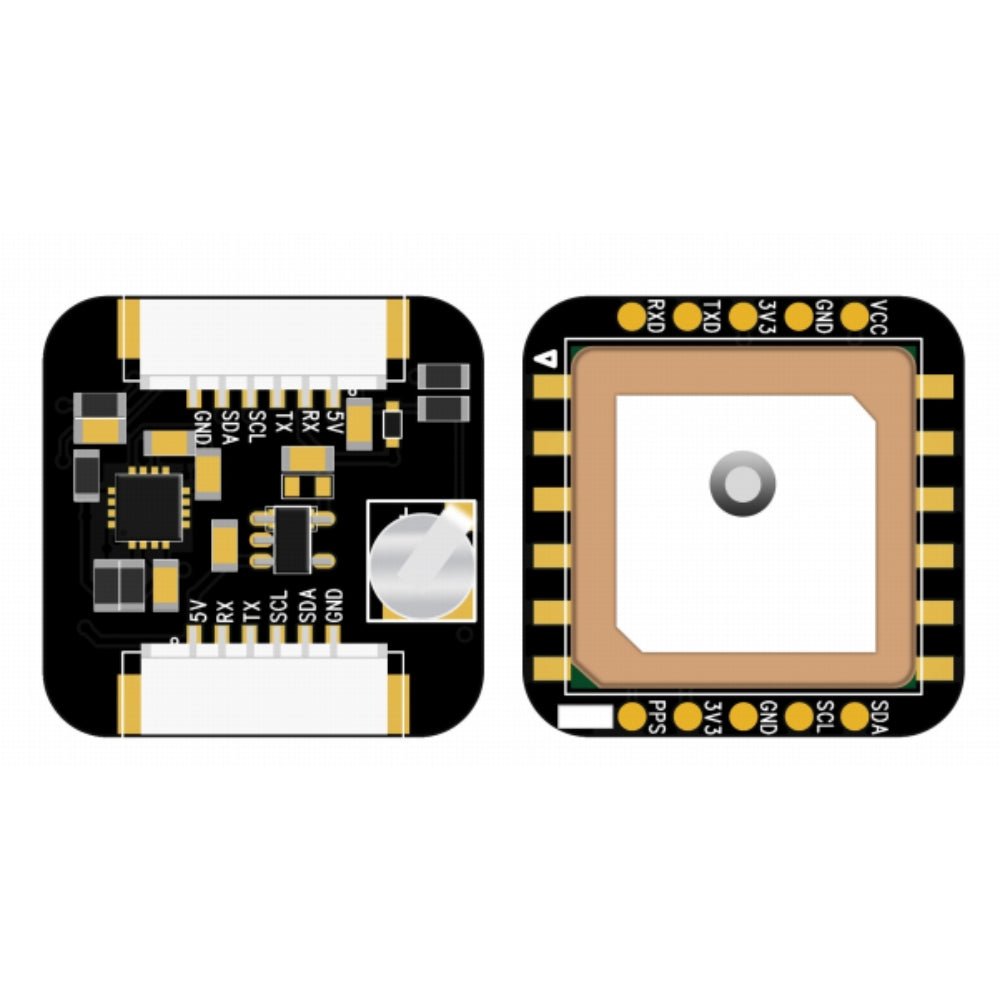

M10Q 5883 GPS module (GPS+Compass)

Features:

• Built on a modern M10Q GNSS architecture, this module delivers improved sensitivity and stable signal reception, even in challenging environments. The integrated 5883 magnetic compass provides accurate heading information, essential for Return To Home, heading hold and autonomous navigation.
• Lightweight and compact, the M10Q 5883 integrates easily on most FPV drones, whether for freestyle, cinematic or long-range setups. It is a key component for safer flights and consistent GPS performance.
• The GNSS module  BE-5883P with compass features an M10050 chip and supports GPS, Glonass, BeiDou, and Galileo. This provides you with more reliable signals for more precise positioning. Measuring 20 x 20 x 12.6 mm and weighing 8.5 g, this GPS module offers exceptional sensitivity and acquisition times for all L1 GNSS systems, even in challenging conditions.

 Specifications:

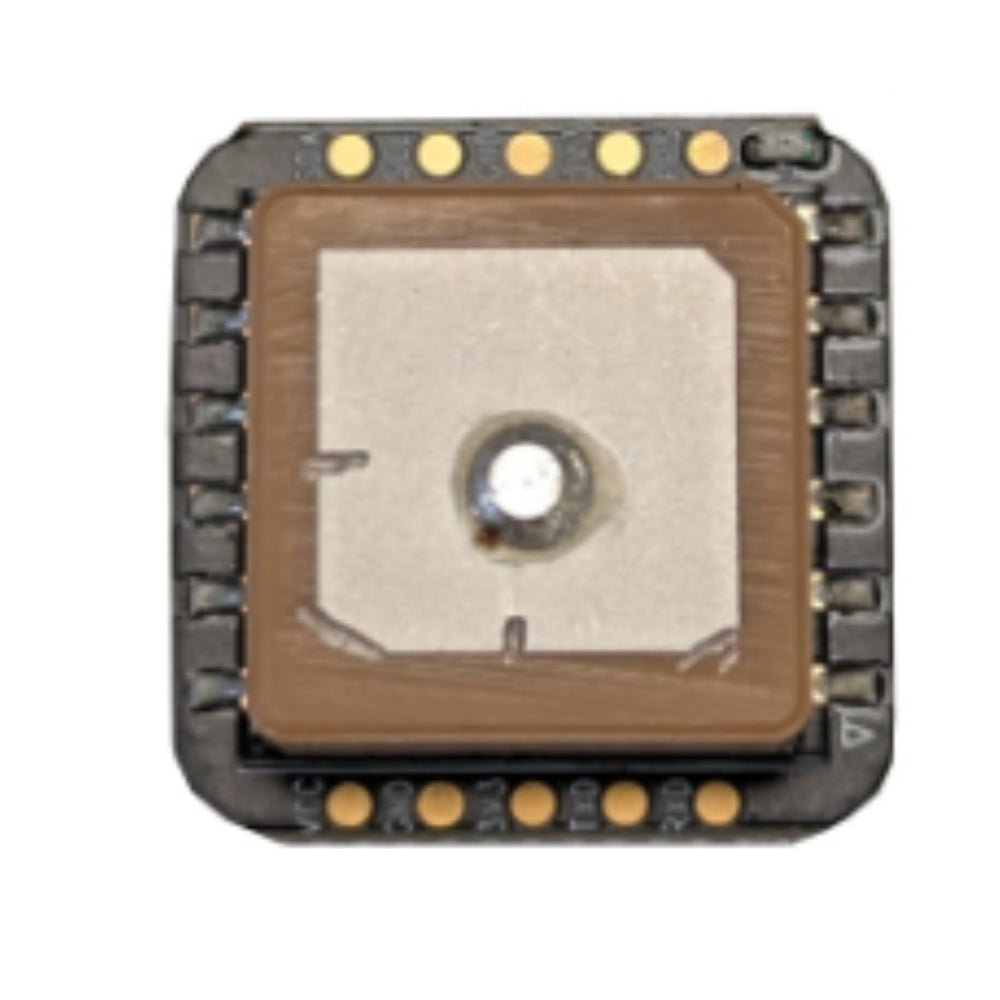

• M10050 chip with integrated compass and antenna
• Supports GPS, Glonass, BeiDou, and Galileo
• Horizontal accuracy: 2.0 meters CEP
• Speed accuracy: 0.05 m/s
• Dynamic course angle accuracy :0.3 Deg
• 1PPS time accuracy:RMS 30nS /99% 60nS
• Voltage:3.6-5.5V,usually is 5V.Current:30mA/5V
• Working Temp:-40 °C ~ +85°C Storage Temp: -40°C ~ +105°C

Package Includes:

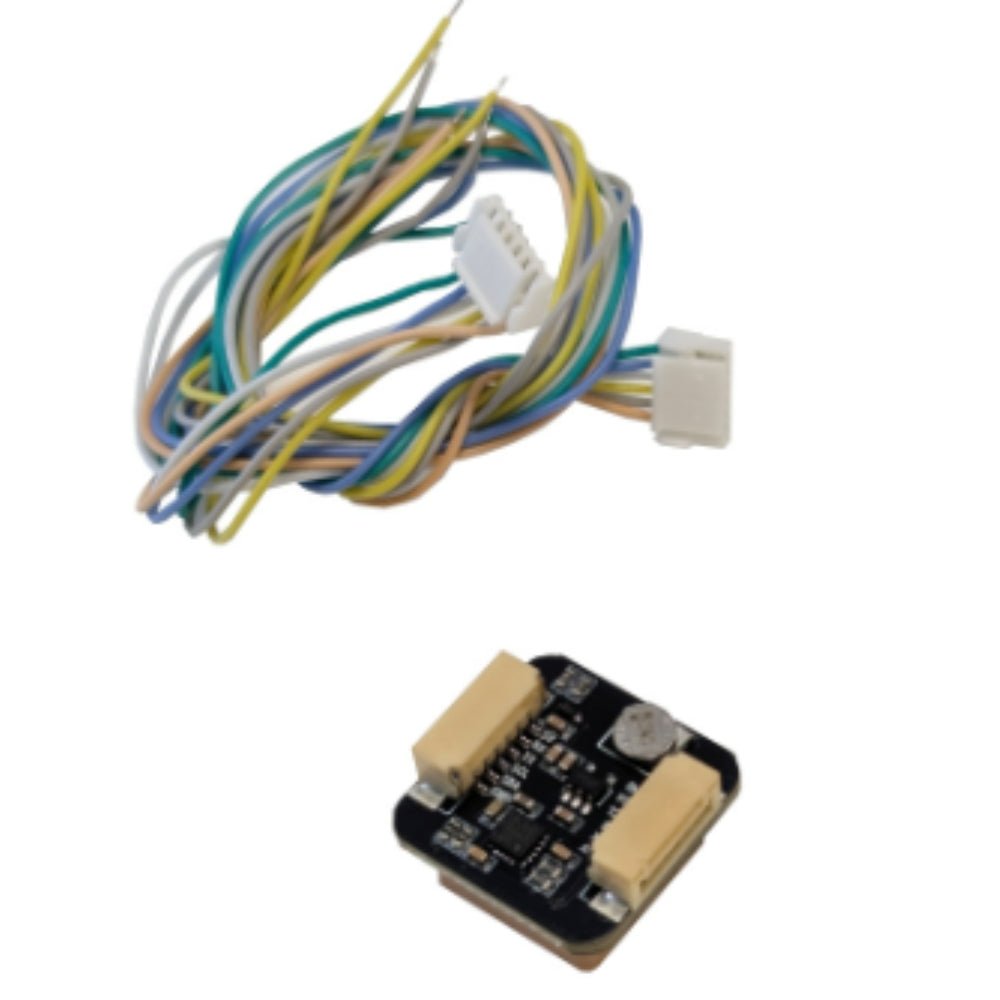

• 1 x M10Q 5883 GPS module (GPS+Compass)
