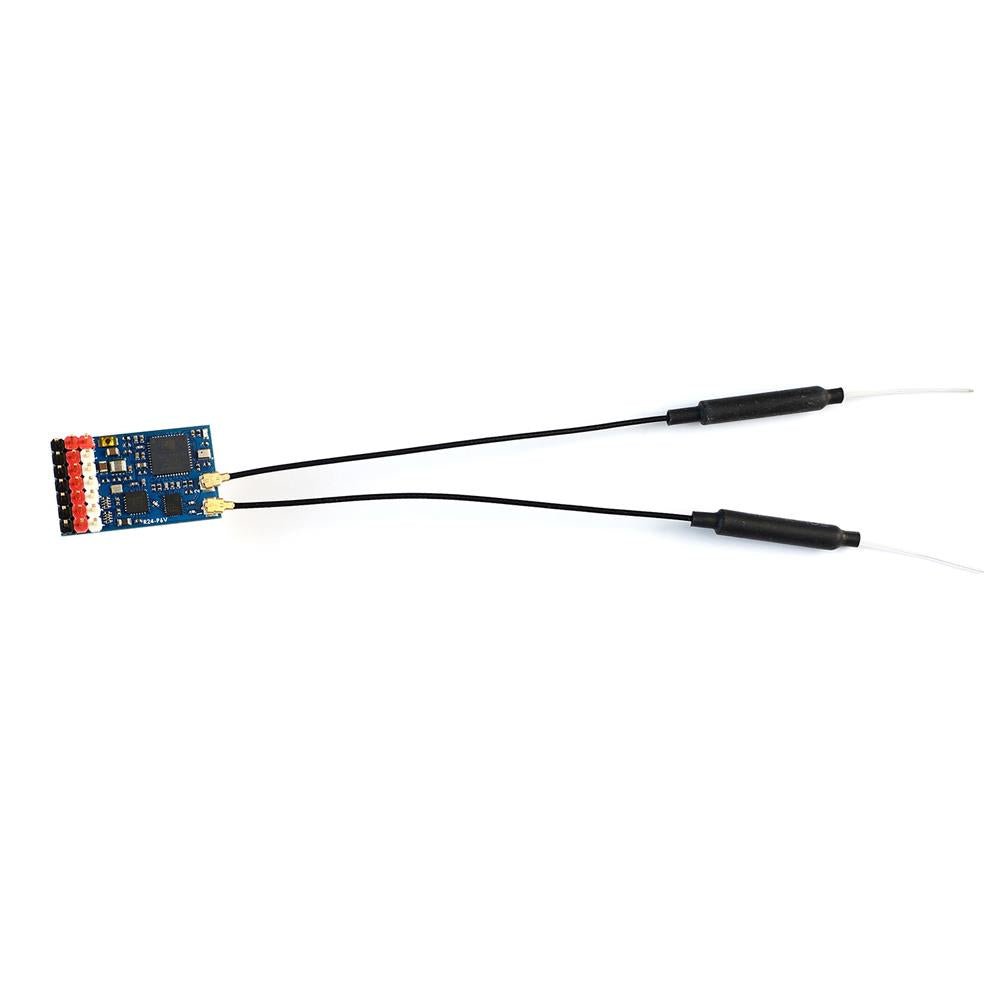

MATEK ELRS-R24-P6V ExpressLRS 2.4GHZ PWM Vario Receiver

Specific for the Gliders and other fixed-wings.  Small in form factor, It can be installed in gliders with restricted payload bays such as DLG’s and high performance slopers. Not needing to install an additional altimeter/variometer also saves room and weight.
The built in barometer provides vertical speed telemetry. The variometer sounds both ascending and descending tones, so you will know whether you are in lift or sink without having to look at your transmitter.

with ExpressLRS firmware and CRSF protocol, this will also give you other telemetry data like battery voltage, current and GPS related.

Check out our ExpressLRS Collection, all our Receivers and the rest of our Matek products!

Specifications:

• ESP32-PICO-D4, SX1281, ExpressLRS Firmware
• PA/LNA: SE2431L
• RF Frequency: 2.4GHz ISM
• Telemetry power: 22.5dbm (180mW)
• Diversity: Antenna-switching, default ANT1
• Barometer SPL06-001 (Vario)
• Receiver output:  6x PWM CH
• VBAT voltage sense: 0~25.5V
• Antenna connector: IPEX MHF-1

• Power supply: 4-13V DC @ “V” Pad
• Power dissipation:  60mA~80mA@5V IN

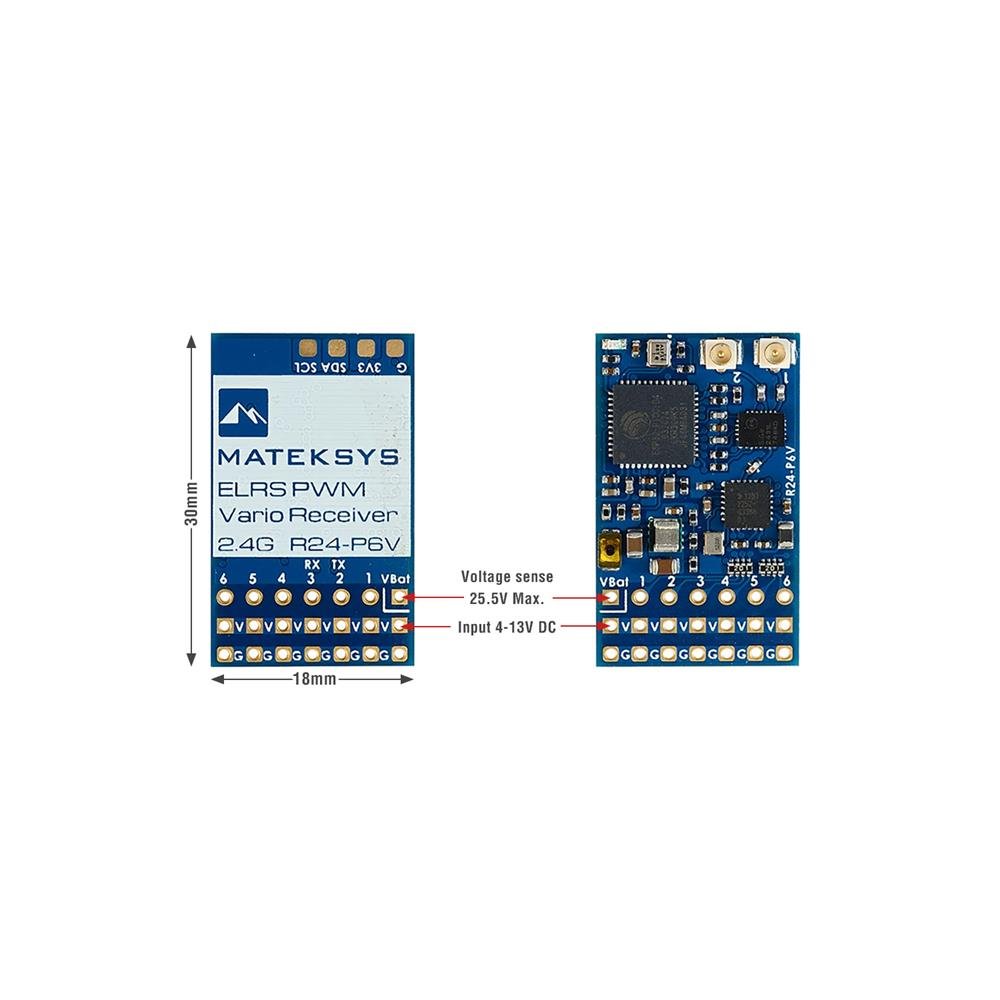

• PCB size: 30mm x 18mm
• Weight: 4g w/ antenna

Firmwares

• ExpressLRS,  wiki, Click HERE
• Receiver Target:  Generic targets used as a base 2.4 GHz > > Generic ESP32 PWM Vario 2.4Ghz RX
• Receiver has ExpressLRS 3.3.2 preloaded with binding phrase “123456”,  the Receiver will never enter binding mode if using the traditional binding procedure.
• You need to reflash it with your binding phrase OR connect it to your PC/phone via WiFi and set your binding phrase in WebUI.

Tips

• Full Resolution Switch Configuration Modes
• Powering receiver with Reverse Voltage will damage the regulator chip. DOUBLE CHECK the power wires connected to the receiver.
• Transmitter fw version should be EdgeTX 2.7.1/OpenTX 2.3.15 or newer

——————————————————-

Flashing via Wifi

• Power on receiver. Receiver’s LED(Red) will blink slow at first, and after 20s, it should blink fast indicating it’s on Wifi Hotspot Mode.
• Wifi SSID “ExpressLRS RX”,  Password “expresslrs”
• More detailed steps,  pls refer this page.

Flashing via UART

1. Disconnect ESC and servos from receiver first.
2. Wire the receiver into the USB-TTL adapter, with TX on receiver connected to the Rx on the USB-TTL, and RX on receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to “V” and GND of the Receiver.
3. Press the boot button while powering on the receiver, then release – the Red LED on receiver should now be solid on.
4. Configurator 1.6.x or newer,  Select the target Generic targets used as a base 2.4 GHz  –> Generic ESP32 PWM Vario 2.4Ghz RXX  and  “UART” for Flashing Method,  set your bind phrase and Firmware Options , Check “erase before flash” and “Force FLash “.
5. Web-flasher  https://expresslrs.github.io/web-flasher/

Package Includes:

• 1 x ELRS-R24-P6V
• 2 x IPEX MHF1 Antennas. 15cm
• Dupont 2.54 pins  (Board is shipped unsoldered)
