Matek XCLASS PDB FCHUB V2 PDB 12S : 5V & 12V Output – 30×30

if you’re looking for a quality power distribution board for your X-Class or Cinelifter rig then this is the answer!
The new Matek X-Class FChub was specificaly designed for high power demand setups with 5V 5A and 12V 4A regulators, and high precision current sensor up to 440A.

Check out all our PDBs and the rest of our Matek Products!

Quick Start Guide (PDF)

Specifications:

PDB

• Input voltage range: 8~60V (3~12S LiPo)
• 4x70A cont, 4x110A burst
• 4x ESC power /signal/ telemetry pads
• Current Senor: 440A,  3.3V ADC,  Scale 75
• 2x LED indicators for 5V, 12V
• 1K:20K voltage divider built-in

JST-SH 8pin Connector

• “V” pad: 12V or VBat voltage selectable
• G: GND
• Curr: current sensor signal
• TLM: for BlHeli32 ESC telemetry
• S1~S4: ESC signal

BEC 5V output (5V pad)

• Voltage: 5.1 +/- 0.1VDC
• Continuous current 5 Amps,  Max.6A
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

BEC 12V output (12V pad)

• Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
• Continuous current 4 Amps,  Max.5A
• Input voltage<12V,  Output voltage = Input voltage
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

Switchable 12V output (SW12V pad)

• 12V ON/OFF switchable via PINIO(high/low level)
• support constant 2A
• can be use for powering VTX,LED etc.

BEC 3.3V output

• Linear Regulator
• Continuous current: 500mA

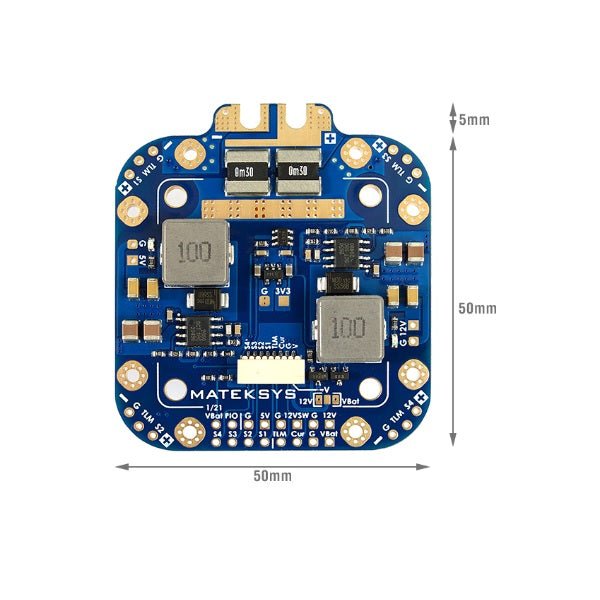

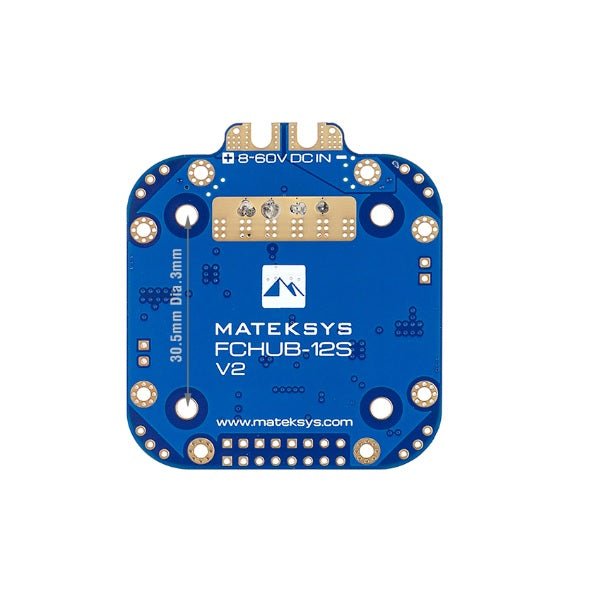

Physical

• Mounting: 30.5 x 30.5mm, Φ3mm
• Dimensions: 55 x 50 x 6 mm
• Weight: 21g

Package Includes:

• 1x FCHUB-12S V2
• 1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors
