NAMELESSRC D400 VTX+DVR AIO 25-400MW 720P RECORDING

This is Nameless RC’s approach to the VTX/DVR combo for micro builds.
With higher output power up to 400mW, higher quality DVR and the ability to control the DVR Start/Stop function via your radio makes this board stand out compared to other similar options like the Happy model Diamond VTX.

Specifications:

• Input Power: 5V
• Output Power: PIT/25mW/100mW/200mW/400mW Switchable
• Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
• Control Mode: BFOSD Control/ Button, IRC Tramp ready
• Video Output format: NTSC
• Record video size : 1280×720 @30FPS

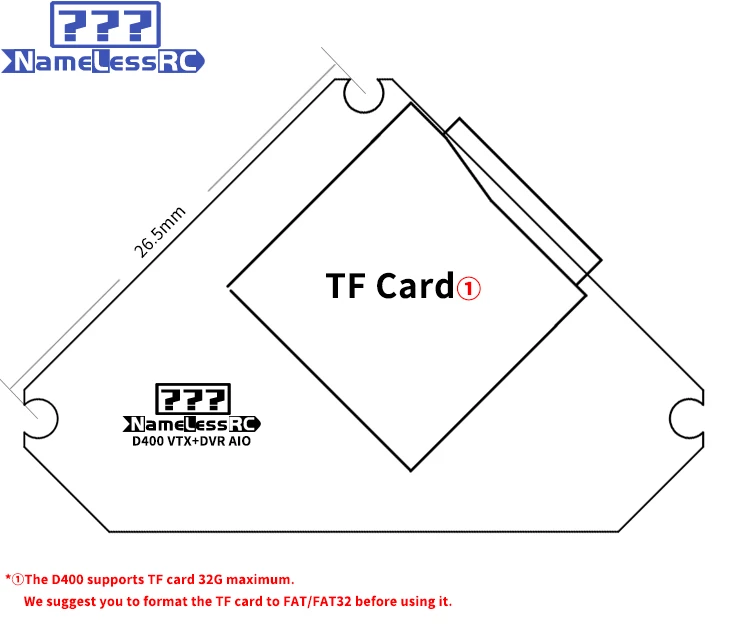

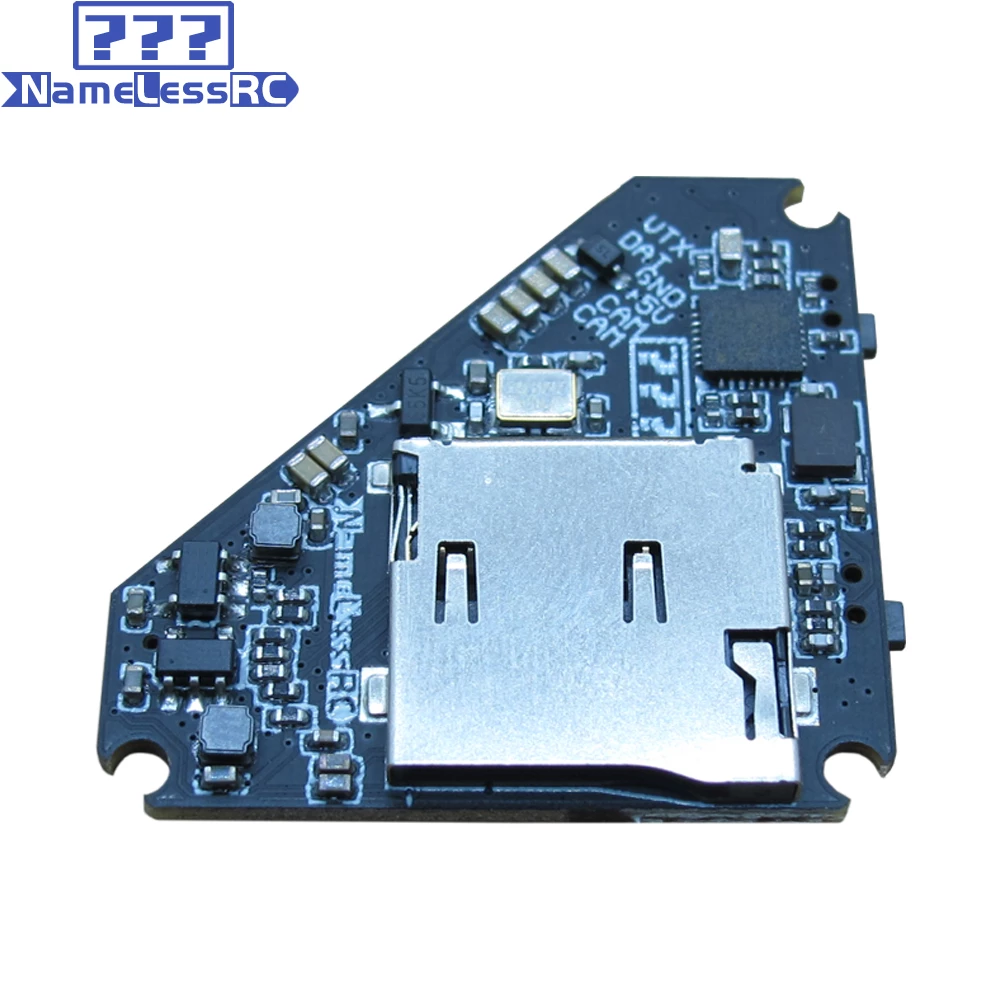

• TF Card support: Max.32G
• Compress Format: AVI
• Microphone: Yes
• Antenna: IPEX

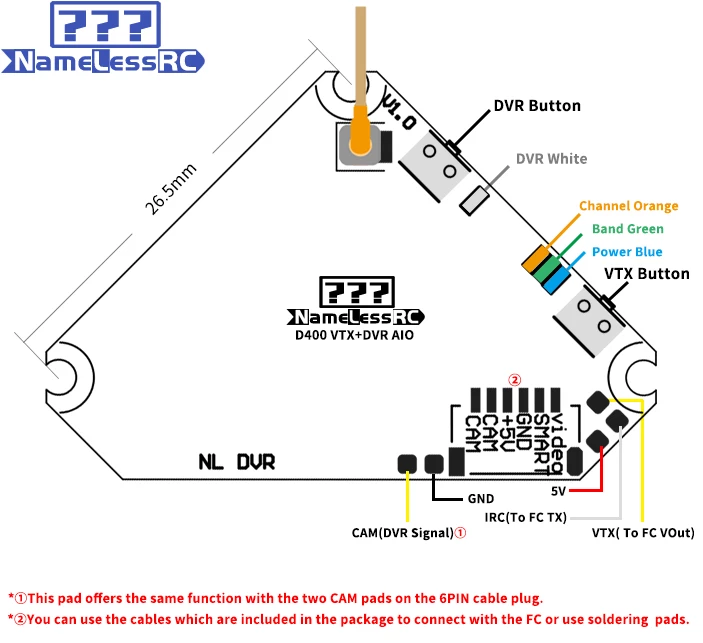

• Mounting hole: 26.5*26.5mm
• Weight: 3.5g without antenna

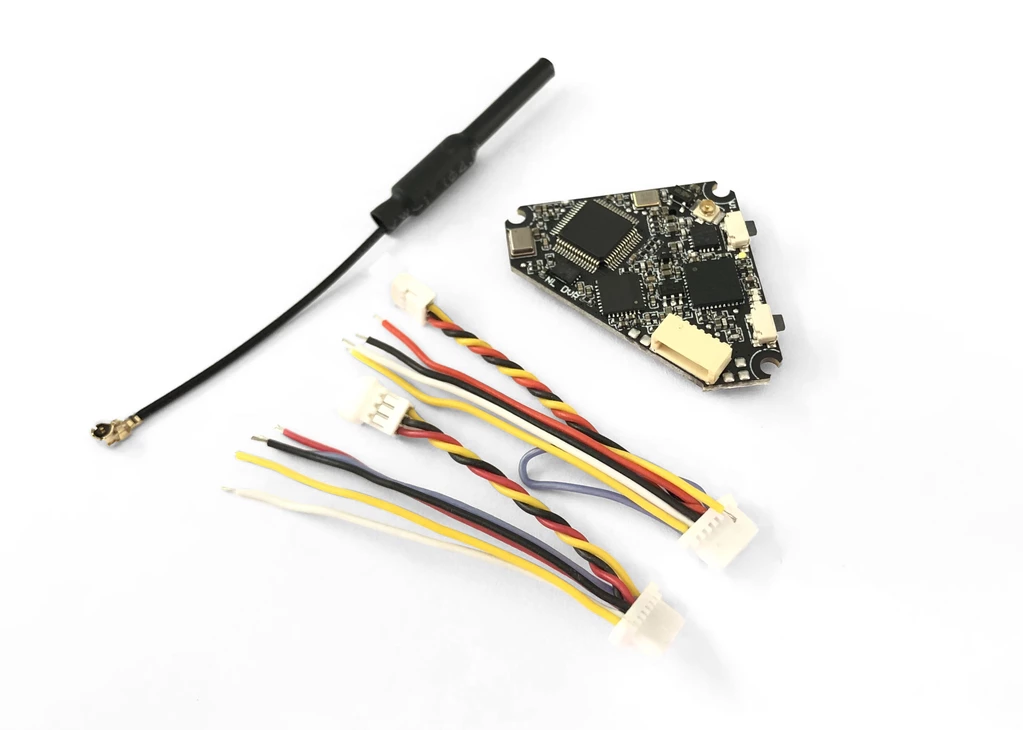

Package Includes:

• 1 x NameLessRC D400
• 1 x 5.8G Linear Antenna
• 4 x M2*3 Nylon Standoff

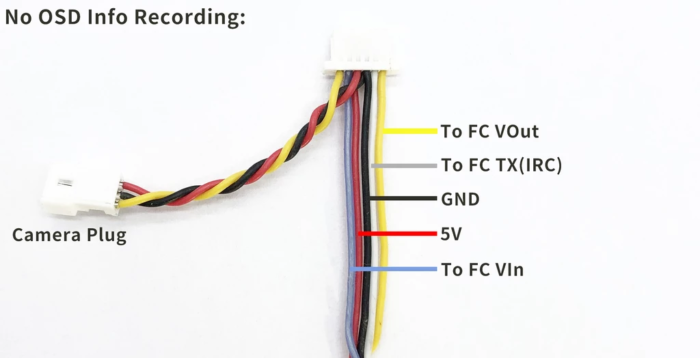

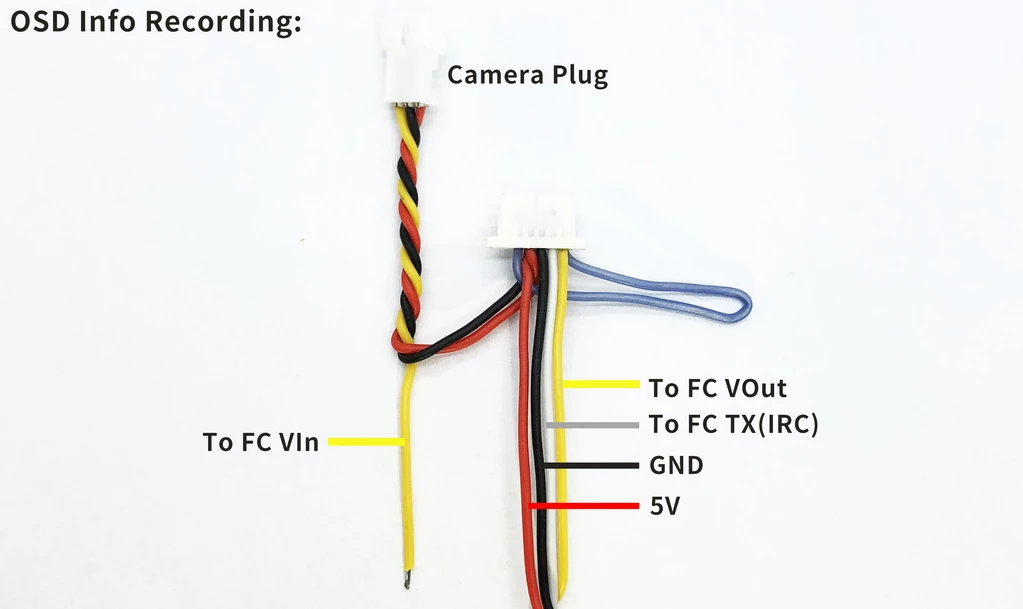

• 2 x 6Pin Cable (one that will record OSD info, one that will not)

Click here to Download Manual

*HAM license is required for operation on HAM channels, and HAM power levels! The VTX ships with only legal channels enabled, please consult the manual on unlocking procedure.
