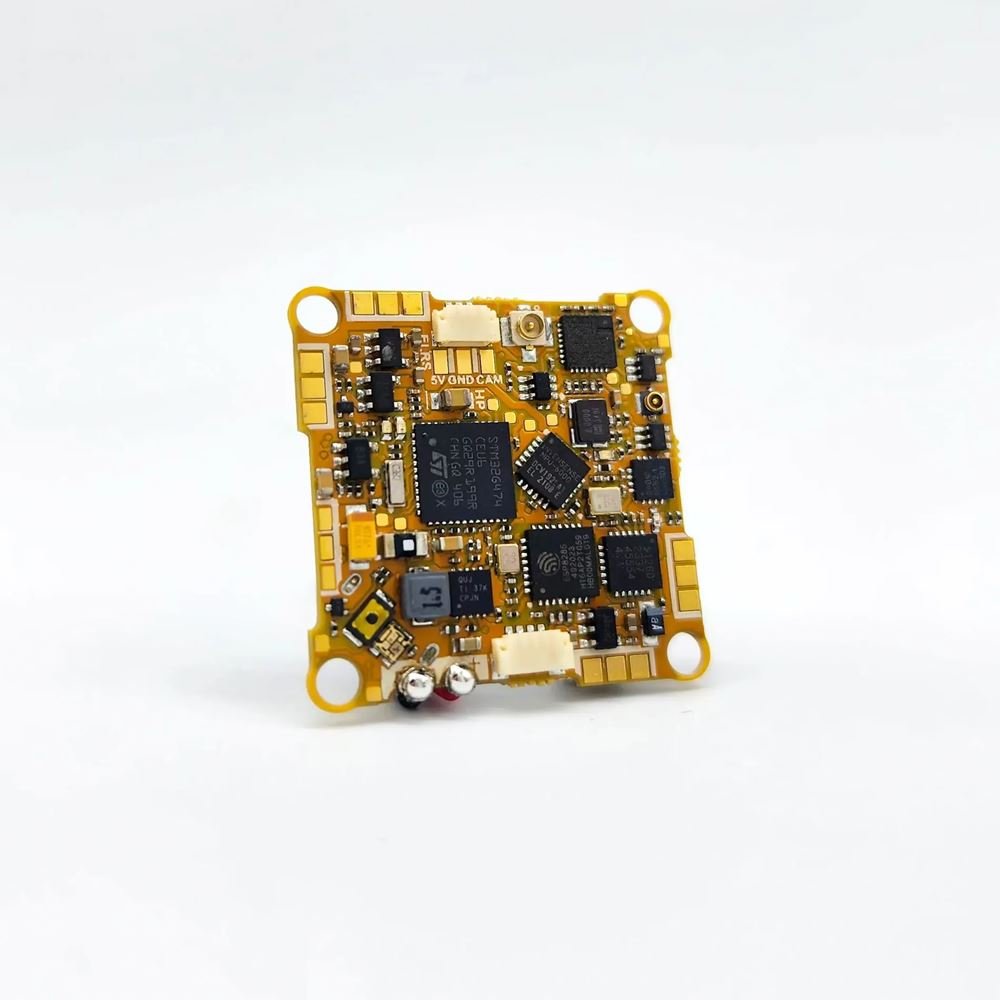

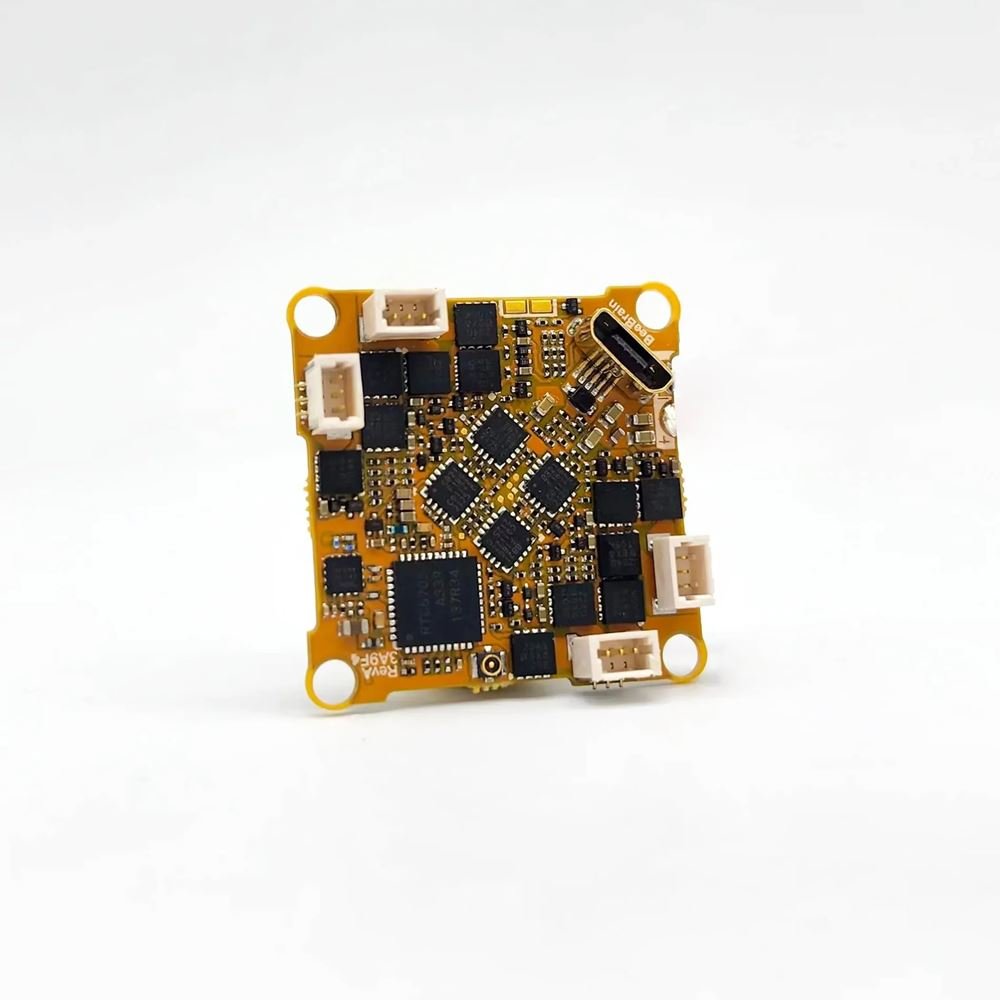

NewBeeDrone BeeBrain BLV5 AIO Flight Controller ELRS 2.4G

The NewBeeDrone BeeBrain BLV5 AIO Flight Controller with ExpressLRS (ELRS) 2.4G brings the latest innovations to the BeeBrain series. As the 5th generation of NewBeeDrone’s flagship flight controller, the BLV5 features upgraded technology for enhanced control, signal strength, and durability. Built with an STM32G474 MCU and a double N-MOS 18A ESC running Bluejay 0.19.2 at 48KHz, this flight controller is engineered for precision and power.

Equipped with Smart-Max VTX Power Control Technology, the BLV5 dynamically adjusts its VTX output based on temperature. With 25mW, 100mW, and 400mW settings, it automatically balances output to maximize signal and prevent overheating, giving you stable video transmission during flights. This flight controller pairs perfectly with the Flow 0804 14000KV brushless motors for smooth performance on 1S and 2S batteries. The built-in ExpressLRS dual-antenna receiver ensures consistent signal strength, ideal for various flying environments.

Check out all our Whoop Style AIO Boards and the rest of our NewBeeDrone Collection.

Features:

Upgraded BeeBrain BLV5 ：

STM32G474 MUC
Double N-MOS 1 Channel 18A Running Z-H-40 – Bluejay 0.19.2 48KHz
TCXO Crystal Oscillator ELRS 2.4G Diversity receiver Non-PI
MPU6000 Gyro

Smart-Max VTX Power Control Technology

Intelligent Smart-Max Power Control: Smart-Max technology dynamically adjusts VTX power output based on real-time temperature monitoring to prevent overheating and protect your VTX hardware. It automatically reduces power when needed and boosts output to 400mW when temperatures allow, ensuring maximum signal strength and stable video transmission.

Features a 3-level power switch:

25mW (Short-range flying)
100mW (Medium-range flying)
400mW (Long-range flying) Smart-Max

Brushless Motor:

Flow 0804 14000KV Brushless Motor
Longevity and enhanced power
Great for 1S and 2S battery setups

Fly with Confidence:

Includes accessories to improve durability (prop guards)
TCXO Crystal Oscillator ExpressLRS dual-antenna receiver delivers rock-solid signal transmission, making it perfect for any flight environment
NewBeeDrone Cockroach75 frame with a lifetime warranty, designed to withstand the toughest conditions and provide long-lasting performance.

Specifications:

• MCU: STM32G474 216MHz

• Gyro: MPU6000

• VTX: 25mw/100mw/Smart-Max(400mw)

• Camera: Caddx Ant Nano 1200TVL

• ESC: Double N-MOS 1 Channel 18A Running Z-H-40 Bluejay 0.19.2 48KHz

• Motor Plug: JST-1.0 3Pin

• Receiver: Built-in TCXO Crystal Oscillator ExpressLRS 2.4GHz Diversity
• Receiver(Uart Base)

• Flight Control Weight: 5.8g

• Flight Control Size: 29x29x7.6mm 25.5×25.5mm

• Battery Input: 1s-2s

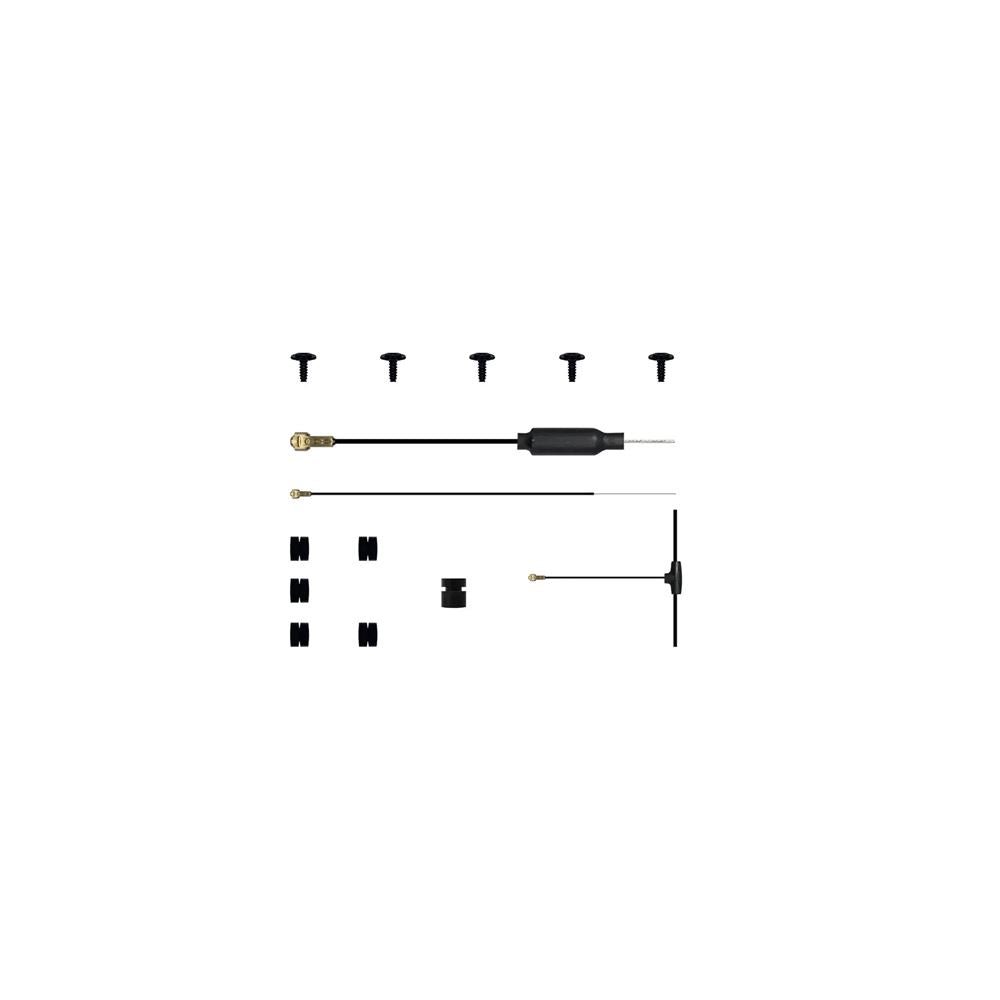

Package Includes:

• 1 x BeeBrainBLV5
• 1 x 2.4G T-antenna
• 1 x 2.4G receiver antenna
• 1 x 5.8G VTX antenna
• 4 x Grommet
• 5 x Screws
