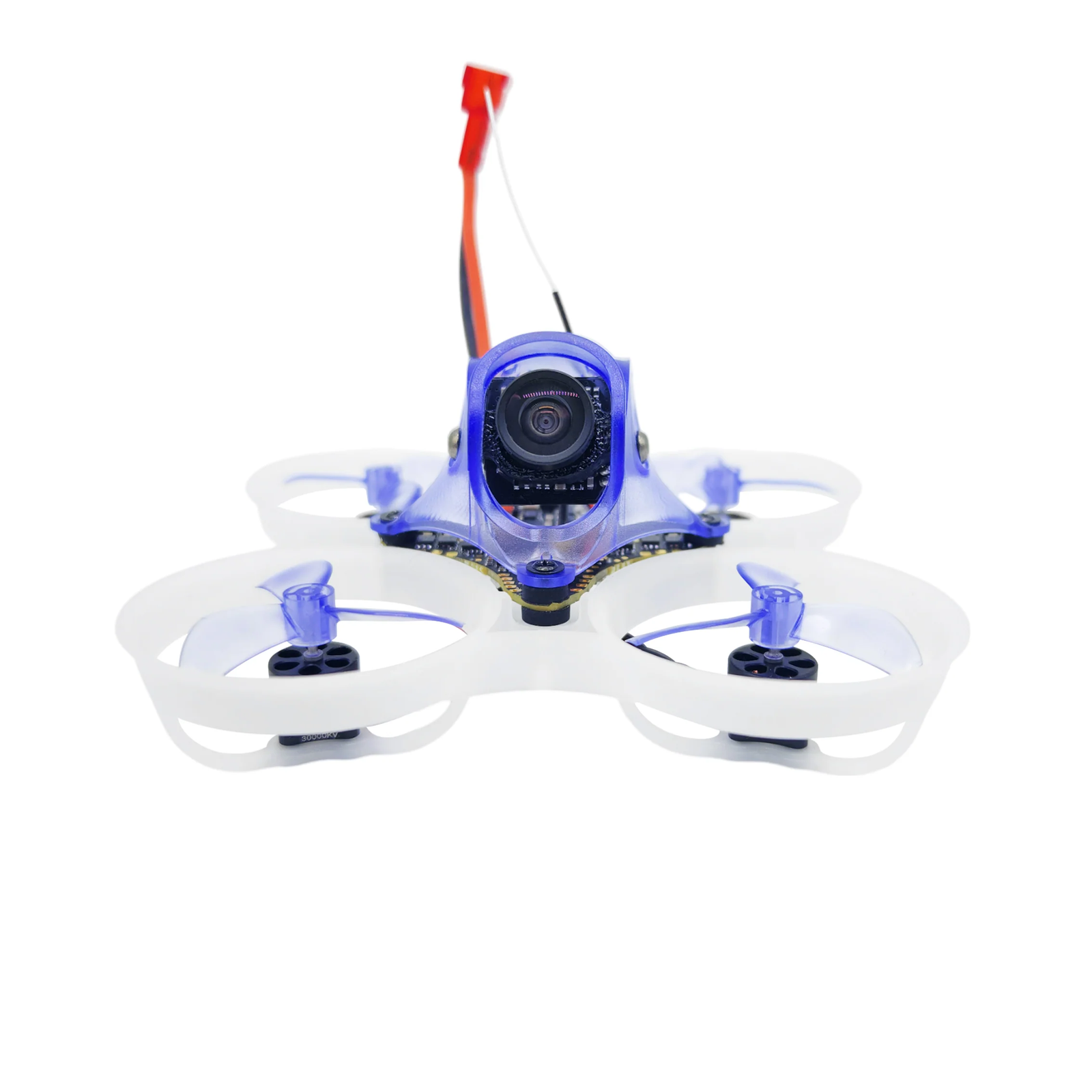

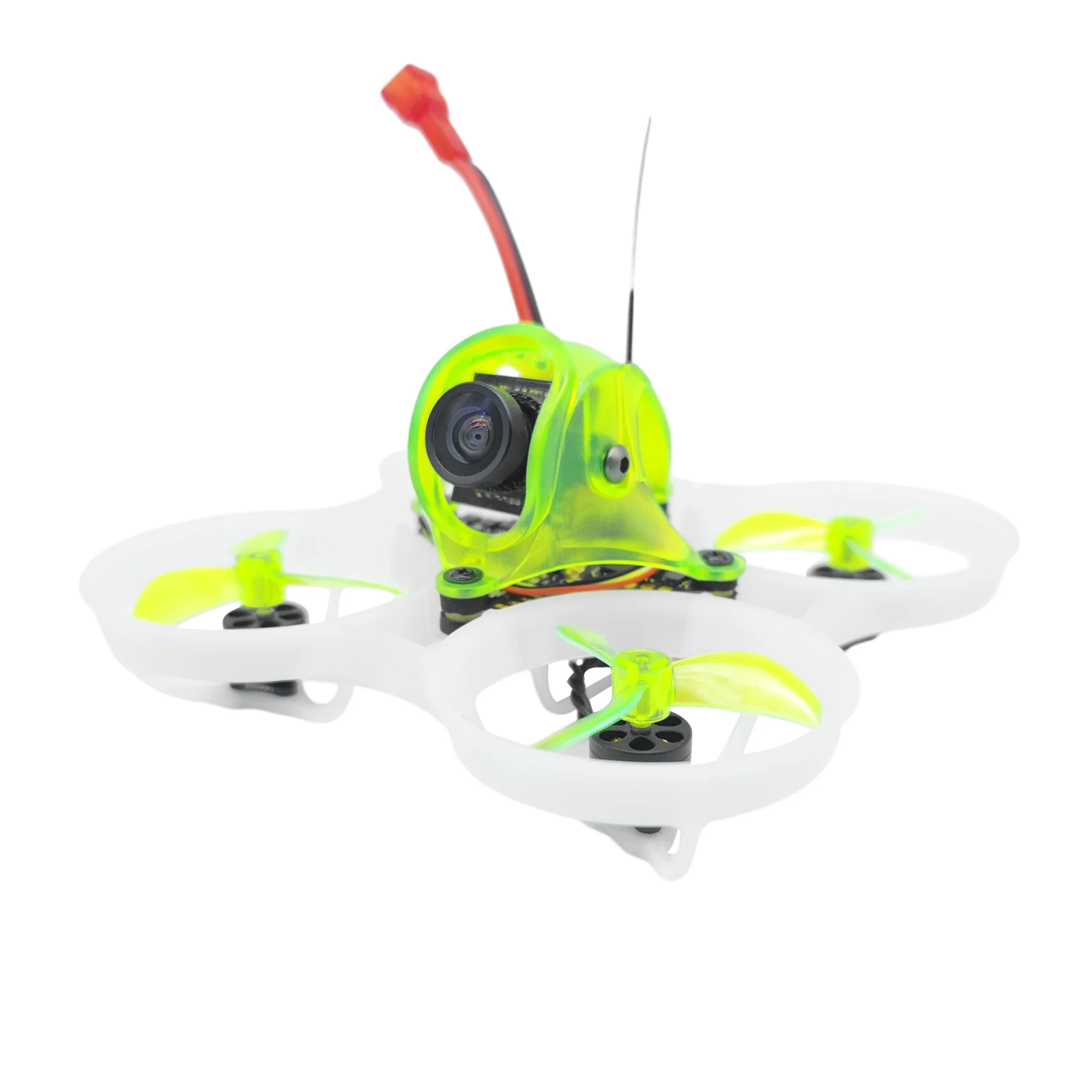

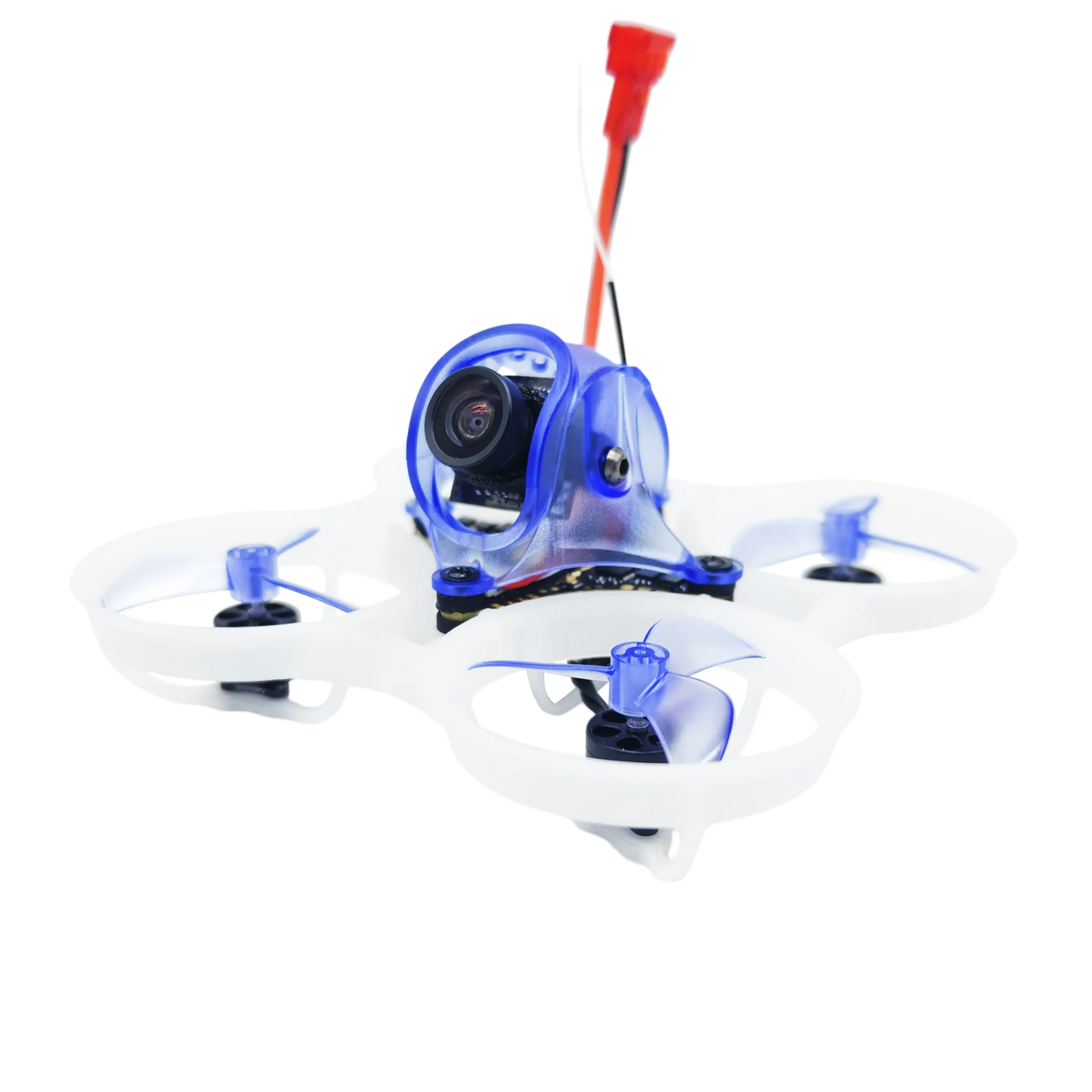

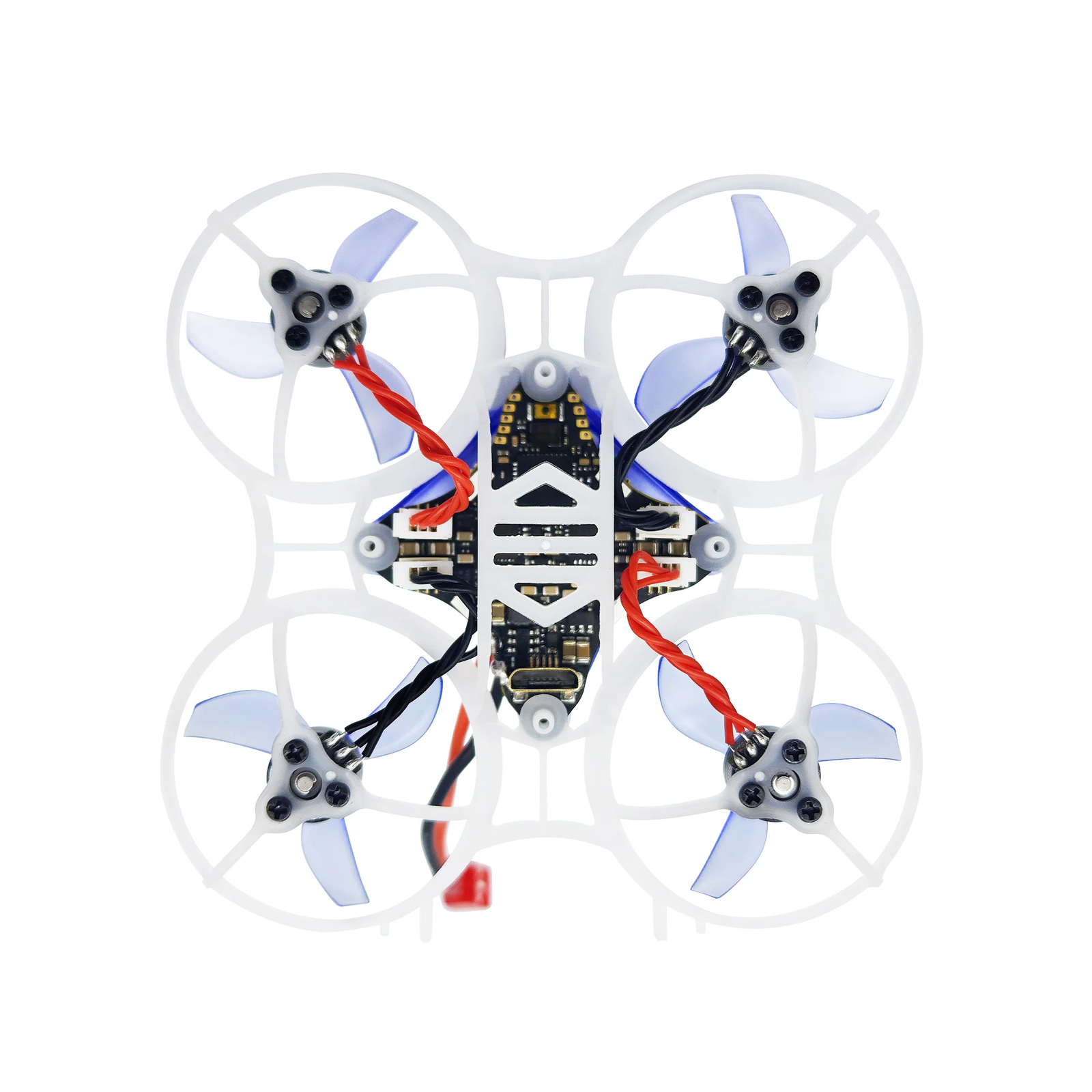

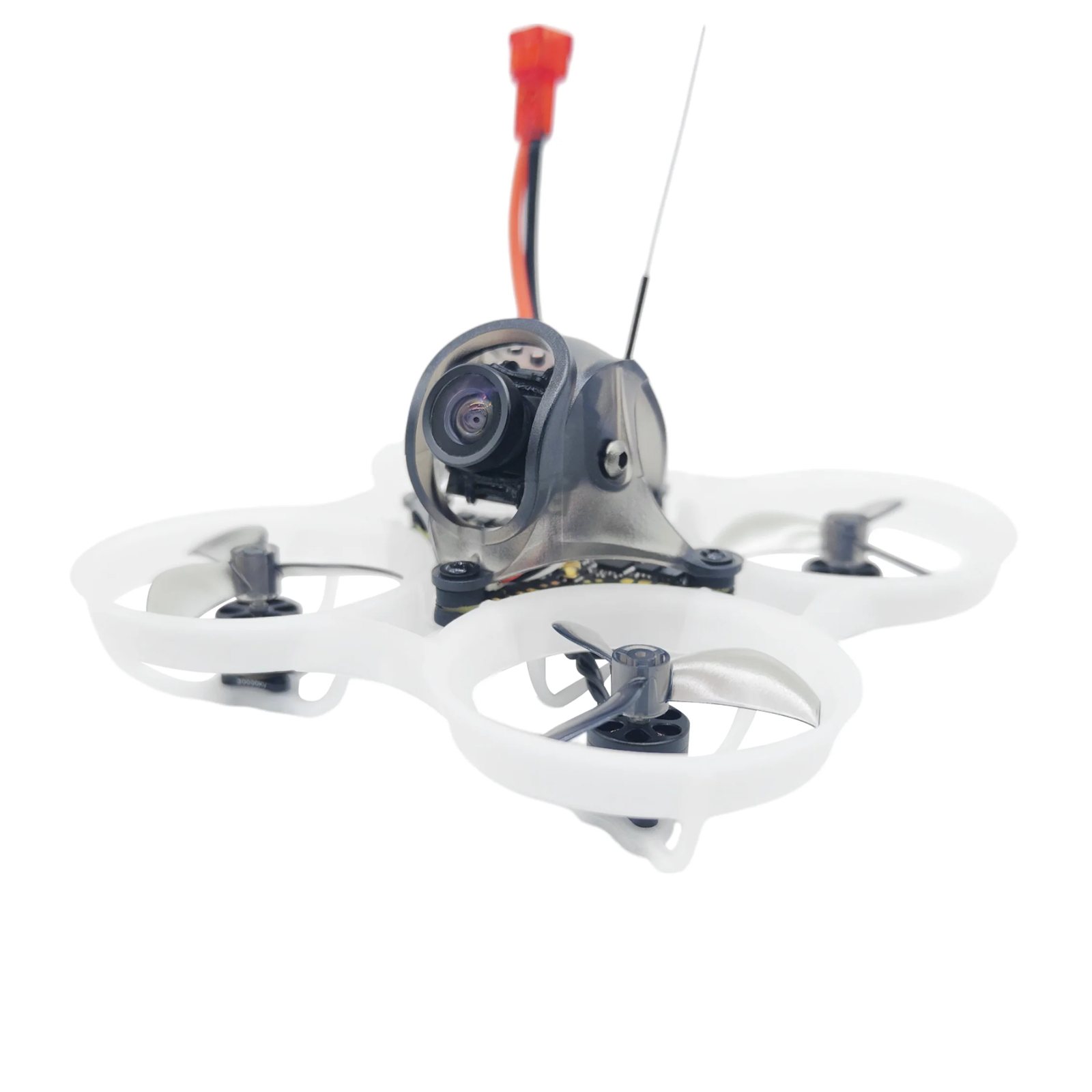

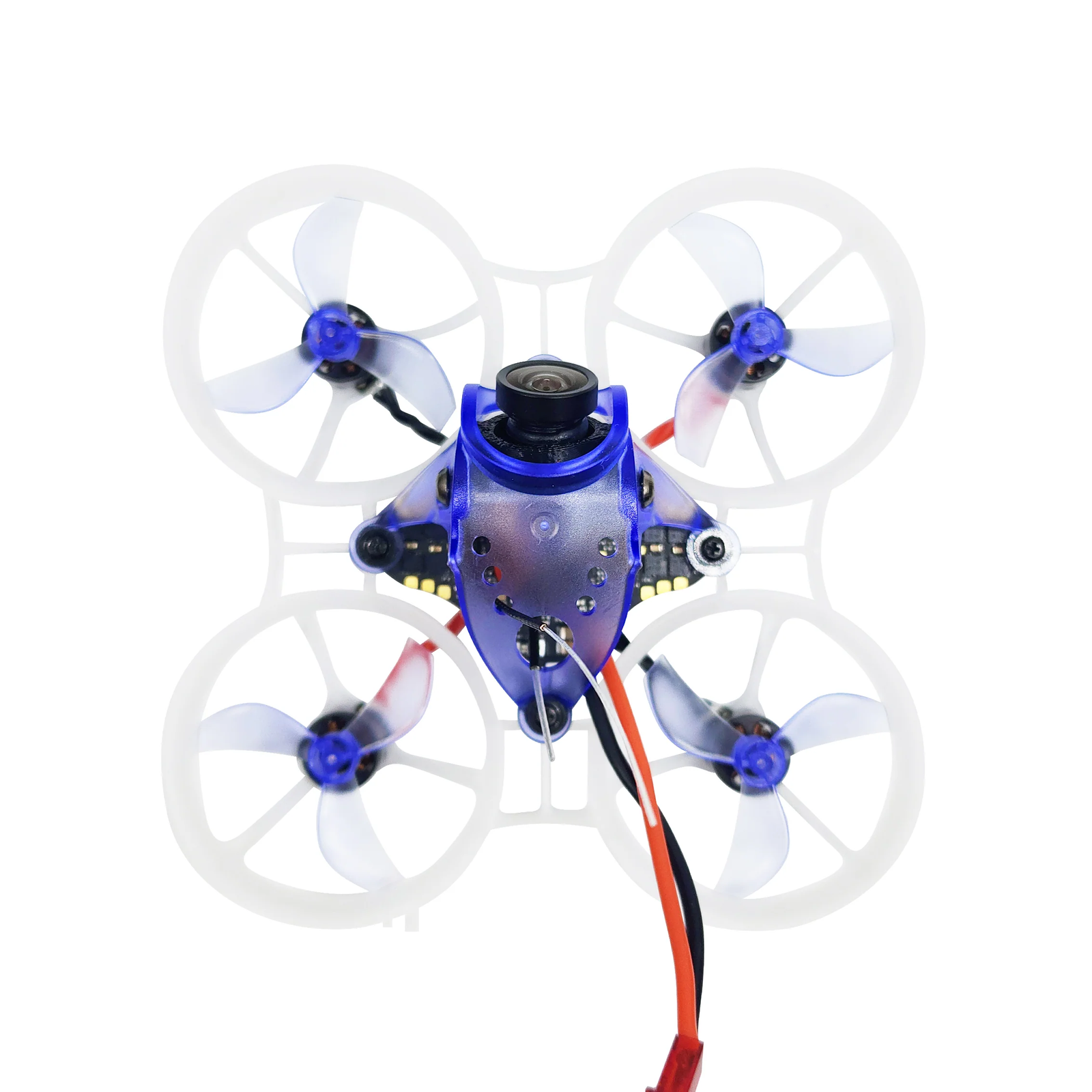

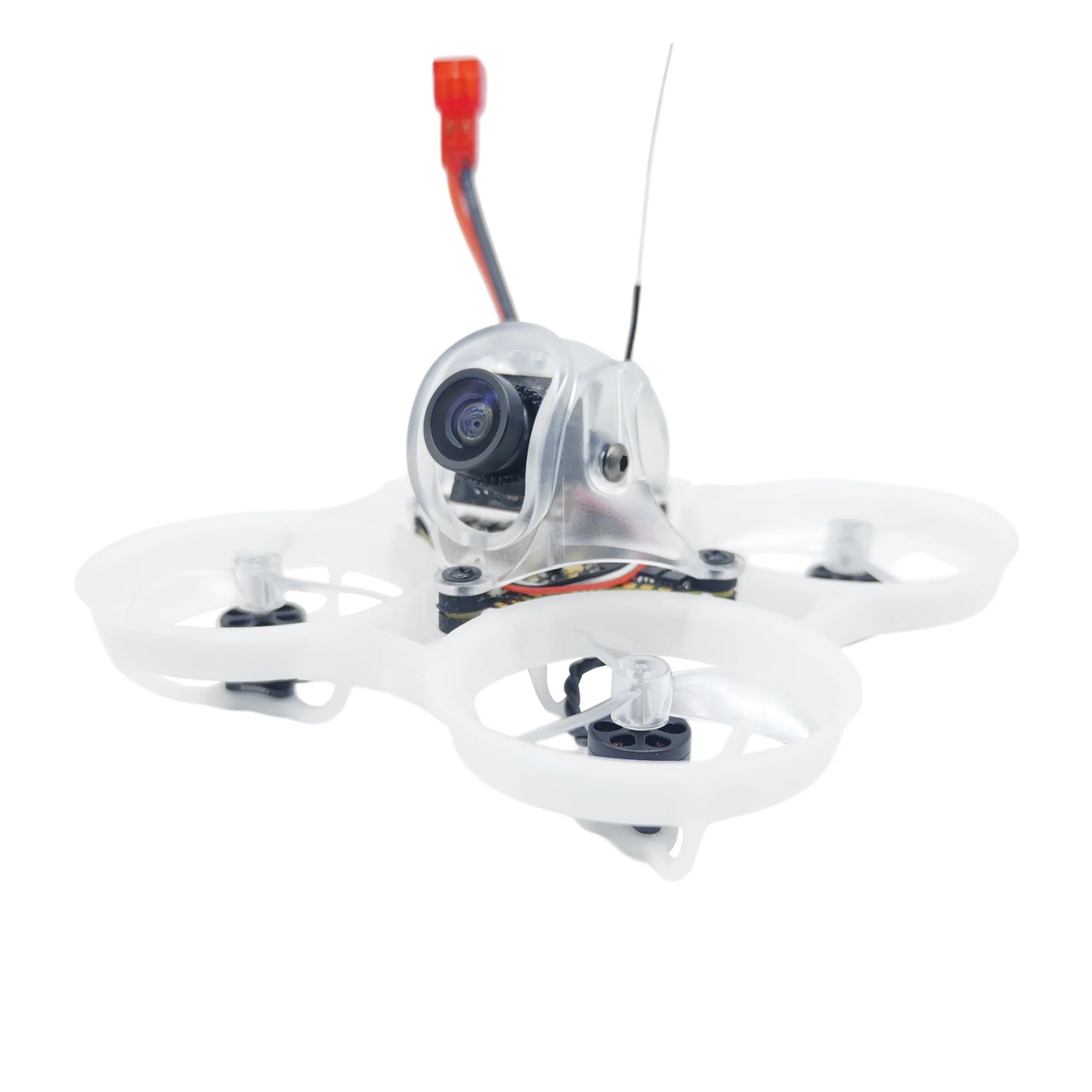

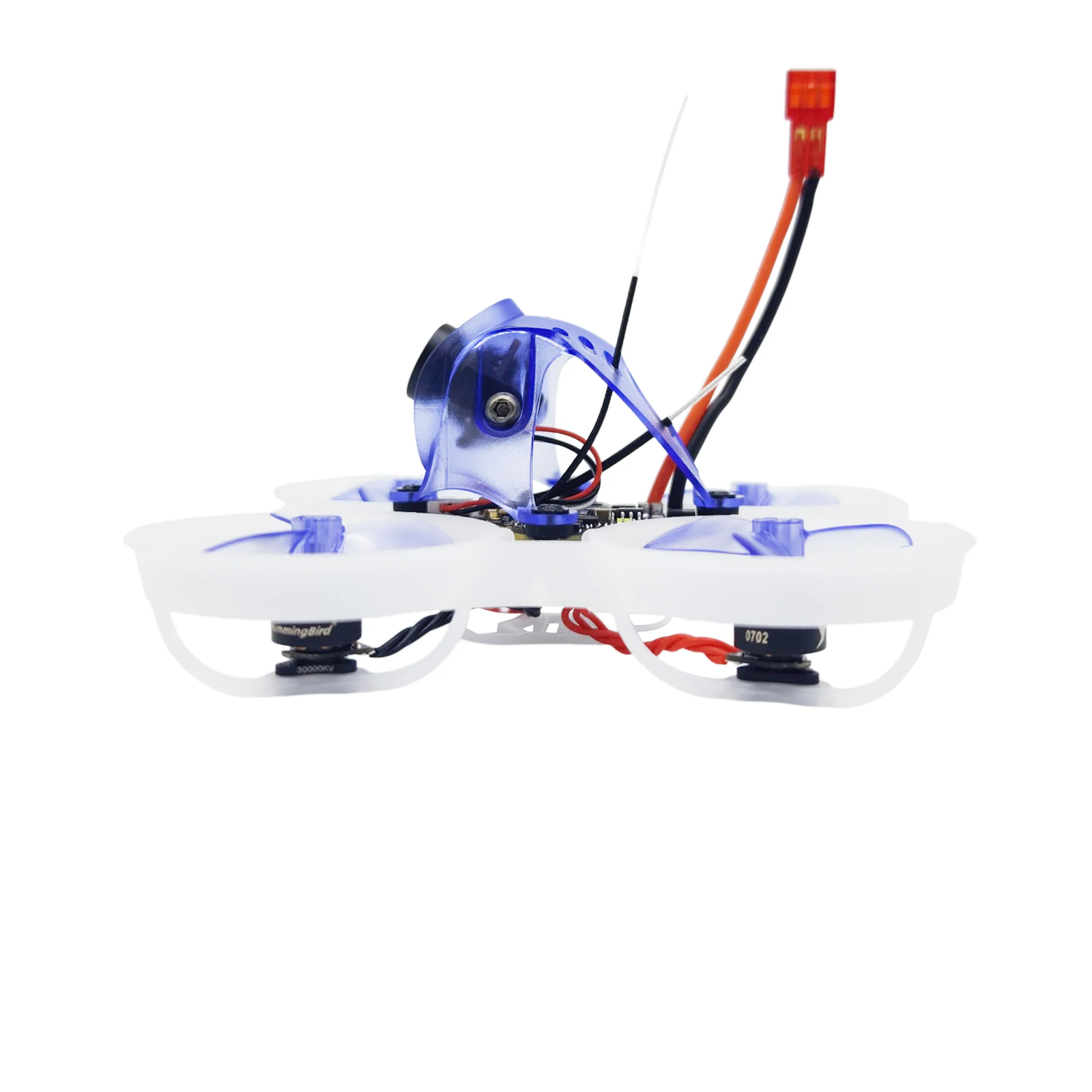

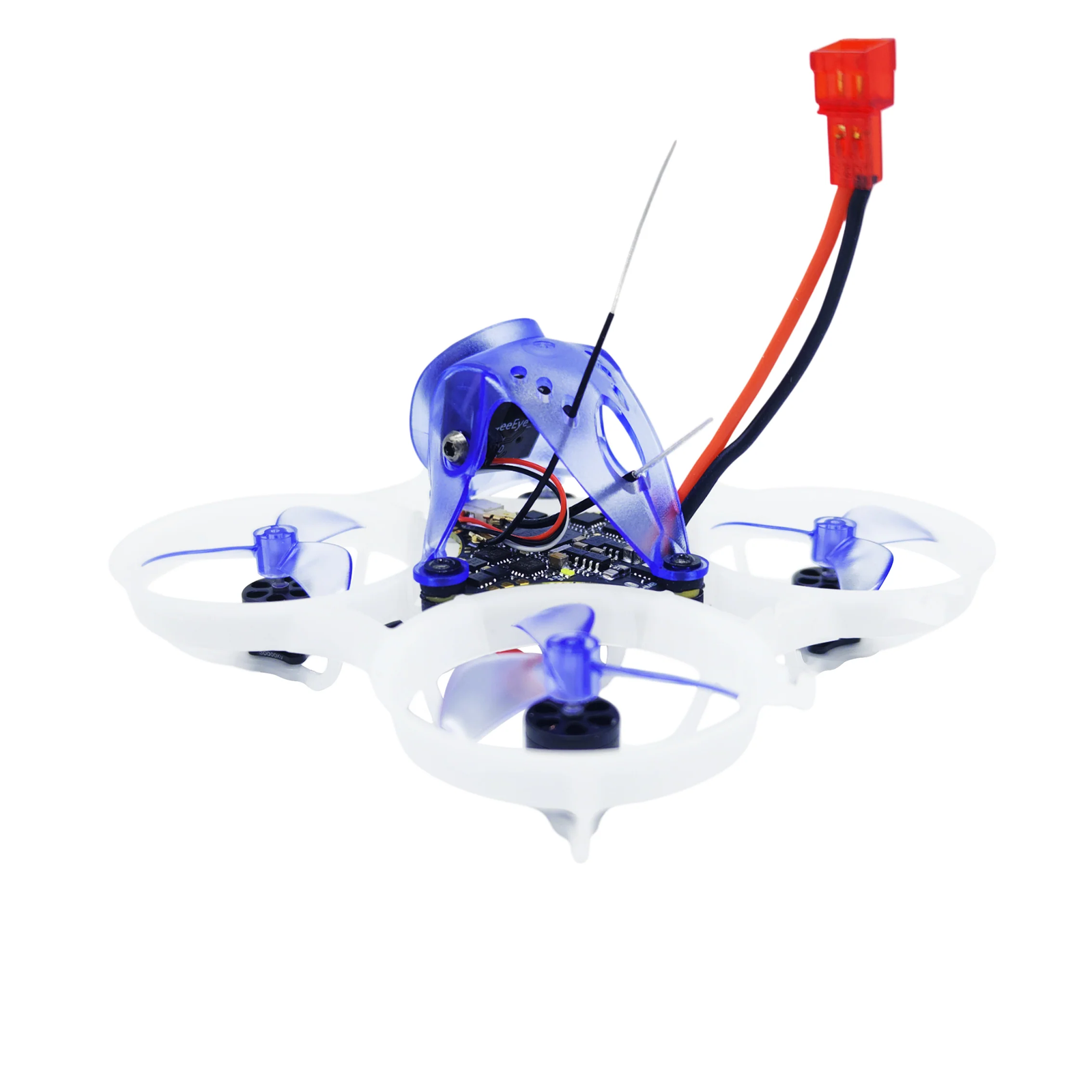

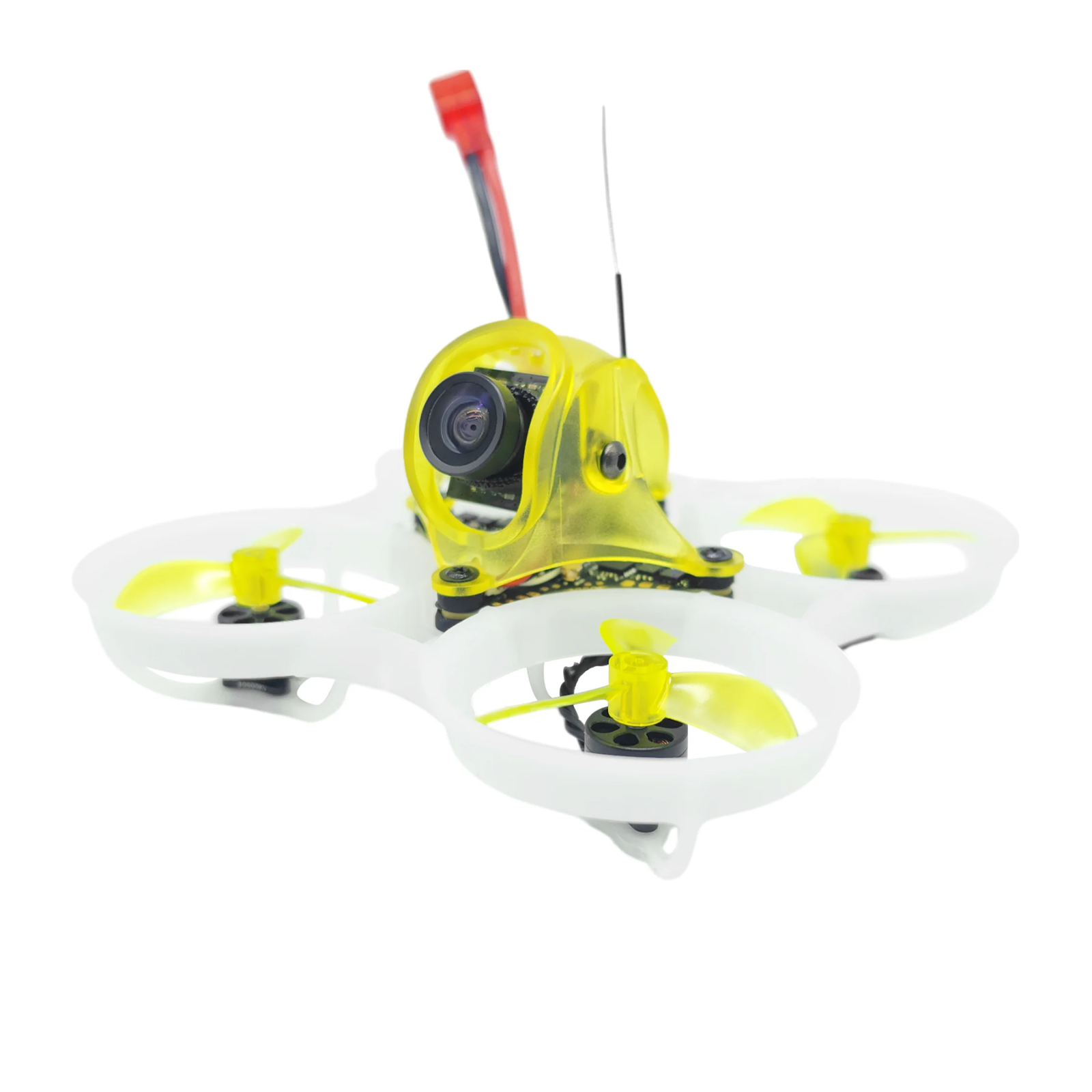

NewBeeDrone Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G (Random Color)

Introducing the latest Hummingbird V4 BNF Whoop from NewBeeDrone. Experience the ultimate in performance and control with our exclusive SmartMax 400mw VTX and ELRS2.4G technology. Unlock new heights of flight with sophisticated features and a cutting-edge design.

**Random Color!

Check out more NewBeeDrone products or our BNF Whoop collection!

Hummingbird V4 ELRS AIO Flight Controller Specs:

• MCU: STM32F411
• GYRO：BMI270
• VTX:  25mw for Racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz Antenna
• ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz
• ESC Connector: JST-1.0 3Pin
• OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
• Receiver: 2.4G Antenna with MHF3 connector
• Flight Controller Weight: 4.57g(Include antennas and battery connector)
• Flight Controller Size: Outer dimensions: 29x29x7.6mm
• Flight Controller Holes: 25.5×25.5mm
• Battery input: 1S Only
• Uart1: free
• Uart2: free
• Power Plug: Nectar Connector Gold Plated PH2.0 Solid Pin

SPI ELRS3.x receiver (Binding instruction: power on the drone, push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.x or above version. You will need to update your remote controller ELRS to 3.x version because betaflight 4.5 will no longer support any lower version of 3.0)
Please read through the SPI base information if you have difficulty with binding

Recommended Batteries:

Dogcom 300mAh 1S Battery PH 2.0

Nectar Gold 300Mah 1S Battery PH 2.0 (4 Pack)

Firmware:

1. Hummingbird V4 Betaflight firmware

What’s Included:

1x Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G
（Batteries are not included with the product.）
1x Azi Prop 31mm 1.0 Random Color (1 Set)

Warning:

This drone has been carefully crafted using only newbeedrone parts. It is important to note that any use of non-compatible parts from other brands may result in technical difficulties. Additionally, should you choose to modify the drone, it is crucial that you assume full responsibility for any resulting issues. It is not advisable to proceed with modifications without the necessary knowledge and expertise. We appreciate your understanding and cooperation in ensuring the safe operation of the drone.

If you mess up the setting?

Important Notice: If you experience issues with your drone, do not flash the firmware. Simply perform a factory reset using the configuration tool (e.g., Betaflight Configurator) and then do an accelerometer calibration. For further assistance, please contact our support team.

Binding procedure:

To bind, connect to USB power or a battery source. Push the bind button on the front bottom of the flight controller to trigger the binding mode. Bind it to your radio controller. (Note: The Hummingbird v4 only supports ELRS 3.x or a later version. If your remote controller is ELRS 2.5, you will need to update your ELRS TX Module.)

Video:

Review Video:

Hummingbird V4 Wire Diagram:
