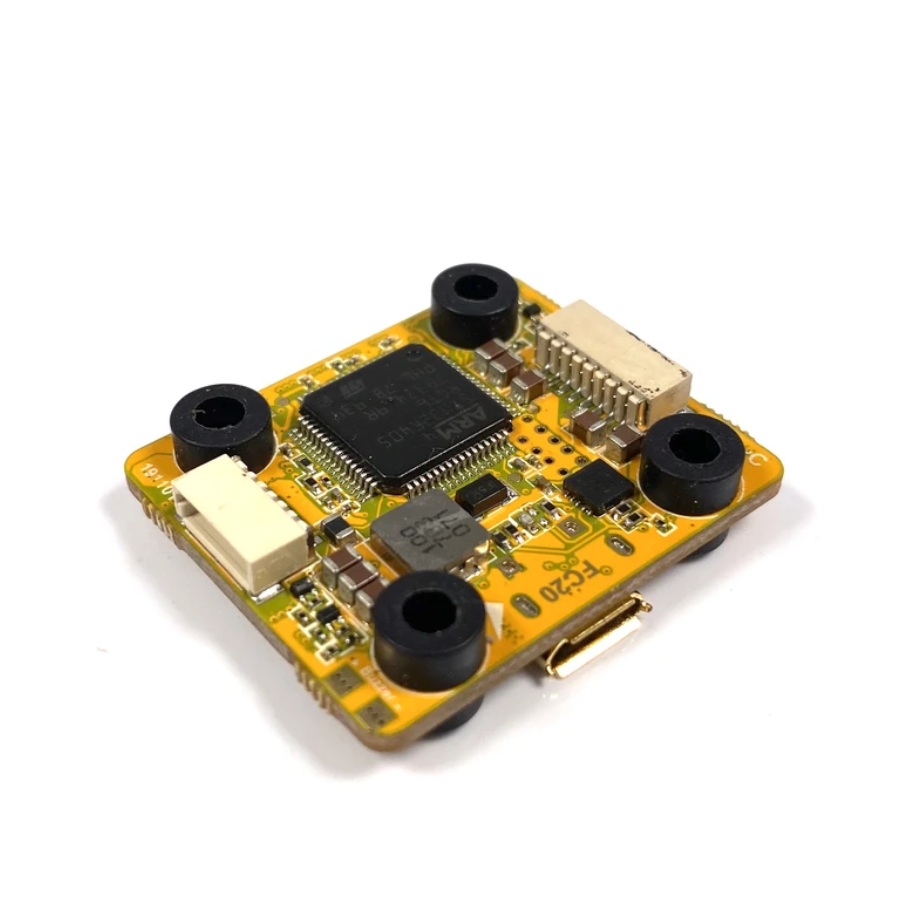

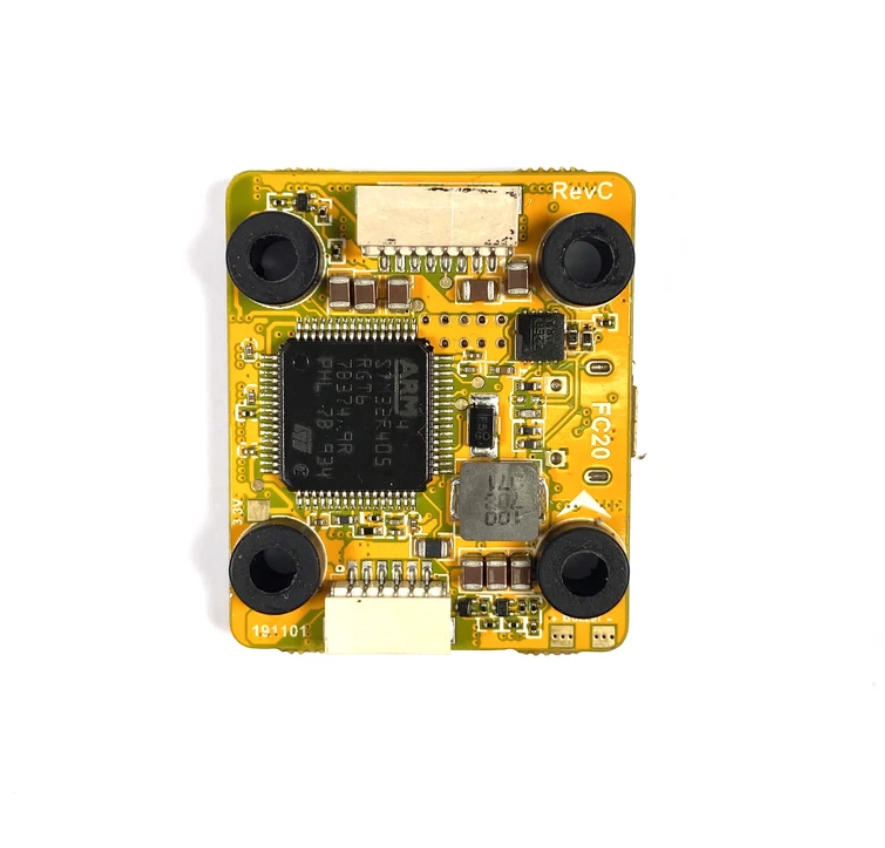

NewBeeDrone Infinity200 20×20 BetaFlight Flight Controller
$63.99
| Weight | 0.028 kg |
|---|
Out of stock
Description
🚀 Looking for an alternative?
This Newbeedrone item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
This Newbeedrone item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
-Infinity200 Flight Controller Firmware
The same power and smoovness you can get in the Infinity 30×30 stack but smaller! For those looking for a DJI plug and play system for those small frame builds, this is a great option!
Flight Controller Spec:
• MPU6000 Gyro
• STM32F405 CPUE @ 168mhz, can be overclocked
• 3-6S direct battery input
• 5V 2A,
• 9V 2A 18W Design for DJI FPV Air Unit
• 5V Camera Power
• betaflight OSD
• 31.5×27 CB with 20×20 mounting holes, weight: 5.85g

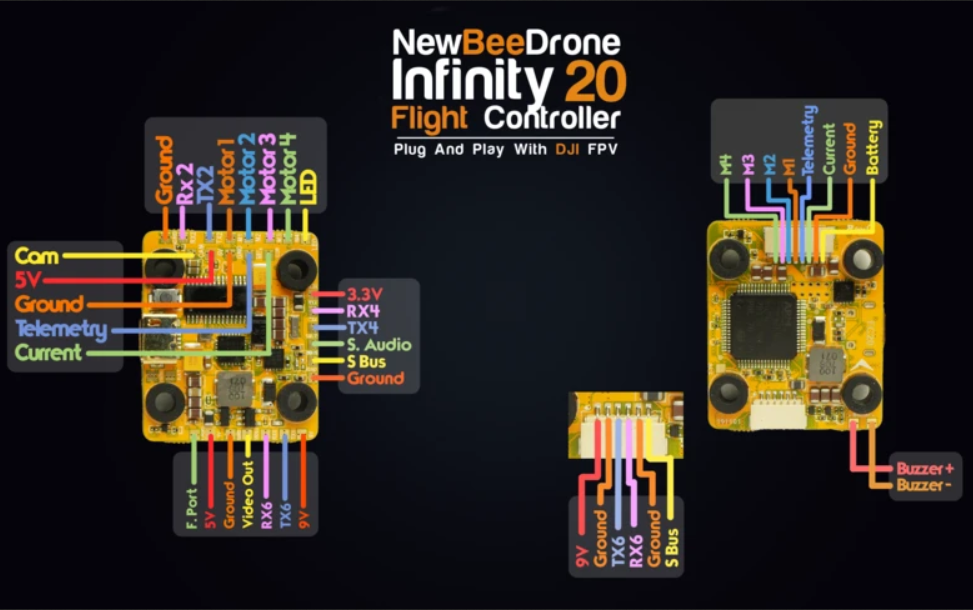

• 6 UARTS. UART1 (INVERTER FOR SBUS),
• UART2 (FREE),
• UART3 (INVERTED TELEMETRY),
• UART4 (Free),
• UART5 (Smart Audio)
• UART6(Free)
• Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
• Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.
• Built-in solder pads for ESC signal output and power

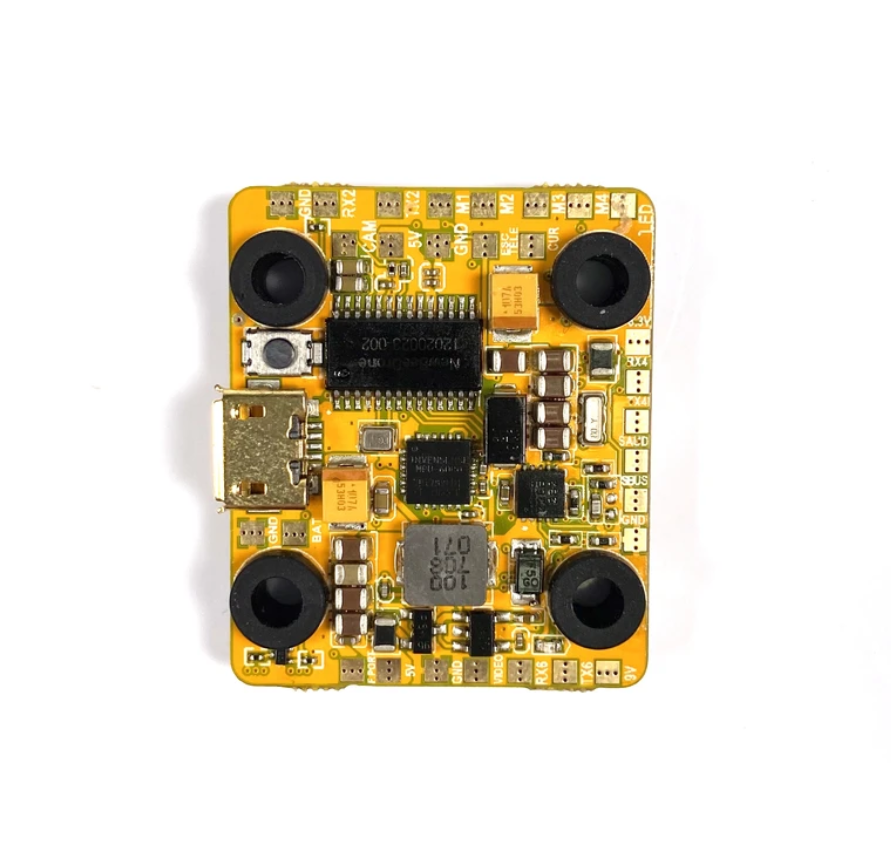

• Printed layout instructions ON the board – no need for instructions!

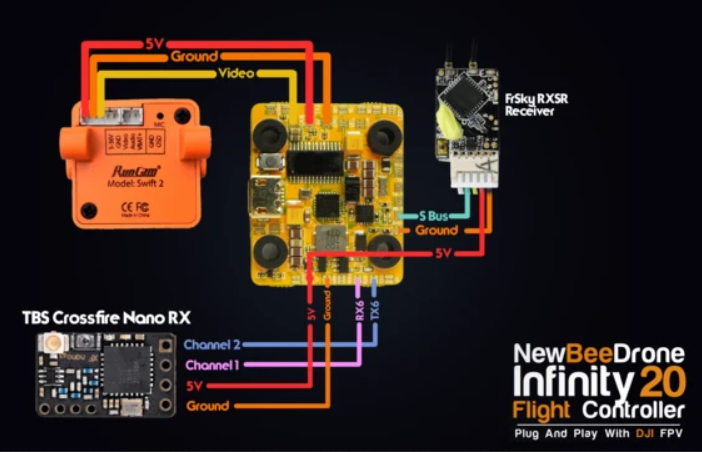

• DJI FPV Air Unit socket (use UART1 and UART6)
