NewBeeDrone Infinity305 Flight Controller – 30x30mm

Replacement Flight controller for Newbeedrone Infinity305 30/30 Stack

Checkout all our Flight controllers and our Newbeedrone Collection!

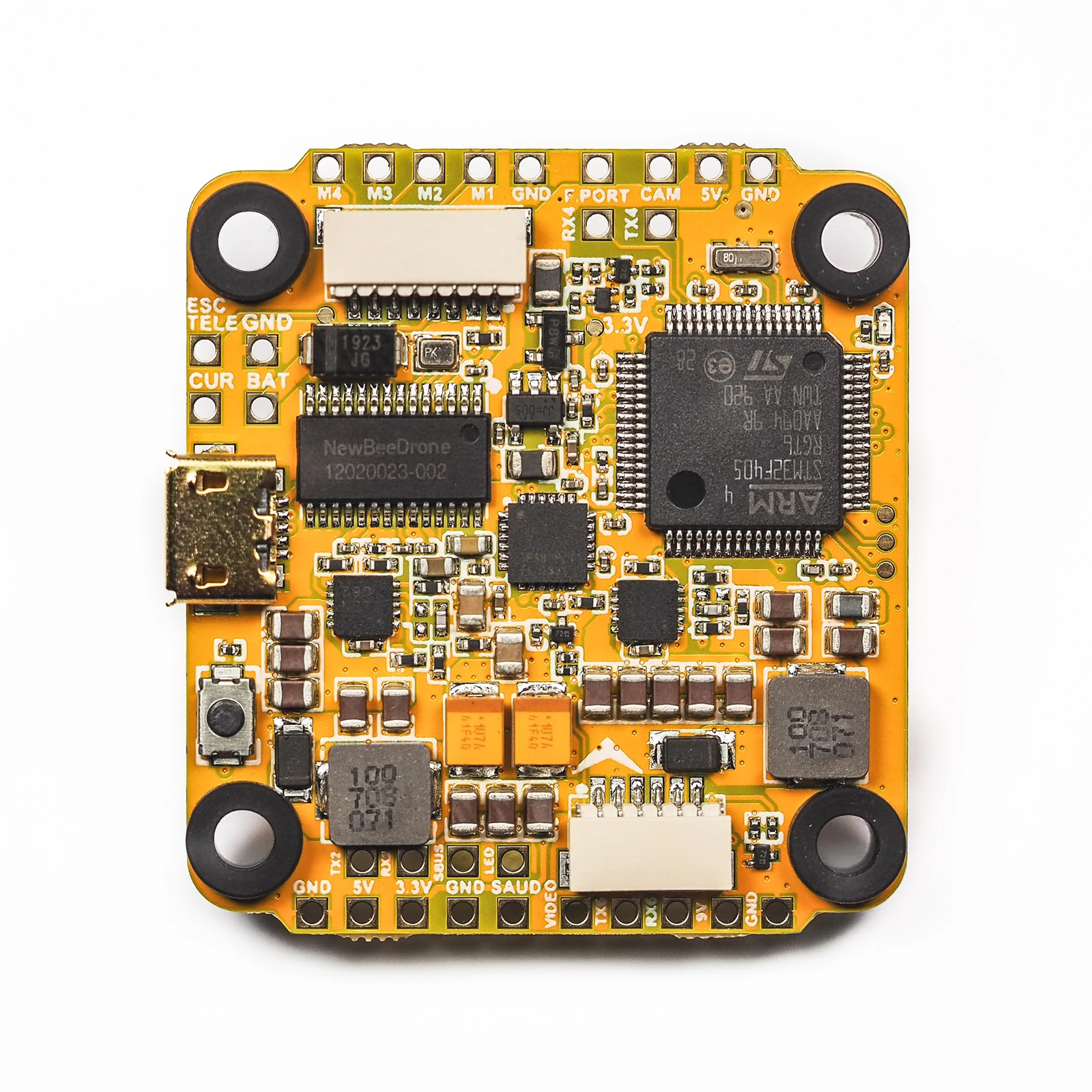

Flight Controller Spec:
• MPU6000 Gyro
• STM32F405 CPUE @ 168mhz, can be overclocked
• 3-6S direct battery input
• 5V 2A,
• 9V 2A 18W Design for DJI FPV Air Unit
• 5V Camera Power
• betaflight OSD

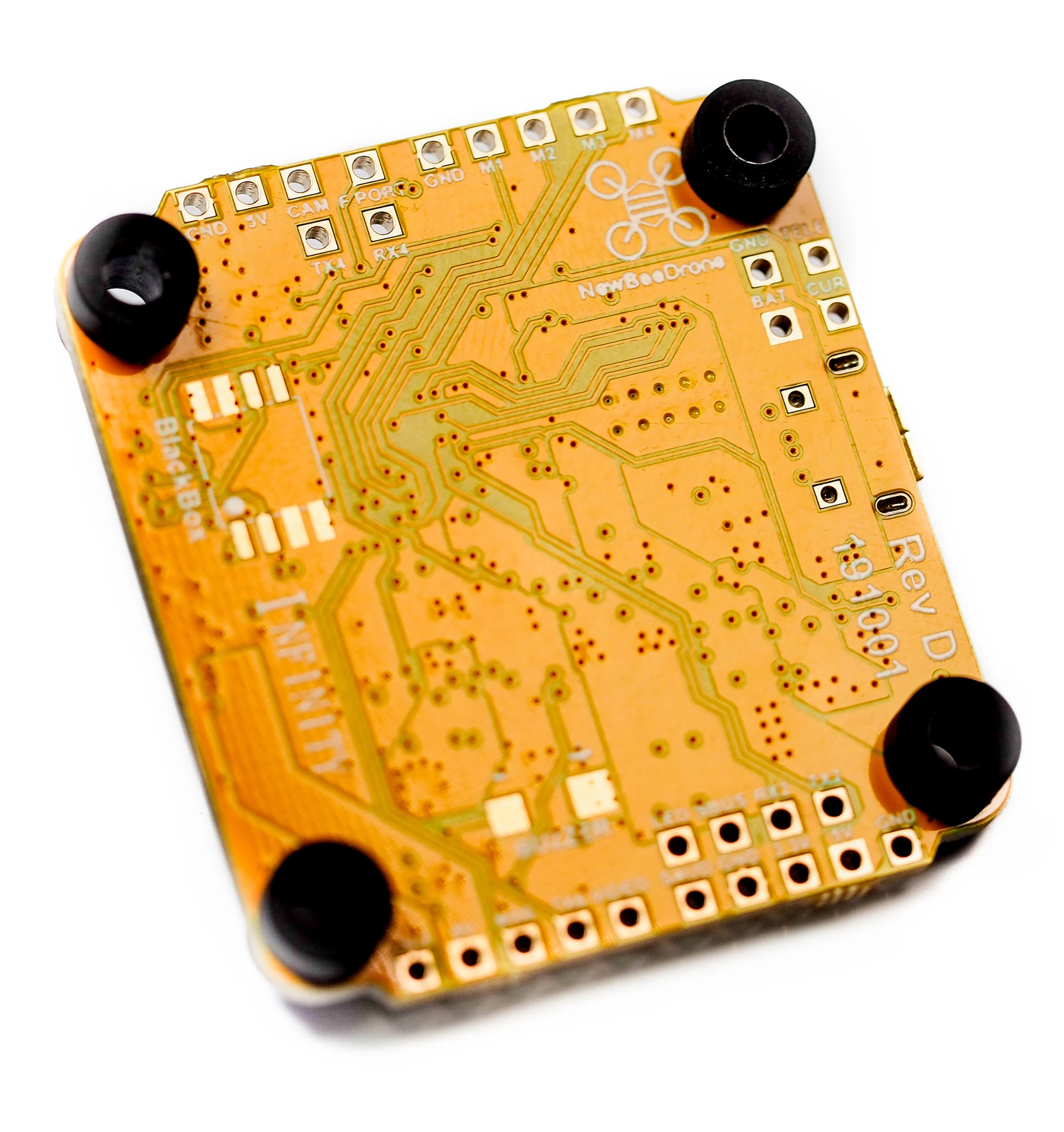

• Flat bottom PCB for SUPER CLEAN builds
• 36×39 CB with 30.5×30.5 mounting holes
• 6 UARTS. UART1 (INVERTER FOR SBUS),
• UART2 (FREE),
• UART3 (INVERTED TELEMETRY),
• UART4 (Free),
• UART5 (Smart Audio)
• UART6(Free)
• Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
• Plug and plug with NBD Infinity30 ESC. Also compatible with most of the ESC on the market.
• Built-in solder pads for ESC signal output and power
• Printed layout instructions ON the board – no need for instructions!
• DJI FPV Air Unit socket (use UART1 and UART6)

Includes:

• 1x  Infinity305 flight controller
• 4x Grommets short 4x Grommets Long
• 1x Infinity305 FC to DJI Air module cable 40mm
• 1x Infinity305 FC to DJI Air module cable 100mm
• 1x Infinity305 FC to DJI Air module cable 150mm

NOTE: We suggest running a cap on 4s builds.  Even though we tested and designed it to not need one, all builds are different and there are always exceptions.
