Phoenix UAS MRID – Remote ID Module (No GPS)

Phoenix UAS mRID is a remote ID module approved by the FAA. It is purposely made to be compact, lightweight, and user-friendly, specifically for FPV enthusiasts and the wider UAS community.

Check out the rest of our Remote ID Modules.

Features:

• Works with any M10 Ublox-based GPS (Not Included)
• You can power from a 5V connection on your flight controller, a 1S battery, or through a USB connection.
• GPS and compass data can be passed to Betaflight and INav. Testing pending for Ardupilot.
• USB can be used to cold start the GPS, saving your battery for flight time
• Integrated blue tooth antenna, no extra antenna to mount.

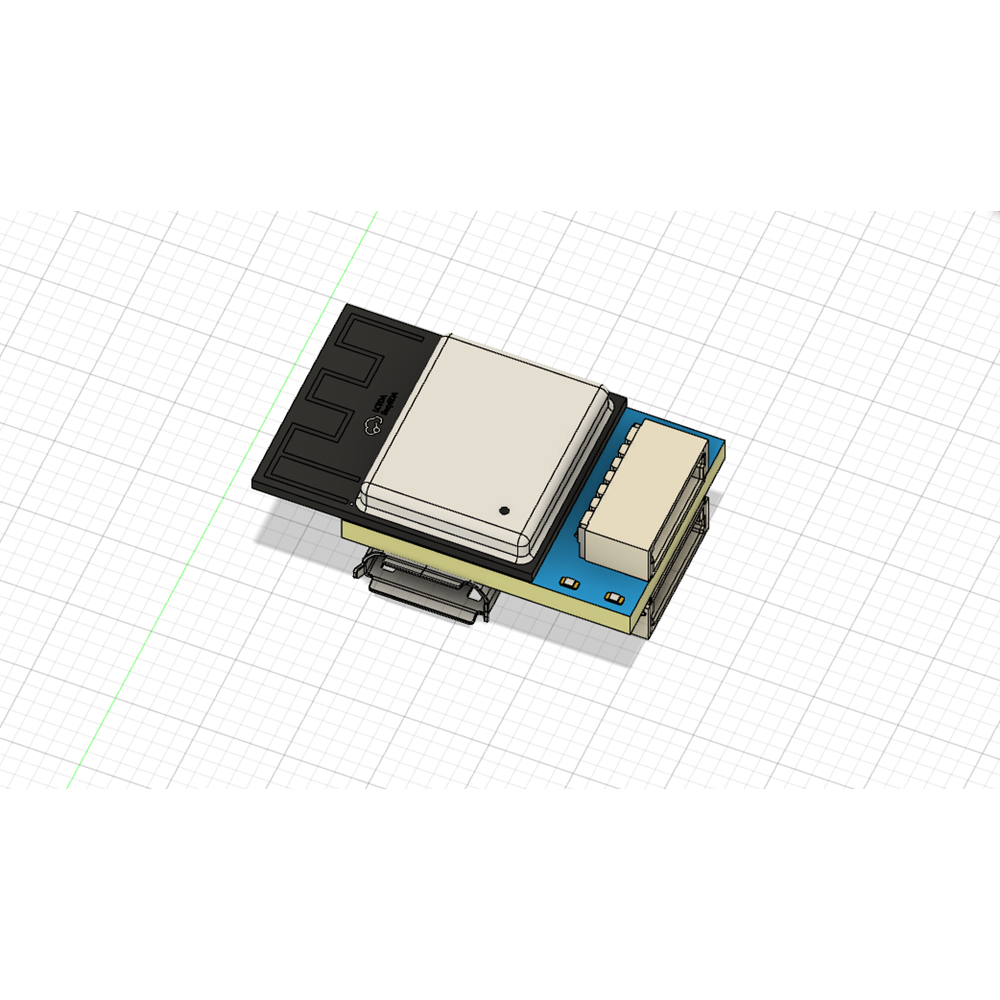

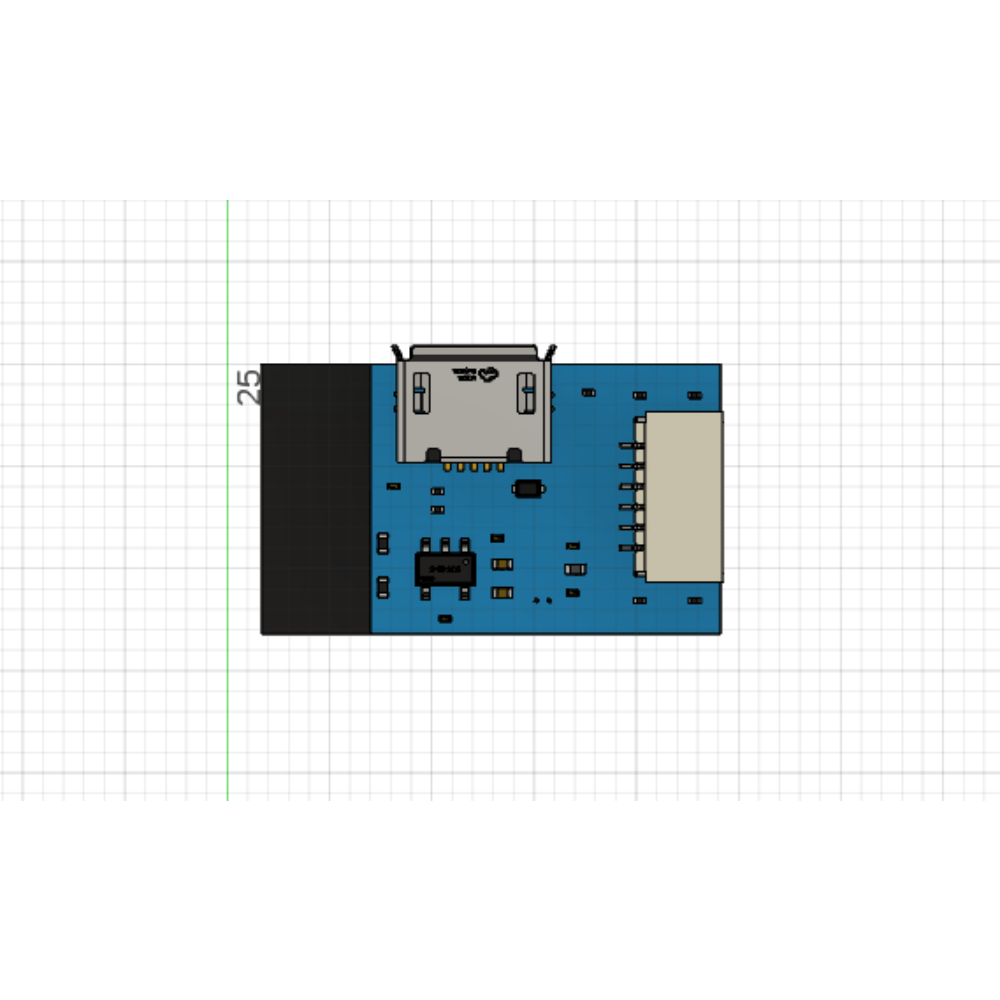

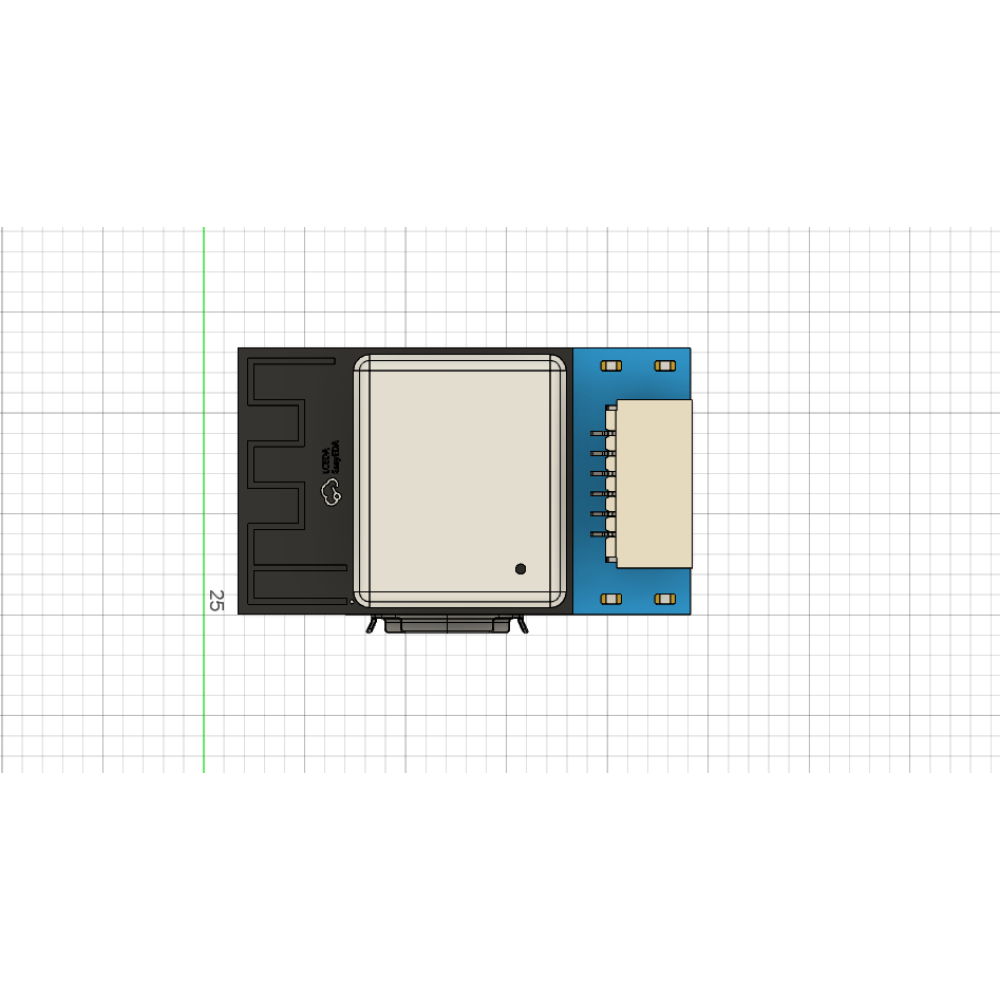

• The tiny 24mm x 14mm x 8mm size provides you with many mounting options

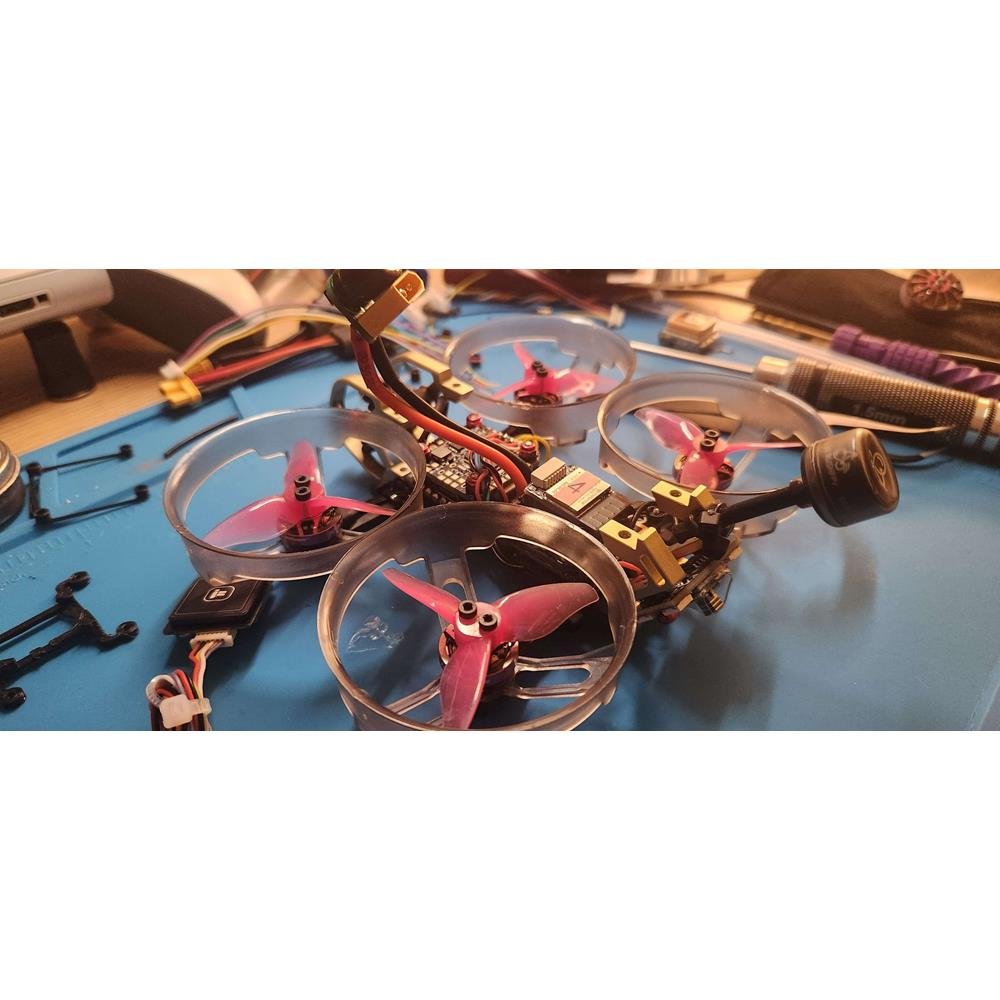

• Tucks inside many frames
• Add a 3d printed case and safely mount on the exterior
• Easily moved from UAS to UAS
• Easily converted into a self-powered standalone module with > 30-minute runtime on a 100mAh 1s LiPo battery.
• Four status LEDs to indicate power, GPS Lock, telemetry passthrough, and failure

Specifications:

• Transmission method: Bluetooth 5LE / BT4
• Power: 3.3-5v, 1s battery, USB
• Power consumption: < 40mA
• Dimensions: 24mm x 14mm x 8mm
• Weight: 2.2 grams
• LED’s: Power: Blue-on, GPS: Green lock/ready to fly, Telemetry: blinking green GPS sending to flight controller
• Requires a user supplied m10 GPS

Package Includes:

• 1 x Phoenix UAS mRID Remote ID Module
• 1 x Connector/cable

Setup and Support:

• There’s a QR code on the package that will take customers to Phoenix UAS’ support page where a quick start guide and user manual can be found.
  https://www.phoenixuas.us/support
• Manual: https://static1.squarespace.com/static/655835eb8d1efb5218de4815/t/65a8873cd38d6a070b6b8503/1705543496239/Remote-ID-Quick-Start-Guide+v2.pdf
