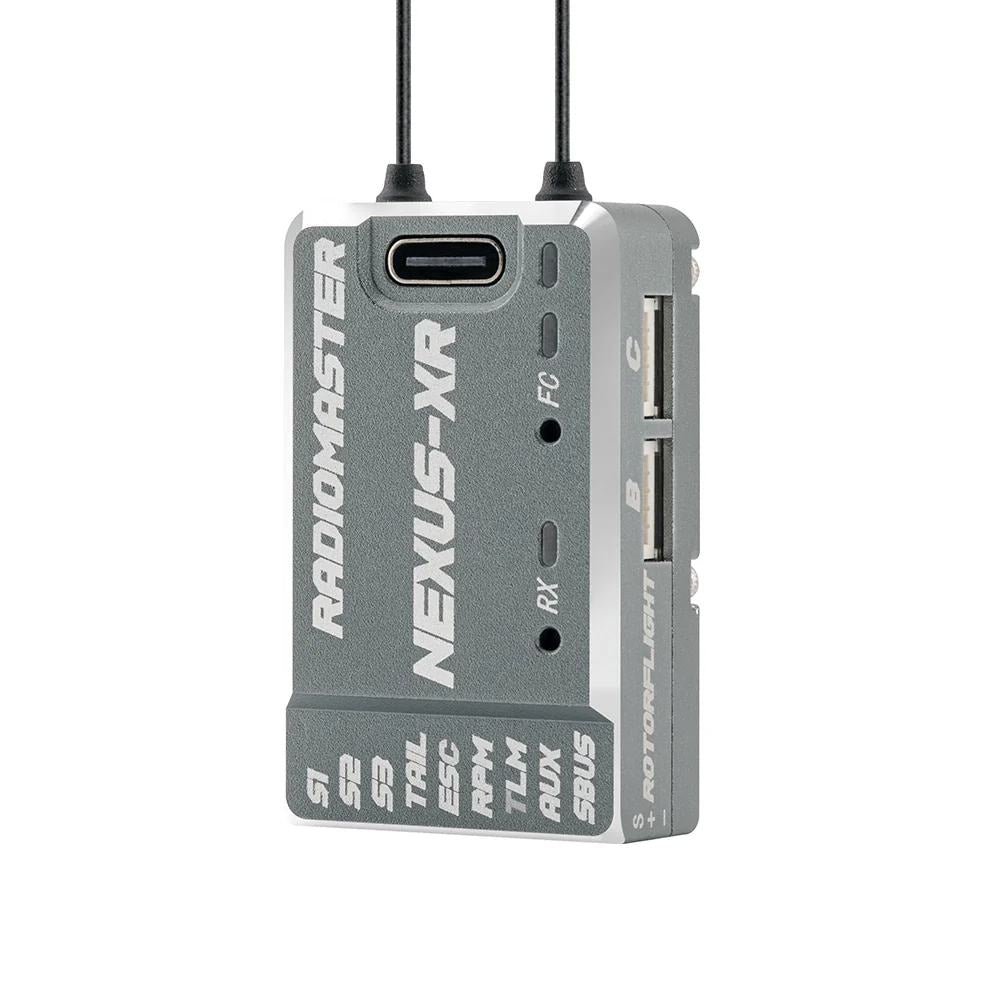

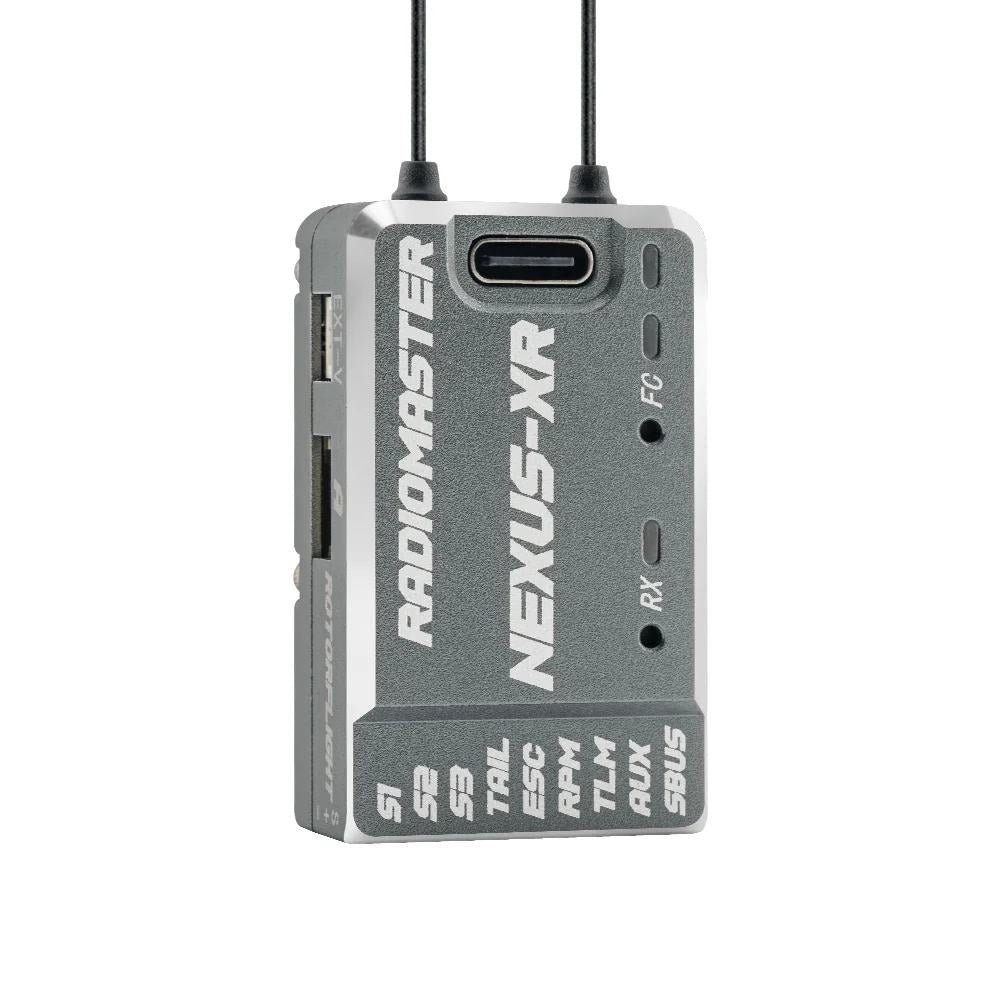

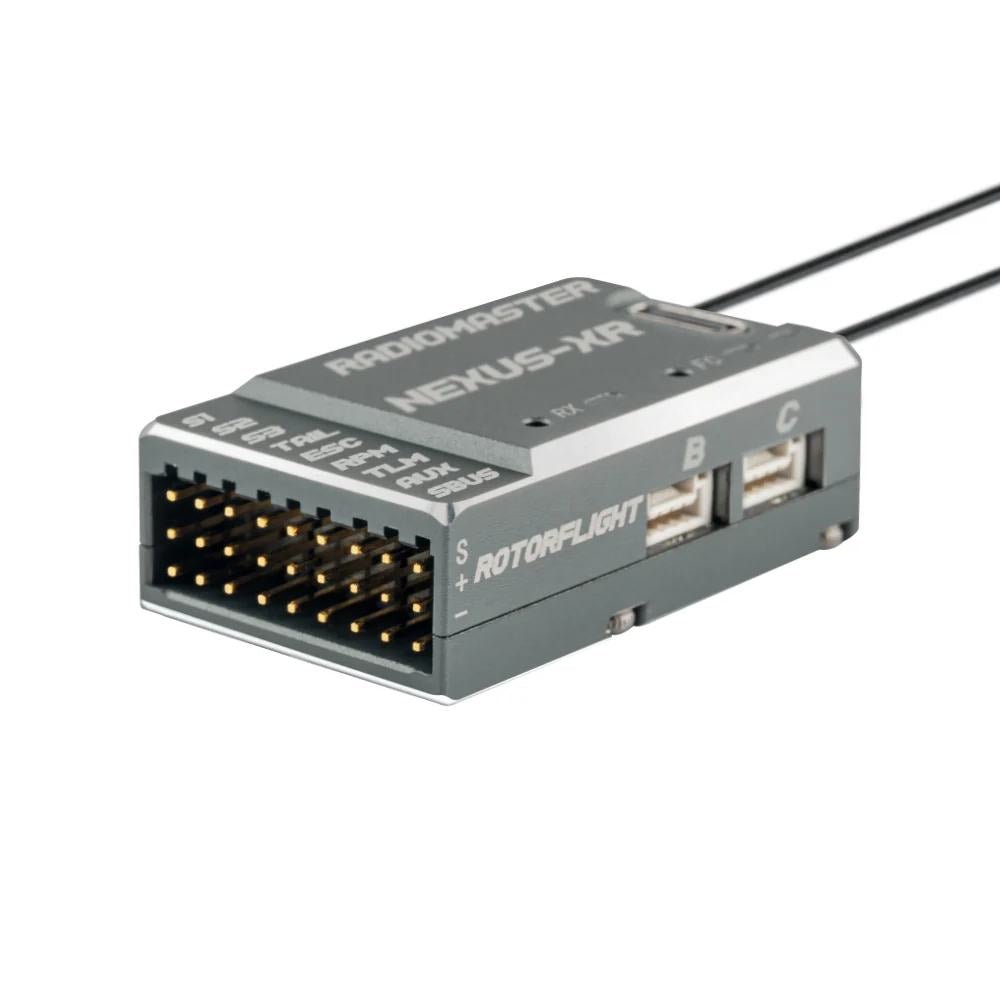

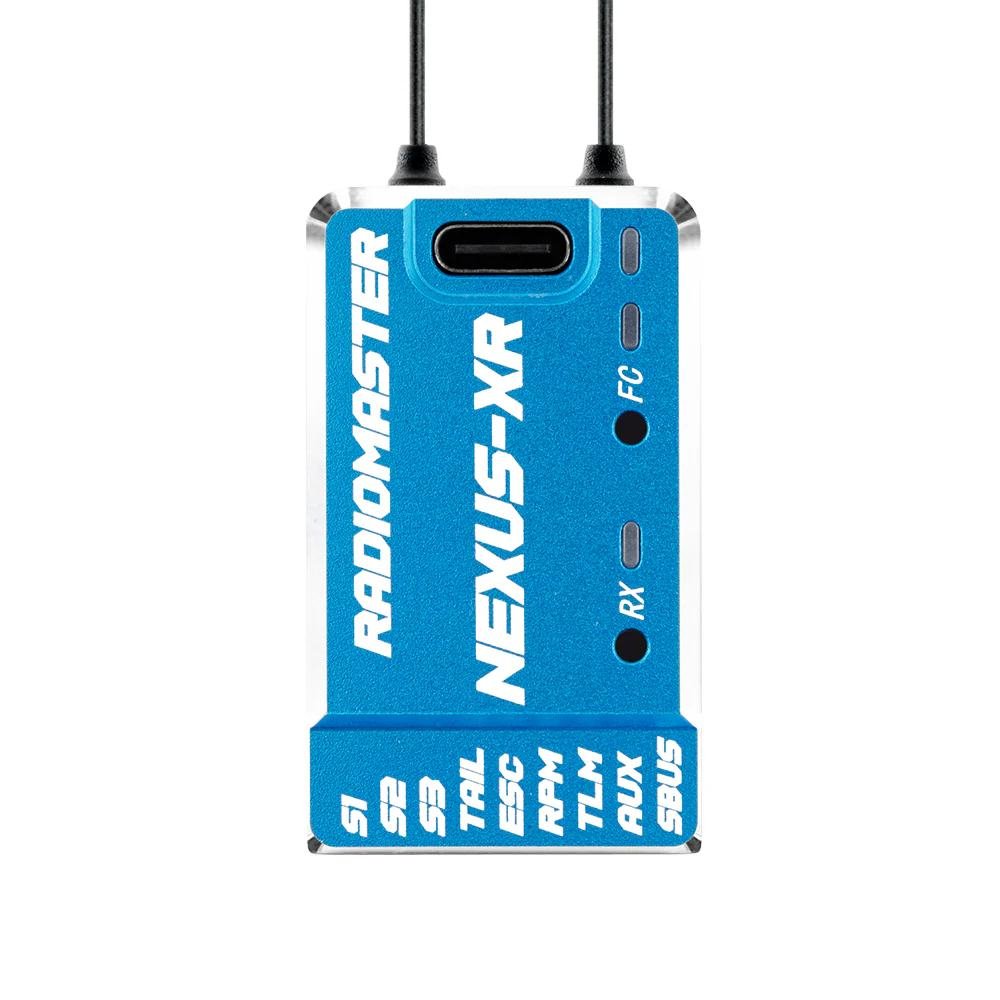

RadioMaster Nexus-XR Helicopter Flight Controller with Integrated ELRS 2.4GHz Receiver- BLUE

The Nexus-XR revolutionizes helicopter flight controllers by integrating a cutting-edge ExpressLRS receiver with dual Semtech SX1281 2.4GHz transceivers. This built-in receiver delivers exceptional RF performance, superior range, reliability, and effortless setup. It eliminates the need for external receivers, simplifying installation and reducing weight.?

At the core of the Nexus-XR is the powerful STM32F722 MCU, paired with the ICM42688P 6-axis MEMS motion-tracking device. This device provides excellent vibration resistance and enhanced signal rejection, making it ideal for electric and nitro helicopters.

The Nexus-XR features several key upgrades. An improved BEC delivers more stable power to electronics, enhancing reliability, while the external voltage input now supports a range of 3.6V to 70V. Memory has been upgraded to 256MB, enabling longer flight logs. The CNC-machined aluminum case is sleeker yet still serves as a protective shield and heat sink, keeping the system cool during intense flights.

Designed for ultimate convenience, the Nexus-XR??s compact, rugged build fits a wide range of helicopter sizes, and delivers top performance in demanding conditions.

Check out all our Flight Controllers and the rest of our?RadioMaster Products!

Features:

• Integrated ExpressLRS Receiver:?Dual Semtech SX1281 2.4GHz transceivers for seamless RF performance, eliminating the need for an external receiver.
• Optimized for Rotorflight 2.2:?Engineered for peak performance and compatibility.
• Precision Control:?STM32F722 MCU and ICM42688P 6-axis gyroscope/accelerometer for superior flight dynamics.
• Flight Logging:?256MB onboard flash memory for detailed logging and tuning.
• Dual Antenna Design:?Two 65mm wire antennae for superior signal strength and range.
• Versatile Connectivity:?Multiple UART ports support CRSF, ELRS, S.BUS, and more.
• More PWM Pins:?Additional pins for expanded control in complex setups.

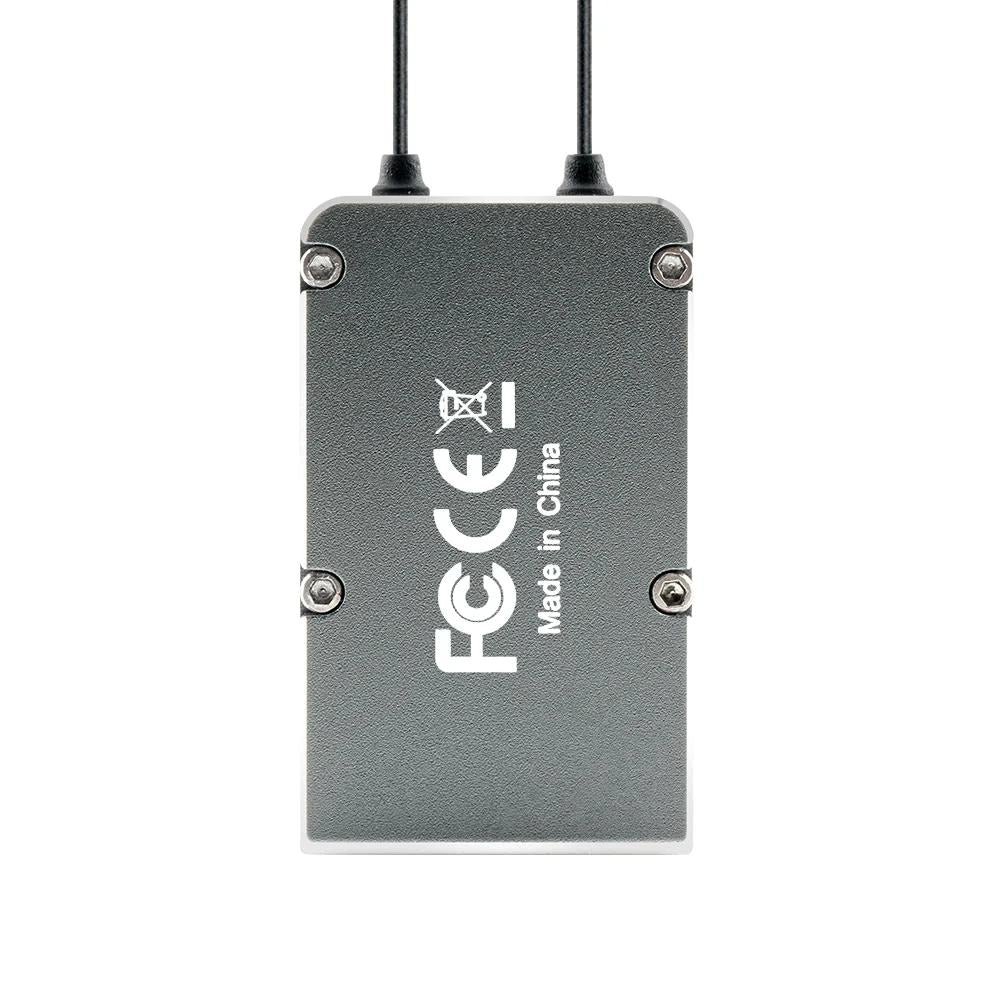

• CNC-Machined Aluminum Case:?Sleek, rugged design doubles as a heat sink to keep the system cool.
• Tail Servo/ESC Support:?Compatible with 760??s/1520??s tail servos and ESCs.
• 12V Servo Support:?Capable of supporting 12-volt servos.
• Wide Voltage Range:?Supports 3.6V?C70V external power input for flexible setups.
• Improved BEC:?Stable, reliable power delivery to electronics for enhanced performance.
• Isolated Power Supplies:?Dedicated 1.8V (gyro), 3.3V (MCU), and 5V (interfaces) to minimize noise.
• USB-C Accessibility:?Lightweight, flexible USB-C extender cable for easy access in tight builds.
• Compact and Lightweight:?Ideal for any helicopter builds.
• Rotorflight Rescue:?Standard feature for enhanced safety in emergencies.
• Optional Case Color:?Grey / Gold / Red / Blue / Purple.

Specifications

• Item: Nexus-XR Helicopter Flight Controller
• Firmware: Rotorflight 2.2
• MCU: STM32F722RET6
• Gyro (IMU): ICM42688P
• Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
• Barometer: SPL06-001

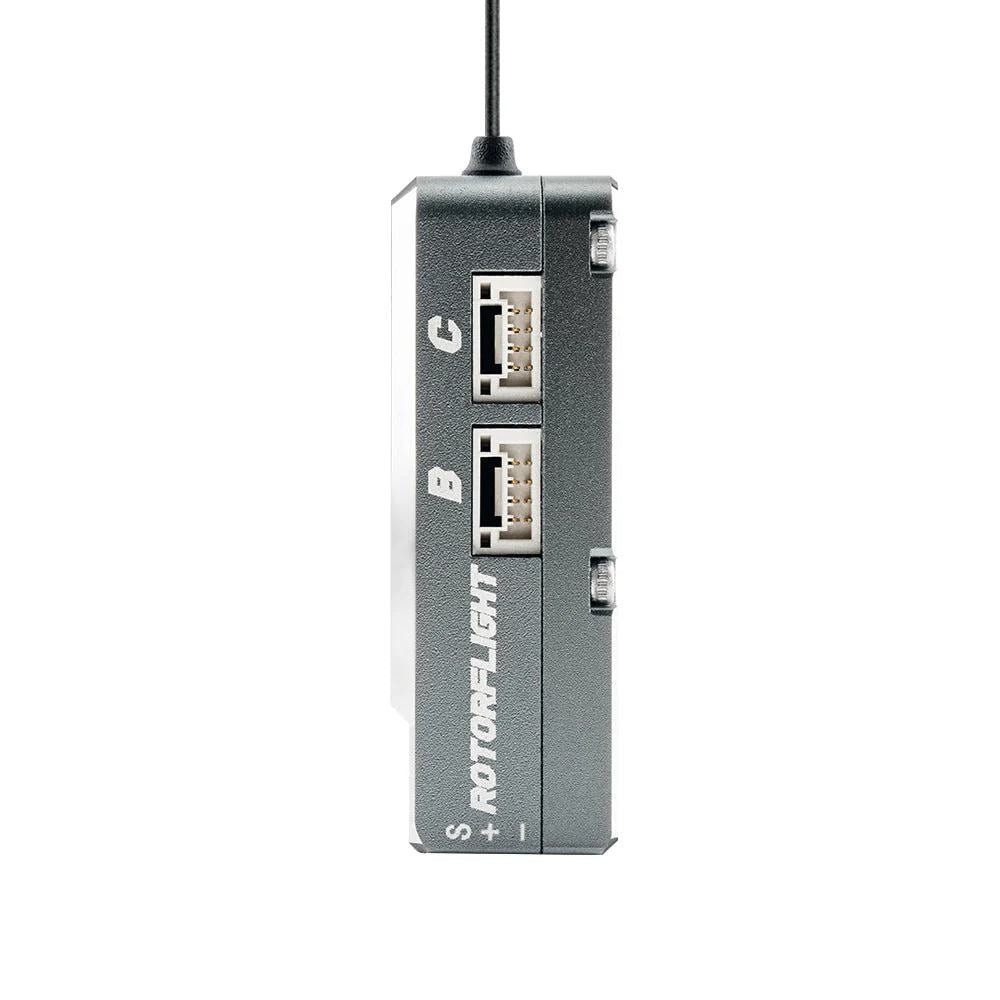

• Uart: 5 – S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]

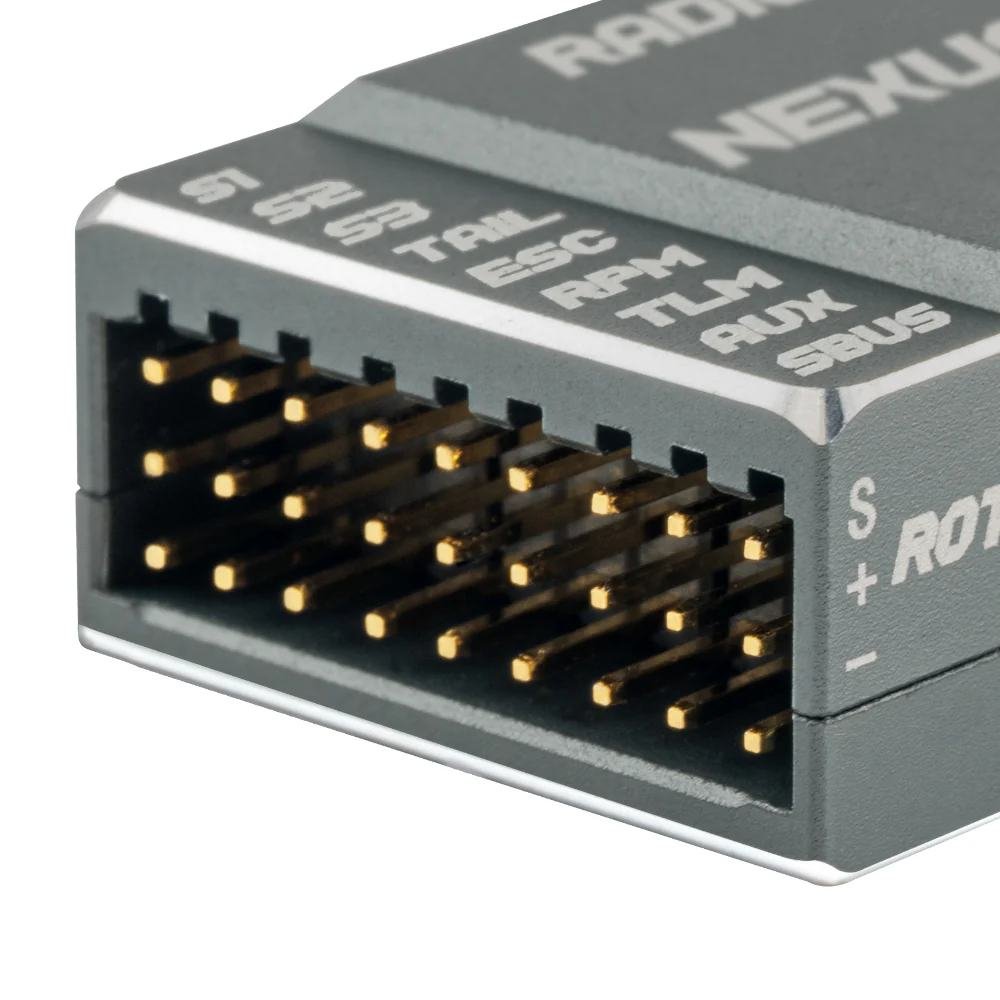

• Servo: S1, S2, S3, TAIL Servos (Up to 12V )
• Rpm Sensor: 1 – FROM ESC FREQUENCY SENSOR
• AUX: 1

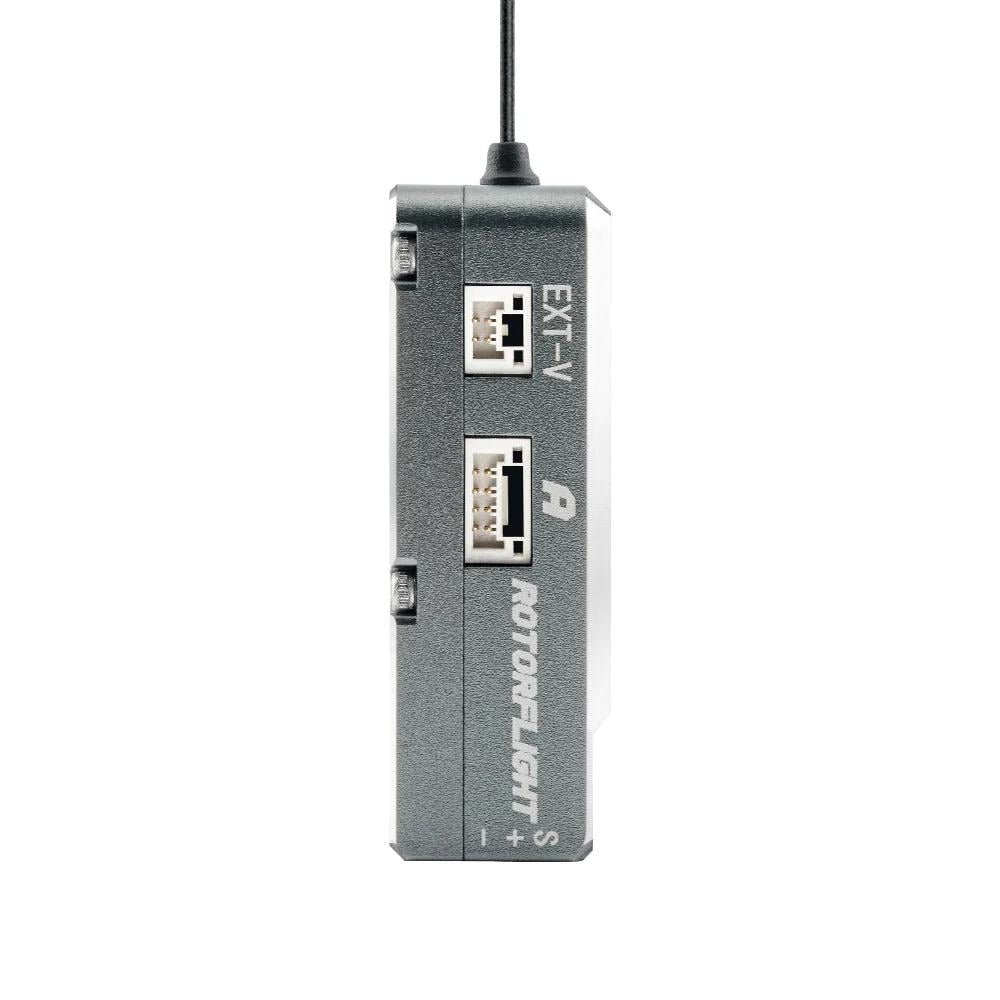

• Ext voltage input (tele): 3.6-70v
• Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
• Voltage Supply(DC): 5 – 16V
• A-B-C Serial Port Power Output: 5V – 1.5A
• Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
• ESC: PWM, Oneshot, Multishot, Dshot
• Support Tail ESC: 760??s / 1520??s Servo
• Support Tail Motor: Yes
• Internal Receiver: ?RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
• MCU: ESP32
• Type: ISM
• RF Chip: SX1281 x 2
• Antenna: 65mm 2.4GHz Wire Antenna x 2
• Frequency Range: 2.4GHz
• Maximum Refresh Rate: 500Hz / F1000Hz
• Telemetry RF Power: Max 2 x 10mW
• Wifi Updates: Yes
• FW Target: RadioMaster RP4TD-M 2400 RX
• Bus interface: CRSF
• Demensions: 44.70 x 26.50 x 14.30mm
• Weight: 24.1g

?

User Manual

• NEXUS-XR User Manual

Package Includes:

• 1 * NEXUS-XR Helicopter Flight Controller
• 3 * JST-GH 4 Wire pigtail cables
• 1 * JST-GH to Servo Plug (dupont 3 pin connector)
• 1 * Ultra light-weight and flexible USB-C extender
• 1 * Type C extension cable
• 1 * JST-ZH1.5 “DSM” Telemetry cable (Telemetry only does not support DSM Receivers)
• 1 * Voltage telemetry wire
• 3 * 3M double-sided mounting tape
• 2 * Heat shrink tubing
• 1 * Inventory Card
