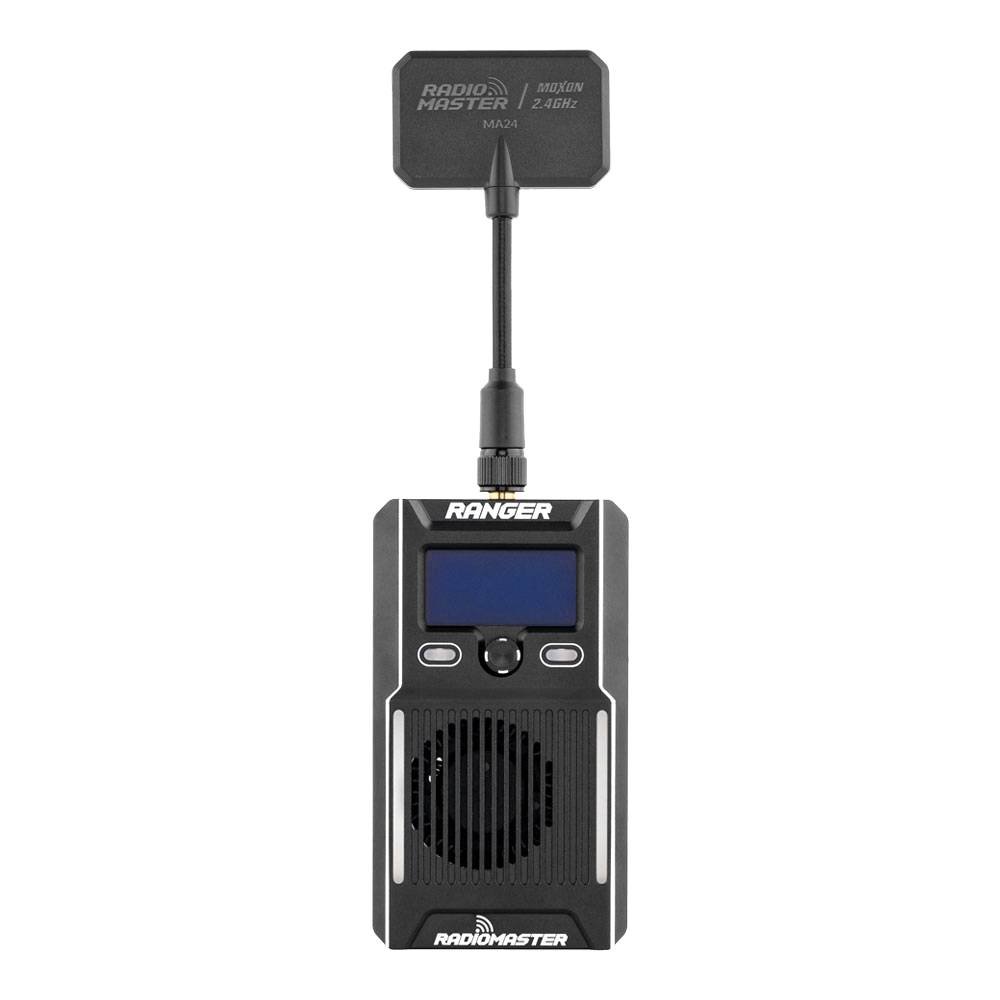

Radiomaster Ranger 2.4Ghz ELRS Module

The RadioMaster Ranger 2.4GHz ELRS Module features a rugged CNC case and two module bay adapters.  Other features include an OLED display, built-in accelerometer, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. The 5 Direction Nav key and customizable shortcut buttons make this module user-friendly and customizable.

VIDEO: Ranger 2.4GHz ELRS Module | The pinnacle of ExpressLRS module design

Check out all our ExpressLRS Products, Receivers, and the rest of our RadioMaster Products!

• 2 Customizable Shortcut Buttons
• High-Efficiency Cooling System
• ExpresssLRS 2.4GHz Module
• Max F-1000Hz Packet Rate
• WiFi and Bluetooth Support
• Rugged CNC Housing
• RGB Lighting effects

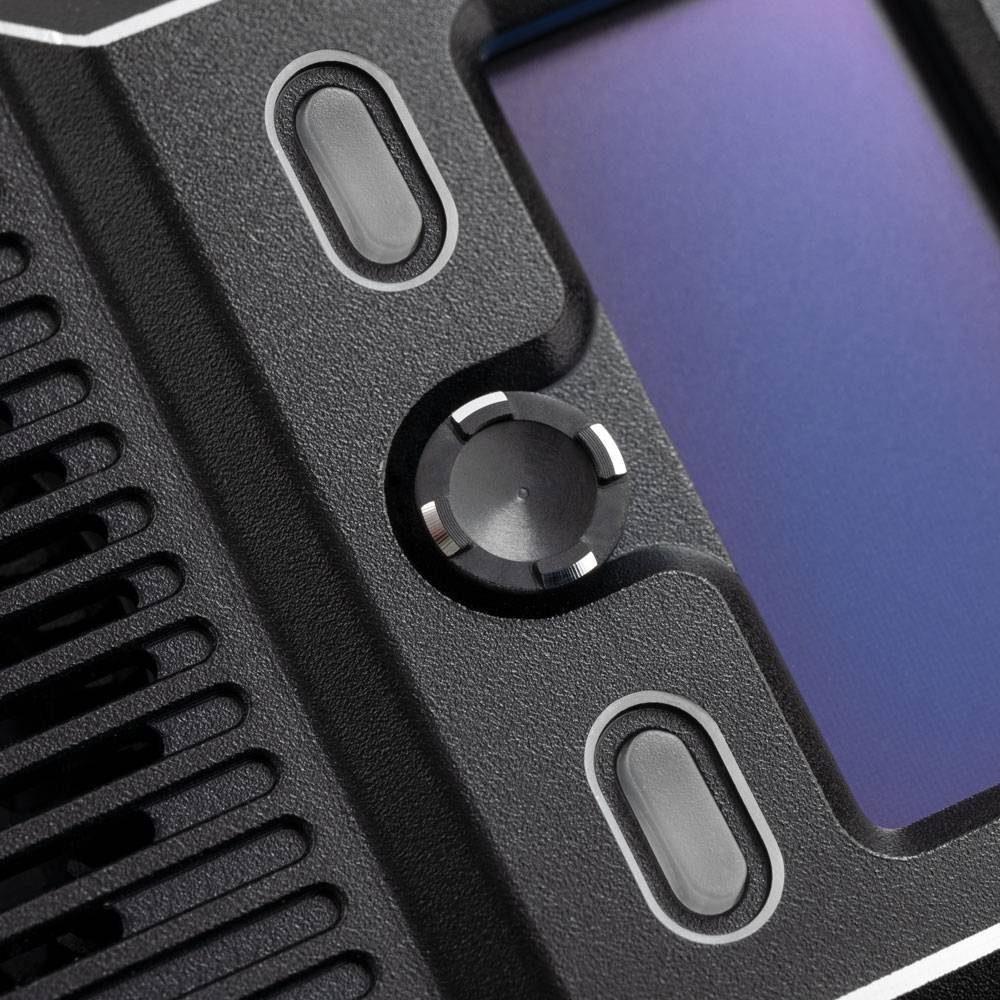

• 5 Direction NAV Key
• 1W Power Output
• OLED Display

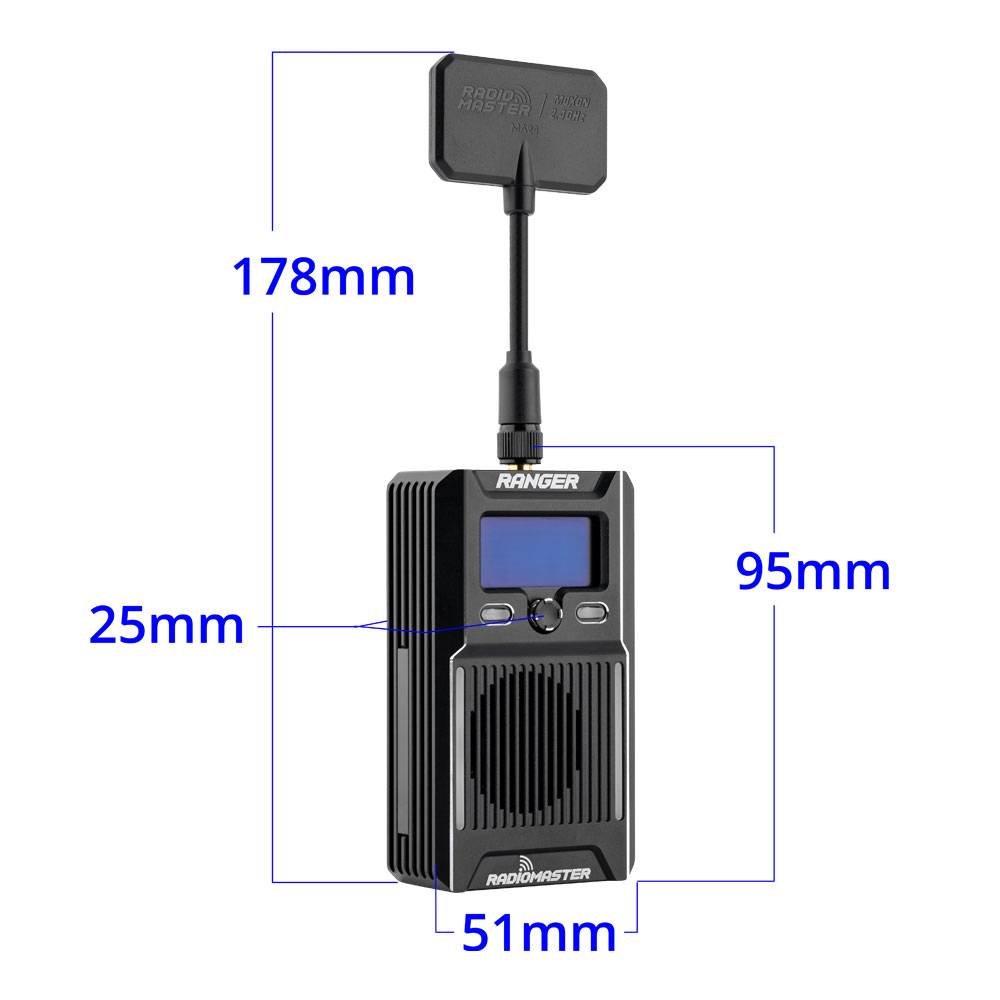

• Dimension: 178*51*25mm, 138g(with Moxon antenna) / 95*51*25mm, 126g (without antenna)
• Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Weight: 138g (with Moxon antenna) / 135g (with T antenna)
• 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
• Power Output: 1WItem: Ranger 2.4GHz ELRS Module
• MCU: ESP32(main), ESP8285(aux, as esp backpack)
• Frequency Range: 2400 MHz to 2480 MHz
• XT30 Power supply voltage: DC 6V – 16V
• Maximum packet rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Futaba CRSF socket cable: Included
• Frequency: ExpressLRS 2.4GHz
• Regulatory Domain: ISM2400
• Packet Rate: MAX F-1000Hz
• OLED screen: 64x128px
• RF chip: SX1281IMLTRT
• Accelerometer: Built-In
• RGB: Built-in light strip
• Bluetooth support: Yes
• Wifi Support: Yes

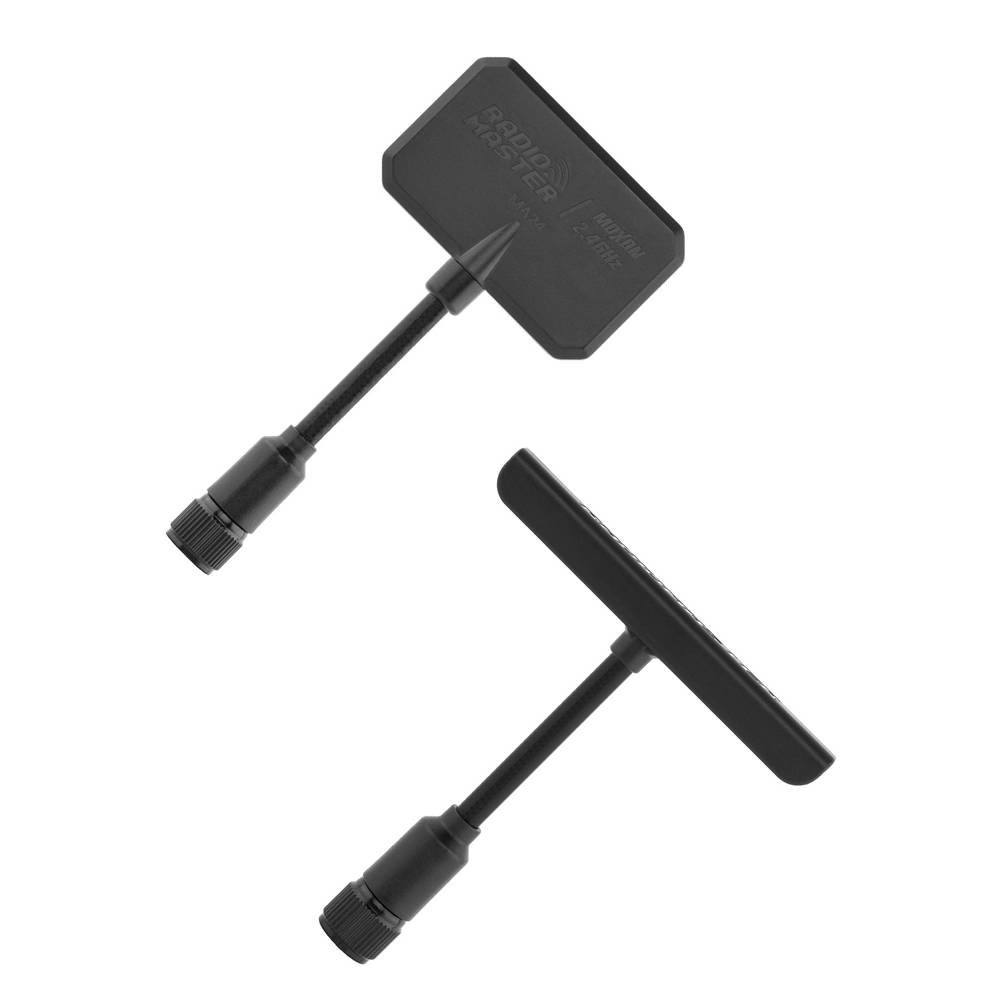

MOXON ANTENNA

• Antenna polarization: vertical/horizontal polarization 
• Type: MOXON Directional Antenna 
• Connector: RP-SMA Male
• Frequency: 2.4GHz
• Weight: 12g

T-ANTENNA

• Antenna polarization: vertical/horizontal polarization 
• Type: T-type Omnidirectional Antenna 
• Connector: RP-SMA Male
• Frequency: 2.4GHz
• Weight: 9.5g

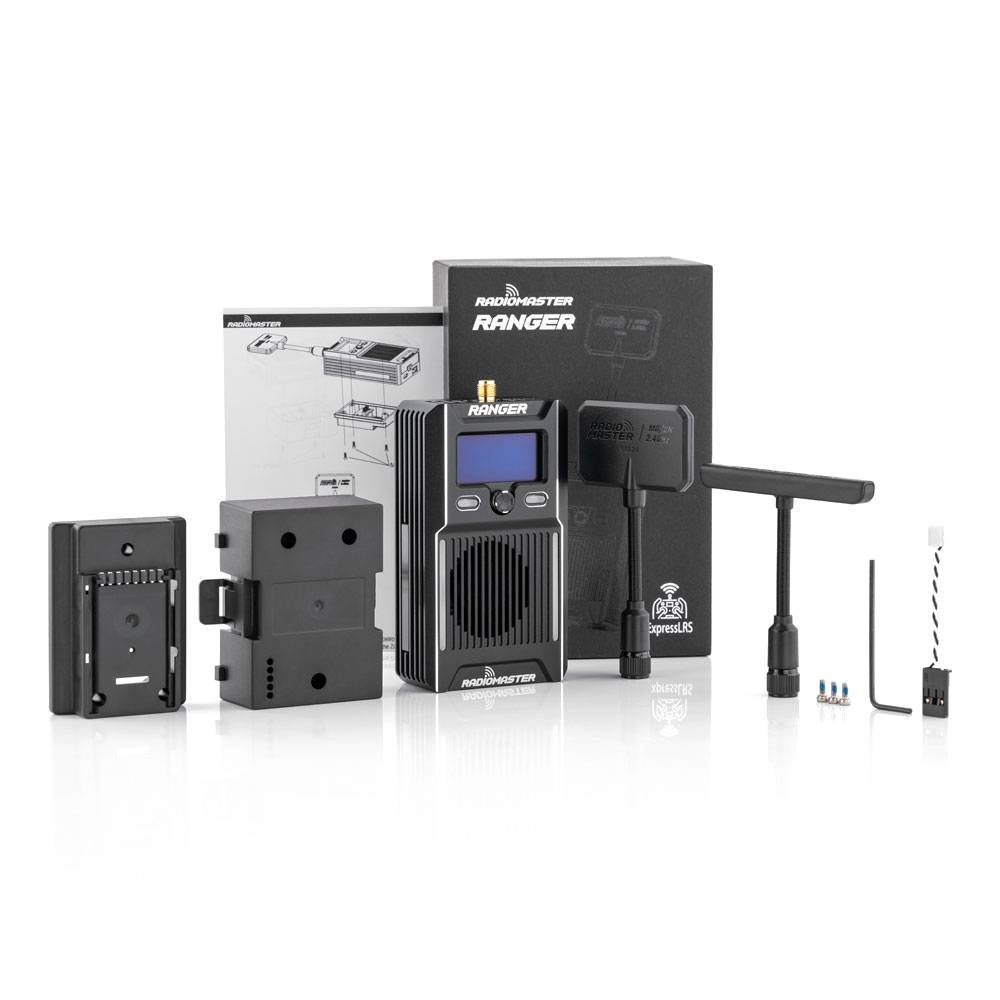

• 1x Nano Standard 8pin Socket Module Bay Adapter
• 1x JR Standard 5pin Socket Module Bay Adapter
• 1x Radiomaster Ranger 2.4Ghz ELRS Module
• 1x 2.4GHz Moxon Antenna – RP-SMA
• 1x 2.4GHz T Antenna – RP-SMA
• 1x Connecting Wire
• 1x Allen Key
• 3x Screws
