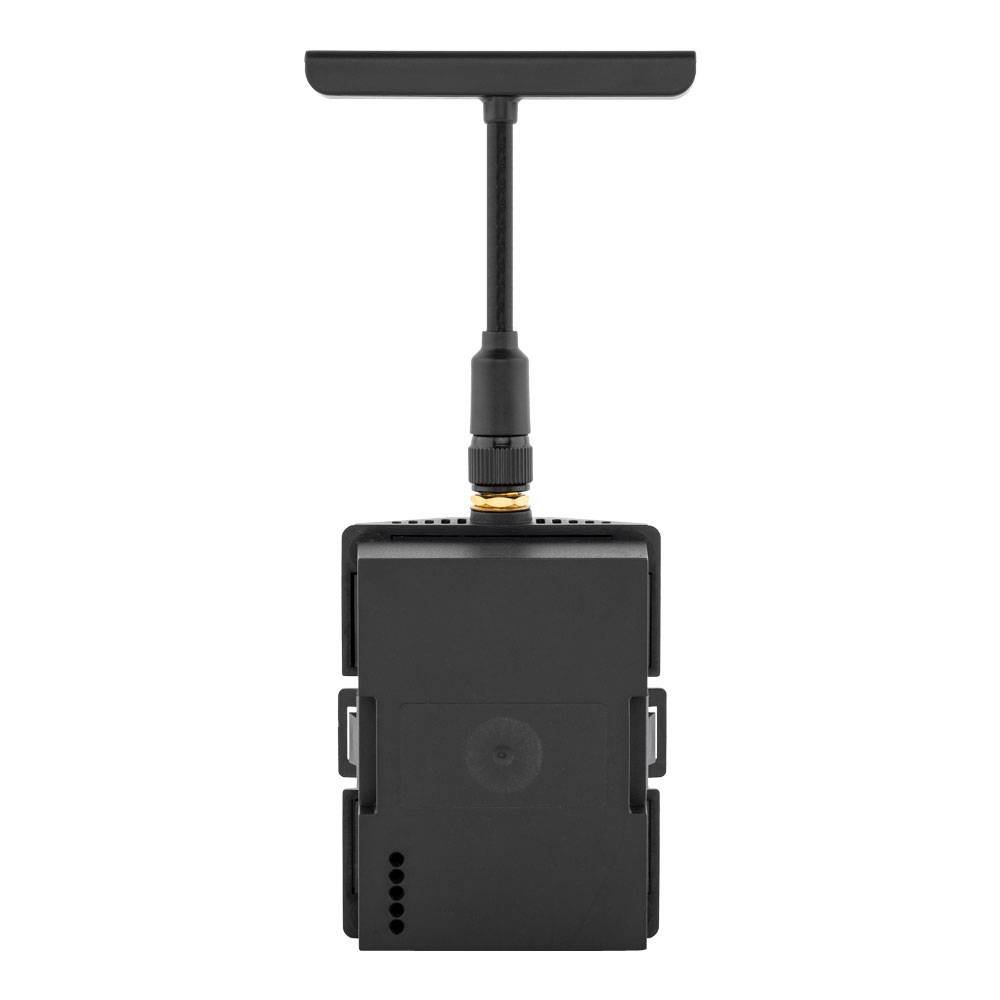

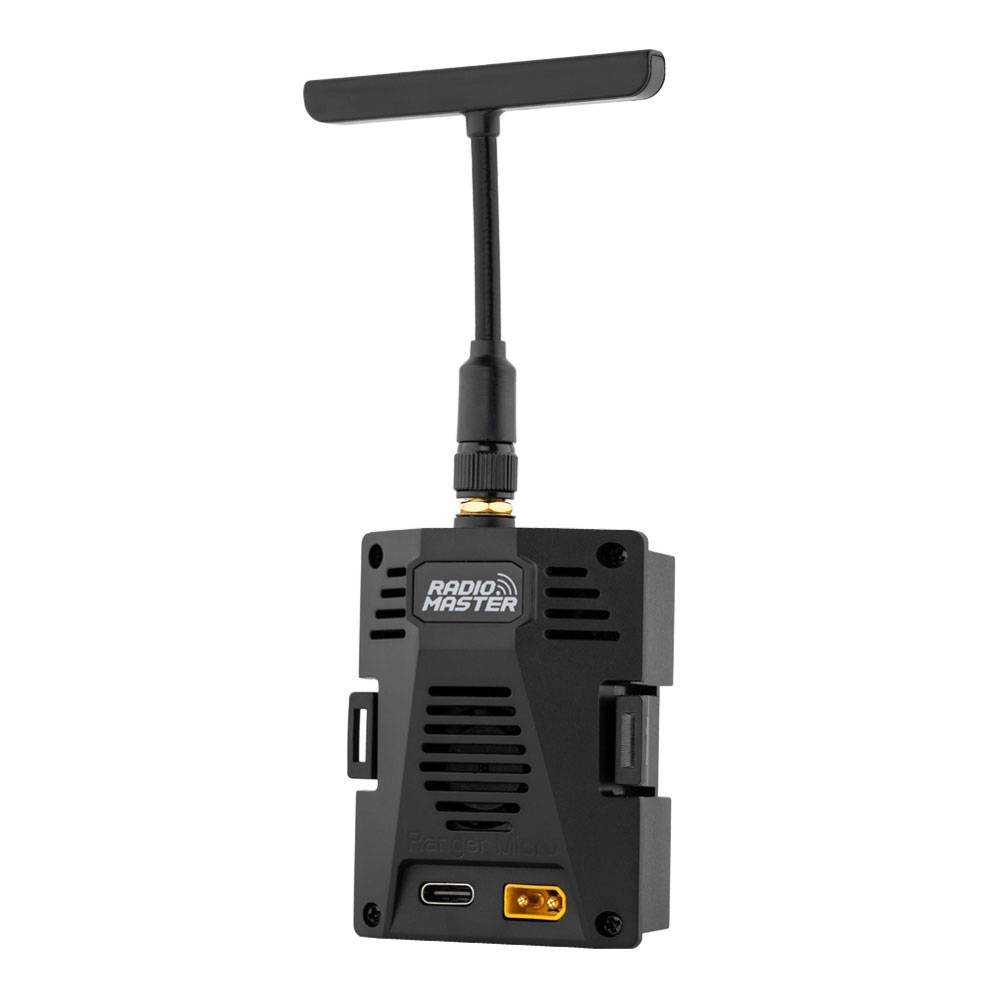

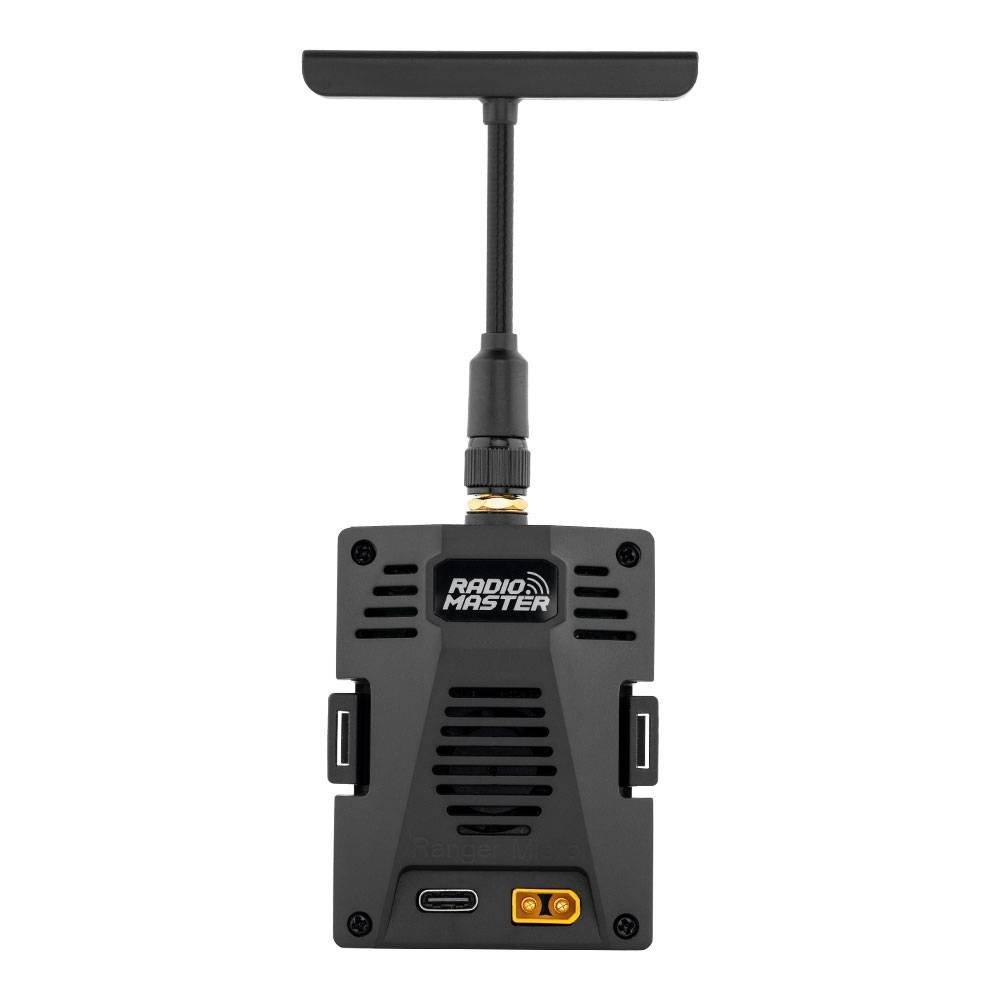

RadioMaster Ranger Micro 2.4Ghz ELRS Module V1.6 – Starter Combo

The RadioMaster Ranger Micro 2.4GHz ELRS Module Starter Combo features a JR module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. This starter combo also includes additional RPI receivers and one RP2 Receiver.

VIDEO: Ranger 2.4GHz ELRS Module | The pinnacle of ExpressLRS module design

Check out all our ExpressLRS Products, Receivers, and the rest of our RadioMaster Products!

• The JR connector supports TX16S MKII/TX12 MKII or JR standard 5pin socket radios.
• Micro ExpresssLRS 2.4GHz Module
• High-Efficiency Cooling System
• WiFi and Bluetooth Support
• Max F-1000Hz Packet Rate
• 1W Power Output

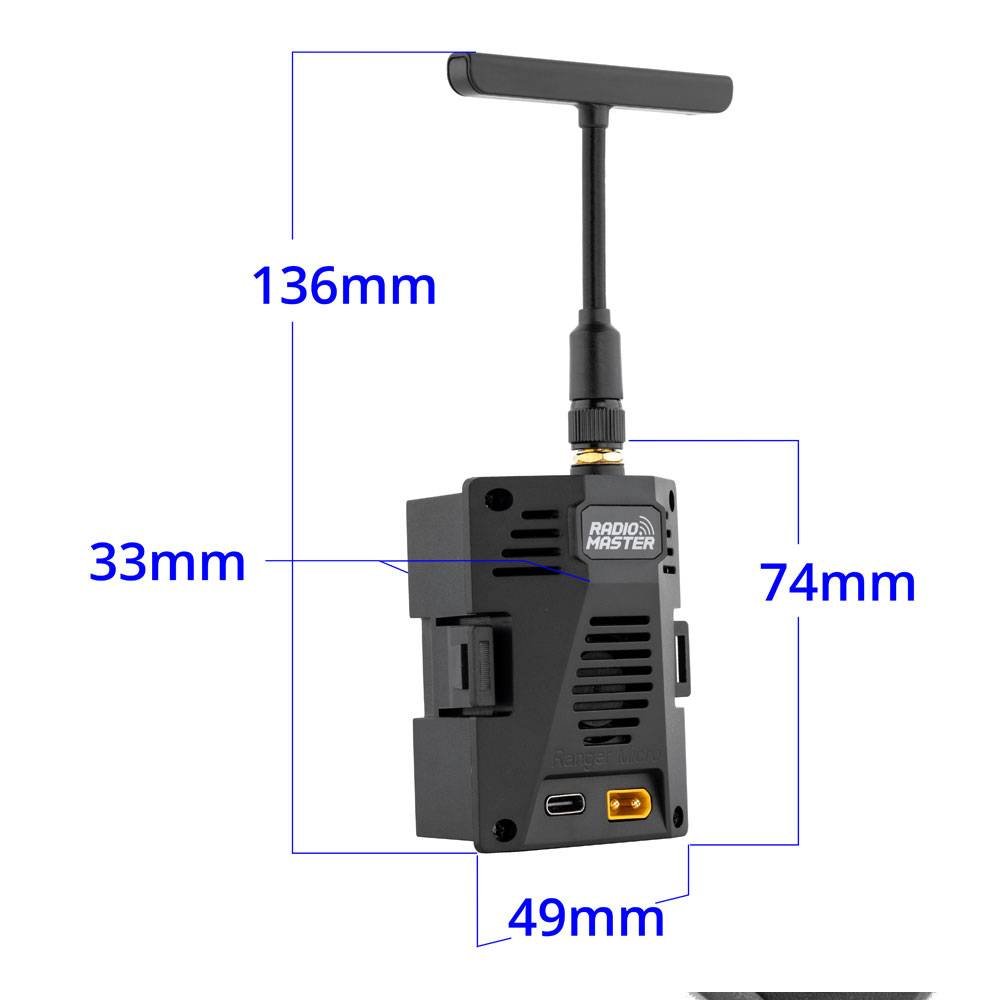

• Dimension: 136*49*33mm, 50g (with Moxon antenna) / 74*49*33mm, 40.5g (without antenna)
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• MCU: ESP32(main), ESP8285(aux,as esp backpack)

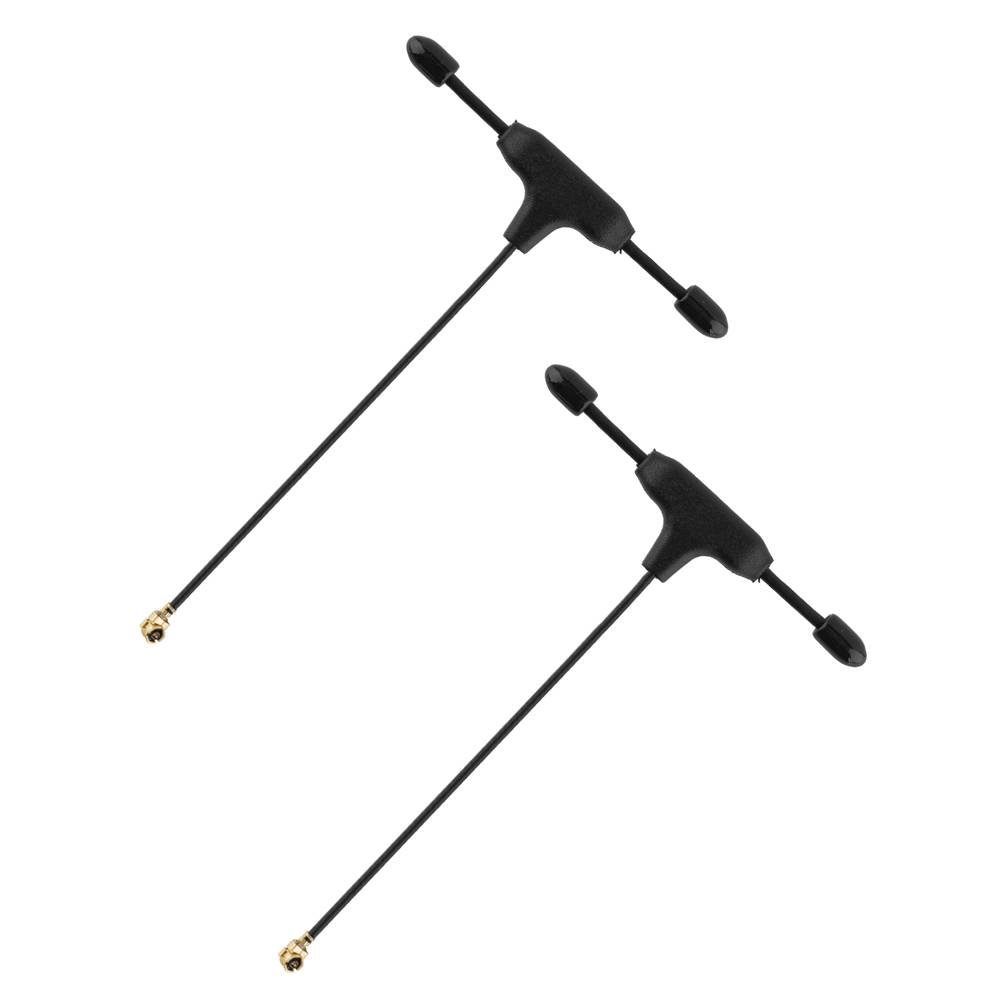

• Receivers: RP1 (two) and RP2 (one) with antennas
• Frequency Range: 2400 MHz to 2480 MHz

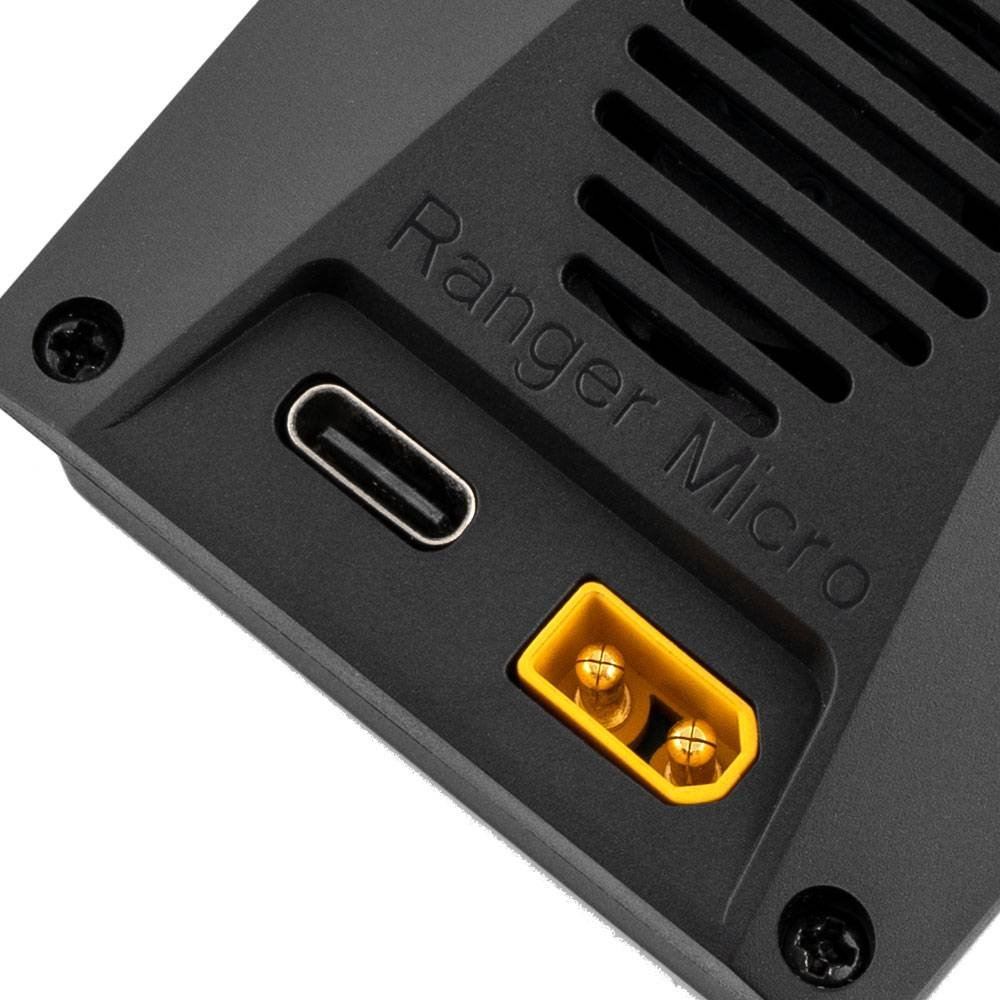

• XT30 Power supply voltage: DC 6V – 16V
• Maximum packet rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Weight: 50g (with Moxon antenna）
• Regulatory Domain: ISM2400
• Item: Ranger Micro Module
• RF chip: SX1281IMLTRT
• Bluetooth support: Yes
• Wifi Support: Yes

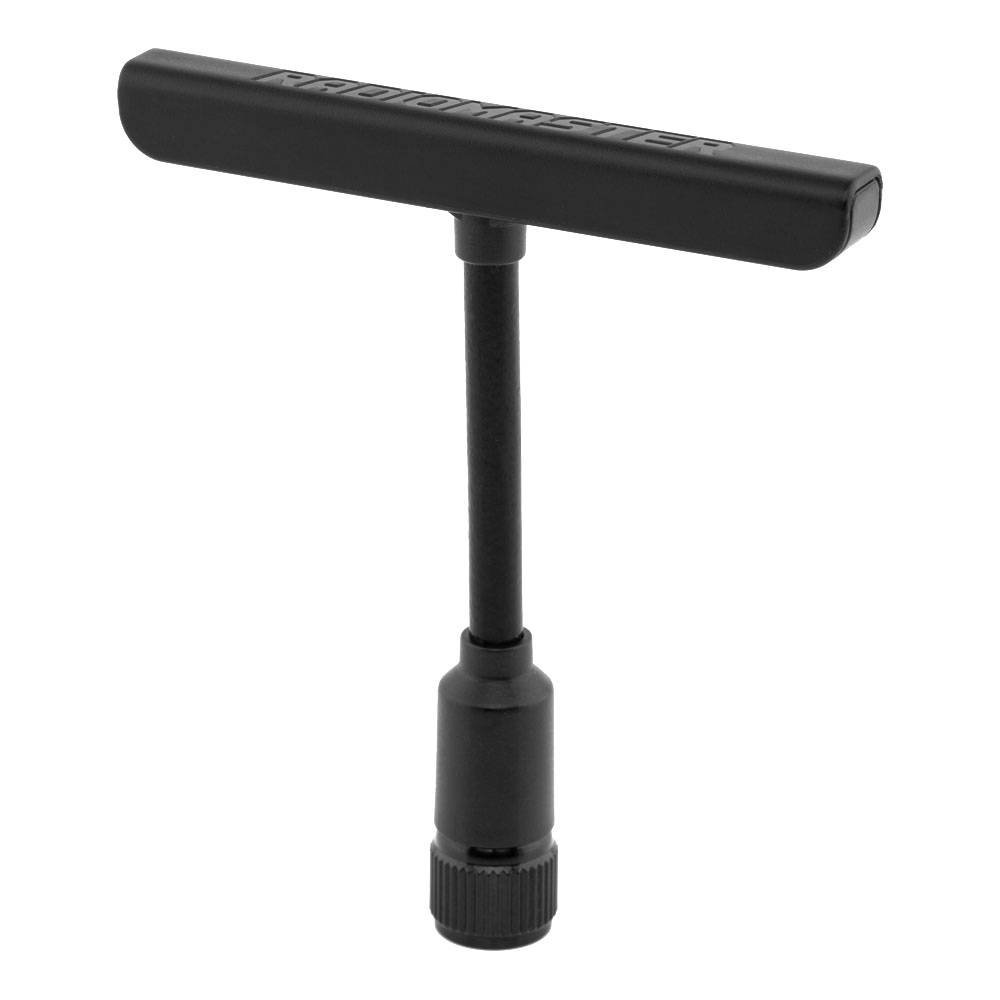

T-ANTENNA

• Antenna polarization: vertical/horizontal polarization 
• Type: T-type Omnidirectional Antenna 
• Connector: RP-SMA Male
• Frequency: 2.4GHz
• Weight: 9.5g

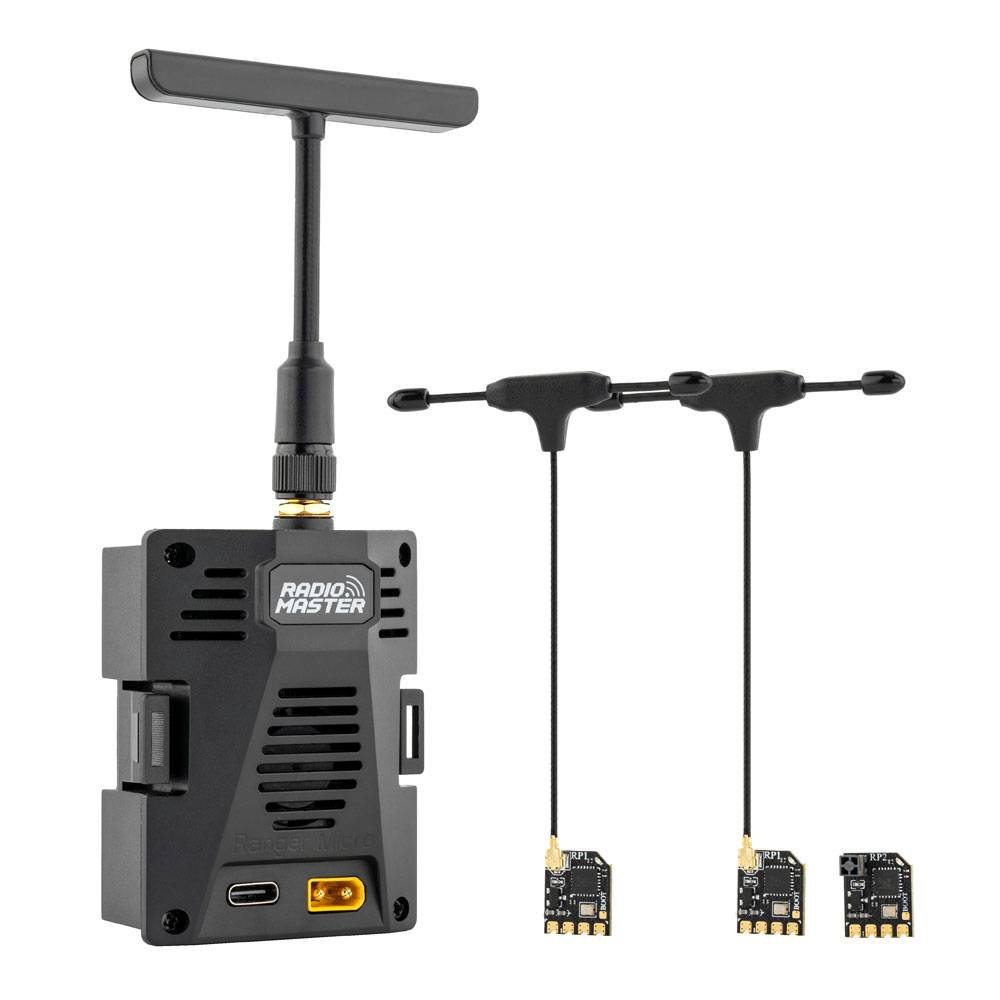

• 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module

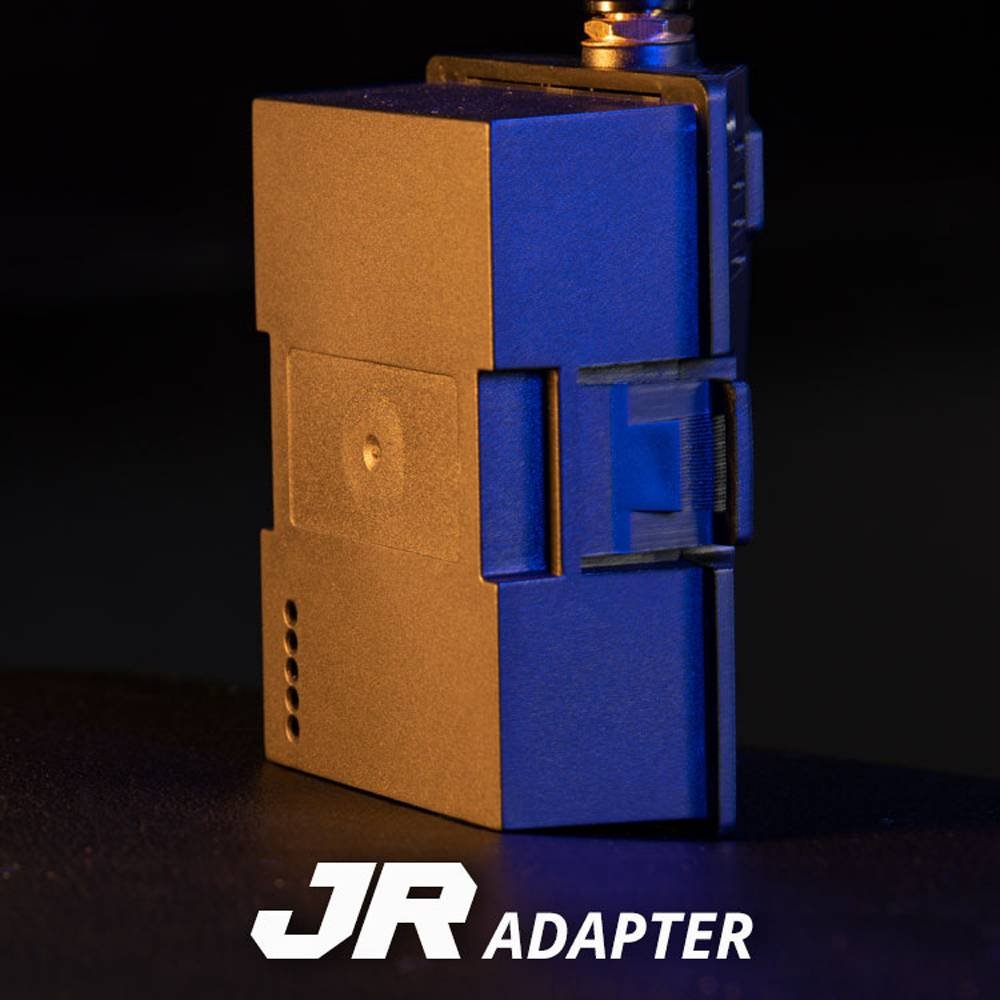

• 1x JR Standard 5pin Socket Module Bay Adapter
• 1x 2.4GHz T Antenna – RP-SMA

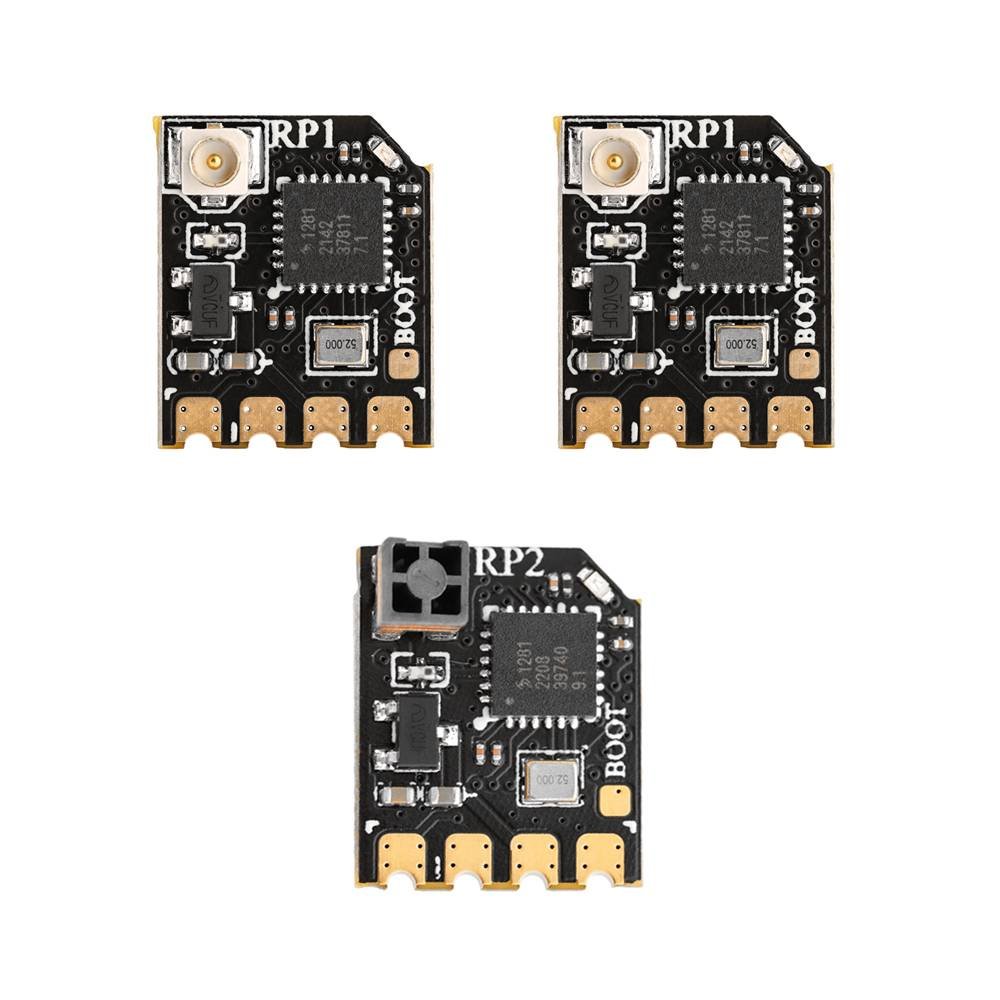

• 2x Radiomaster RP1 Receiver
• 1x Radiomaster RP2 Receiver
• 1x Connecting Wire
• 1x Allen Key
• 3x Screws
