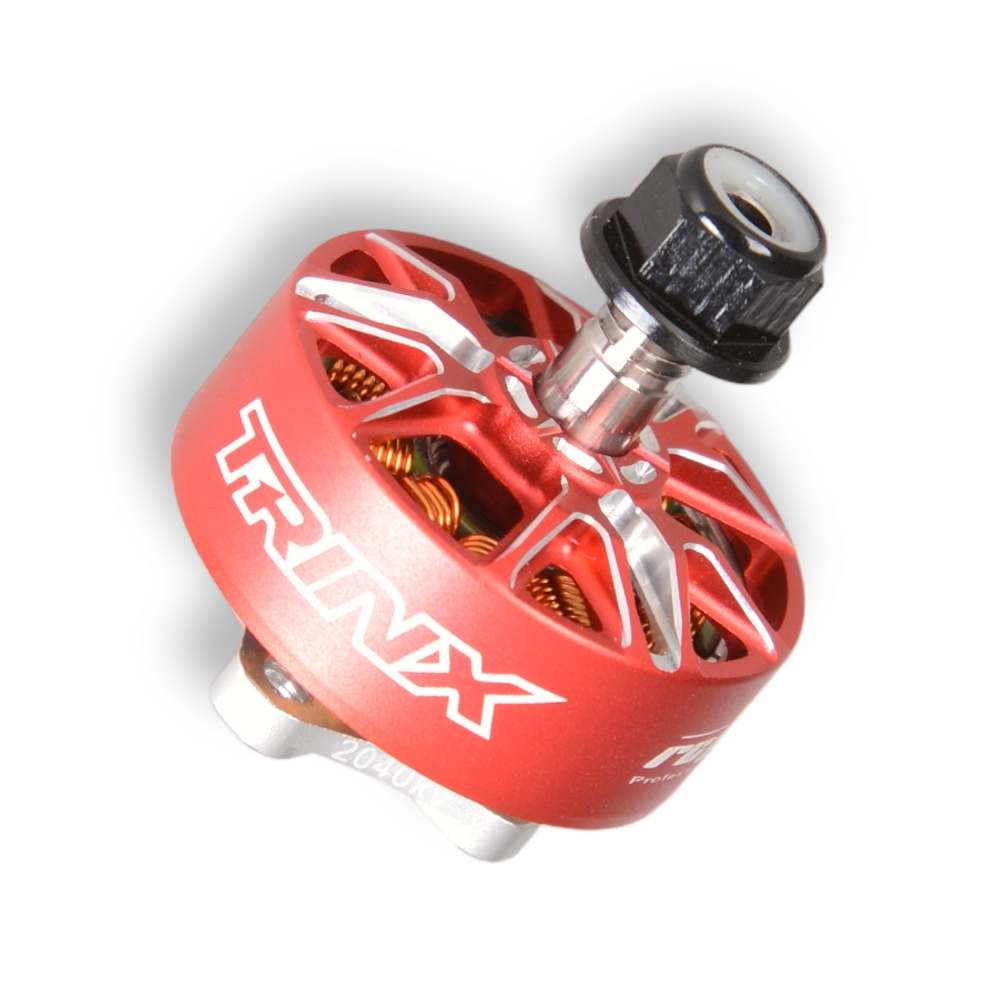

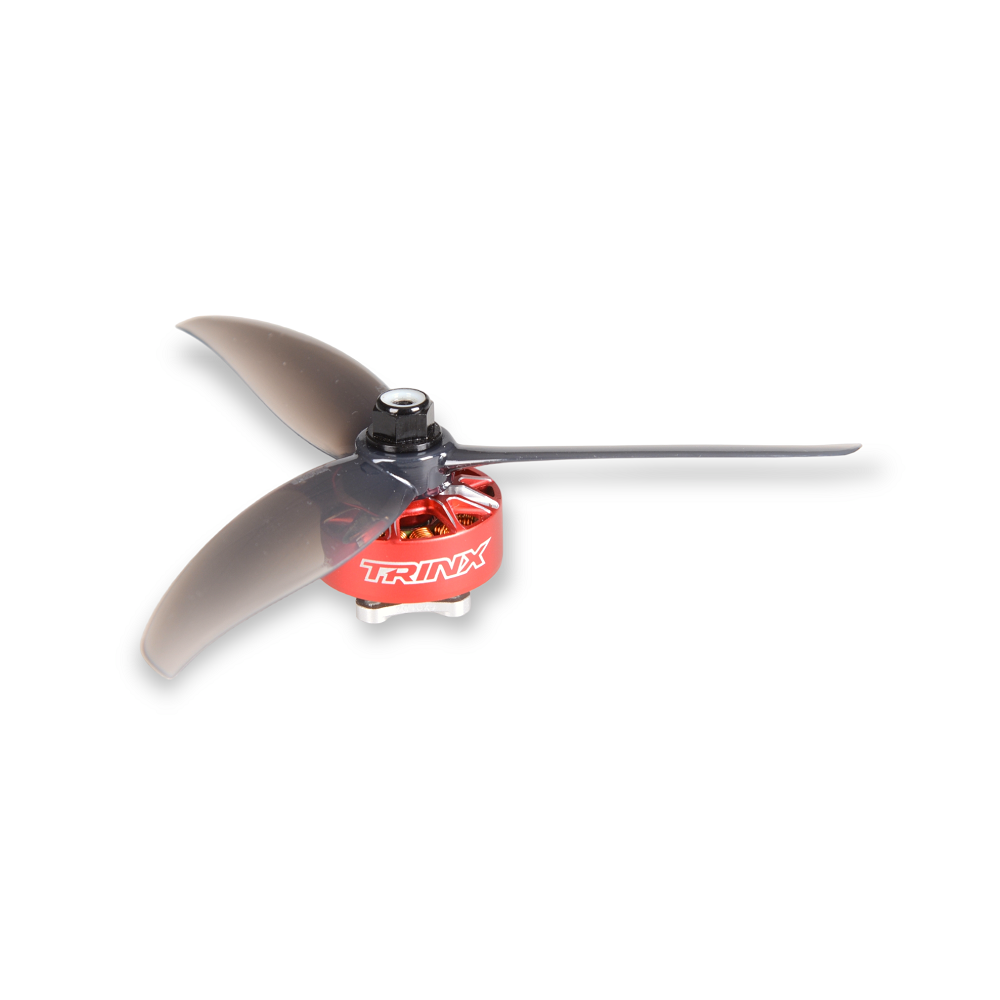

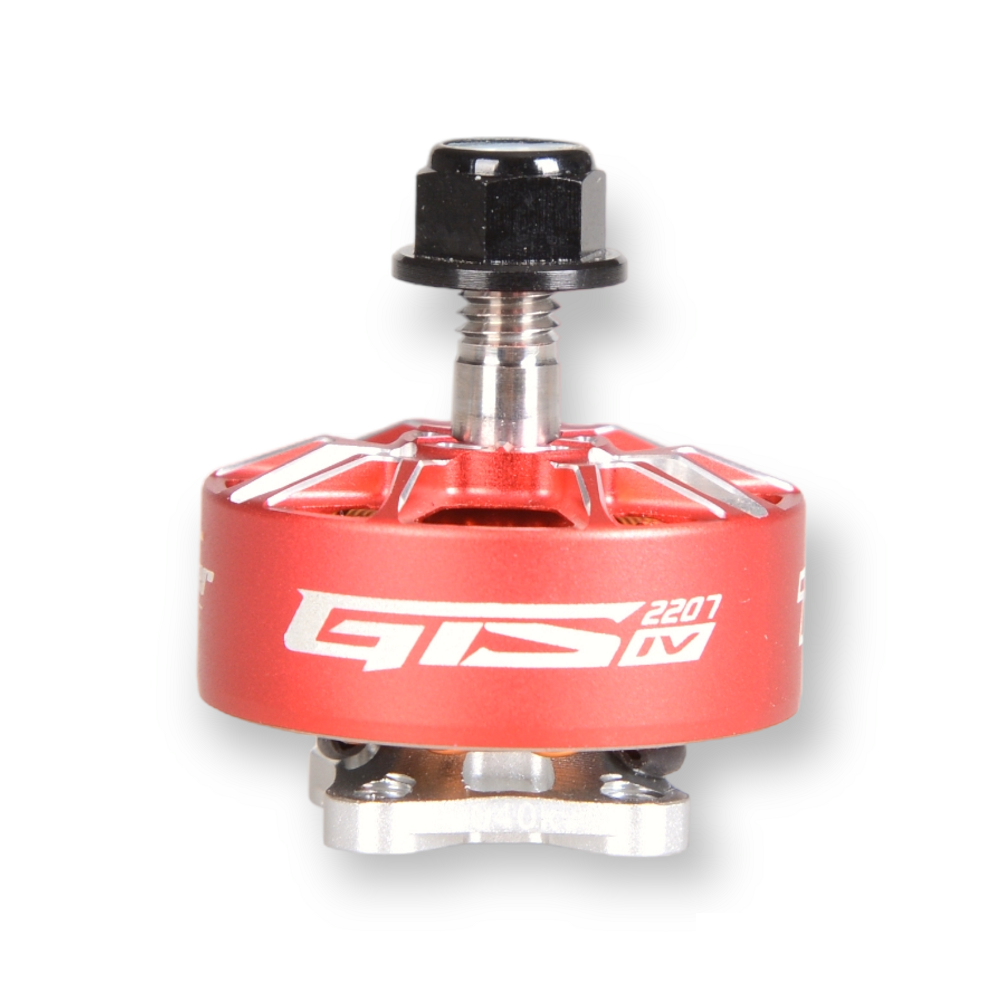

RCINPOWER GTS V4 2207 Trinx Edition 2040KV Brushless FPV Drone Motor

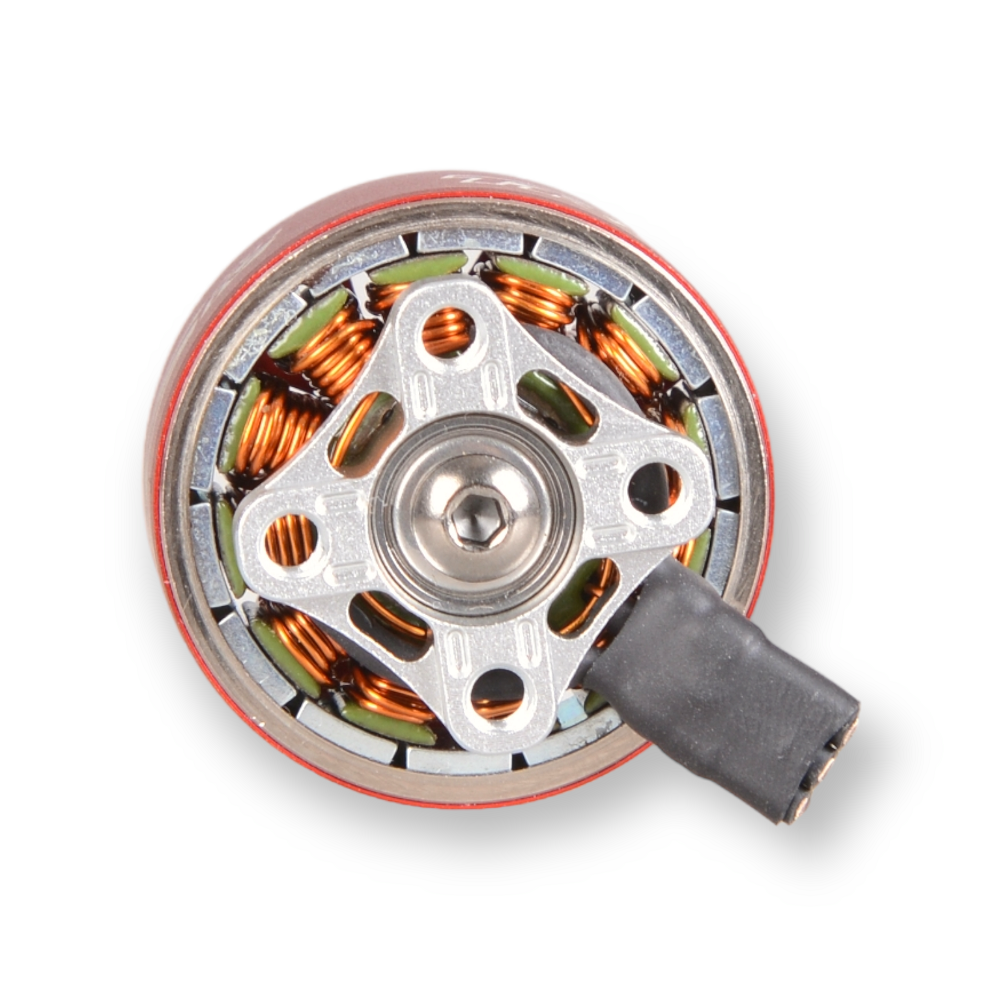

Created in collaboration with TrinxFPV and RCInpower these motors are optimized for performance. These motors have been designed based on a 2207.4 stator with a clean and aggressive design. With a weight of 29.8g for 2040kv and a stator size adapted to provide the best compromise of power and control, they are equipped with an EZO 9*4*4mm bearing as well as a lightened base.

The bell machined in one piece and the 4mm diameter shaft gives it greater resistance to crashes while keeping weight reduced in order to keep greater flight comfort and a more efficient machine.

This engine is perfect for a racing machine, as well as a freestyle setup.

Check out all our 22XX Motors and the rest of our RCINPOWER Collection!

Specifications:

• KV: 2040
• Configuration: 12N14P
• Stator Diameter: 22mm
• Stator Length: 7mm
• Shaft Diameter: 4mm (Hollow)
• Motor Dimension: 27.3*30.3mm

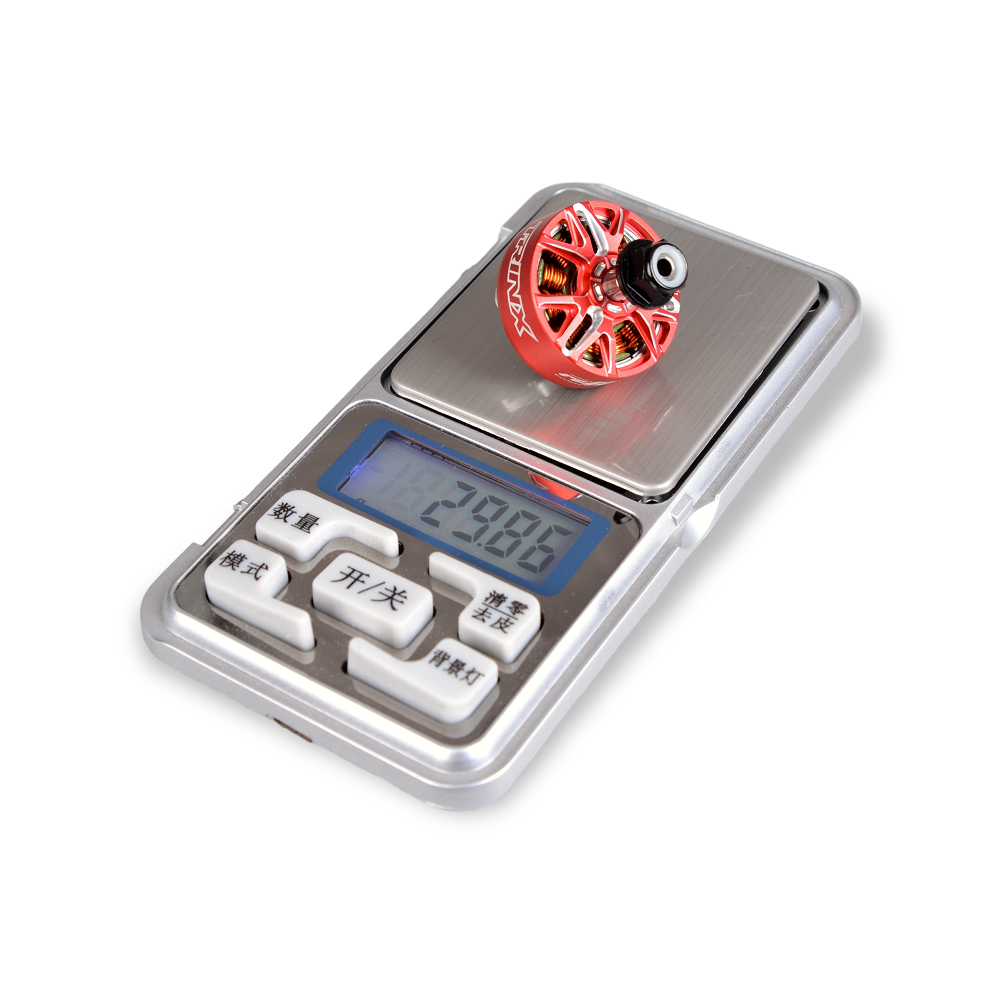

• Weight: 29.9 Grams (2cm Wires)
• Idle Current (10 Seconds)@10V: 1.1A
• No. Of Cells (Lipo): 5~6S
• Max Continuous Power (W) 5S: 1300
• Internal Resistance: 56mΩ
• Max Current (3S): 54A
• Max. Efficiency Current: (7-10A)>85%

Package Includes:

• 1 x RCINPOWER GTS V4 2207 Trinx Edition 2040KV Brushless FPV Drone Motor
