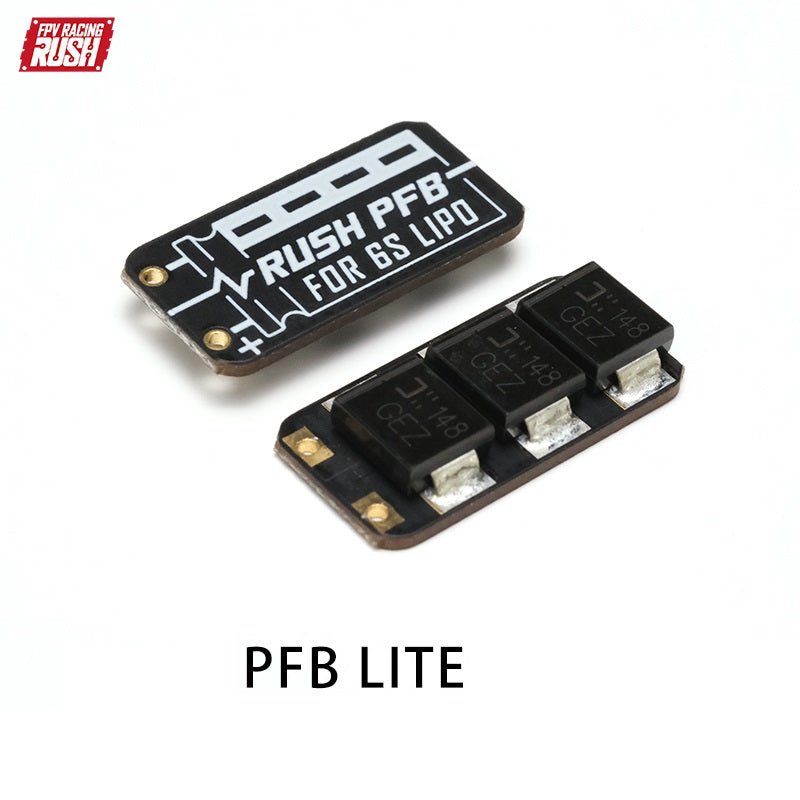

RUSHFPV Rush Blade Power Filter Board Lite

The RUSH BLADE Power Filter Board Lite by RUSHFPV was created to help the RUSH BLADES ESCs achieve complete filtering due to its compact structure and high power. Excessive voltage peaks can cause interference to other components. Current surges generated during crashes can also have a strong impact on the MOSFET’s and the power supply and can cause damage.

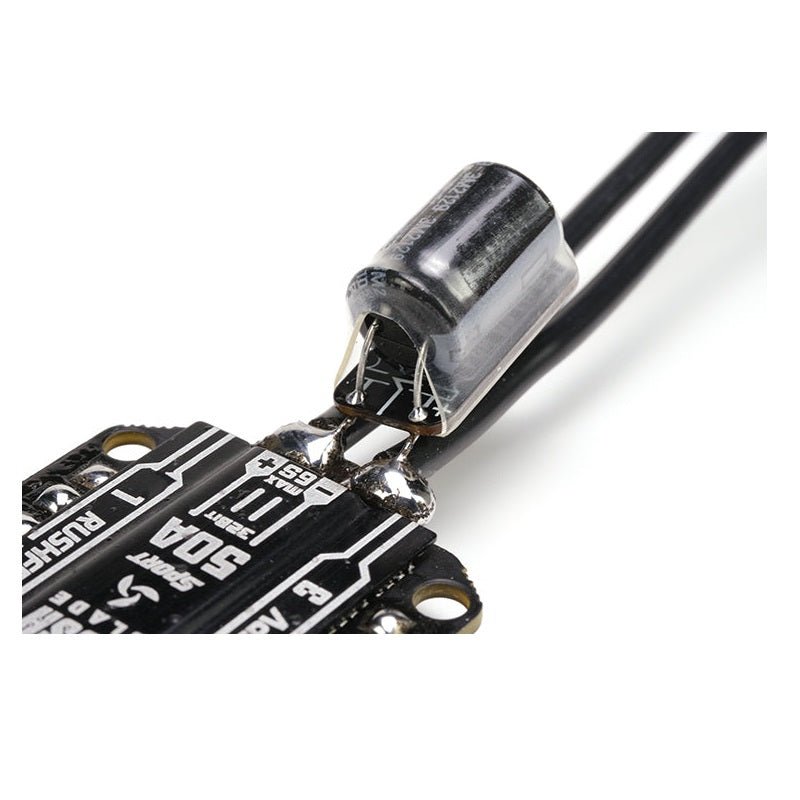

The RUSH PFB Lite is small in size and can be installed in more compact builds as a supplementary device for the filter. It is equipped with a single 35V 470uF high-speed solid capacitors, and the parallel ESR is very low 5 m0 (TEST FREQ @10KHz)! It has a good filtering effect on high-frequency interference generated by ESC.

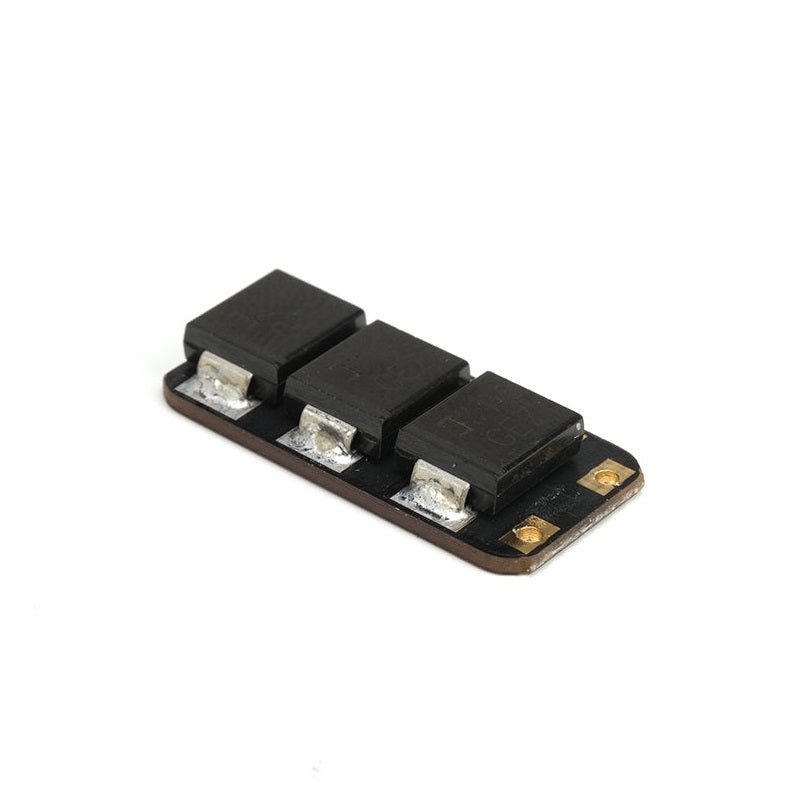

There are 3 high-power TVS diodes on board, which can cut voltage peaks at ns speeds, and absorb high-voltage surges caused by collisions of the propeller during a crash in time to protect the field-effect tube and other components from the surge. We recommend installing it in a high-power 6S brushless system.

Check out all our Electronics and the rest of our RushFPV Products!

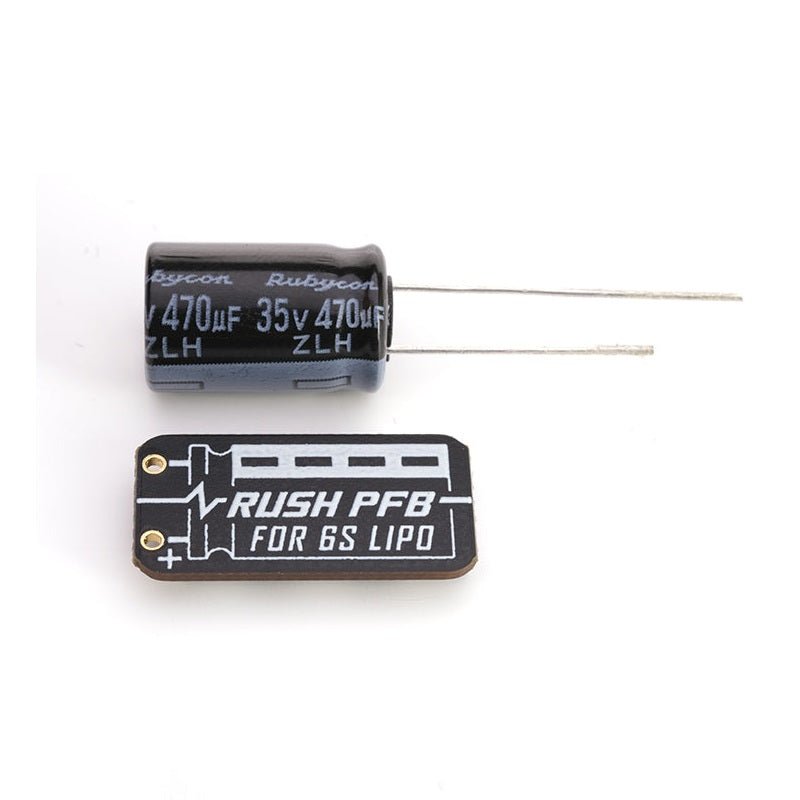

Package Includes:

• 1 x RushFPV Rush Blade Power Filter Board Lite
• 1 x 470uF 35V Ruby Electrolytic Capacitor
