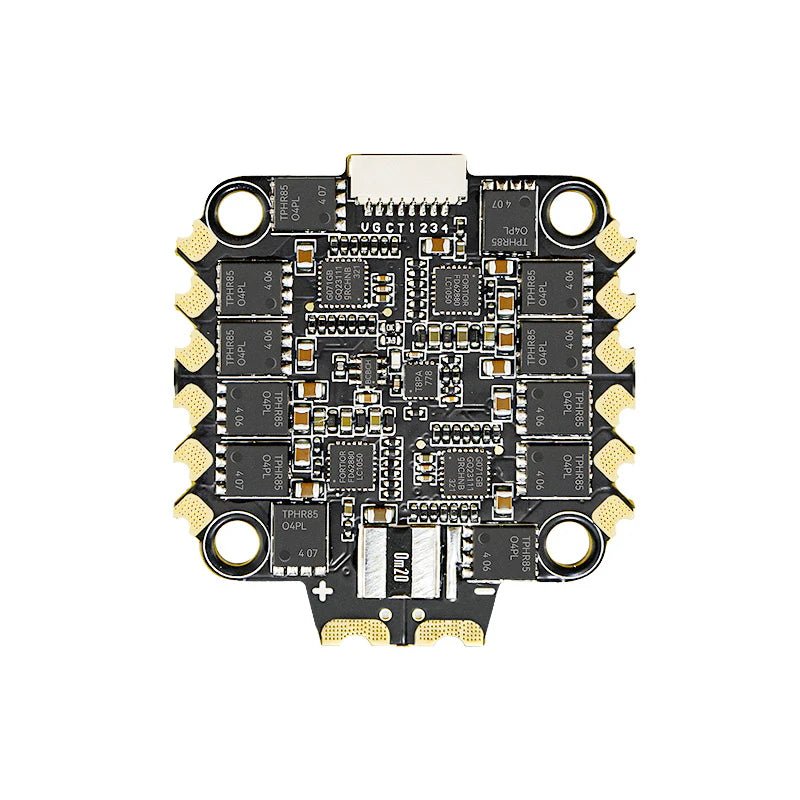

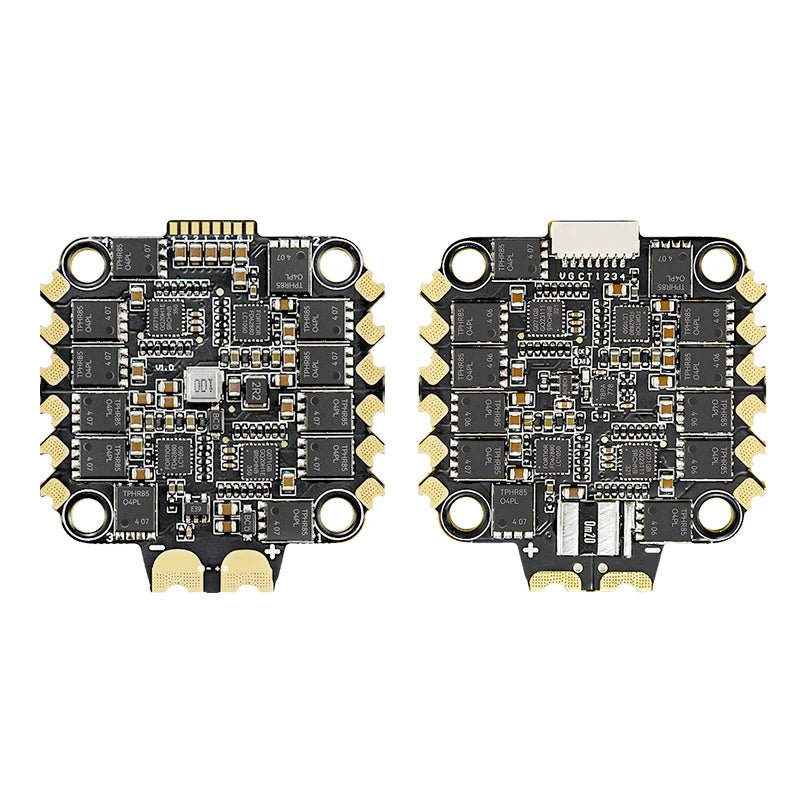

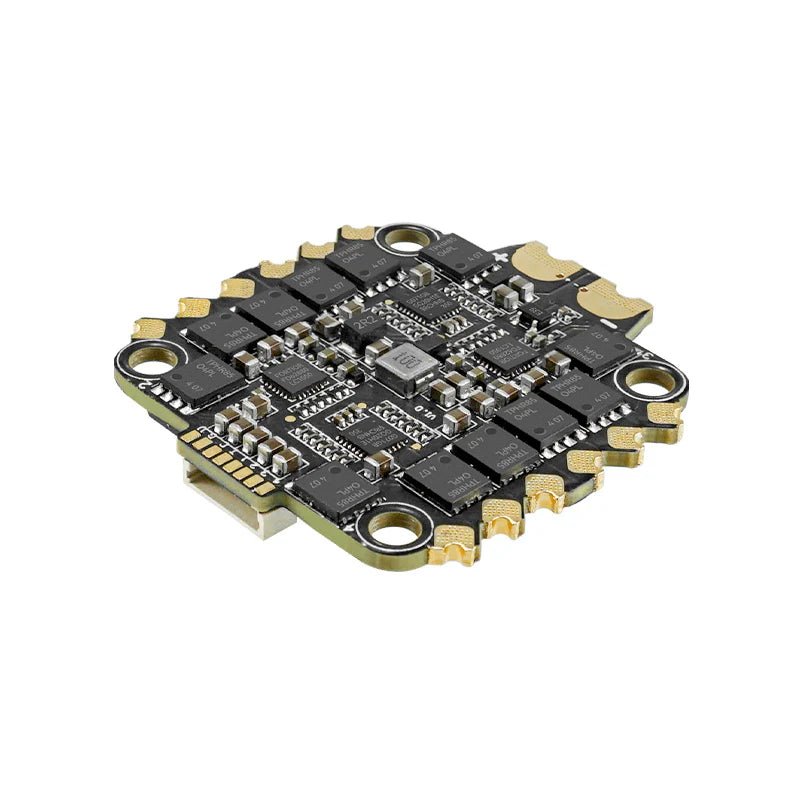

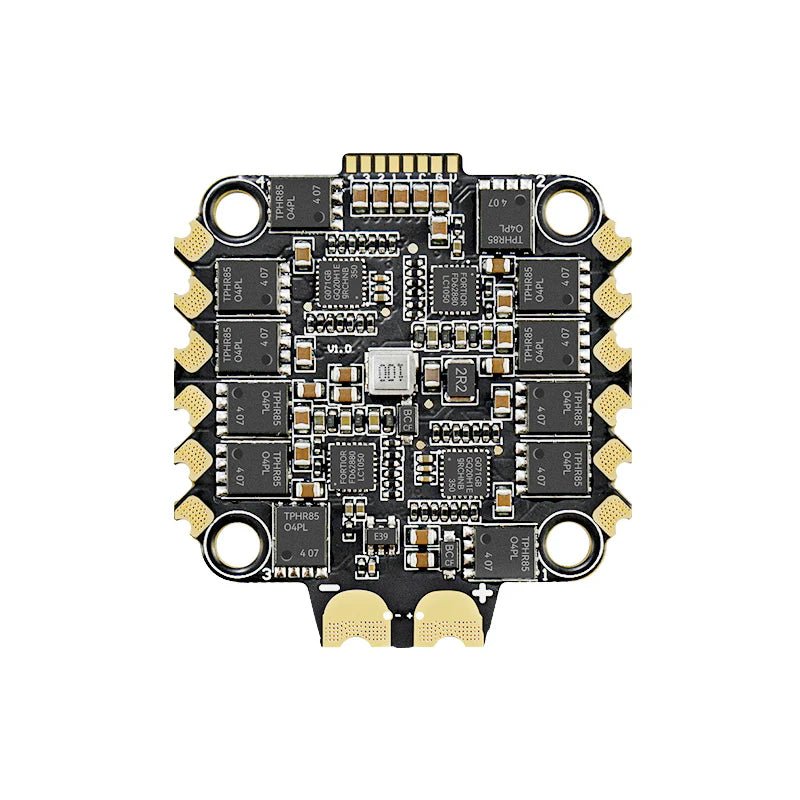

Sequre E70 G2 128K 32Bit 2-8S 70A BL32 4in1 ESC – 30x30mm

The E70 G2 4in1 ESC features a STM32G071 processor, BLHeli_32 firmware, 2-8S voltage input, and a single-channel continuous current of 70A (with a peak of 150A).

We also carry the Sequre H743 Flight Controller and the Sequre H743 E70 G2 Stack.

Check out all our Flight Controllers and the rest of our Sequre Products!

Features:

• (1)STM32G071 high-performance processor,support BLHeli_32 | AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
• (2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
• (3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
• (4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
• (5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
• (6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
• (7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
• (8) 30.5*30.5mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.

Specifications:

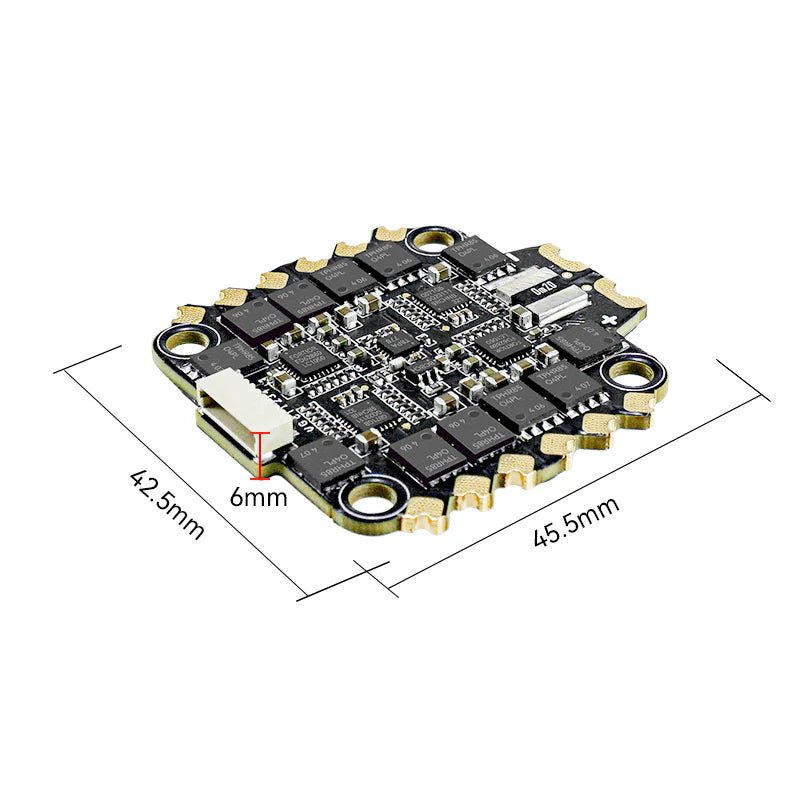

• Product Size: 45.5*42.5*6mm
• Net Weight Of Product: 17.5g

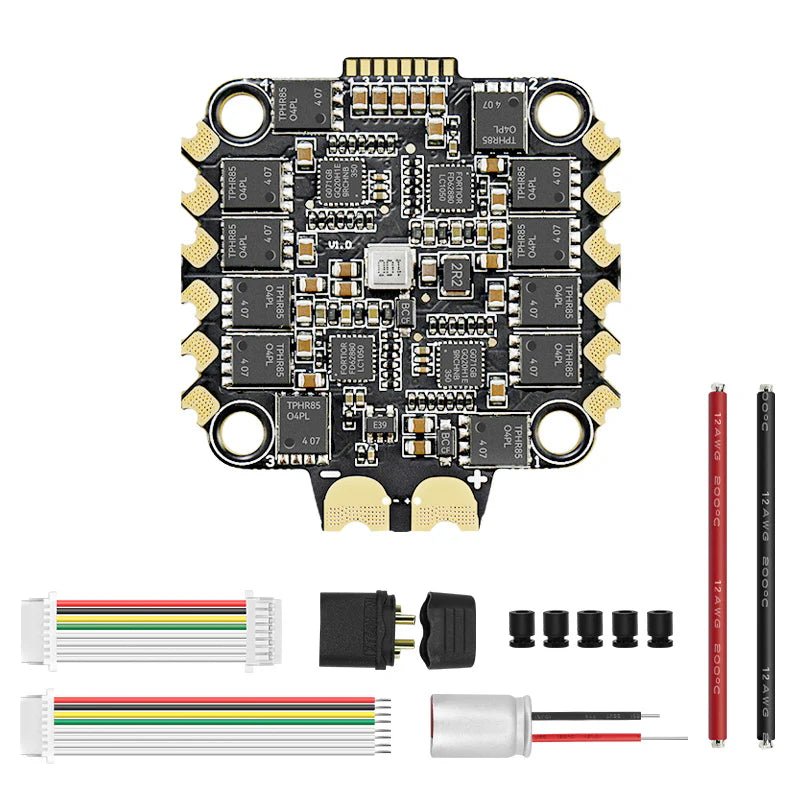

Package Includes:

• SEQURE E70 G2 4 in 1 ESC × 1

• 30AWG 40mm reverse double plug SH1.0-8P cable × 1

• 30AWG 60mm single plug SH1.0-8P cable × 1

• 12AWG 100mm power cable (black/red)×2

• XT60H-M black male connector×1

• 35V 680UF solid capacitor×1

• M3*8mm shock absorbing washer (black) × 5
