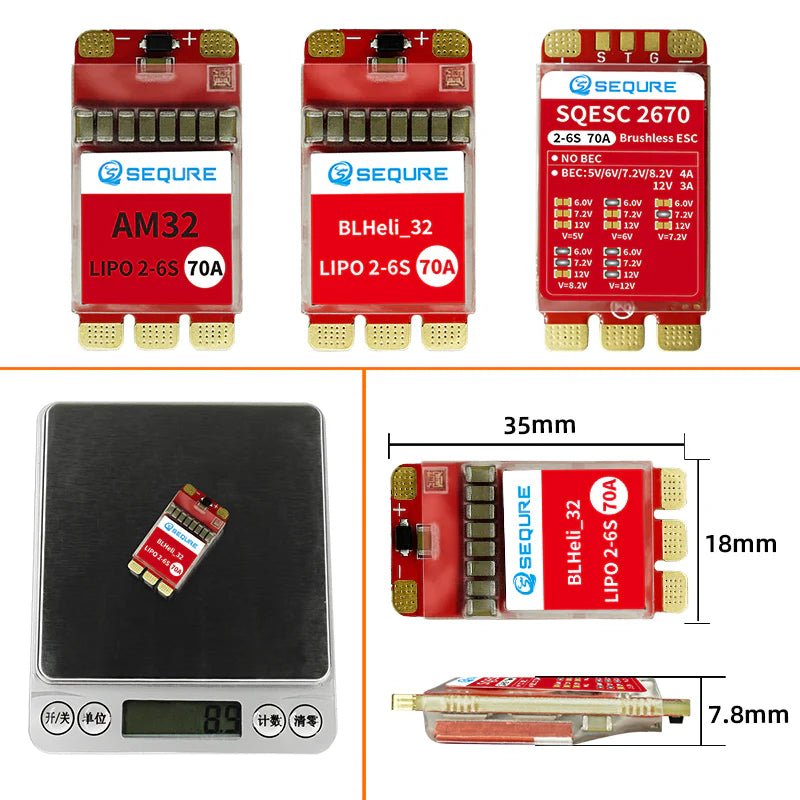

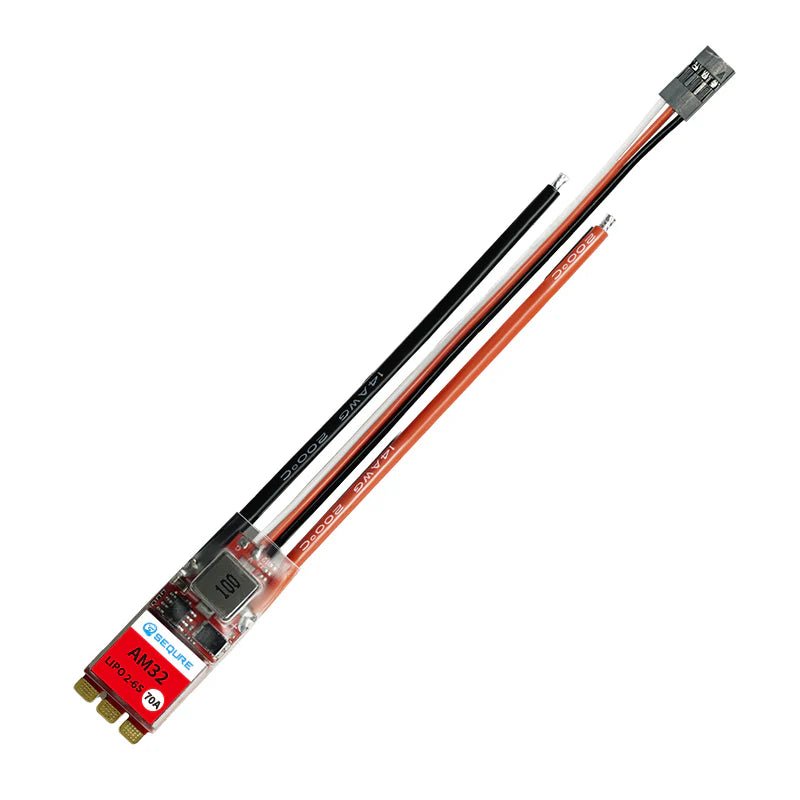

Sequre SQESC 2670 2-6S 70A AM32 ESC for X-Class/Cinelifter Drone Airplane RC Car

SEQURE SQESC 2670 Brushless ESC 2-6S Lipo powered 70A Firmware AM32 Supports 128KHz PWM Frequency Suitable for FPV Racing Drone Multi-axis Drones Fixed-wing UAV Model Boats Climbing Vehicles

It’s a great choice for the heavy lifter drones like the X-Class and Cinelifters.

Check out all our X-Class Electronic Speed Controllers and the rest of our Sequre Products!

Features:

• Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.

• PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.

• Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.

• Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.

• The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.

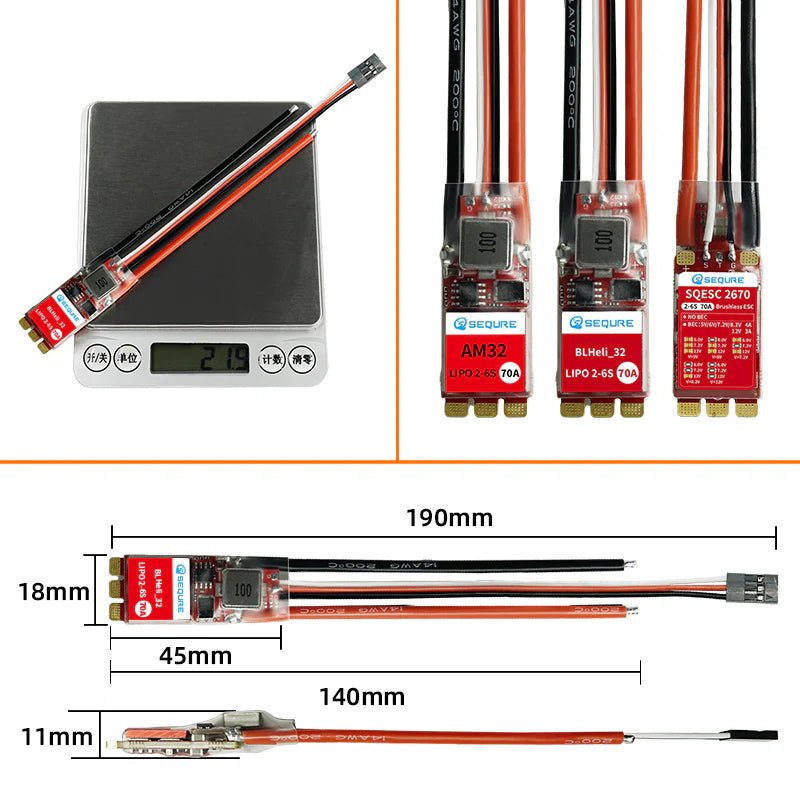

• BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESCs more extensive and flexible.

• Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.

• Onboard RGB LED color light settings, multiple LED colors can be customized.

• Widely used in FPV racing drone,multi-axis drones, fixed-wing, model ships, climbing vehicles, model cars and other scenarios.

Package Includes:

• 1 x Sequre SQESC 2670 2-6S 70A AM32 ESC
