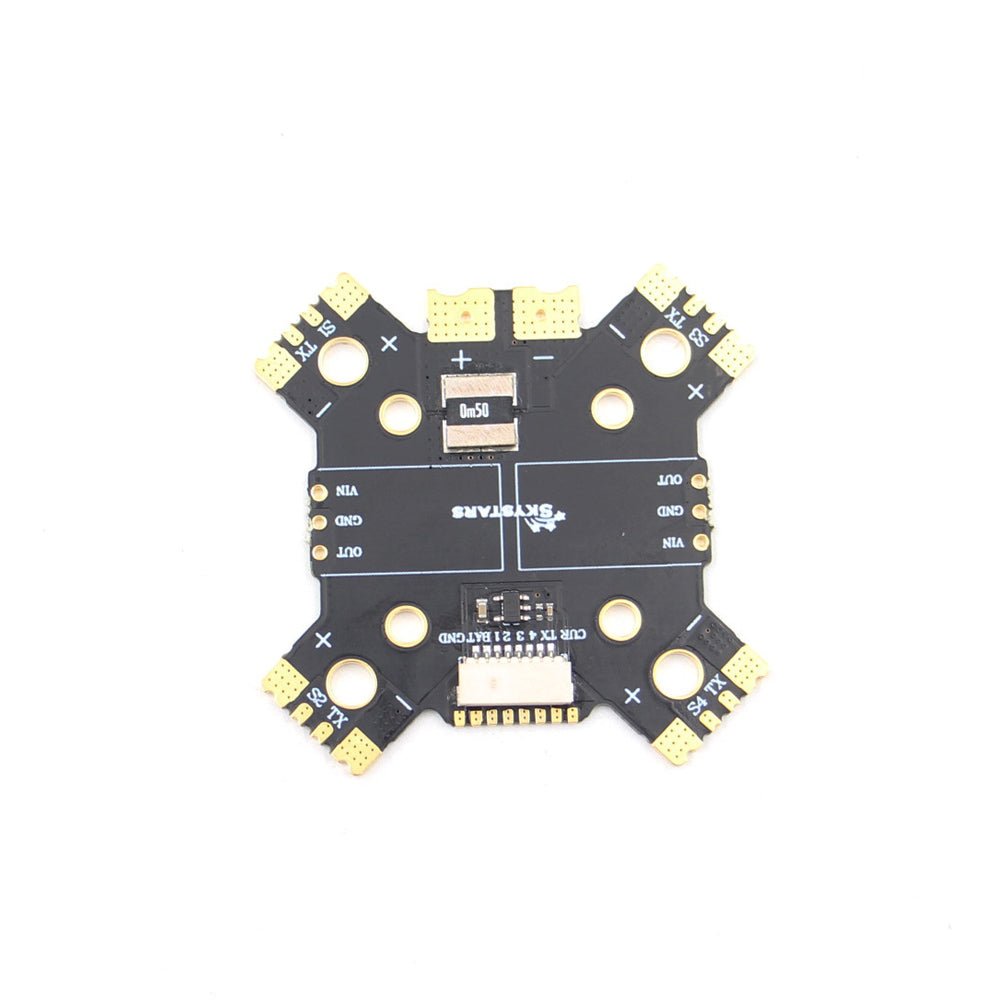

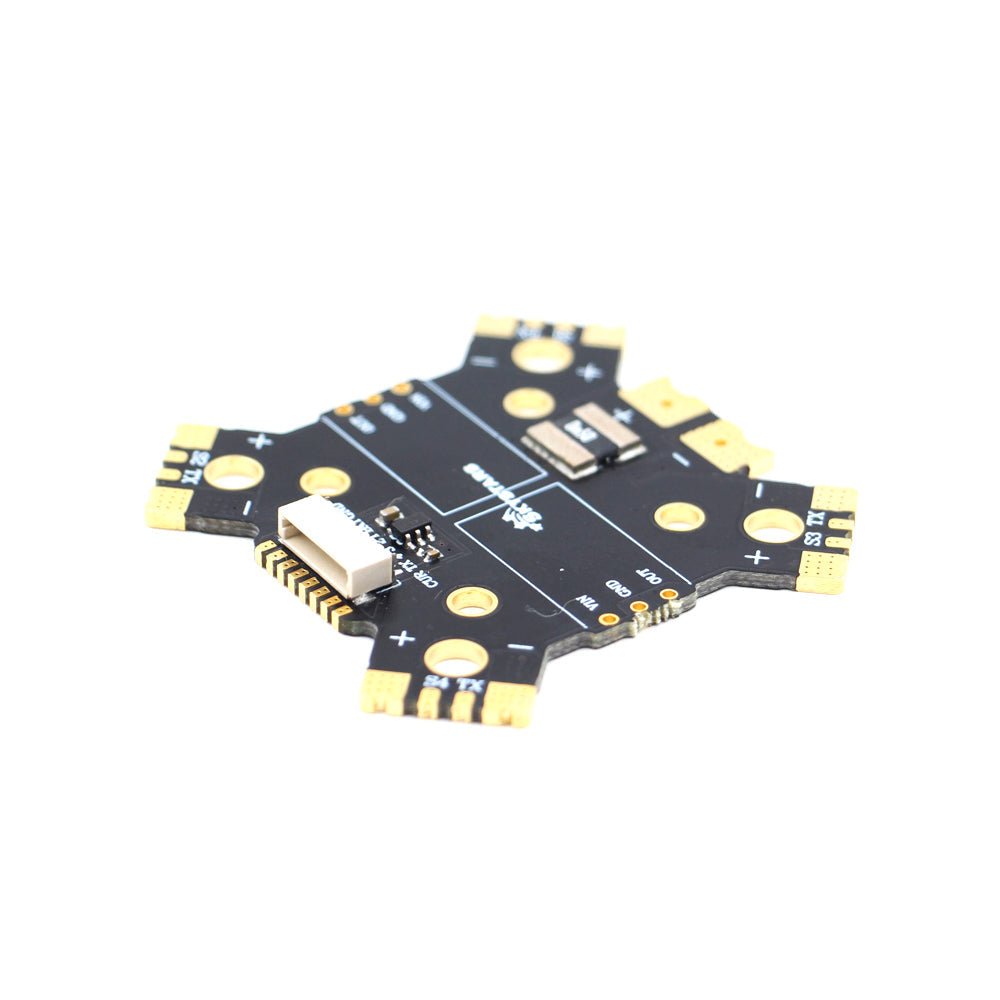

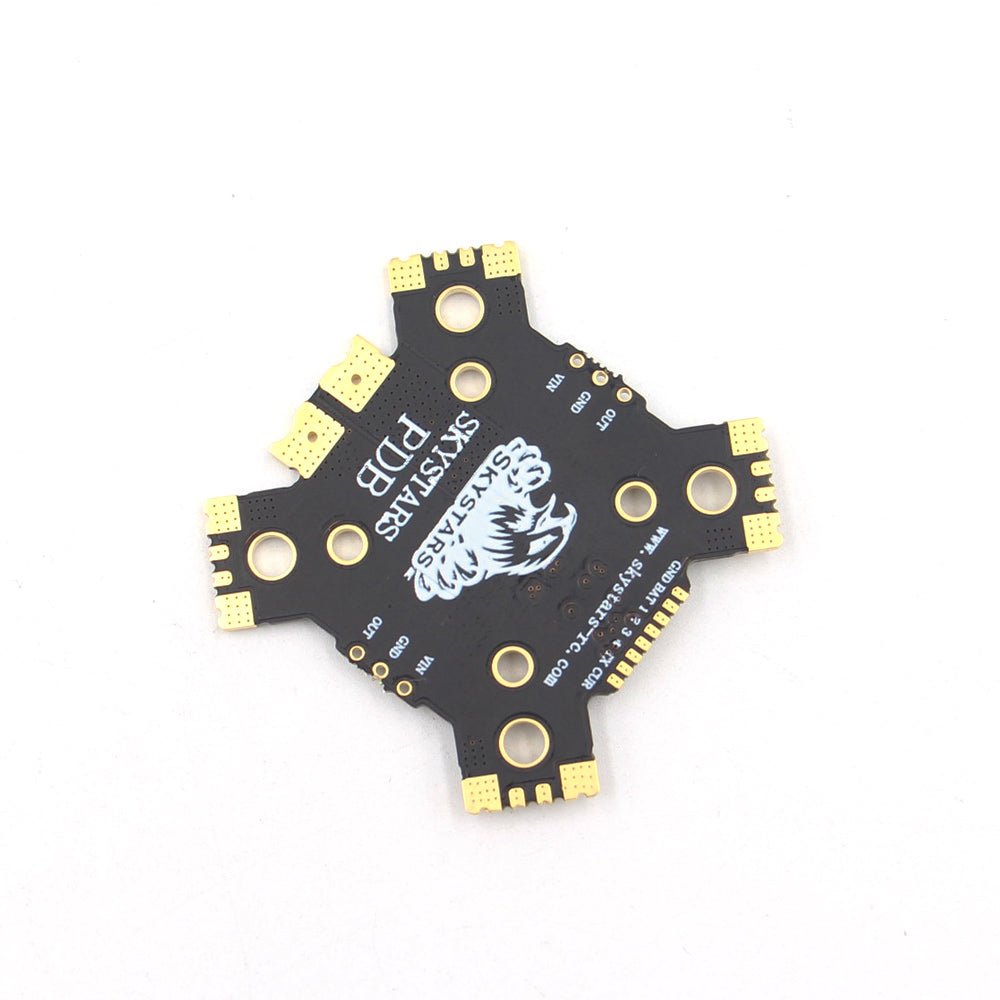

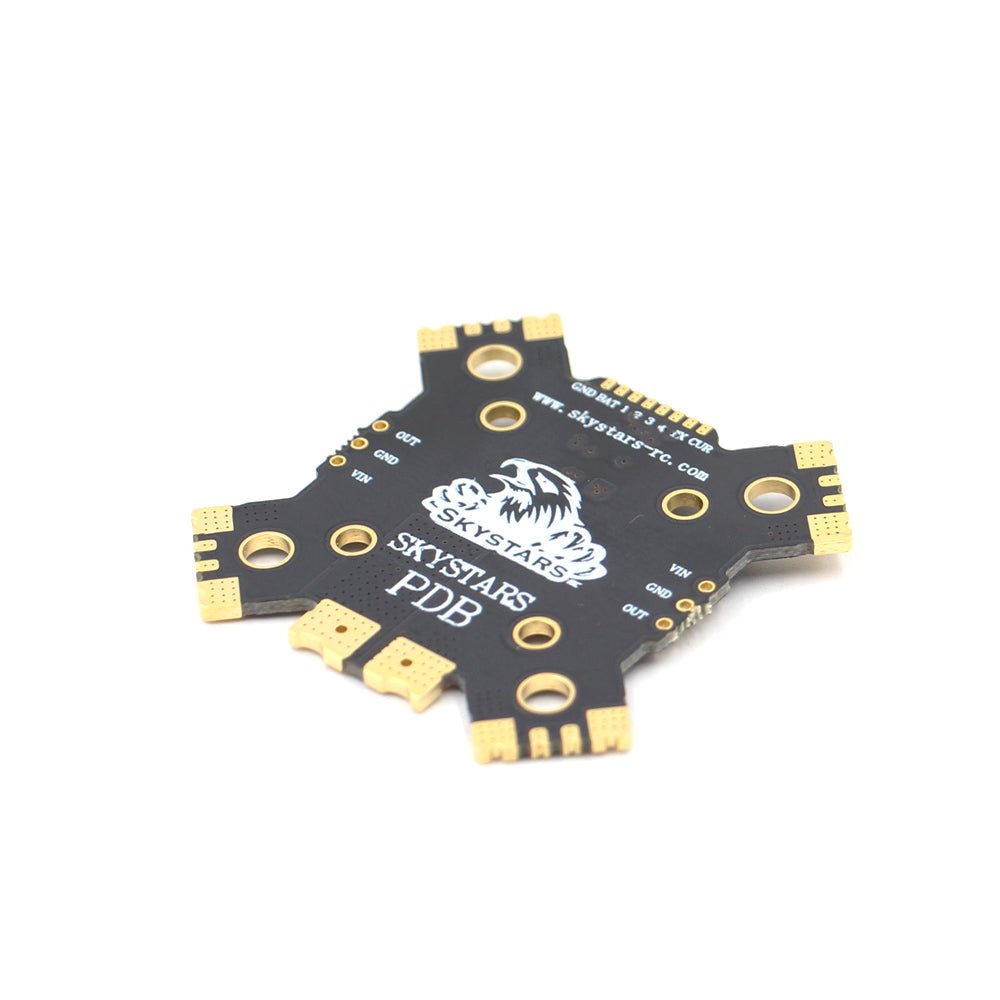

Skystars PDB – 30x30mm and 20x20mm

Introducing the Skystars PDB – 30.5×30.5mm and 20x20mm.
This simple PCB makes wiring up individual ESC’s easier by having the solder pads on the corners of the 30.5×30.5mm
or 20x20mm  board. It also sends power, ground, and each ESC signal to a convenient 8 pin JST connector so connecting your flight controller is as simple as plugging in one cable.

Check out all our PDB and Voltage Regulators and the rest of our Skystars Products!

Specifications:

• 3oz copper foil, 4-layer board PCB, to ensure high current .
• Suitable for X shape or H shape frame.
• the ESC PDB can withstand current 60A cont, 120A burst (10S) .
• Specially made for a single ESC with two groups of external BEC solder pads, you’ll need an independent power supply module for the BEC (BEC module not included).
• 8P socket design, You don’t have to solder anything to connect the flight control.

PDB

• Input voltage range: 6~33.6V (2~8S LiPo)
• ESC power pads: 4*25A cont. 120A burst
• 4XESC power pads
• Current Scale 290(INAV/BF)
• Mounting: 30.5 x 30.5mm,Φ4mm ; 20 x 20mm, Φ3mm
• Size:48*48*mm，

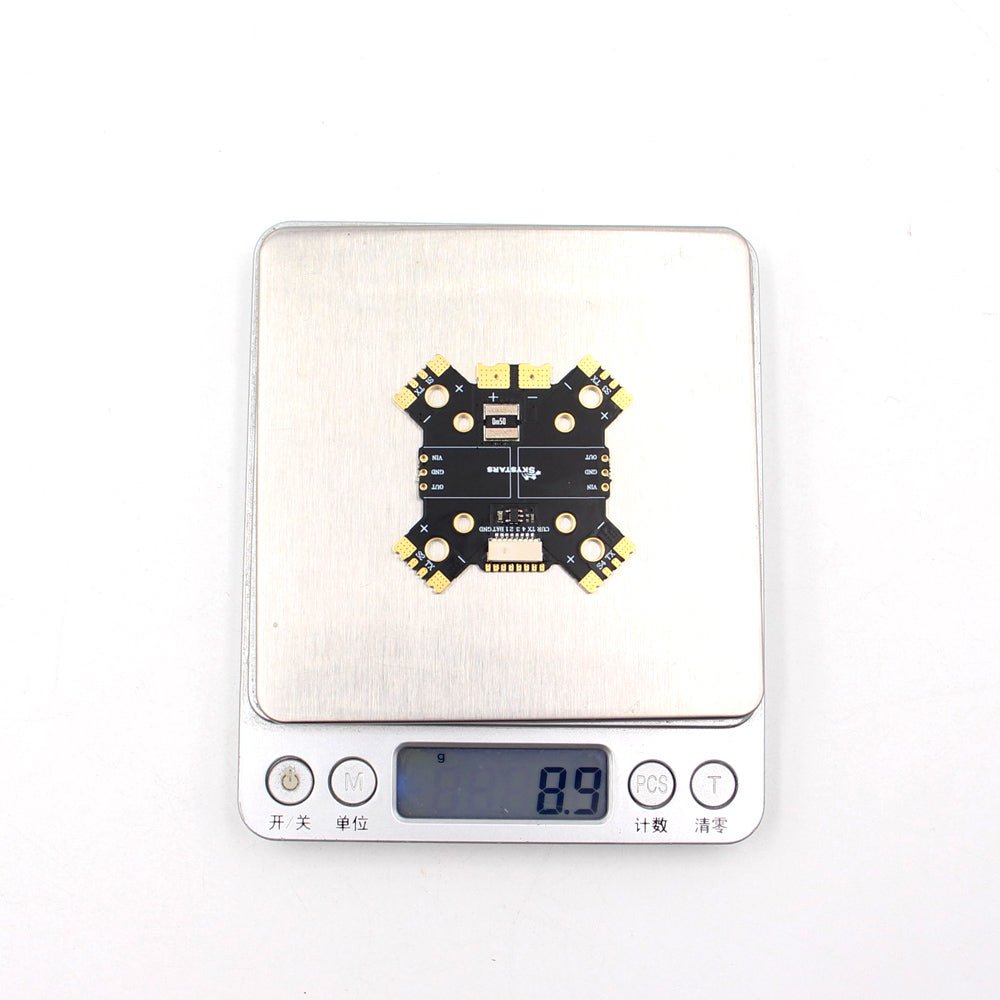

• Weight: 8.9g

JST-SH-8P Connector and Pads

• GND: ground
• BAT: Battery voltage
• S1/S2/S3/S4/S5/S6: ESC signal
• TX: Duplicates Tlm pads for ESC telemetry
• Cur: current signal
• VIN: Regulator input(excluding BEC module)
• OUT: Regulator output(excluding BEC module)

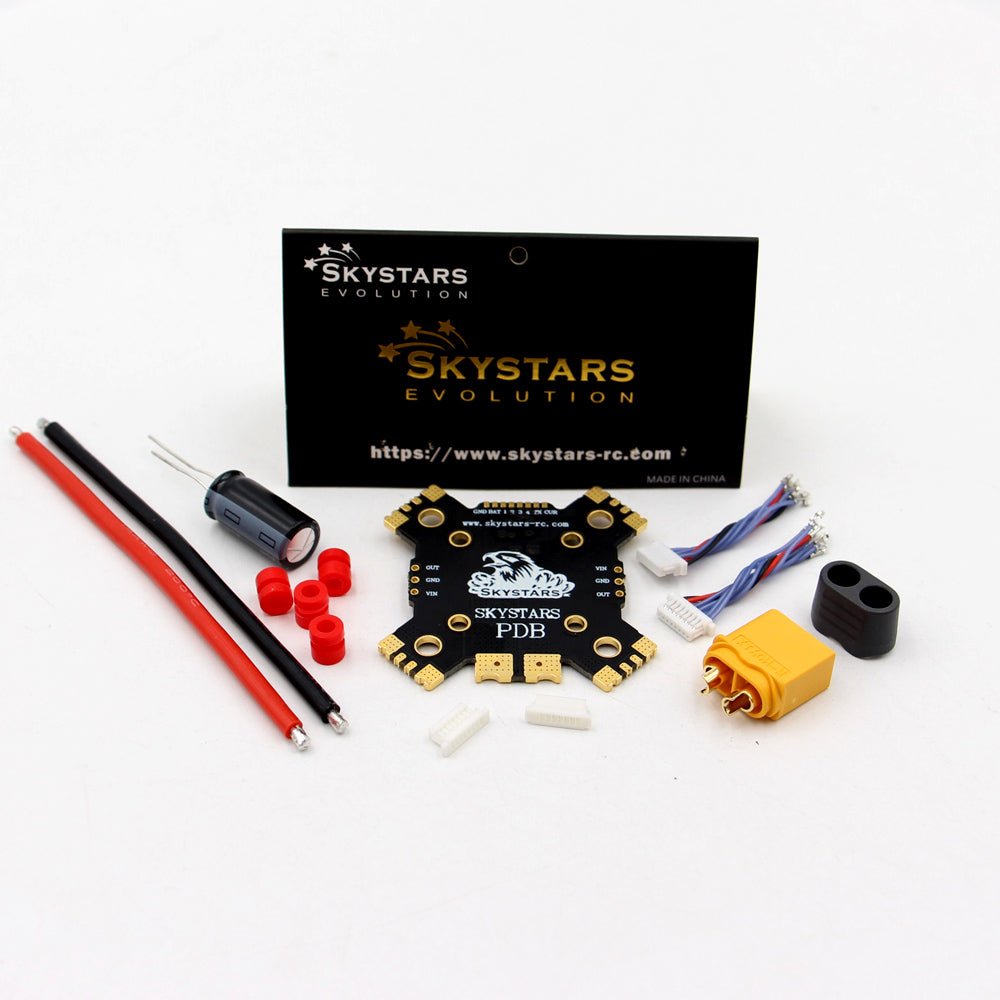

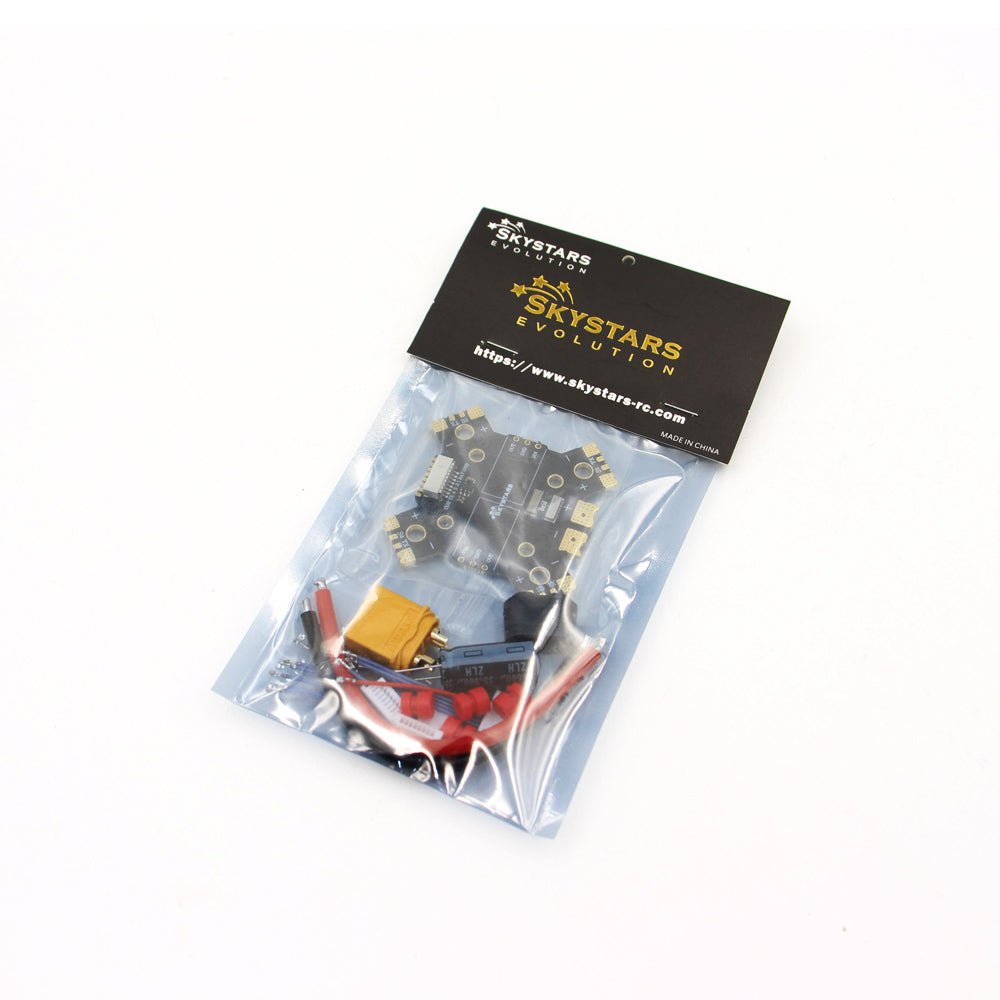

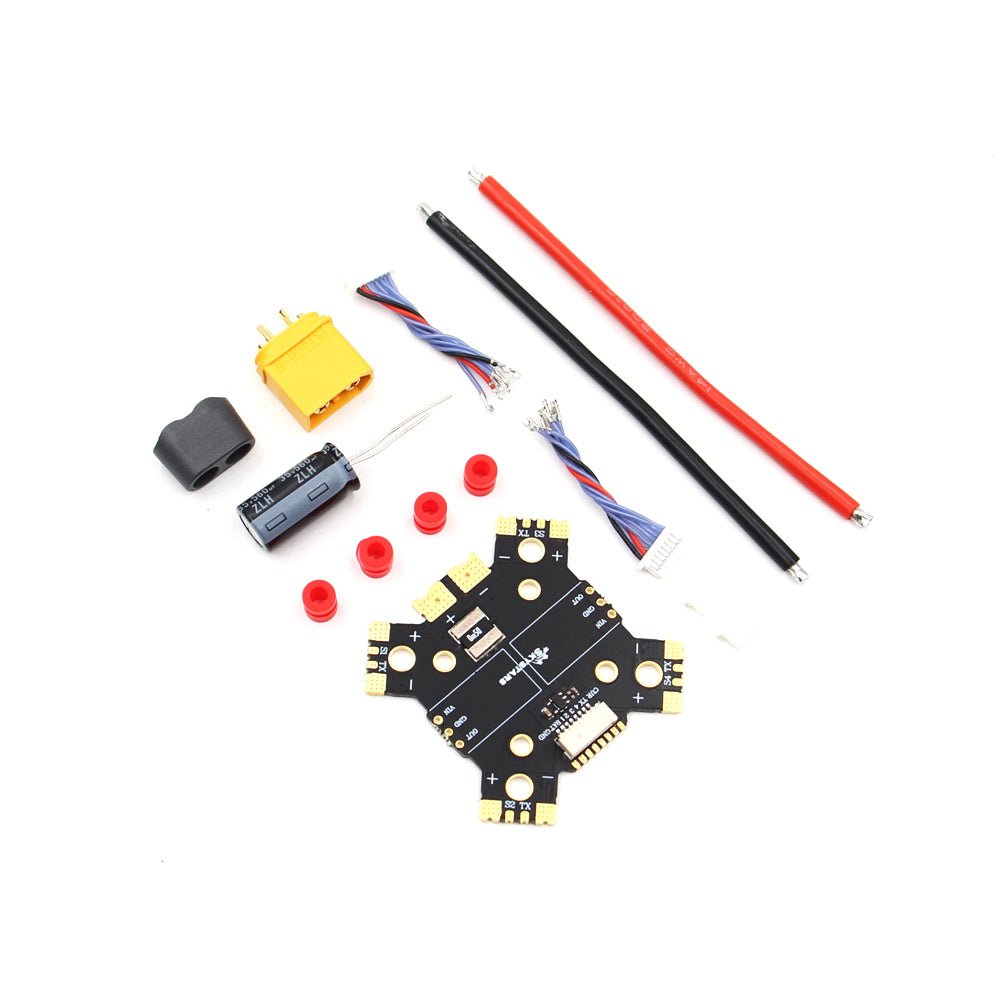

Package Includes:

• 1x PDB
• 1x Rubycon 35V 560uF
• 2x JST-SH1.0_8pin cable, 4cm
• 2x JST-SH1.0_8pin connectors
• 1x XT60 with cable
• 4x silicon grommets M4 to M3
