TBS Lucid 12S 90A AM32 ESC for X-Class/Cinelifter Drone Airplane Wing

Introducing a new standard in price and performance, the TBS Lucid 12S ESC powers your Cinelifters and Wings alike without breaking bank.

It’s a great choice for the heavy lifter drones like the X-Class and Cinelifters.

Check out all our X-Class Electronic Speed Controllers and the rest of our TBS products!

Features:

• The TBS Lucid 12S is a force to be reckoned with. Built for high voltage and high power applications that demand high reliability and power at your fingertips.

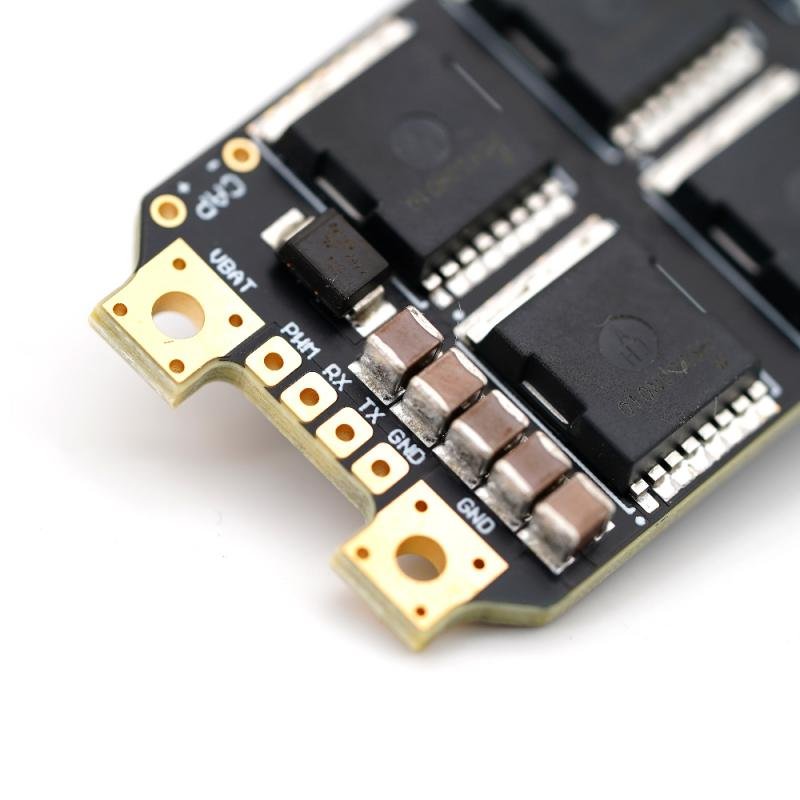

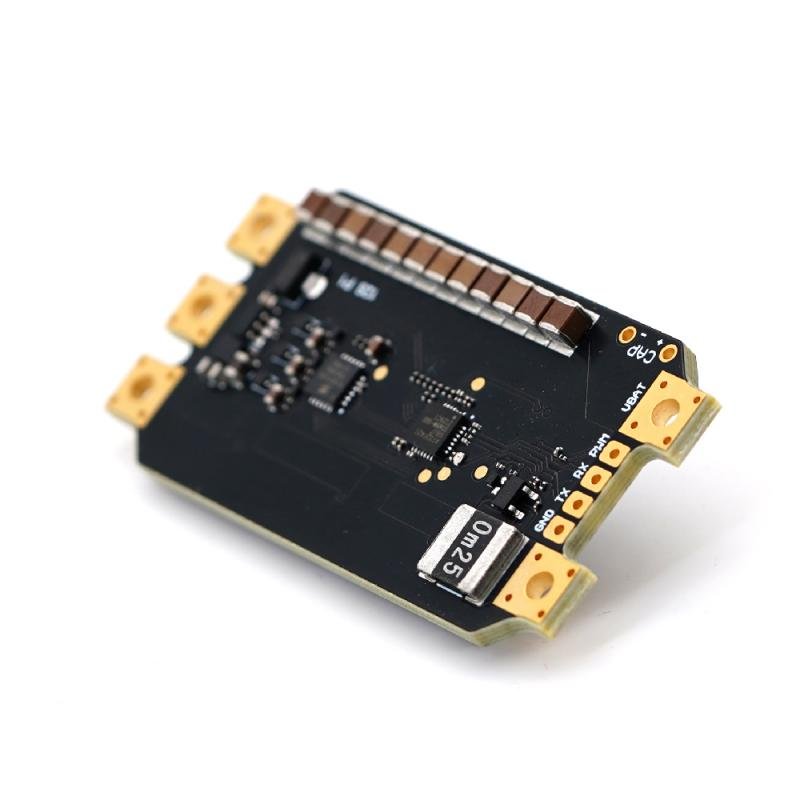

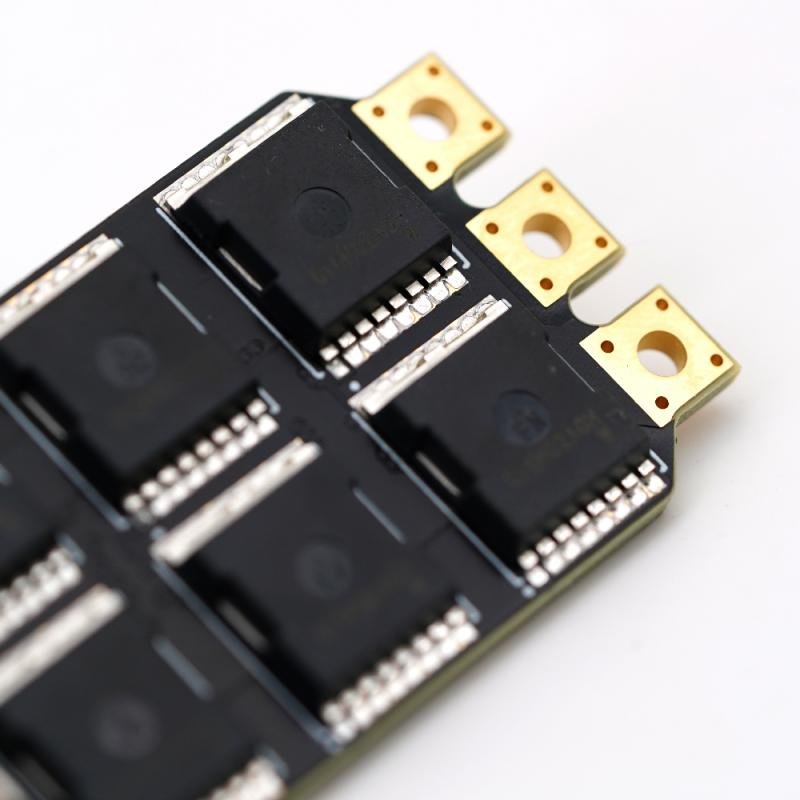

• Featuring an 8 layer high current density board with excellent heat resistance the ESC is built to withstand the harshest punishment of everyday flying while delivering excellent payload capabilities.
• With built in TVS, voltage spikes are no longer a concern.
• By focusing on thermal dissipation from the ground up, the ESC achieves excellent power to weight density without the need of heavy heat sinks.
• A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.

Specifications:

• ESC software: AlkaMotors32 (AM32)
• ESC target: AM32_TBS_12S_F421
• Rated current: 70A, 60 seconds, 90A 40 seconds
• Peak Current: 120A, 30 seconds
• Propellers: Up to 15″, over 7″ requires good airflow
• Input: 3-12S Lipo
• Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
• ESC Current port: Yes
• BEC:  No
• Size: 57.75mm x 29mm
• Mounting: See DXF drawing
• Weight: 19g excl. cable and capacitors

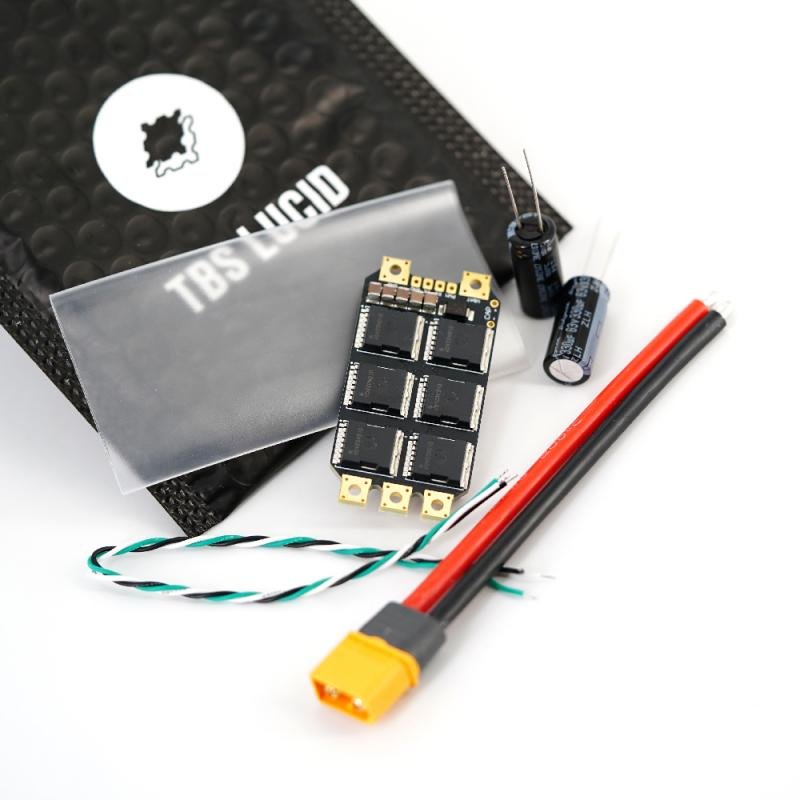

Package Includes:

• 1 x TBS Lucid 12S ESC
• 1 x XT60 12 AWG wire
• 1 x 3-color wire for PWM or Serial (D-Shot, CRSF)
• 1 x shrink tube (transparent)
• 2 x 330uF 12S low-ESR Capactior
