TBS Lucid Freestyle Stack 6S AT32 ICM-42688P 8MB Flight Controller with AM32 60A 3-6S 4in1 ESC
$111.99
| Weight | 0.055 kg |
|---|
Out of stock
Description
🚀 Looking for an alternative?
This Tbs item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
This Tbs item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Flight Control & Power section!
*Early production samples had the UART3 RX and TX markings flipped on the silkscreen. This issue has already been addressed, and the production units will have the corrected, proper markings.
The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.
At the heart of the TBS Lucid flight stack is the latest generation AT32 microprocessors with AM32 flight control software, and the innovative bracket mounting solution. It allows us to achieve unparalleled power density without the annoying heat buildup around the mounting poles, while maintaining compatibility to both 30.5 x 30.5mm as well as 20 x 20mm mounting patterns.
Through some clever engineering, it is perhaps the only stack that is compatible with quads of all kinds and sizes: anything between 3” and 8” propellers, 3S – 6S, with the most common mounting patterns, compatible with any digital or analog video system.
For the professional pilot, a MPU6000 (Pro) variant is available (those who know, will know), while this ICM-42688P based version offers a state-of-the-art gyro solution at a better price.
Check out all our Stacks Collection and the rest of our TBS products!
Specifications:

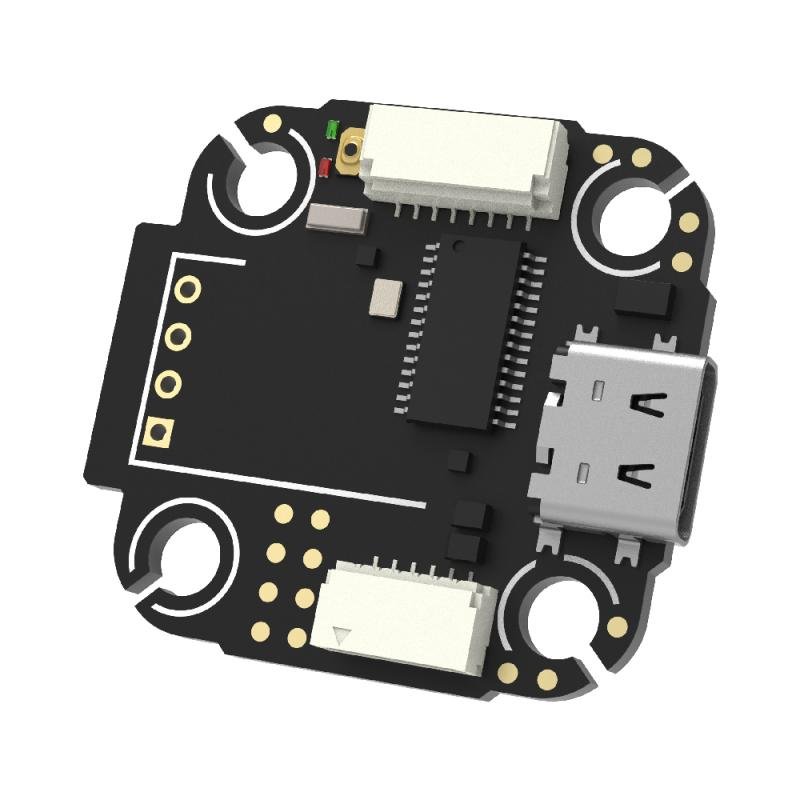

Flight controller:
- MCU AT32F435RMT7, 288MHz
- Gyro ICM-42688P
- Motors 4 motors, with telemetry and current sensor
- BEC 9V, 2.5A. 5V 2A
- OSD AT7456E
- Blackbox 8M
- UARTs 6 (UART1/UART3/UART4/UART5/UART7/UART8)
- Input 3S-6S
- Size: 31mm*29mm
- Mounting 20mm*20mm
- Weight 4.51g
Default/recommended port assignment:
- UART2: ESC Telemetry
- UART3: DJI O3 Air Unit
- UART4: DJI O3 SBus
- UART5: CRSF Rx
- UART7: GPS
- UART8: Smart Audio

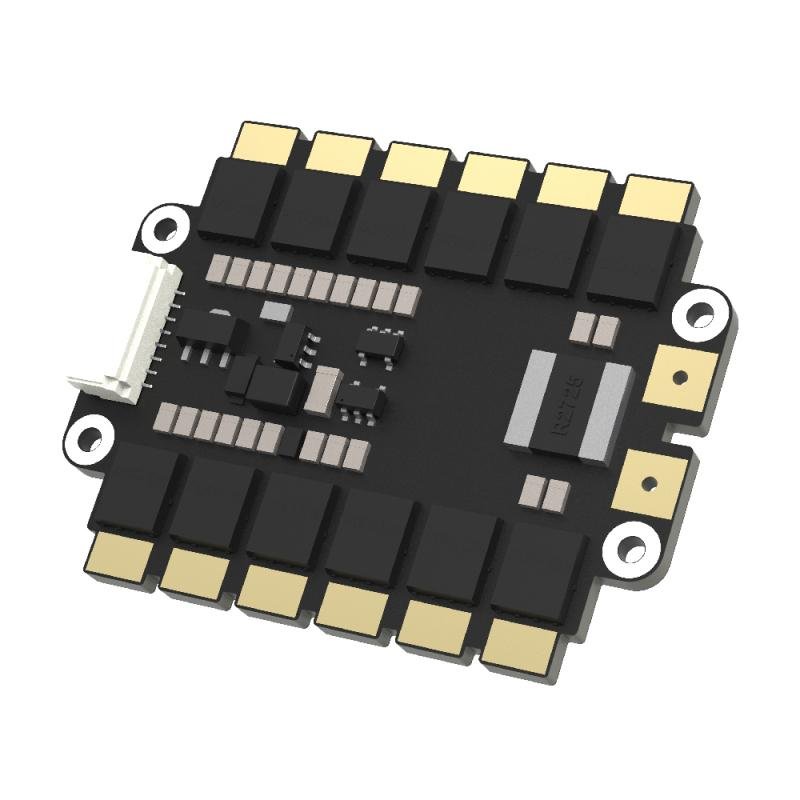

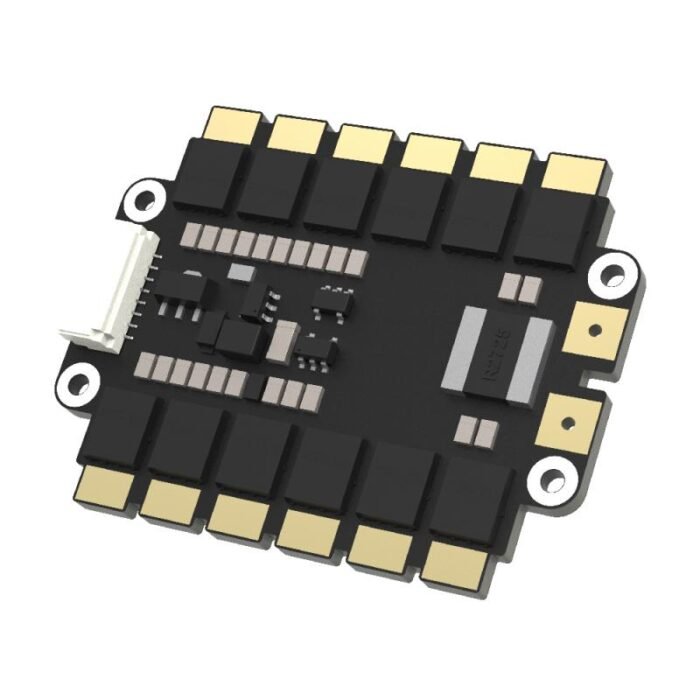

ESC Specifications:
- ESC software: AlkaMotors32 (AM32)
- ESC target: tbslu6s4in1
- Rated current: 60A x 4, 300 seconds
- Peak Current: 70A x 4, 60 seconds
- Propellers: Up to 9″, over 7″ requires good airflow
- Input: 3-6S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC: No
- Size: 34mm*44mm
- Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20×20 mm, 30.5×30.5 mm
- Weight: 13.81g, 19g incl. brackets

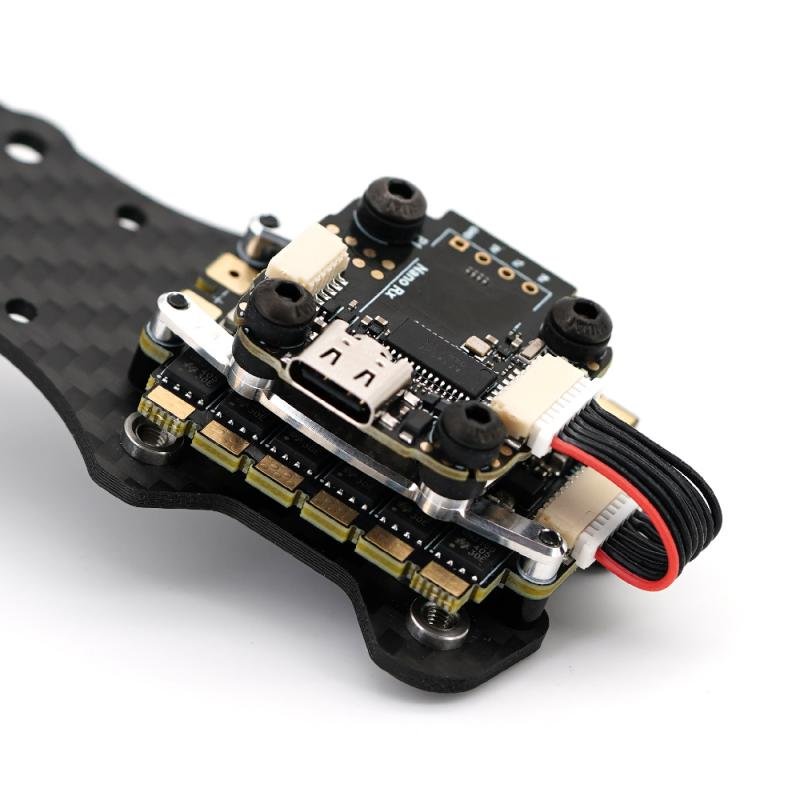

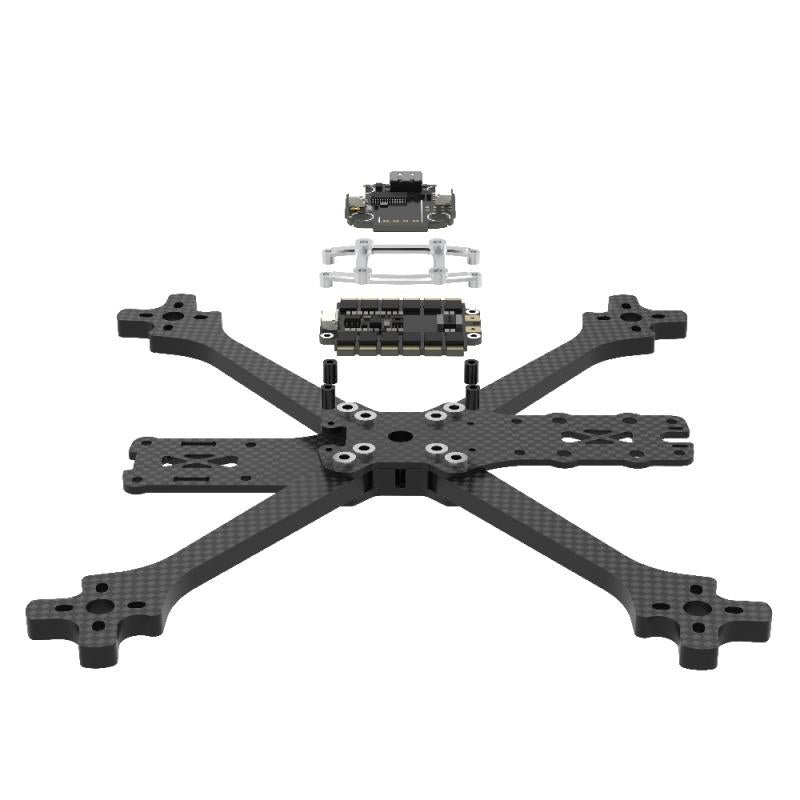

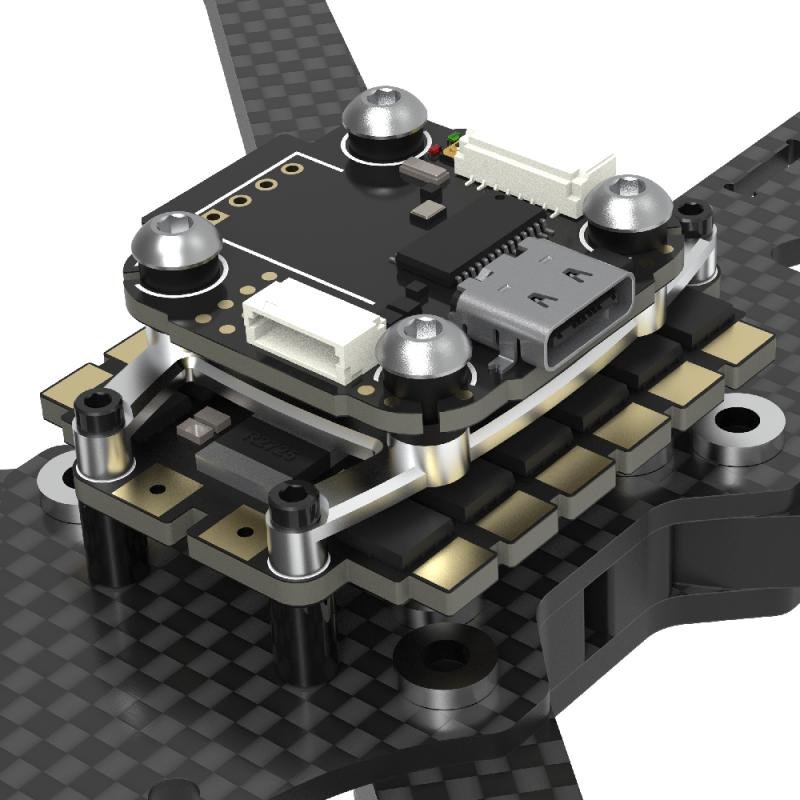

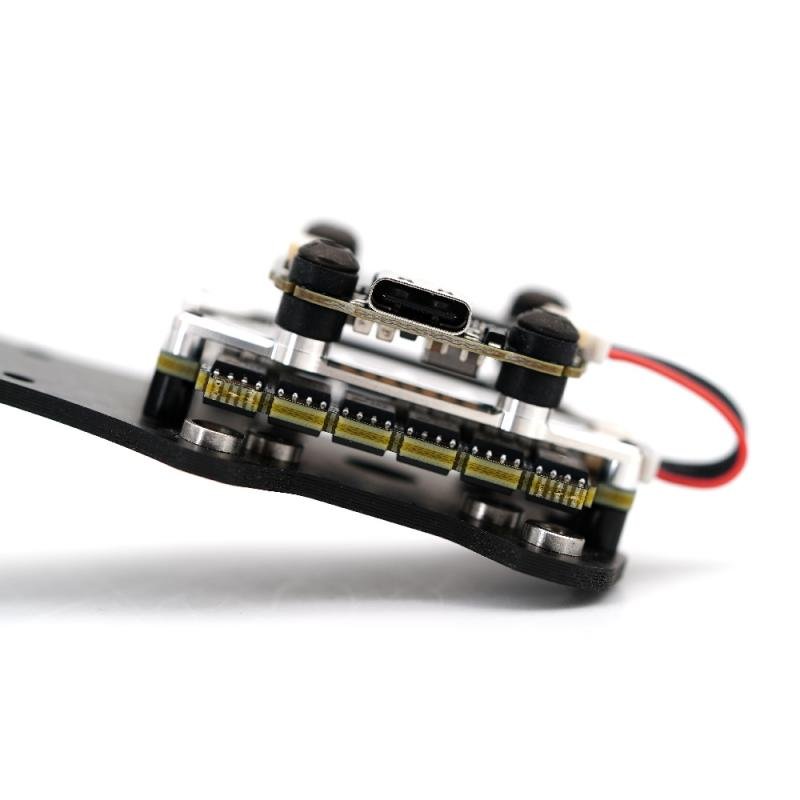

GORILLA MOUNT:
Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.
Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
TBS Gorilla 20x20mm Stack Mounting Adapter
TBS Gorilla 30x30mm Stack Mounting Adapter
Downloads:
- Gorilla mounting pattern
- Frame developer pack for Gorilla mounting pattern
- AM32 Online Configurator
- AM32 Firmware
- TBS Lucid Manual
Package Includes:
- 1 x TBS Lucid Freestyle ICM-42688P Stack 6S ( Flight Controller+4in1 ESC )
