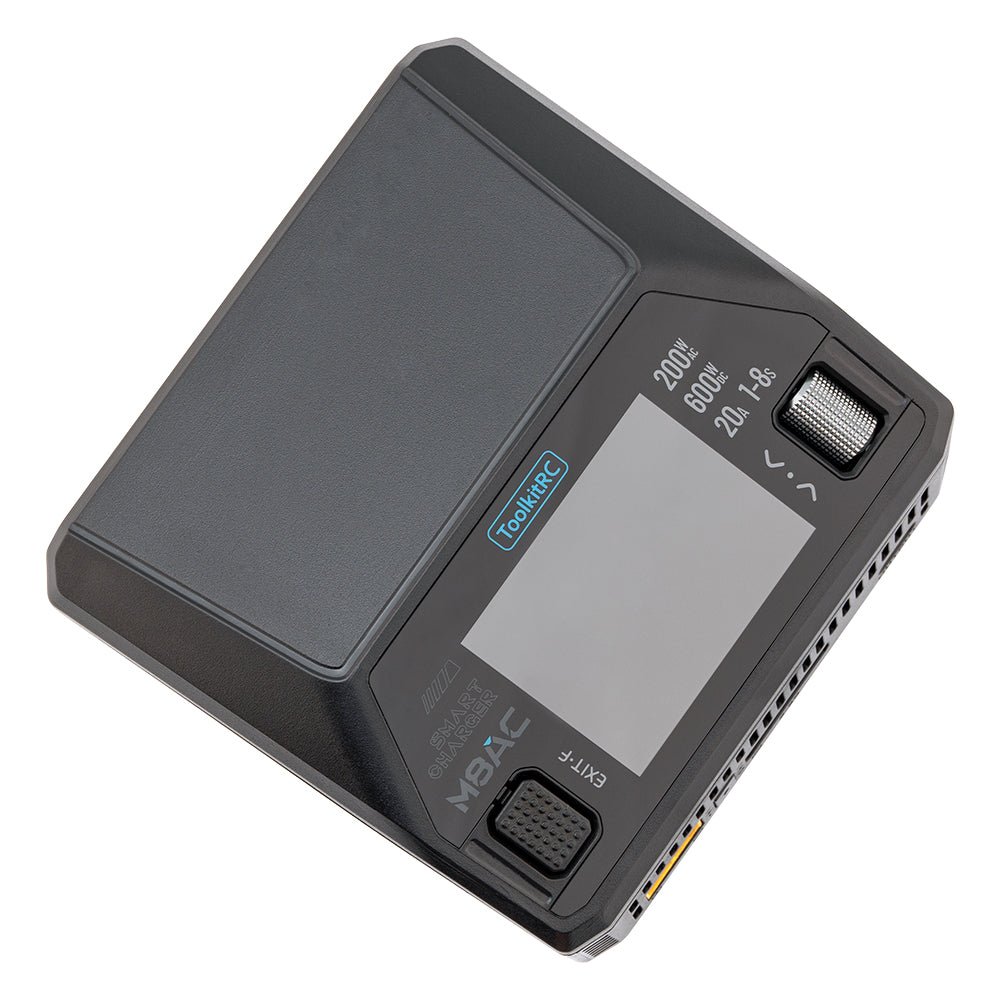

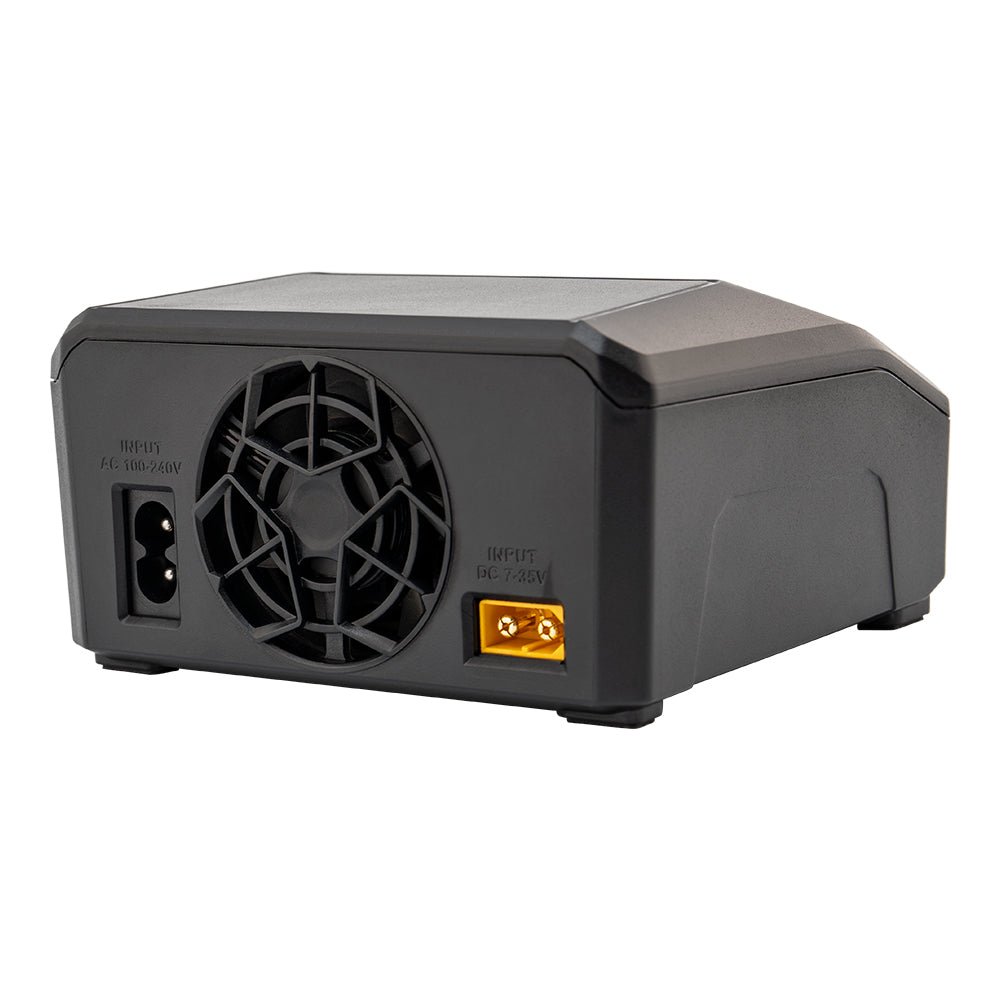

ToolkitRC M8AC 1-8S AC 200W DC 600W 20A Battery Charger – XT60

The ToolkitRC M8AC is equipped with a dual input system and can charge batteries from 1 to 8S with 200W AC input and 600W DC input. It also has a high balance accuracy of  0.005V and a robust balance current of 1000mA. In addition to charging, it offers numerous auxiliary functions and a smart 2.4″ IPS LCD display. With comprehensive security protection, this charger improves the performance of classic batteries.

Checkout all our Chargers and our ToolkitRC Collection.

Specifications:

GENERAL
Product size    108×113×62mm
Product weight    500g
Packing size    136×153×67mm
Packaging weight    600g
LCD    IPS 2.4″ LCD 320×240px

CHARGER
Input voltage  AC 100-240V@MAX 2.5A / DC 7-35V@MAX 25A
Battery type    LiPo LiHV LiFe Lilon LTO @1-8S
NiMH @1-20S   Pb@1-12S
Balance current    1000mA@4.2V
Balance accuracy    <0.005V
Charging power    0.1-20A@600W
Discharging power    0.1-20A@300W Recycle Mode / 0.1-3A@20W Normal Mode
USBC    MAX 20.0V@65W Upgrade
Voltage    1.0V-5.0V @1-8S
Internal resistance    0.1mΩ-99mΩ @1-8S

MEASURER
PWM    880us-2200us@20-400Hz
PPM    880us-2200us×8 CH@20-50Hz
SBUS    880us-2200us×16 CH@20-100Hz

OUTPUT
PWM    500us-2500us@20-1000Hz
PPM    880us-2200us×8 CH@50Hz
SBUS    880us-2200us×16 CH@74Hz
Power    0.5-15A@1-35V Mode: CC+CV

Package Includes:

• 1 x ToolkitRC M8AC
• 1 x AC Input Cable
• 1 x USB Cable
• 1 x Quick Manual
• 1 x Screen Protector
