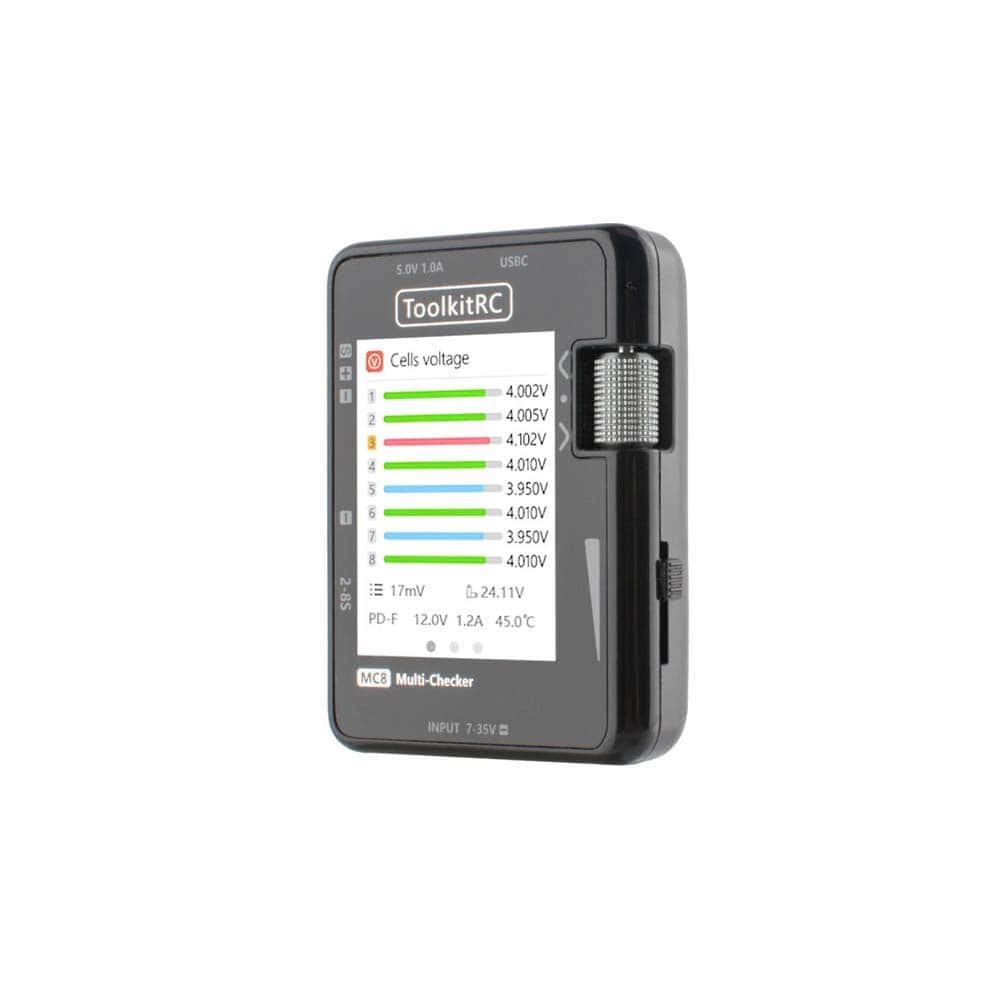

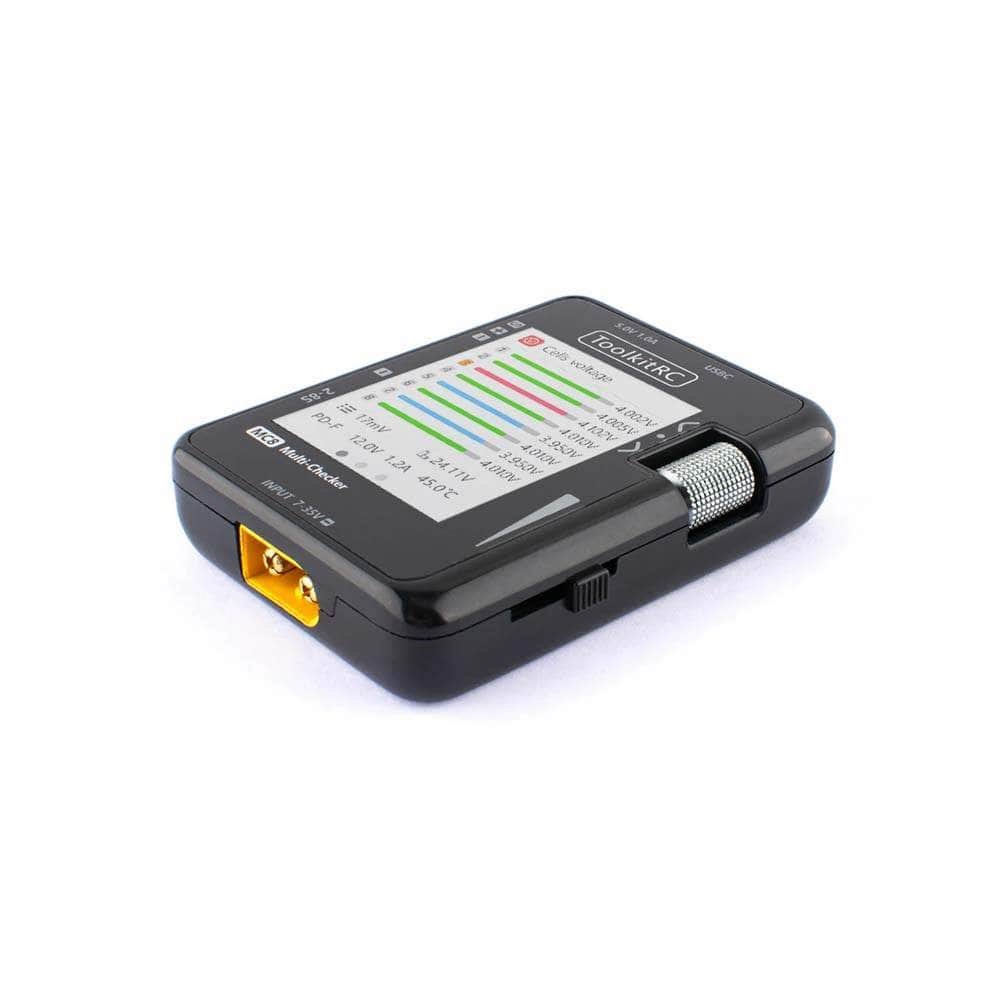

ToolkitRC MC8 Multi-Functional 2-8S Battery Checker

The latest from Toolkit is a feature packed multi purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your packs, you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCS, and use your LiPos for device charging (up to 20W PD)!  Check the video below to see what it can do!

Check out all our Battery Checkers and the rest of our ToolkitRC Products!

Features

• Large Color Screen
• Battery Status Display
• PWM/PPM/SBUS Readout
• PWM Output
• One Touch Battery Balancer
• PD Fast Charging
• Metal Roller UI Control
• Innovative Slider Output Control

Specifications

• LCD:  2″ IPS 320×240
• Dimensions: 68x50x15mm
• Weight: 50g

Checker

• Main Input port: XT60 7.0-35.0V
• Balance input: 0.5V-5.0V Lixx 2-8S
• Signal port input: <6.0V
• Balance current: MAX 60mA @2-8S
• Balance accuracy: <0.005V @ 4.2V
• USB-A output: 5.0V@1.0A firmware upgrade
• USB-C output: 5.0V-12.0V @MAX 20W
• USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

Measurer

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz

 Output

• PWM: 1000-2000us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz

Includes

• 1x Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
