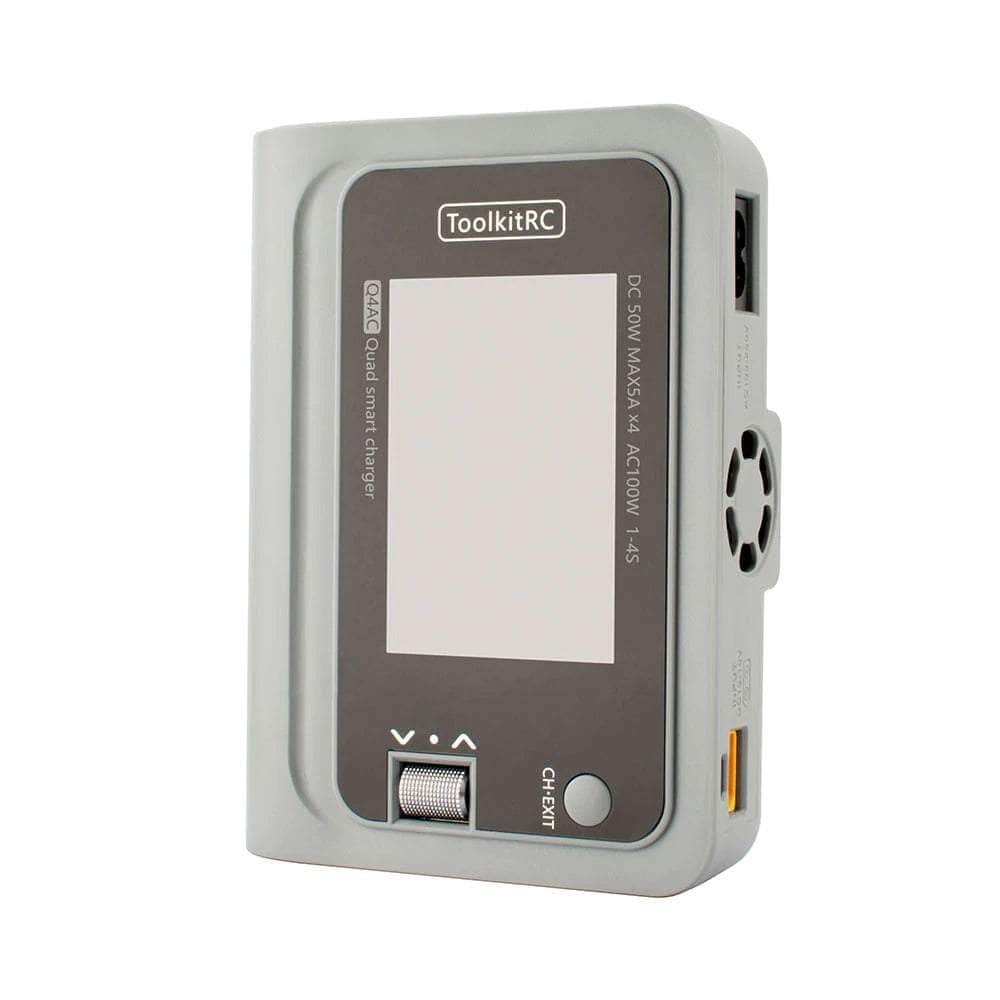

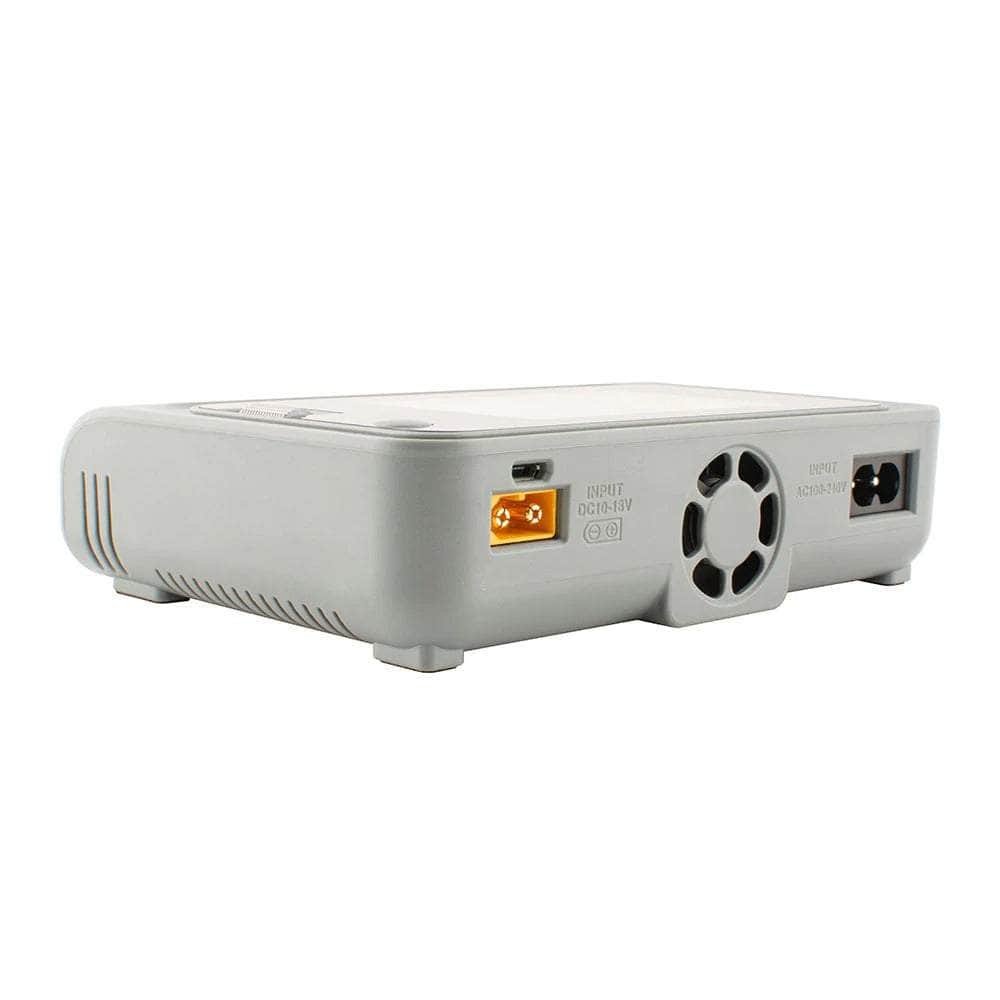

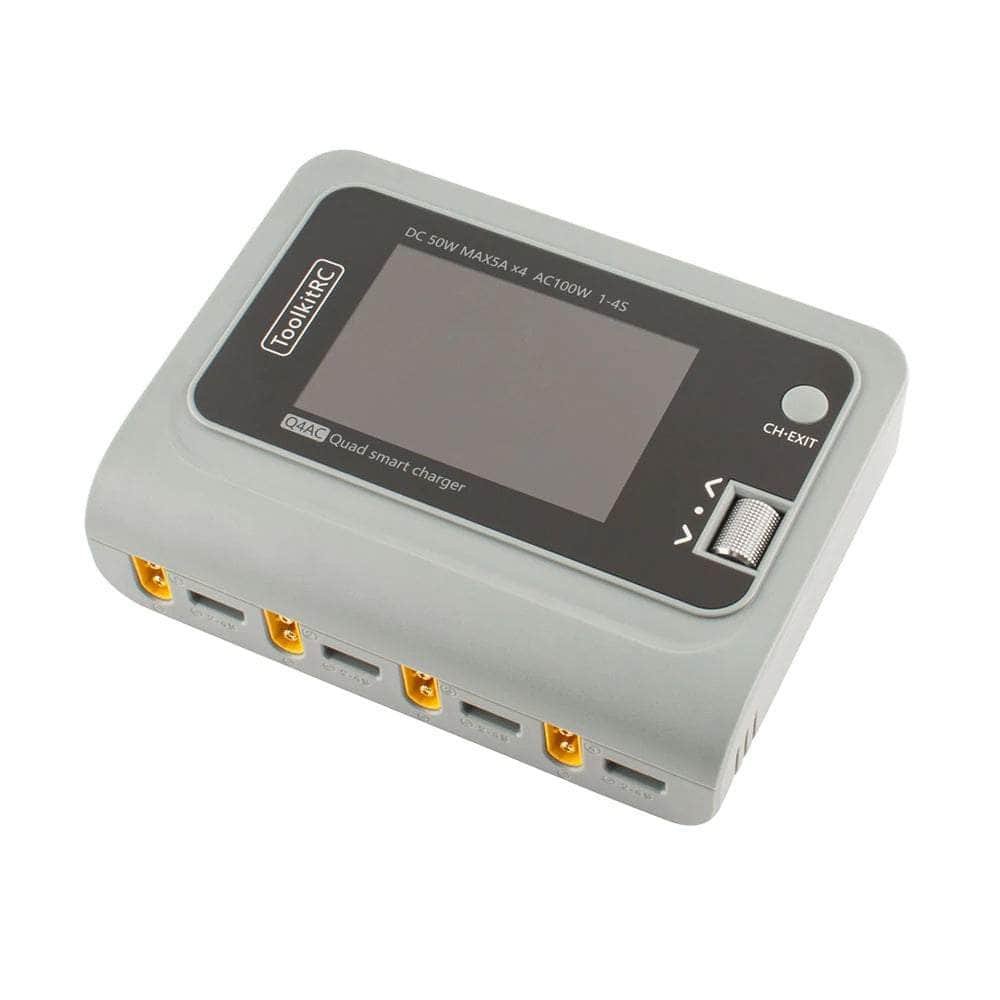

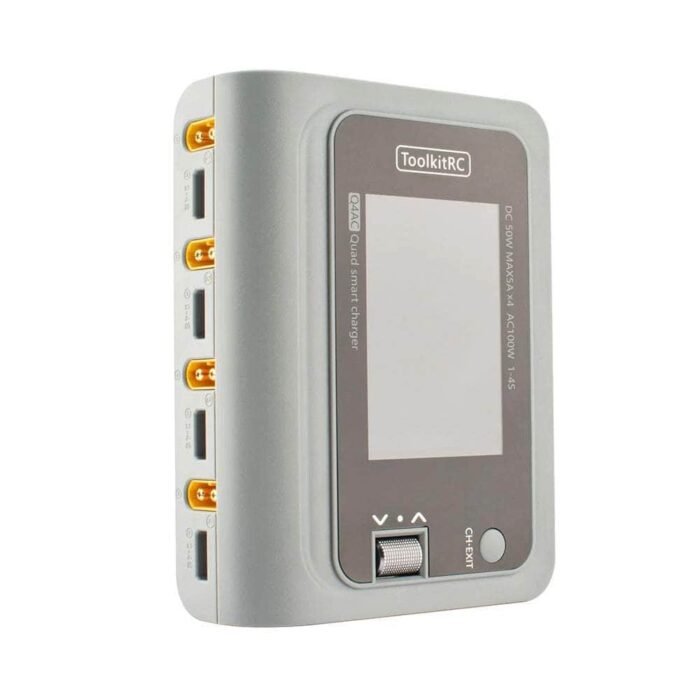

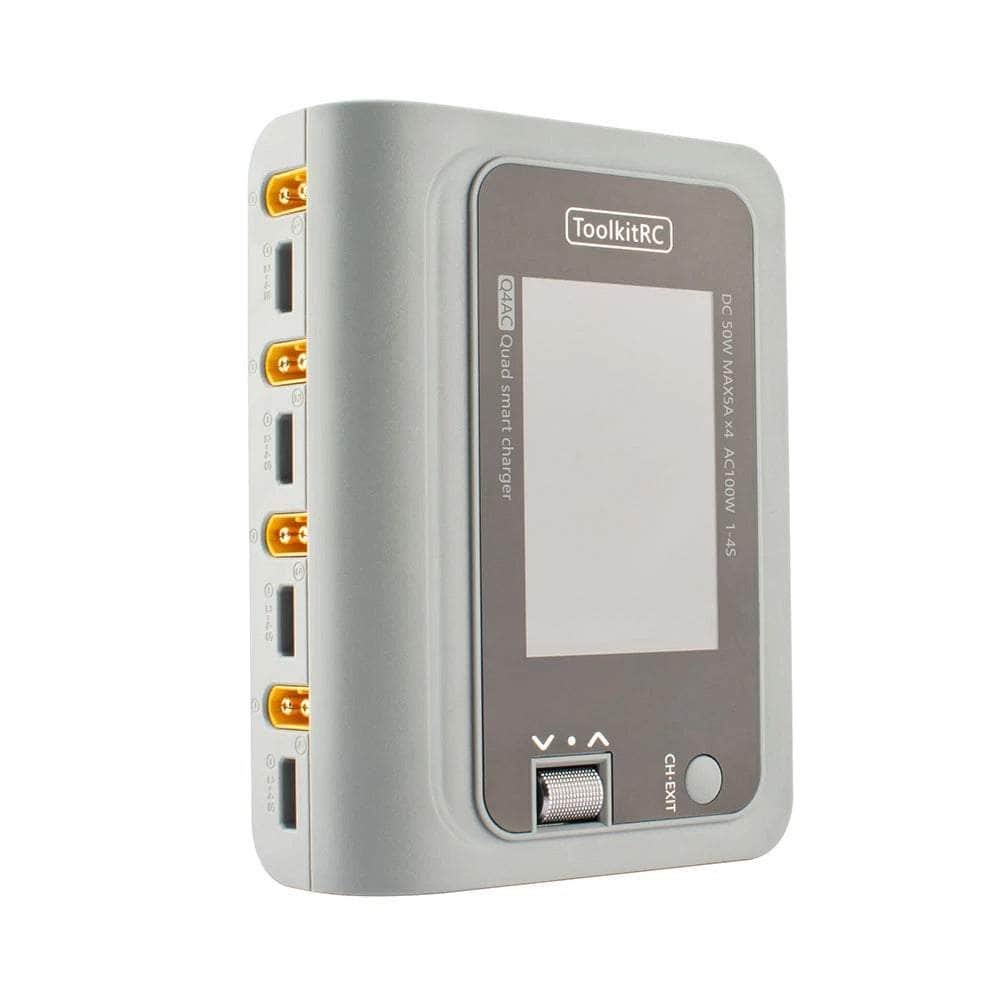

ToolkitRC Q4AC 100W 5A Quad Channel 2-4S Smart Charger – XT60

ToolkitRC’s new AC/DC 4 channel charger operates on an internal 100W AC power supply or up to 200W on DC power! Other features include a bright 3.5″ color display with a wide viewing angle, a metal scroll wheel, and the solid ToolkitRC build quality you expect!ut testers and output generators along with a variable voltage and amperage DC output control!

Checkout the rest of our battery chargers and our ToolkitRC collection.

Features

• AC or DC input
• Up to 4 channels
• Wide view screen
• 32bit processor
• Multiple language support

Specifications

• Input Voltage: AC100-240V@MAX1.5A, DC10-18V@MAX20A
• Supported Battery Type: LiPo LiHV LiFe Lion@1-4S, NiMh @1-10S, Pb @1-8S
• Balance Current: 240mA @2-4S
• Balance Accuracy: < 0.005V
• Charge Power: 0.1-5A@50W*4 DC IN, 0.1-5A@50W*2 AC IN, 0.1-5A@25W*4 AC IN
• Discharge Power: 0.1-2A@5W*4
• Voltage Range: 0.2V-5.0V @1-4S
• Internal Resistance: 1-100mR @1-4S
• MicroUSB: Upgrade@USB2.0
• Dimensions: 150x112x36.5mm
• Weight: 600g
• LCD: IPS 3.5 寸480*320 pixel

Manual

Includes

• 1x ToolkitRC Q4AC 100W 5A Quad Channel 2-4S Smart Charger
