Sold out

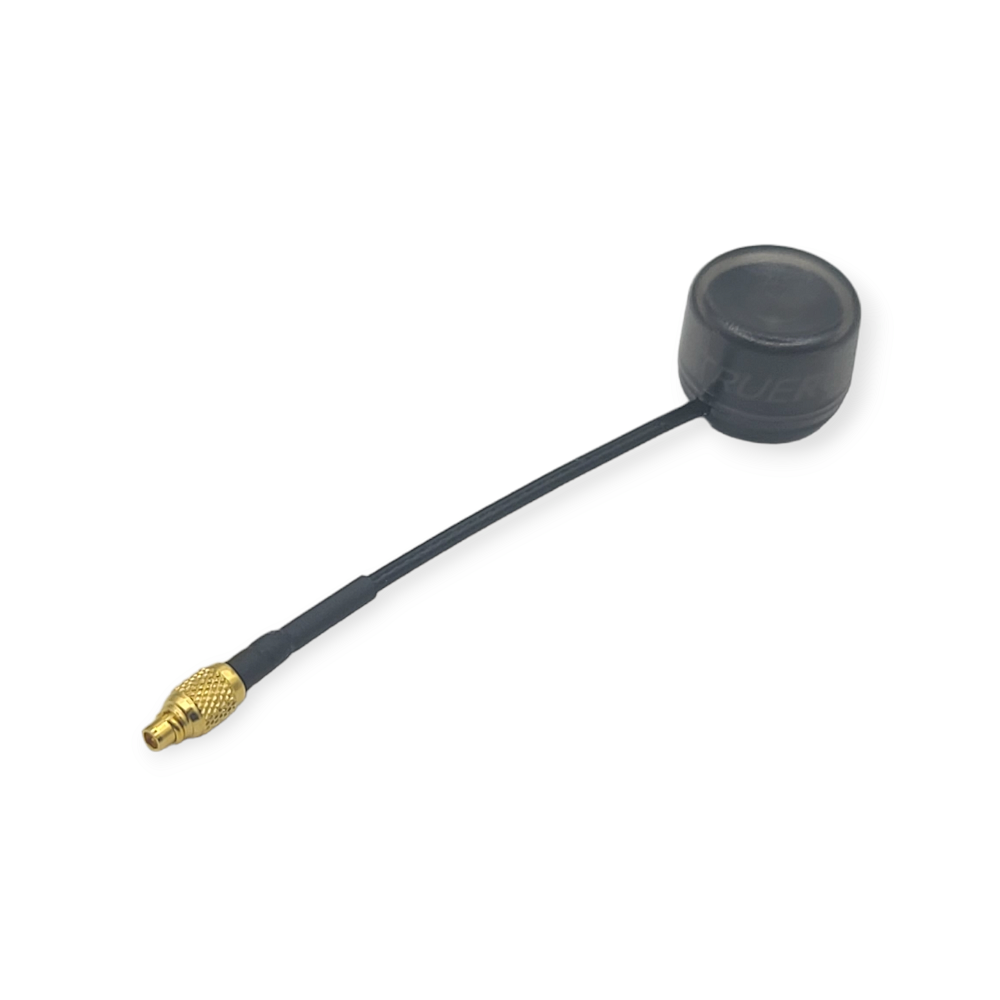

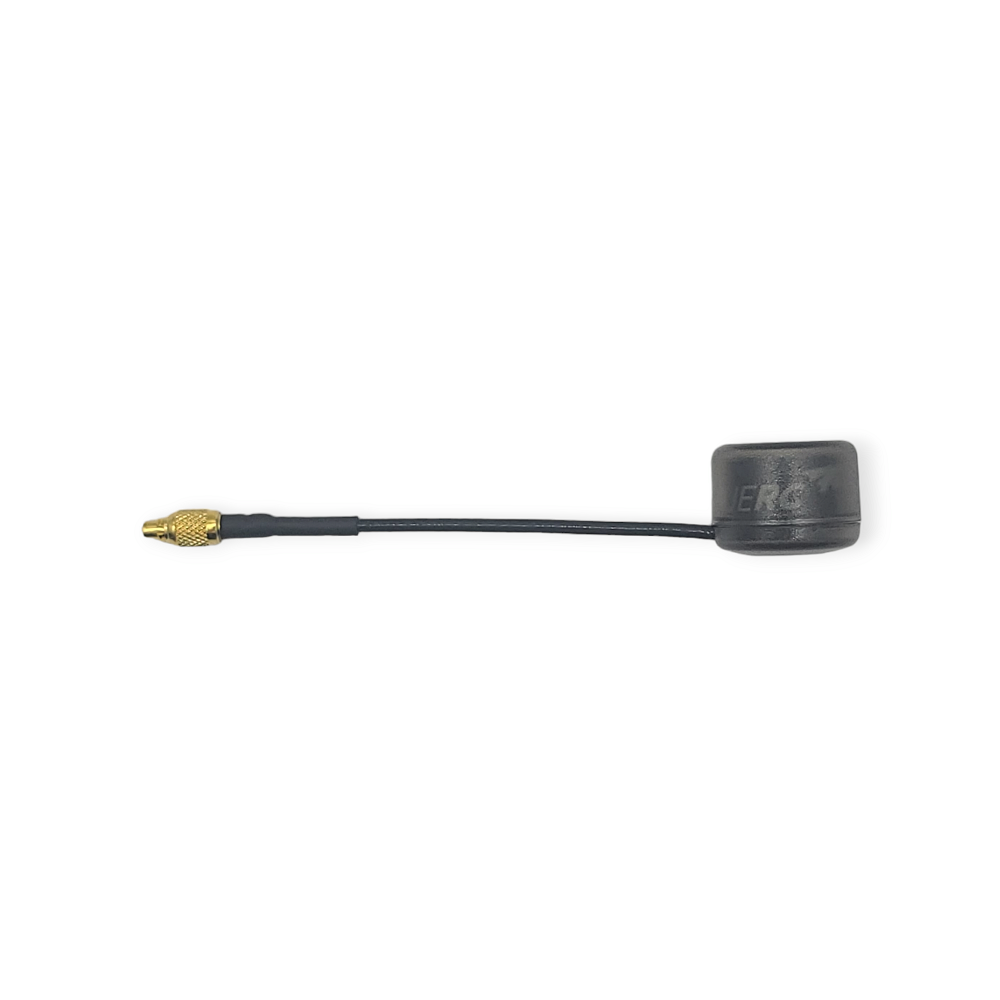

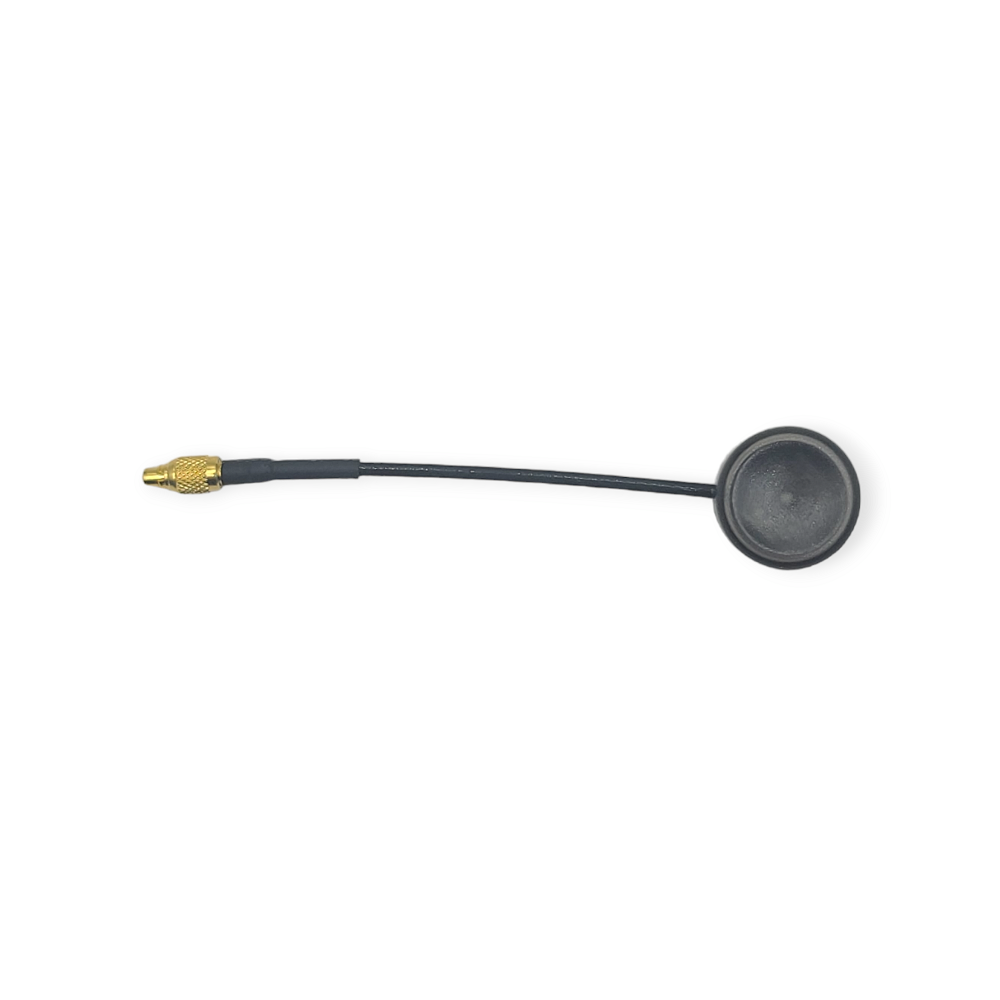

TrueRC CORE 5.8GHz Side Feed MMCX 85mm FPV Antenna – RHCP
$14.99
| Weight | 0.005 kg |
|---|
Out of stock
Description
🚀 Looking for an alternative?
This Truerc item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Video Transmission section!
This Truerc item is currently out of stock or discontinued. We highly recommend checking out our premium in-stock alternatives from top brands like T-Motor, GEPRC, and iFlight in the Video Transmission section!
The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. We then added a very durable outer shell that protect the antenna from the inevitable crashes.
Check out all our FPV Antennas and the rest of our TrueRC Products!
Features
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Side exit cable for novel mounting options
- Exclusive knurled True-SMA for easy tightening
SPECIFICATIONS:
- Gain: 1.9dbic
- Polarization: RHCP
- Cross-Polar Rejection: -10 to -20dB (1.9%)
- Bandwidth: 5.5Hz-6.1GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Dimensions(head): 16.9mm dia. x 13.1mm height.
- Weight: 3grams
- Length: 85mm
- Connector: MMCX
Package Includes:
- 1 x TrueRC CORE 5.8GHz Side Feed MMCX 85mm FPV Antenna – RHCP
