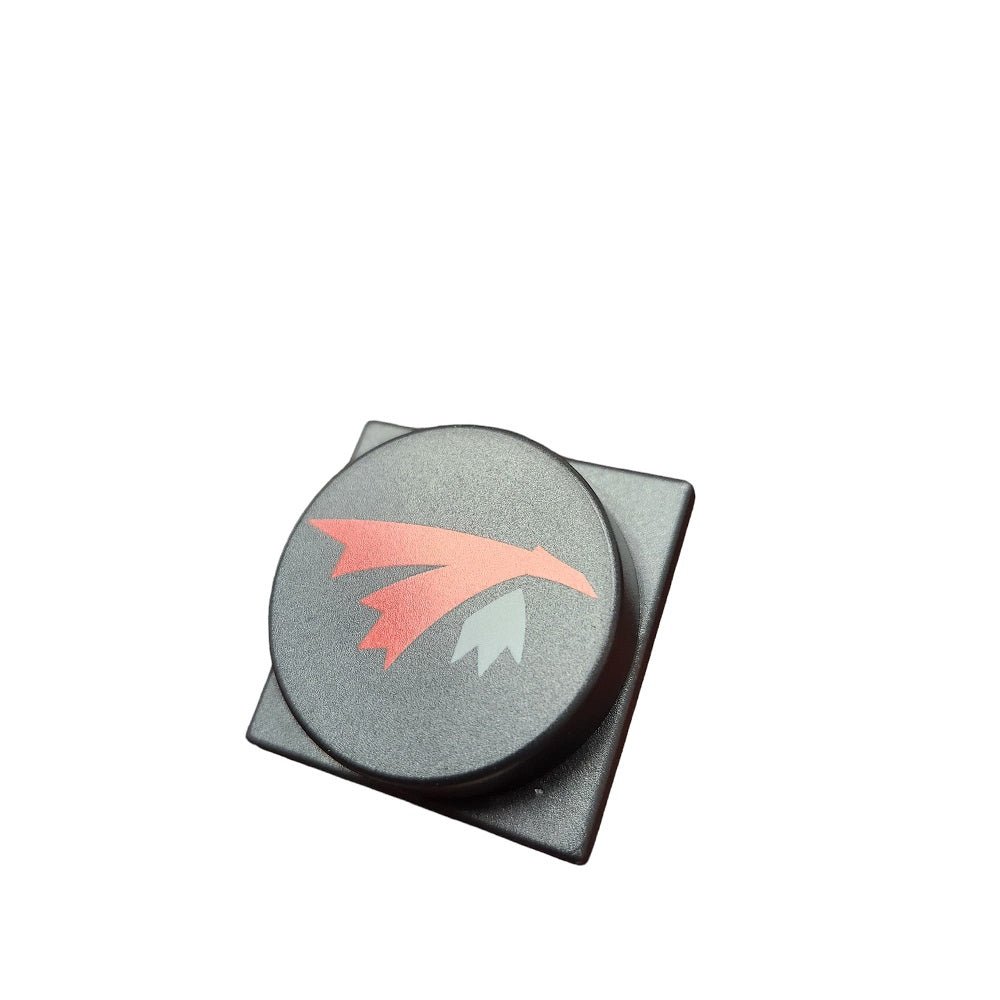

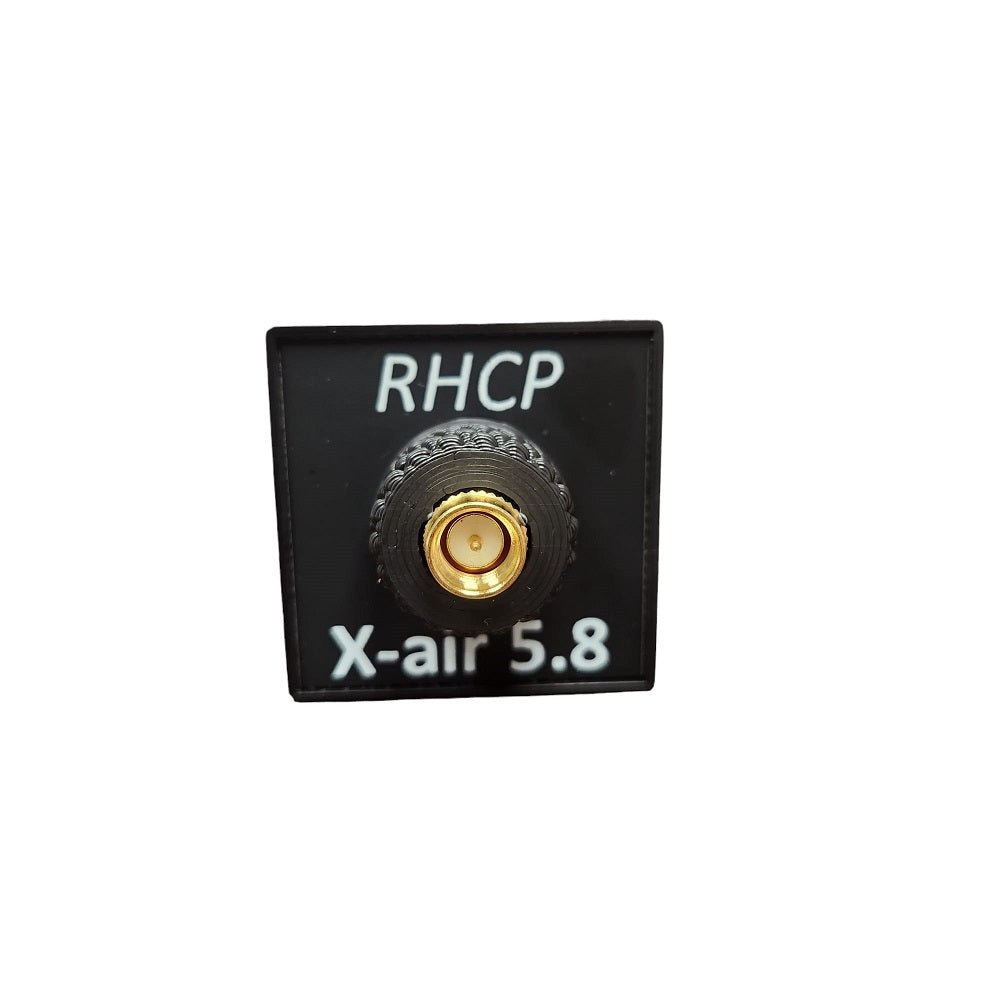

TrueRC X-AIR 5.8 MK. II RHCP – SMA

The X-AIR 5.8 MK. II is TrueRC’s latest redesign of the X-AIR 5.8 antenna. Featuring aerospace-grade PCB material and the latest computer-aided engineering, there’s no compromise in beam width or gain despite the significantly reduced size. It is almost 1/4 of the footprint of the original X-AIR, yet offers the same wide coverage and high axial ratio, making it perfect for long-range ventures without the need for constant antenna aiming adjustments.

 Check out all our RHCP Antennas and the rest of our TrueRC Products!

Features

• Circularly Polarized

• Compact low-profile design on your goggles, easy to store and transport

• High 10 dBic for long-range and signal penetration

• Large SWR and axial ratio bandwidth, works even outside the 5.8GHz band

• Super wide 120-degree beam

• Aerospace-grade PCB material

• Computer-aided engineering for optimized performance

Specifications

• Bandwidth: 5.1GHz-6.7GHz

• Gain: 9.5-10.5 dBic

• Polarization: RHCP

• Beam-width (H and V)*: 120deg

• Beam-width @-3dB(H and V)**: 68deg

• Connector: SMA

• Dimension: 32 x 32 x 16mm

• Weight: 9g

Compatibility

• Compatible with any 5.8GHz FPV receiver or goggles utilizing an RP-SMA connector.

• Suitable for Walksnail Avatar, Fat Shark Dominator, and other digital or analog systems.

Package Includes

• 1 x TrueRC X-AIR 5.8 MK. II RHCP – SMA
