Walksnail Avatar HD Mini 1S Lite Kit VTX/Camera for Walksnail Avatar HD Goggles
$113.99
| Weight | 0.04 kg |
|---|
Out of stock
Description
New version of VTX / Brand new camera
Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size which can be installed in smaller drones. STILL has heat sink.
Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
Don’t forget to check out the rest of our Digital Video Transmitters and Walksnail Products!!

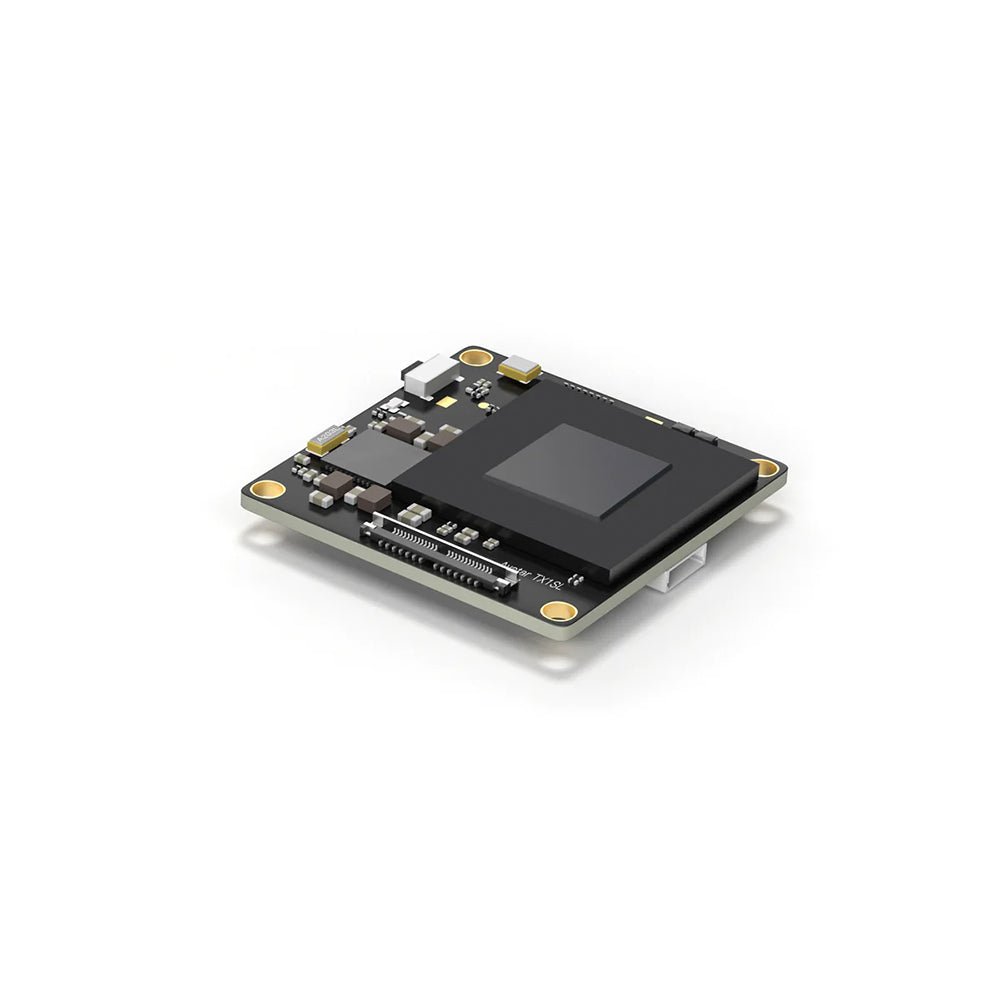

New version of VTX
Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.

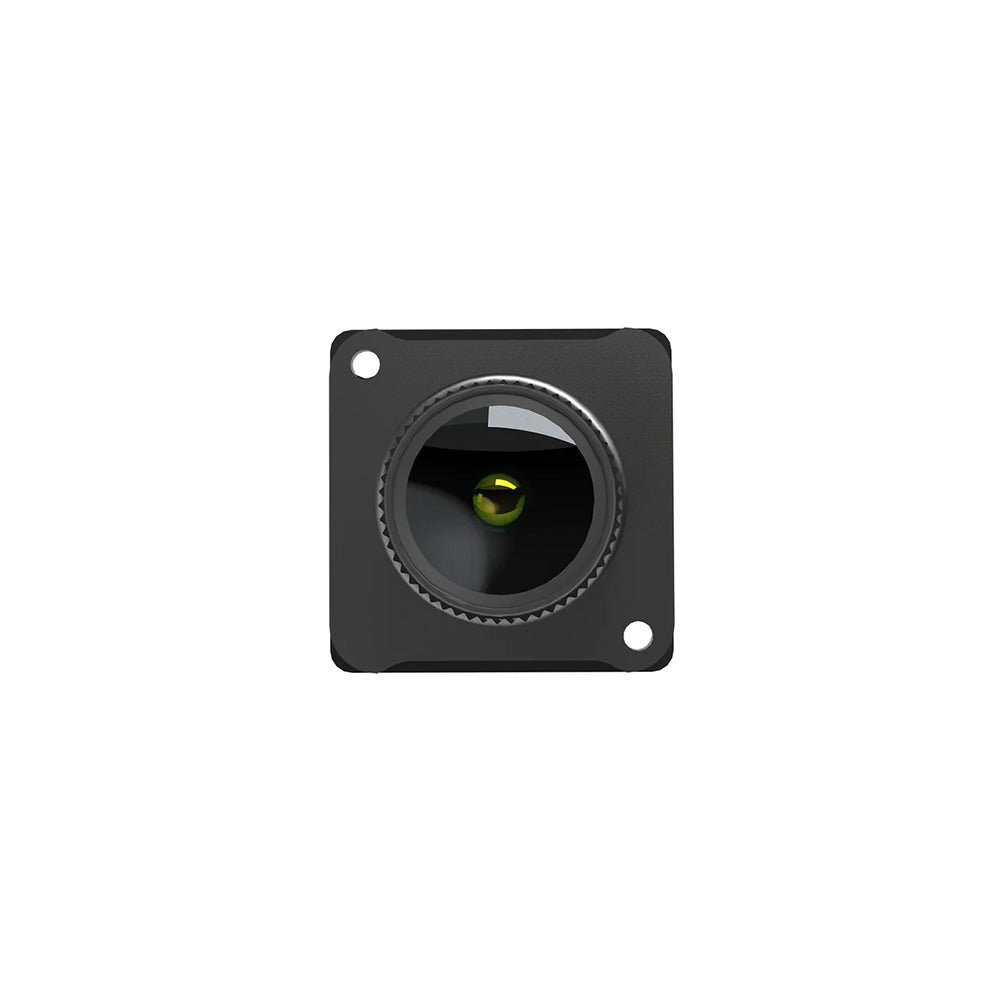

Brand new camera
Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
High quality, low latency
Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.
32G Built-in Storage
The Avatar vtx comes with 32g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Canvas Mode
Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you’ll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.
3.1-13V input, max 500ms output
The avatar mini 1S lite kit is suitable for more types of drones, with 3.1-13V voltage input and 500mw power output, you’ll be able to fly all kinds of tinywhoops in a amazing video quality and range.
Product Size:
Features :
- 1080P/60fps
- 22ms low latency
- 7.8g light weight
- Canvas mode
- Built-in 32G storage
- HDMI out
- 3.1-13V
- 500mw
- Small antenna
Specifications:
Camera
- Model Avatar lite camera
- Image Sensor 1/2.7”1nch
- Resolution 1080P/60fps,720P/120fps,720P/60fps
- Ratio 16/9 4/3
- Lens 2.1mm
- FOV 170°
- Aperture F2.0
- Shutter Rolling Rolling shutter
- Min.Illumination 0.001Lux
- Weight 1.8g
- Dimensions 14*14*16mm
Vtx
- Model Avatar mini 1s module
- Communication Frequency 5.725-5.850GHz
- Transmitter Power (EIRP) FCC:<25.5dBm; CE:<14dBm;
- SRRC:<20dBm; MIC:<25dBm
- I/O Interface JST1.0*6(Power in)JST0.8*4(USB)

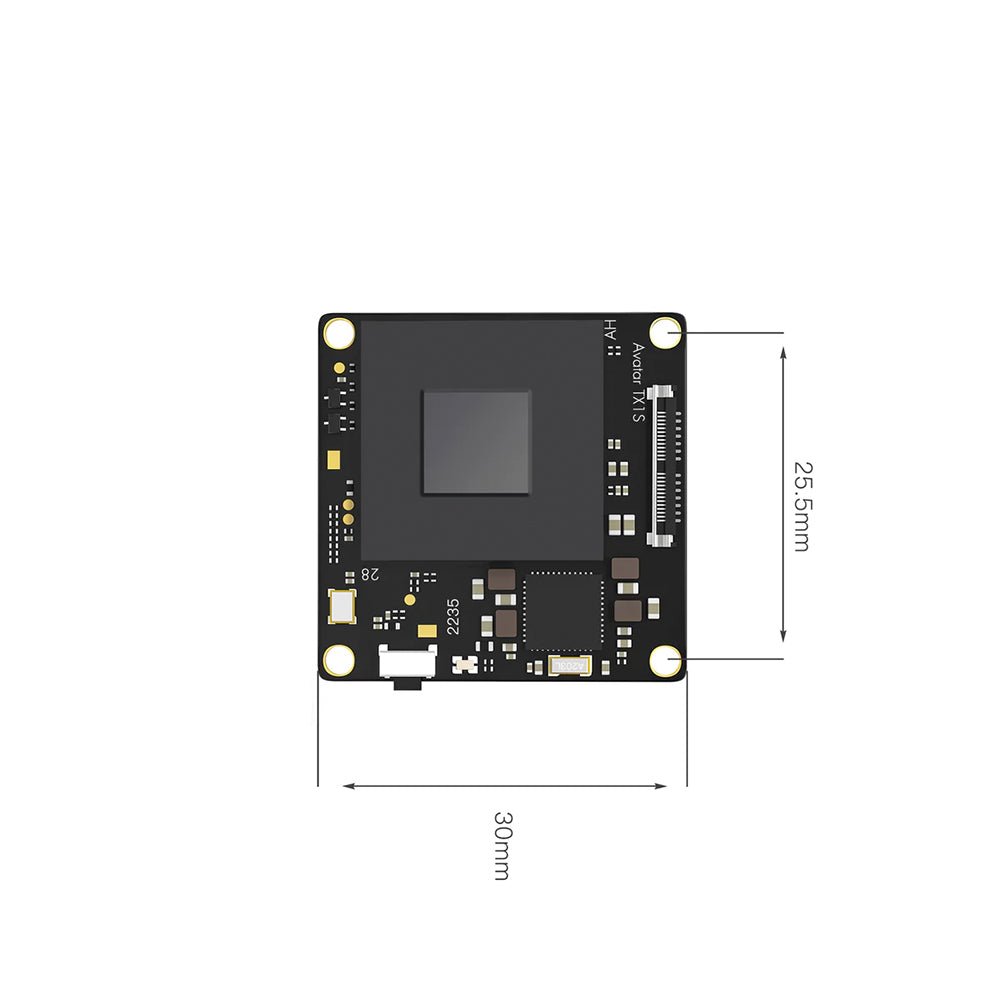

- Mounting Holes 25.5*25.5mm
- Dimensions 30*30*6.5mm
- Storage 8G (V2) / 32G(V3)
- Recording 1080p/720p
- Weight 6.8g
- Operating Temperature -20-40℃
- Channels 8
- Wide Power Input 3.1V-5V(V2) / 3.1-13V(V3)
- Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot
- OSD Canvas mode
- Bitrate 25mbps 50mbps
- Latency Average delay 22ms
- Antenna IPEX
1s Lite Antenna
- Polarization Linear
- Frequency range 5600-5900MHz
- Gain 1.6 dbi
- VSWR ≤1.5
- Input Impedance 50Ω
- Interface IPEX-1
- Size R 5mm,L 70mm
- Weight 0.5g
Package Includes:

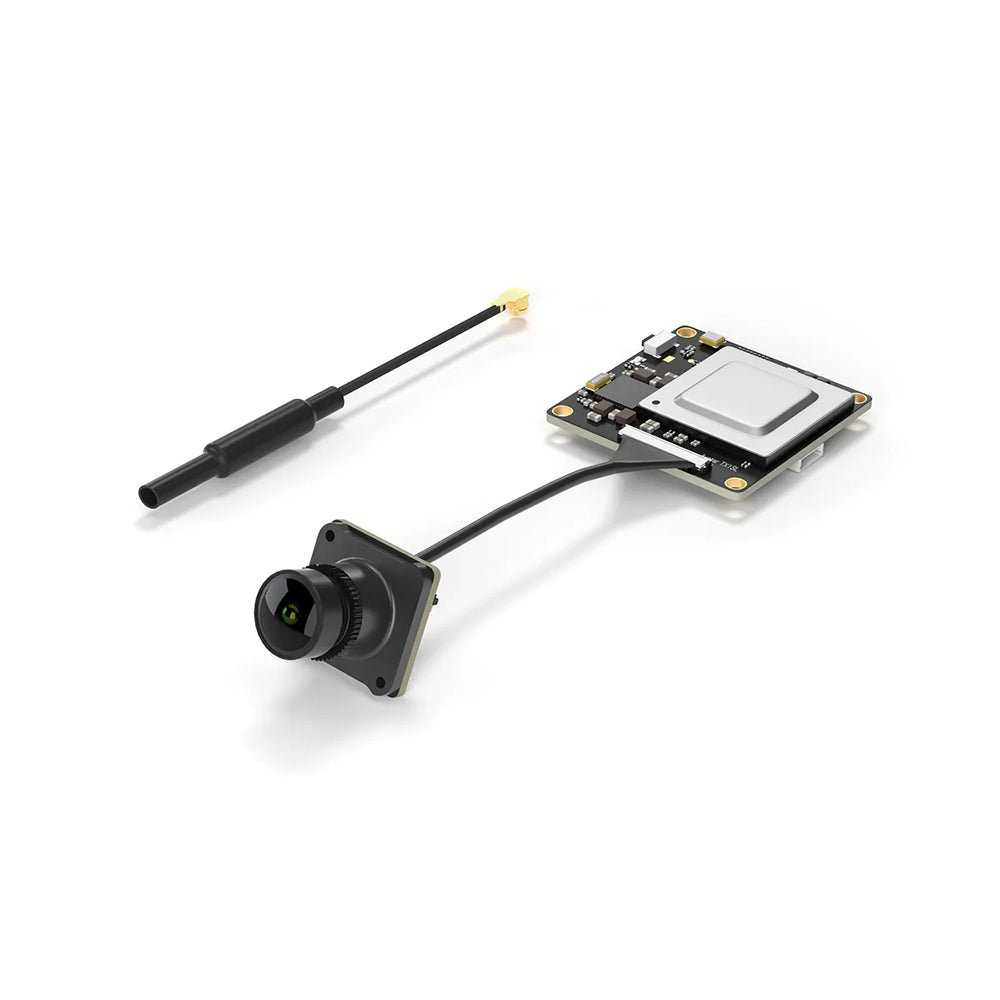

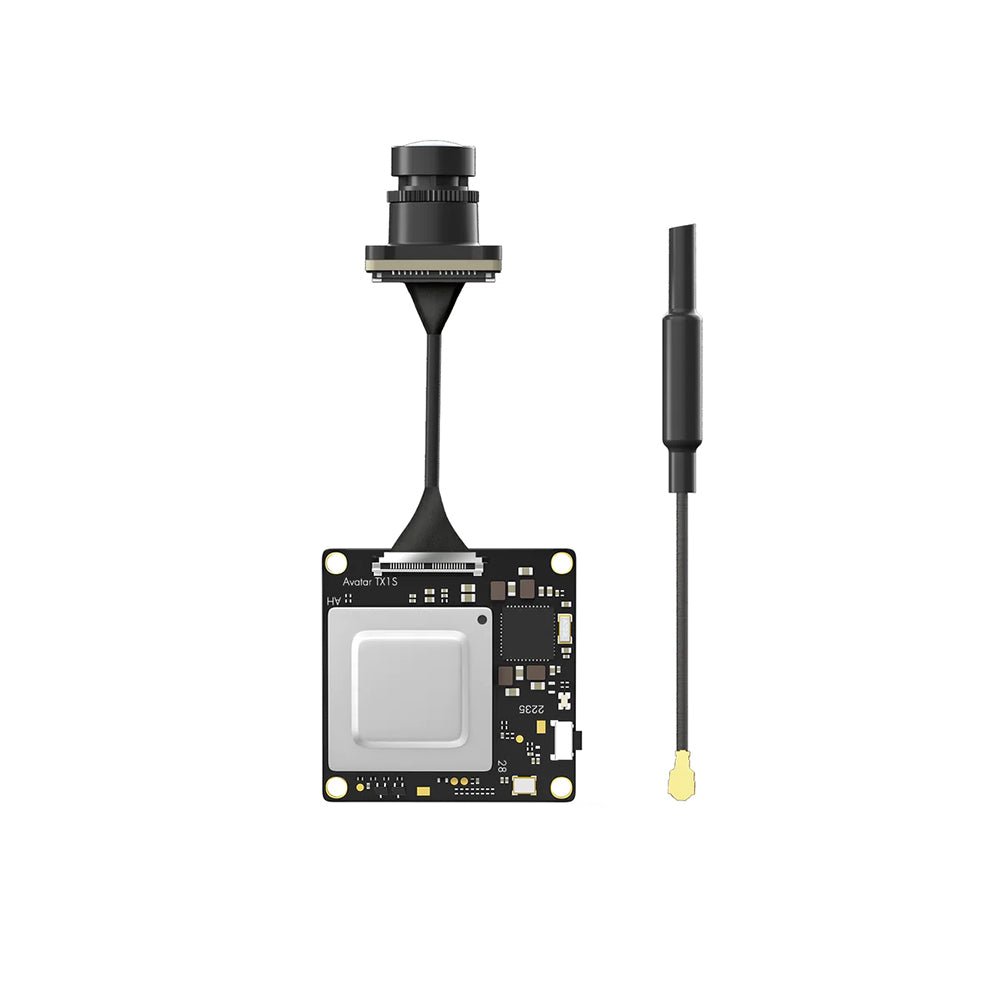

- 1 x Walksnail Avatar HD Mini 1s Lite Kit
- 1 x 4 Pin USB Cable
- 1 x 4 Pin Power Cable
- 4 x 1.4×8mm Screws
- 2 x 1.4×10mm Screws
- 4 x M2 Anti-vibration Rubber Dampers *6mm
