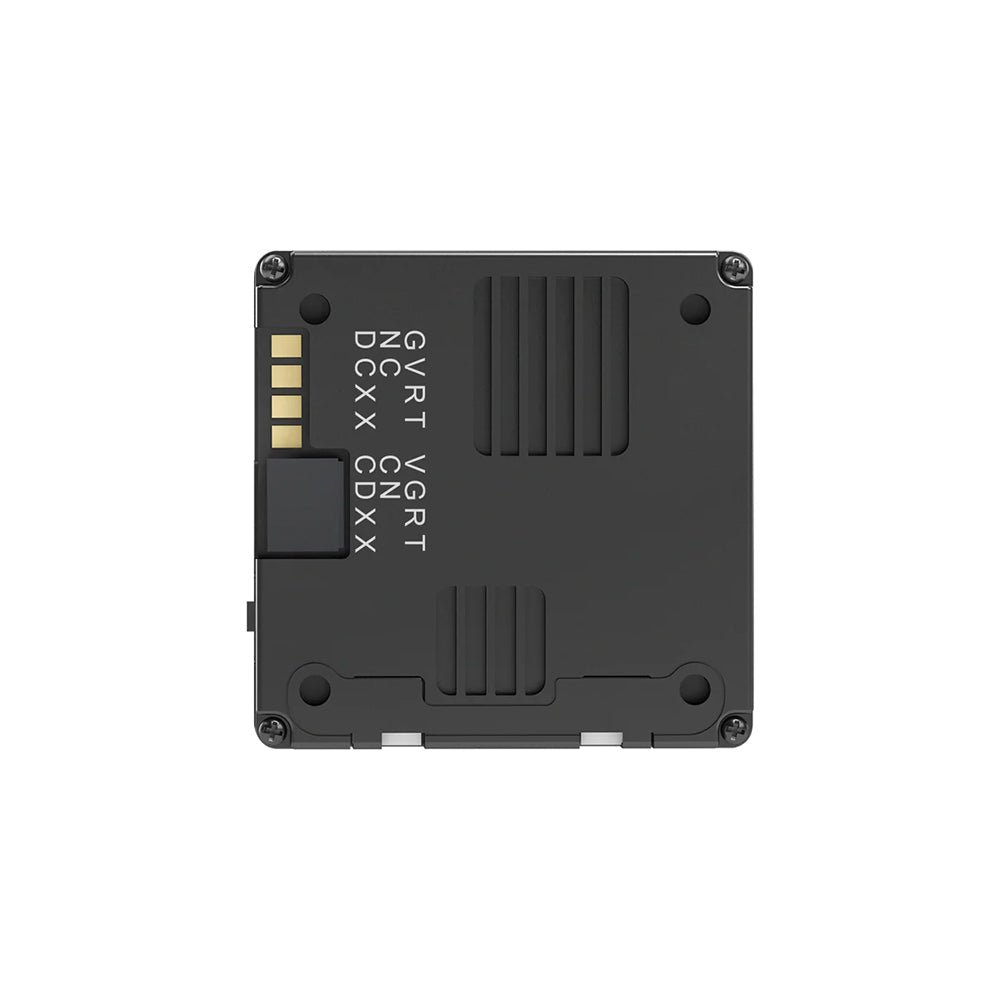

Walksnail Avatar HD VTX V2 Module Dual Antennas Version 32G (VTX ONLY) for Walksnail Avatar/Fatshark Dominator HD FPV System

The Walksnail Avatar HD VTX Module V2 provides superior performance with a range of features, including 25*25mm and 20*20mm mounting holes, optimized antenna installation, frequency binding button, spare power pad and 32GB built-in storage for 1080P or 720P HD fly videos. Increased TVS protection and support for up to 6S ensures reliable power and stable video output.

Please Note, this is a VTX only: DOES NOT include antenna, coaxial cable, or camera.

Check out all our Digital FPV VTX’s and the rest of our Walksnail Products!!

• The Avatar VTX comes with 32g built-in storage it can record 1080P or 720P HD fly videos without interference. 32G built-in storage, recording video time increased by 4 times.

• New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

Features:

• Dual antennas
• The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
• Updated the design of PCB board and shell, improved the quality of VTX, more durable.
• Optimized the installation place of the antenna, it’s better to protect the VTX.
• The position of the frequency binding button has been changed, to make the frequency binding operation more convenient.
• The kit includes a spare power pad, providing an extra opportunity for welding.

 Specifications:

• Model Avatar V2 module(Dual Antenna)
• Communication Frequency 5.725-5.850GHz
• Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
• 1/O Interface JST1.0*4(Power in)JST0.8*6(USB)
• Mounting Holes 25.5*25.5mm; 20*20mm
• Dimensions 33*33*10.5mm
• Storage 32G
• Recording 1080P/720P
• Weight 15.4g
• Operating Temperature -20-40℃
• Channels 8
• Wide Power Input 6V-25.2V
• Supported FC System Betaflight; Inav; Fettec; ArduPilot;Kiss;
• OSD Canvas mode
• Latency Average delay 22ms
• Antenna 2(IPEX)

Package Includes:

• 1 x Walksnail Avatar HD VTX V2 Module Dual Antennas Version 32G (VTX ONLY)
