Walksnail Digital HD Mini 1S VTX/Camera Kit for Walksnail Avatar HD Goggles

Introducing the Mini 1S VTX/Camera kit for the new HD Avatar FPV system from Walksnail. Now you can fly your tiny whoops on in full HD glory without having to sacrifice flight performance due to the added weight!

July update: VTX (V2) changed to Mini VTX V3 (the parameters are the same)

Don’t forget to check out the rest of our Video Transmitters and Walksnail Products!!

1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.

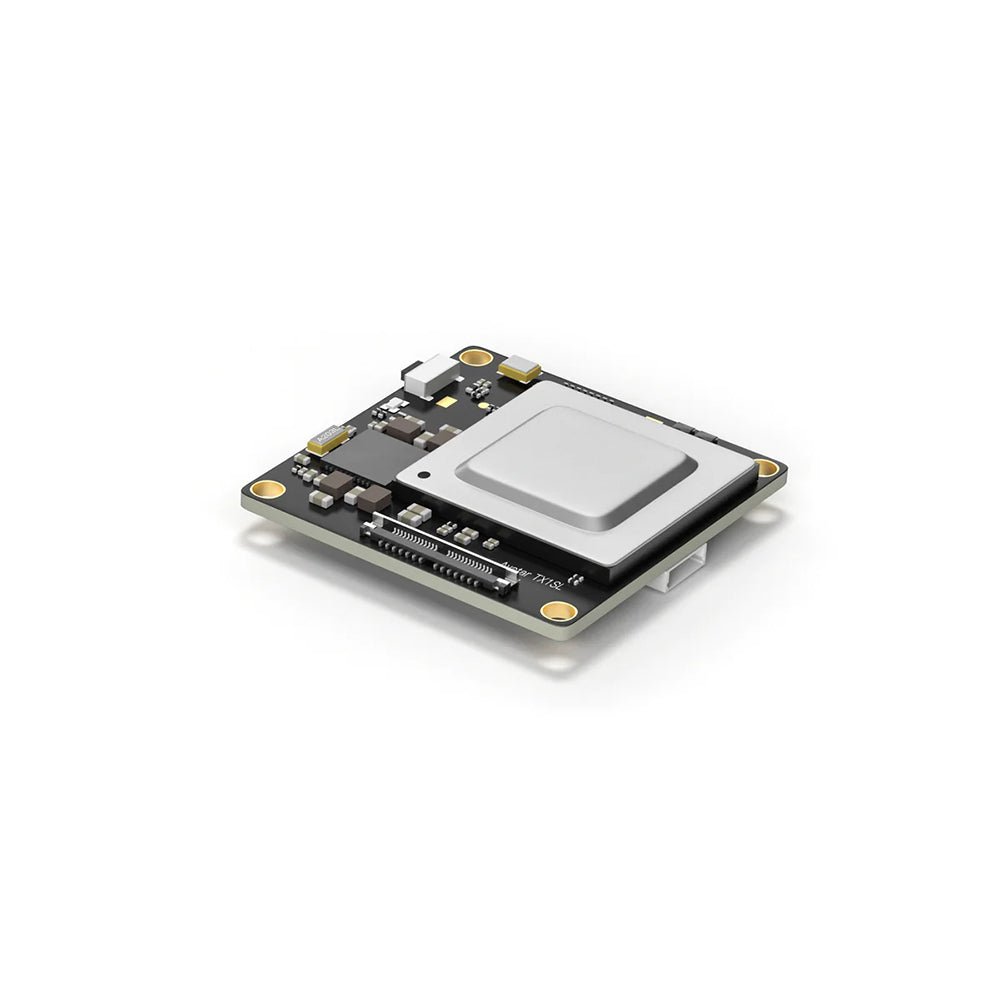

6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.

22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.

32G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p
with 60fps or 720pwith 100fps/60fps HD flight videos without interference.

Features:

• 1080P/60fps
• 22ms low latency
• input 3.1V-13V
• Power 500mW
• Built-in 32G storage
• 6.8g light weight

Specifications:

Camera

• Model Avatar nano
• Image Sensor 1/2.7”1nch
• Resolution 1080P/60fps,720P/120fps,720P/60fps
• Ratio 16/9 4/3
• Lens 2.1mm
• FOV 170°
• Aperture F2.0
• Shutter Rolling shutter
• Min.Illumination 0.001Lux
• Weight 3.5g
• Dimensions 14*14*17mm
• Coaxial Cable 55mm（default）/90mm

VTX

• Model Avatar mini 1s module
• Communication Frequency 5.725-5.850GHz
• Transmitter Power (EIRP) FCC:<25.5dBm; CE:<14dBm;
• SRRC:<20dBm; MIC:<25dBm
• I/O Interface JST1.0*6(Power in)JST0.8*4(USB)

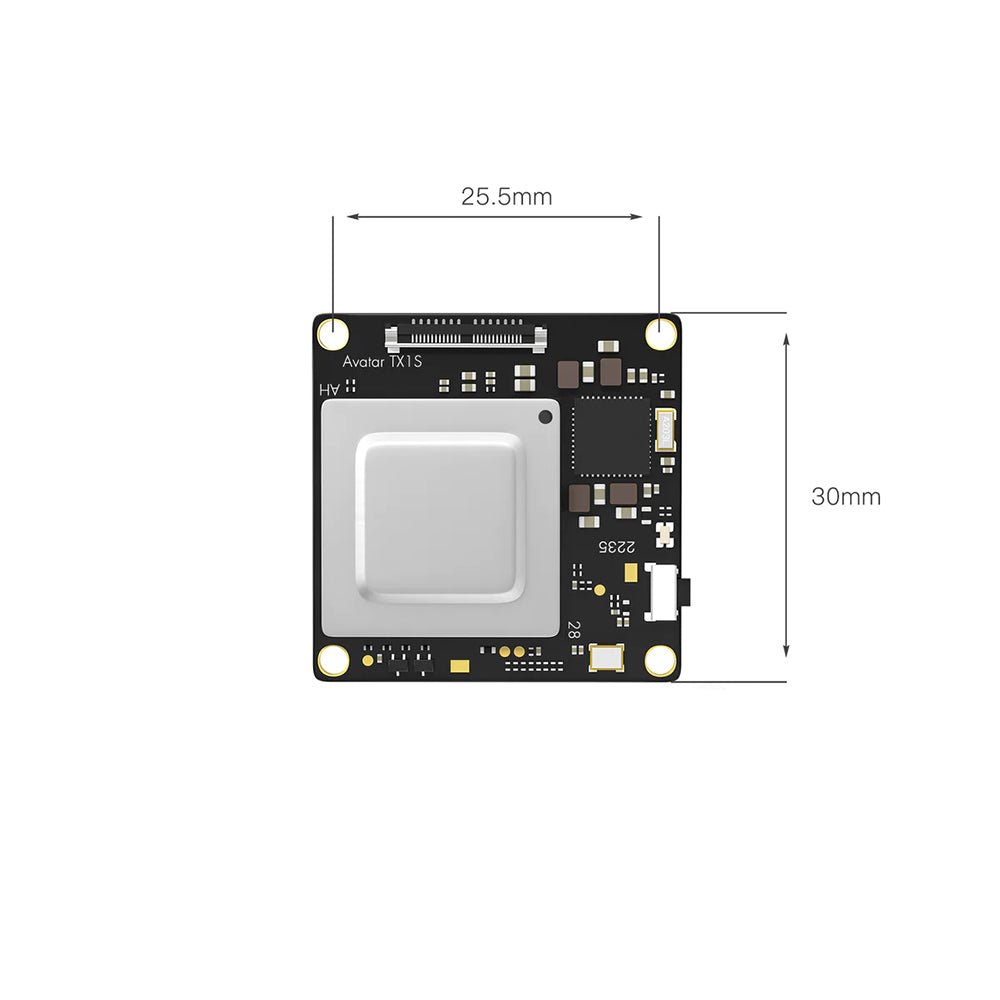

• Mounting Holes 25.5*25.5mm
• Dimensions 30*30*6.5mm
• Storage 8G(v2) / 32G(v3)
• Recording 1080p/720p
• Weight 6.8g
• Operating Temperature -20-40℃
• Channels 8
• Wide Power Input 3.1V-5V(V2) / 3.1V-13V(V3)
• Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot
• OSD Canvas mode
• Bitrate 25mbps 50mbps
• Latency Average latency 22ms
• Antenna IPEX

VTX Antenna

• Model Polar antenna
• Polarization LHCP
• Bandwidth 5.6GHz-5.9GHz
• Average Gain 2dBi
• Radiation Efficiency ≥98%
• VSWR ≤1.4
• Connector U.FL
• Line Length 90mm
• Dimension H105mm*R11.2mm
• Weight 1.5g

Package Includes:

• Avatar Mini 1S KIT X1
• 4 Pin USB Cable X1
• 6 Pin Power Cable X1
• M2x3/4mm Screws X2
• M2x16mm Screws X4
• M2 Screw nut X4
• 2.1×3.4x1mm Gasket X5
