The New Walksnail Moonlight Kit Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency to give the pilots a smoother FPV experience.

It features a starlight sensor, built-in EIS and supports Gyroflow technology to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.

Don’t forget to check out the rest of our Video Transmitters and Walksnail Products!!

1. 1d2b14fc 1c88 4697 bb29 cb18631e30aa

Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.

7. ISO 6de0a8f2 de29 41dc bca6 24582ae40656

The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.

9. 1 2f3f87a8 971b 47f1 a99e 6389640386b1

f7d7c897f798fc44c391847188c3ac79 c585c86b ee7d 48bf 87bd 339f0cfccce3

f4b3da9554de4e60ffd11b8edcb16ff8 752e4cb0 12df 486d bb11 bc4d109fd0d0

Specifications:

Model Moonlight kit
Firmware name AvatarMoonlight_Sky_X.X.X
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
Sensor Starlight sensor
FOV Max 160°
Aperture F2.1
Shutter Rolling shutter
ISO 100-25600
Recording resolution 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps 150Mbps
Video format MP4 (H.264)
3D DNR Support
Gyroflow Support
Built-in EIS Support
Wide Power Input
7.4V-25.2V
Power consumption 12V@1.4A, 8V@2.2A
Memory card type U3 MicroSD, Max 256G

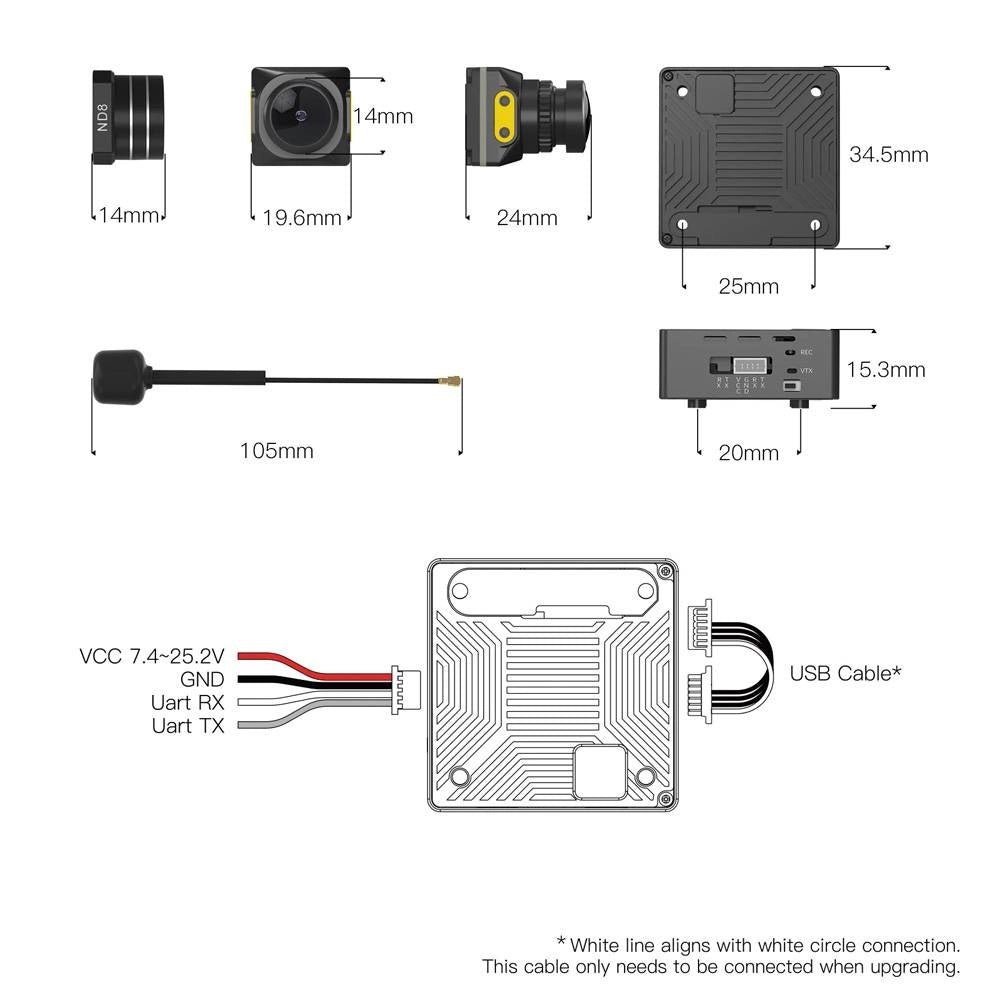

Camera size 19.6mm*19mm*24mm
VTX size 15.3mm*34.5mm*34.5mm
VTX Installation hole distance 20*20mm/25*25mm (M2)
Weight
38.5g(Antenna not included)
OSD Canvas mode
Latency Average delay 22ms
Antenna 2 (IPEX)

VTX Antenna

model avatar V2 antenna
Polarization LHCP
Frequency range 5600MHz-6000MHz
Average Gain 1.9dBi
VSWR ＜1.5
Input Impedance 50Ω
Interface IPEX-1
Dimension R15 X 45mm （without cable）
Weight 2g

Package Includes:

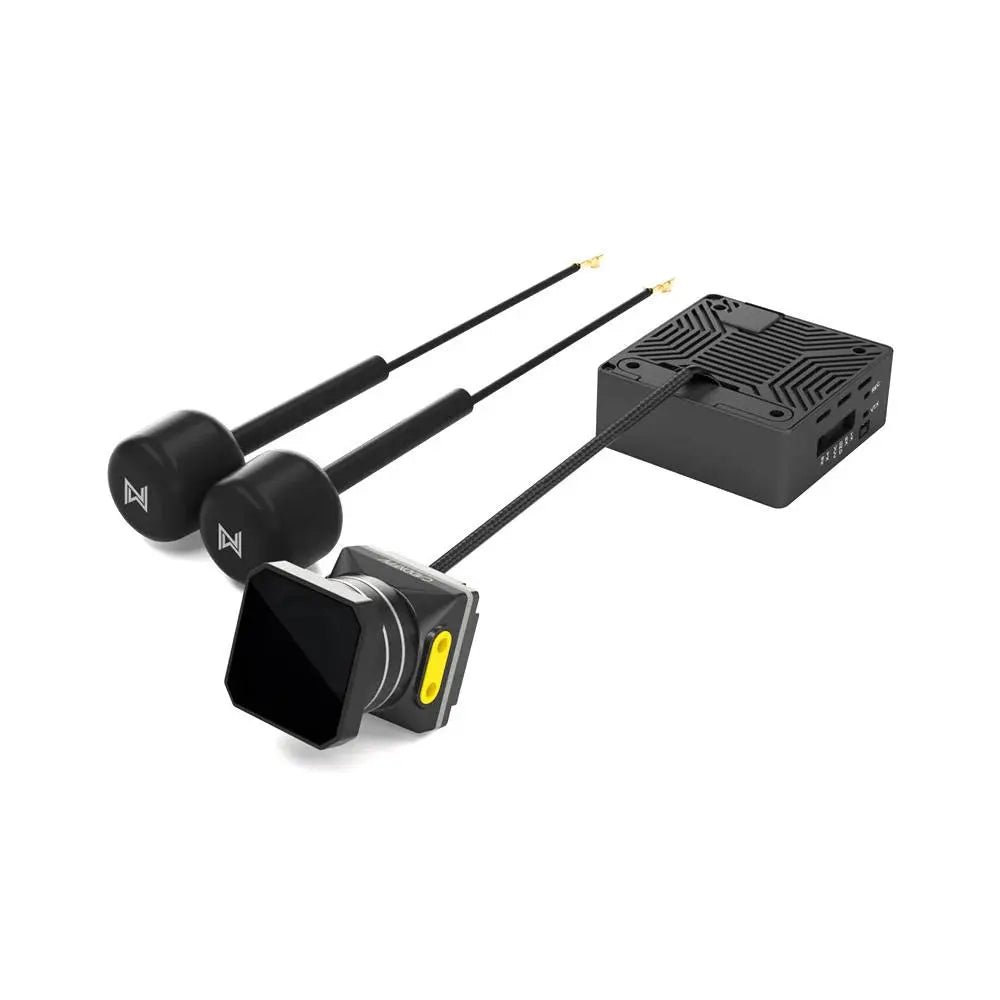

1x Moonlight Kit (VTX Unit + Camera)
2x Antenna
Mounting Hardware
Wire Harness
Manual
