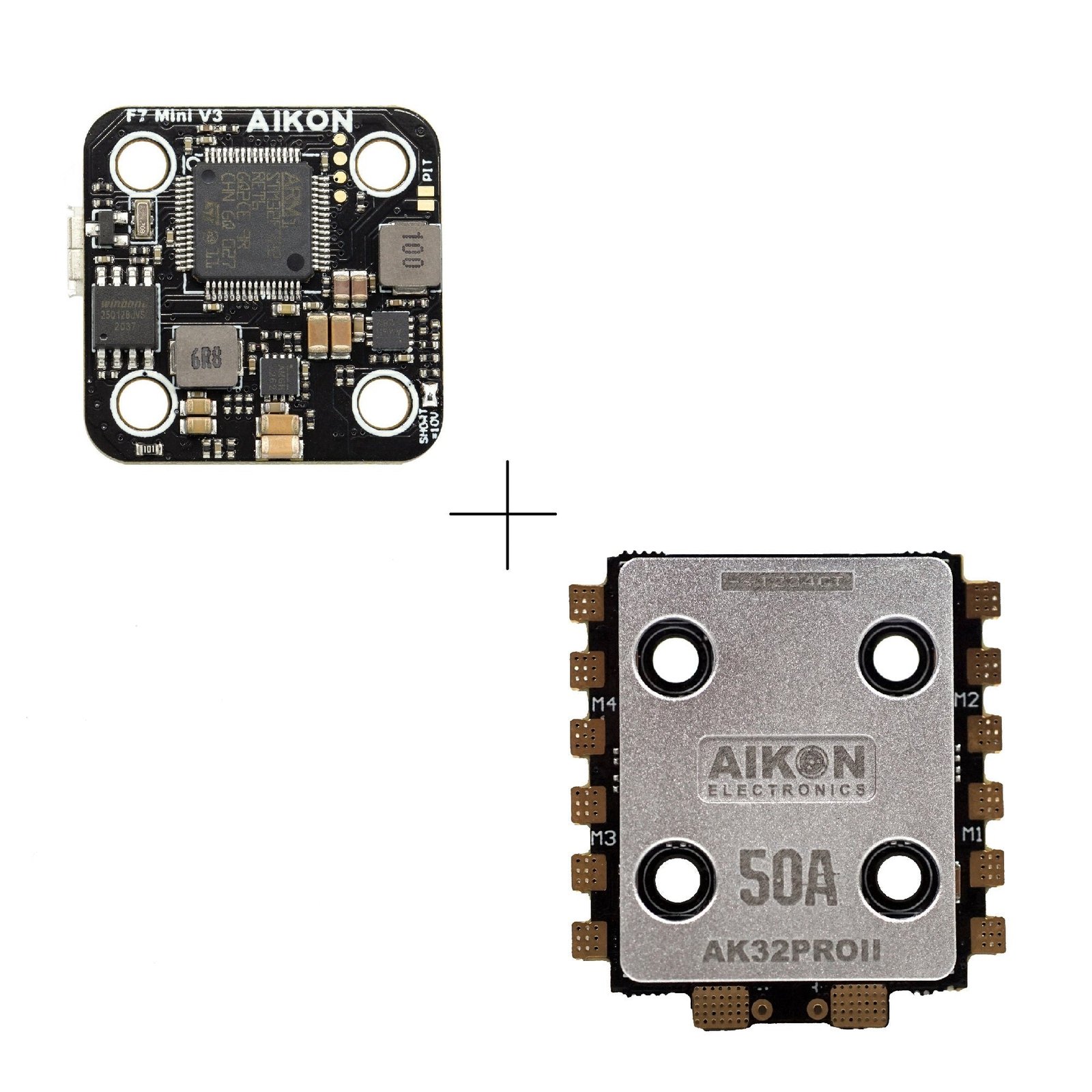

Aikon F7 Mini HD V3.1 2020 Flight Controller and AK32Pro II 4in1 50A 6S BLHeli32 ESC Stack – 20x20mm

The Aikon flight controller and ESC stack is a new generation flight controller designed specifically to work with the Aikon 4-in-1 ESCs. Aikon packed all the greatest features into one seamless flight experience.

Check out all our 20x20mm FC/ESC Stacks and the rest of our Aikon Products!

Flight Controller Features:

• 216mhz F7 processor
• 5 Software invertible hardware UARTS
• Onboard OSD and blackbox
• Software controlled VTX power switch (assigned to USER1 mode by default)
• LED outputs
• Quick connection cable for 4-in-1 ESCs
• On-board high overhead voltage regulators up to 6S (50v peak for voltage spikes)
• 10v 1.5A regulator for DJI HD system
• DJI Quick Connect Port

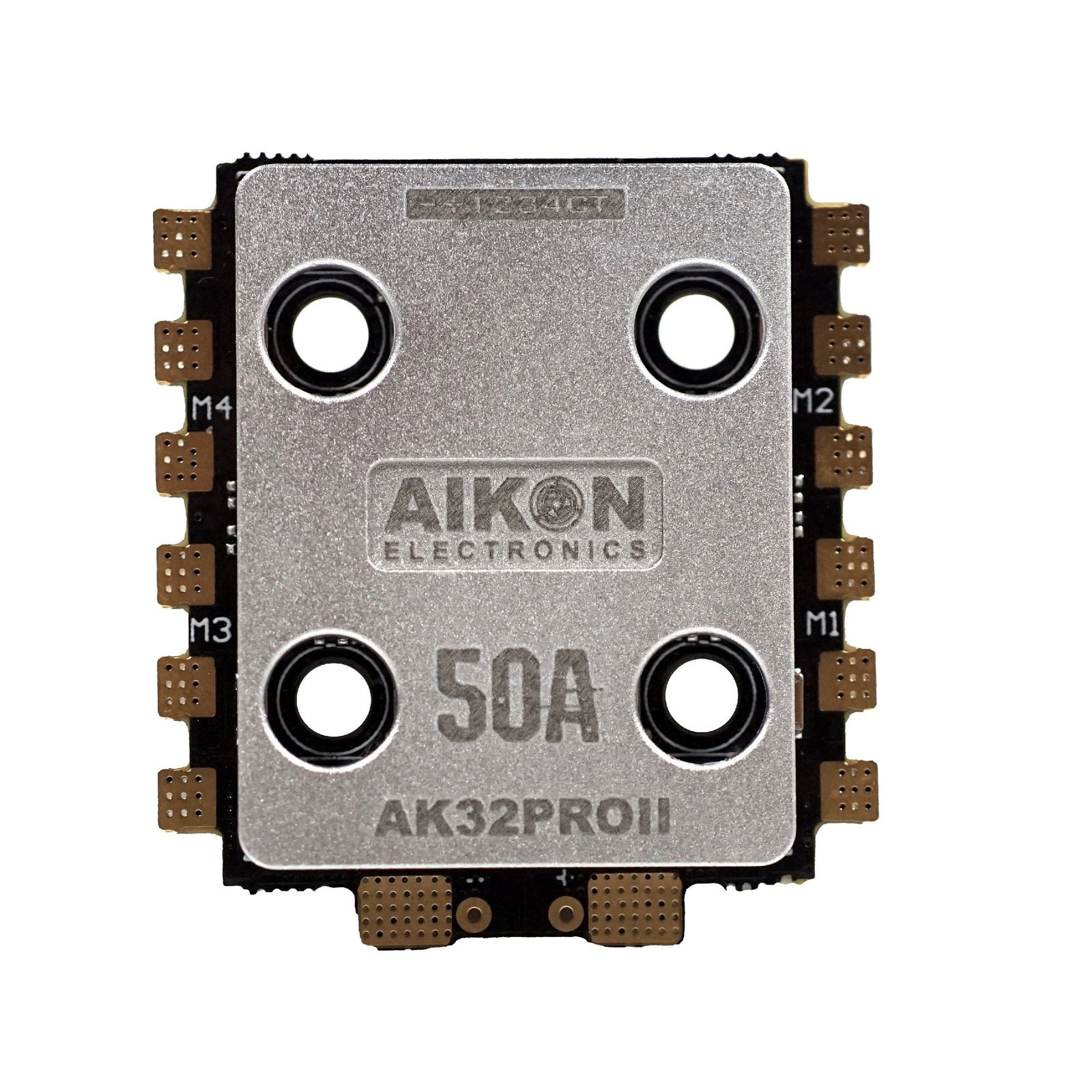

ESC Features:

• AT32F421 ARM® Cortex® runs up to 80Mhz
• Programmable PWM frequency of up to 96KHz
• 40V top grade MOSFET 5*6mm package
• Compact size 20*20mm mount hole but fully capable of 6s

Flight Controller Specifications:

• MCU: STM32F722RET6
• Gyro: BMI270
• Flash: 16Mb on board
• OSD: AT7456E
• Input: 12-50V (3-6 Cell Lipo)
• Bec: 5V@2A
• Firmware: AIKON F7
• Size(mm): 30x30x5
• Weight(g): 5.4

ESC Specifications:

• Battery: 2-6s
• Constant Current: 50A
• Burst Current: 65A
• Mount Hole: 20*20mm
• Firmware: BLHeli32
• MCU: AT32F421
• Bootloader: Yes
• Weight( with/wire): 16g
• MOSFET Package: 5*6

Package Includes:

• 1 x Aikon F7 Mini HD V3.1 2020 Flight Controller and AK32Pro II 4in1 50A 6S BLHeli32 ESC Stack – 20x20mm
