BetaFPV O4 Air Unit Bracket for the Pavo Femto Brushless Whoop Frame – Choose Color

The Pavo Femto Brushless Whoop Frame is designed for performance and durability, offering a 4% thrust increase in a compact structure. It features improved connections between the whoop duct and carbon fiber plate with added supports and limits for secure assembly. Optimized for the DJI O4 Air Unit, it includes a reinforced protective structure for the circuit board. Additionally, the O4 Air Unit Bracket is compatible with Pavo Femto, Pavo Pico and Pavo20, catering to various FPV builds.

Check out all our BNF Cinewhoops and the rest of our BetaFPV Products!

Diagram of Pavo Femto Brushless Whoop Frame:

Diagram of O4 Air Unit Bracket:

4% Thrust Boost

Inspired by rocket engine nozzle design, the Pavo Femto Frame optimizes whoop duct aerodynamics with precise height and thickness adjustments. Despite its smaller size, the frame achieves an approximate 4% thrust increase, providing enhanced power and stability. This allows pilots to execute advanced maneuvers like flips and turns with precision, ensuring smooth and reliable performance even in challenging conditions.

Enhanced Assembly

Features an improved connection between the whoop duct and the carbon fiber plate with added supports for a secure fit, ensuring quick and hassle-free assembly. Say goodbye to loose nuts and tedious installations.

More Protection

Maintains the modular design while upgrading the DJI O4 Air Unit Bracket with a reinforced protective structure for its circuit board, enhancing durability and reliability during use.

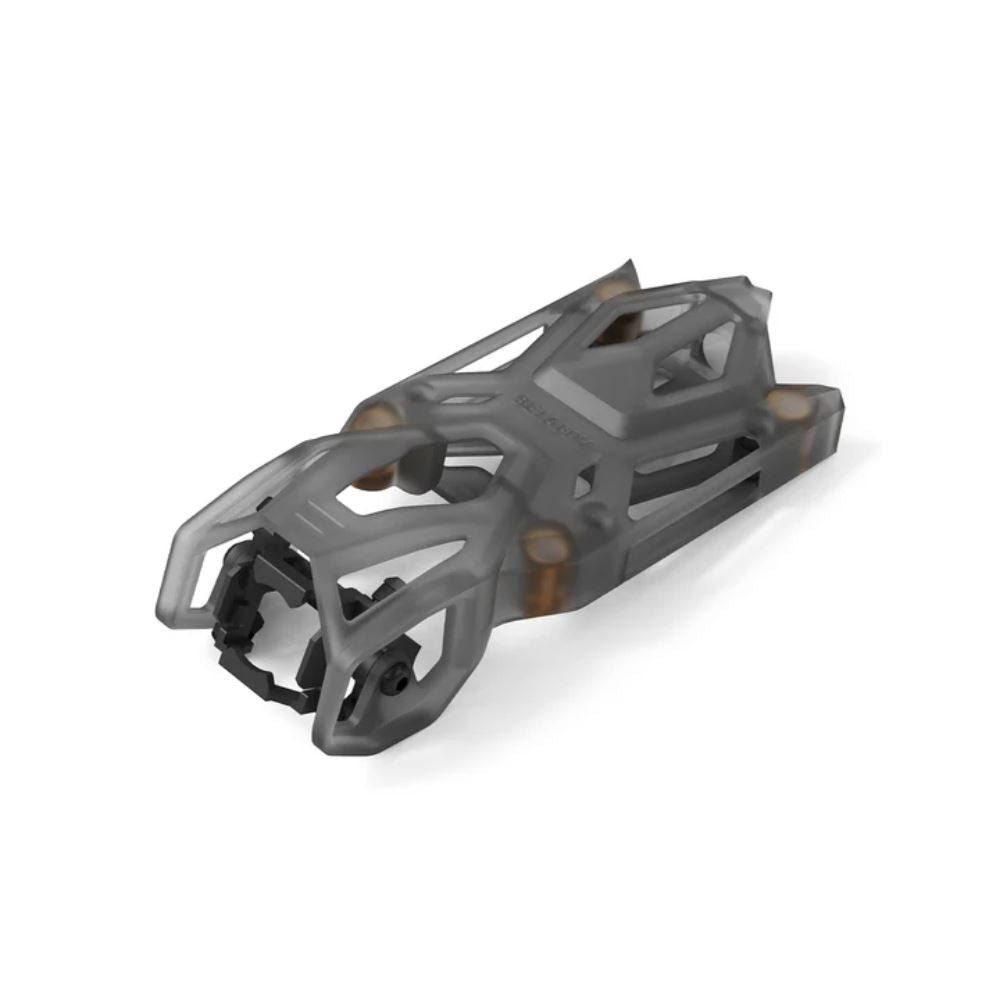

O4 Air Unit Bracket

The O4 Air Unit Bracket includes the O4 Camera bracket and Shock-Absorbing Components for O4 Air Unit, ensuring stable performance for high-quality footage. Its mounting holes are fully compatible with Pavo Femto, Pavo Pico, and Pavo20, making it ideal for various builds.

Recommended Parts

• FC: F4 2-3S 20A AIO FC
• Motor: 1102 14000KV Brushless Motors
• Propellers: Gemfan 1611 3-Blade Propellers
• Battery: LAVA Series 2S 450mAh Battery
• VTX: DJI O4 Air Unit
• Compatible whoops of O4 Air Unit Bracket: Pavo Femto, Pavo Pico, Pavo20
• Accessory: Shock-absorbing Components for O4 Air Unit

Features:

• Enhanced Assembly: Improved connection between the whoop duct and carbon fiber plate with added supports for secure, hassle-free assembly.
• Boosted Thrust: Smaller duct design increases thrust by approximately 4%.
• Improved Durability: Strengthened protection for DJI O4 Air Unit’s circuit board.
• Wide Compatibility: O4 Air Unit Bracket works seamlessly with Pavo Femto, Pavo Pico and Pavo20.

Specifications:

• Item: Pavo Femto Brushless Whoop Frame
• Wheelbase: 75mm
• Carbon fiber plate thickness: 2mm
• Whoop duct material: PA12
• Whoop duct weight: 8.64g
• Frame weight: 22.16g
• Flight controller mounting hole size: 25.5mm * 25.5mm
• Motor mounting hole size: 3*M1.4 EQS ø6.6
• O4 Air Unit Bracket material: PA
• O4 Air Unit Bracket weight: 6.05g
• Camera mounting spacing: 20mm

Package Includes:

• 1 * Canopy for O4 Air Unit Bracket
• 1 * Bottom Plate for O4 Air Unit Bracket
• 1 * DJI O4 Camera Bracket
• 1 * Shock-absorbing Mount for DJI O4 Camera
• 1 * 5.8G VTX Antenna
• 6 * Shock-absorbing Balls for O4 Air Unit Bracket (6.6mm)
• 6 * Shock-absorbing Pads for O4 Air Unit
• 6 * Shock-absorbing Balls for O4 Camera
• 6 * M2*10 Cylindrical Socket Head Cap Screws
• 4 * M2*4 Flat Head Socket Cap Screws
• 6 * M1.4*4 Phillips Flat Washer Head Tapping Screws
