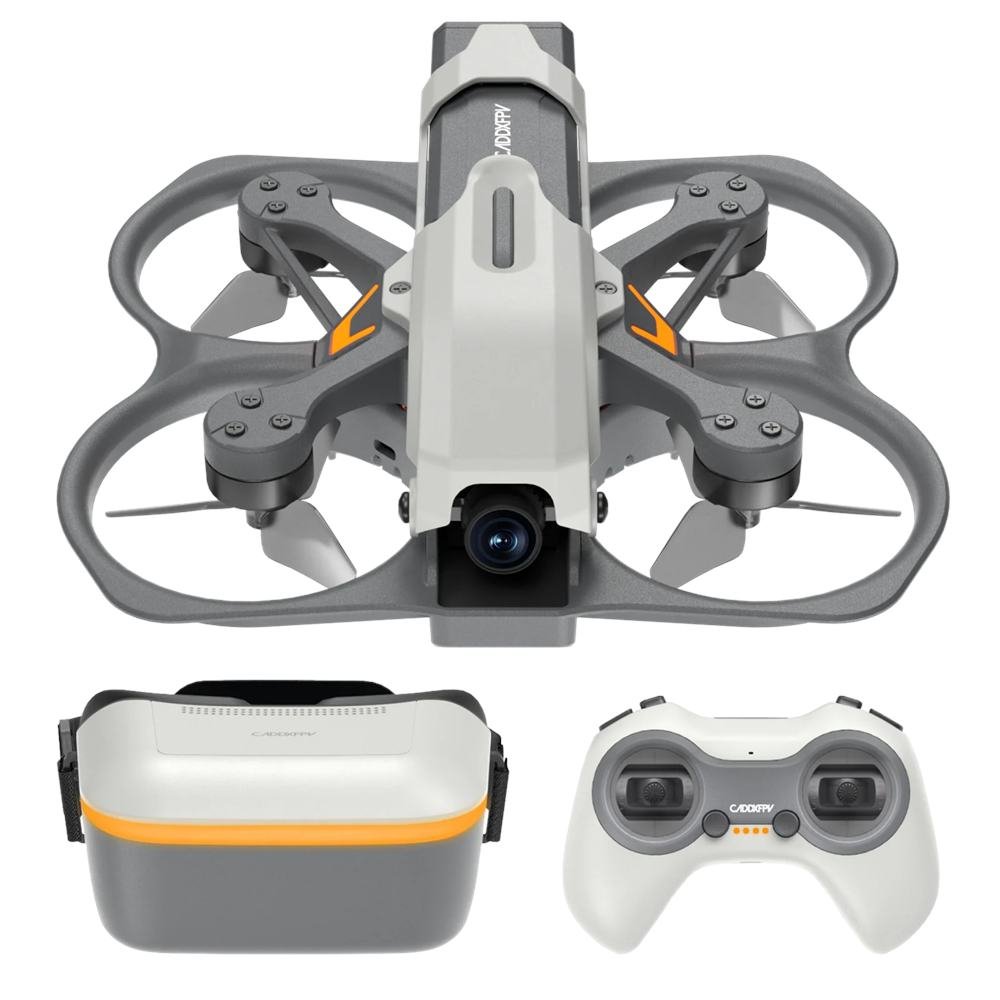

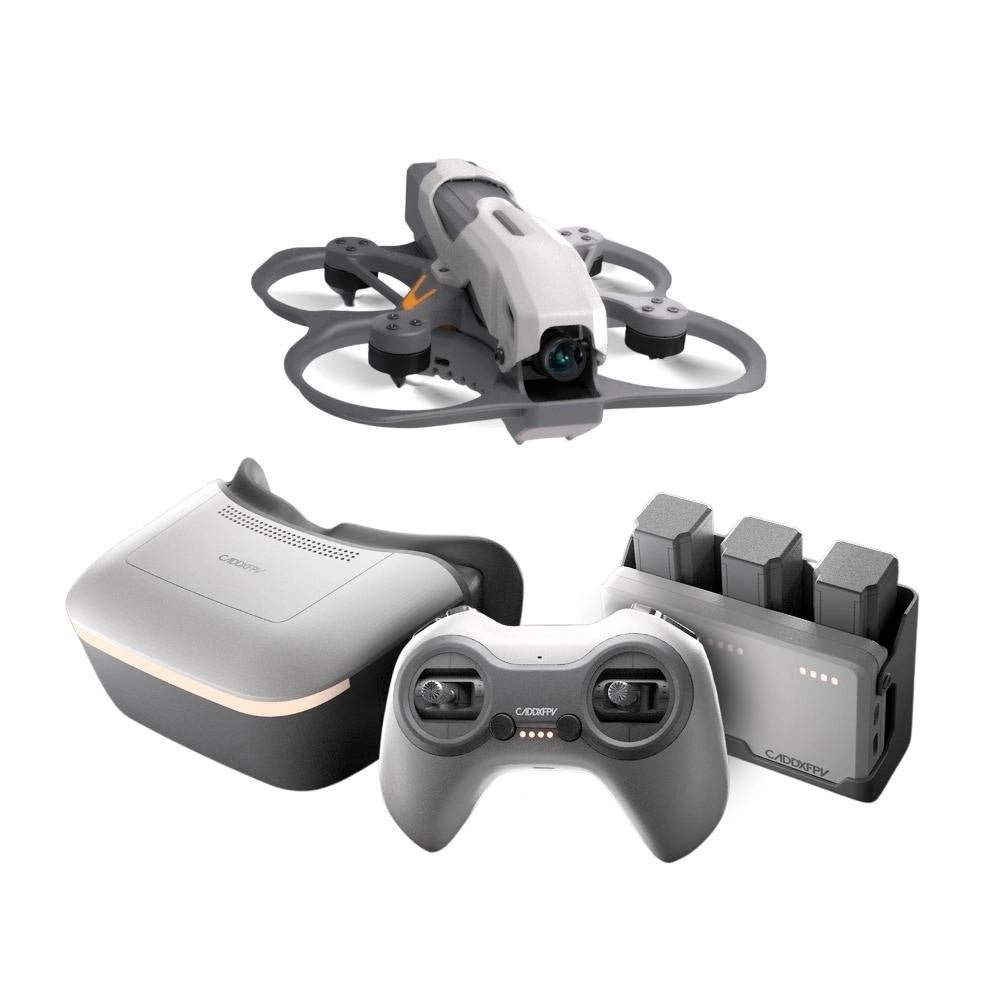

Caddx Protos HD FPV Drone Fly More Combo Ready To Fly with Controller and Goggles
$432.99
| Weight | 1.772 kg |
|---|
Out of stock
Description
From Newbie to Pro, unlock new skills with the Caddx Protos HD FPV Drone Combo with goggles and radio controller. Everything you need to get flying in one package with a professional-grade yet beginner-friendly HD FPV quadcopter. The Protos features the newly developed ASCENT digital HD system. There are three intelligent flight modes, which allow pilots to move from beginner to advanced at their own pace. Fly inside, outside, freestyle, or racing – the Caddx Protos is the perfect entry FPV drone!
Check Out all Our BNF/RTF Selection and the rest of our Caddx products!
Features:
- Smallest digital HD FPV Drone in its class: 100g, 1.6″ indoor and outdoor capable
- Protos is equipped with the newly developed ASCENT digital HD system
- Ready to fly fight out of the box – Learn FPV flight in just one minute
- Pro-Grade Low-Latency Video
Specifications:
- Ascent HD VTX: 28.6% better signal penetration, 2ms latency, 6km range
- Sharp Imaging: 2MB BSI sensor, 1080P 60FPS, 147° FOV, 0.01 lux
- Frame Type: Unibody polymer frame, quick-release propellers
- Flight Times: Approximately 10 minutes with 840mAh LiPo
- Advanced Flight Modes: Angle, Acro, Position Hold
- Top Speed: 100km/h

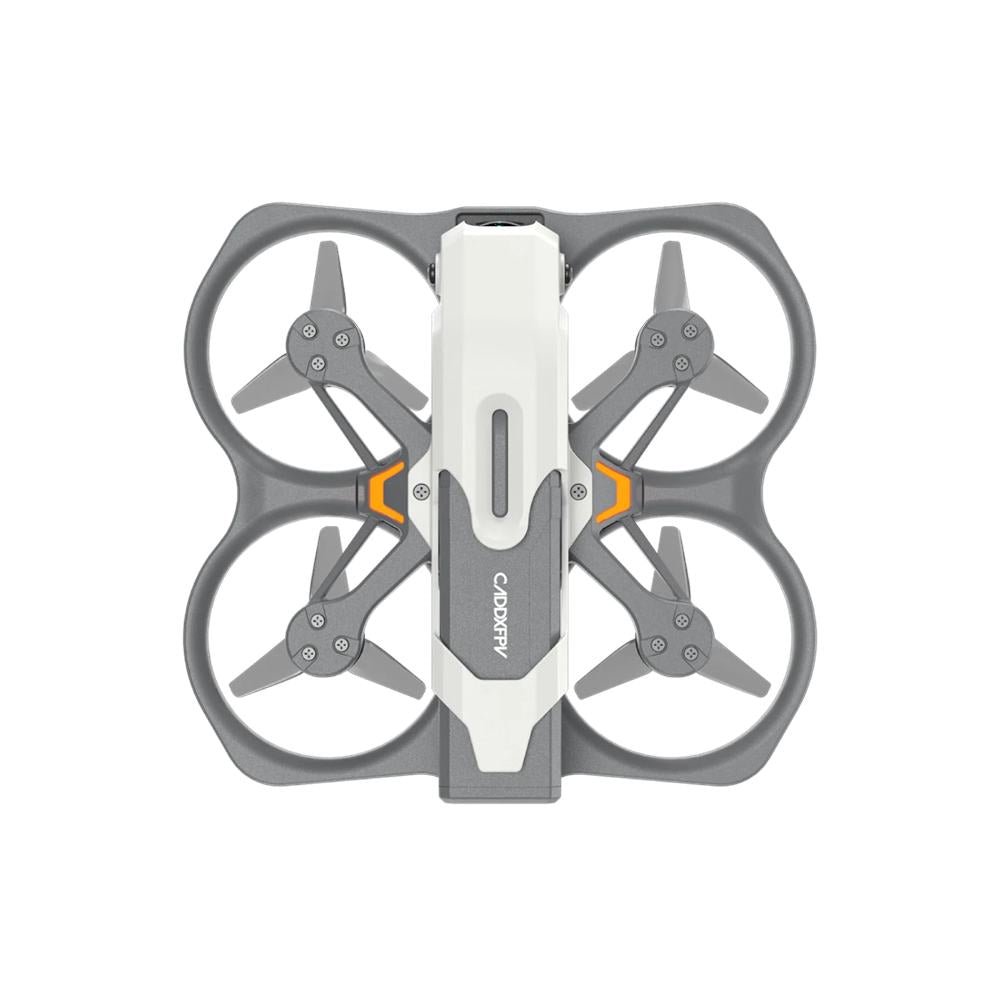

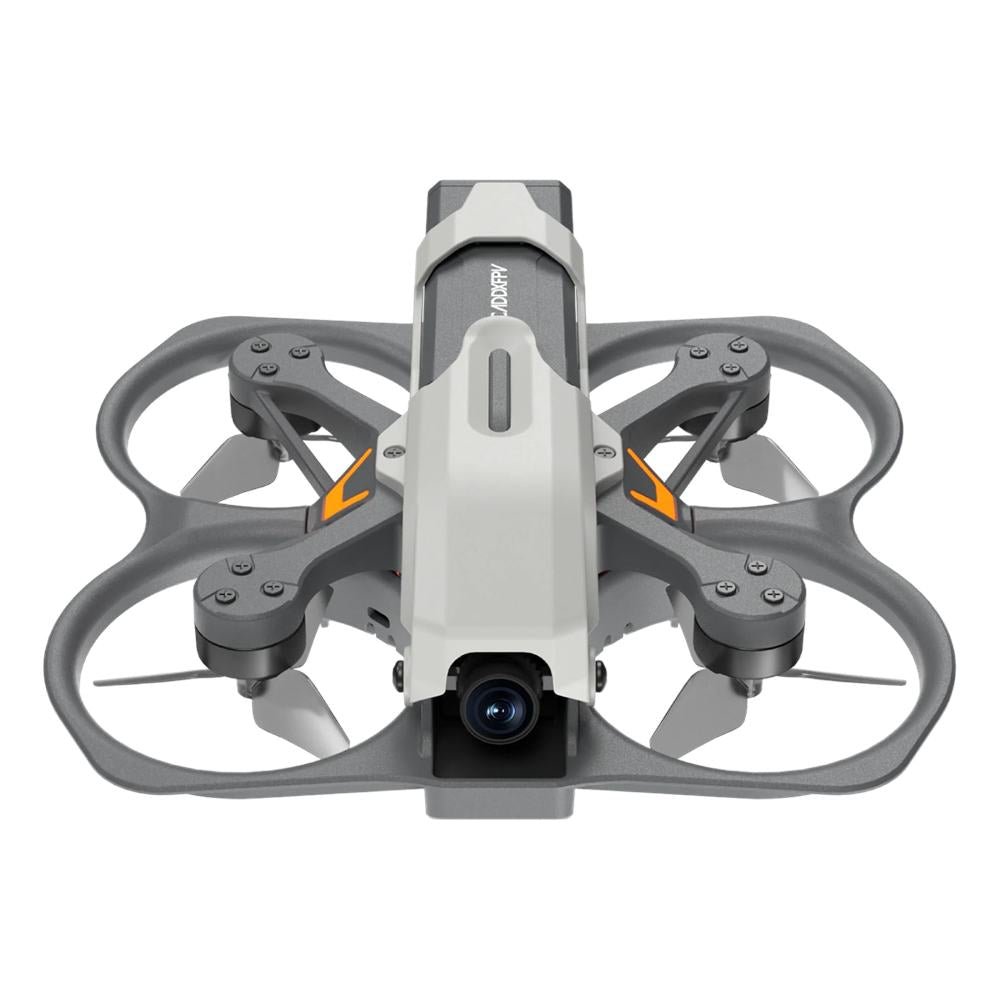

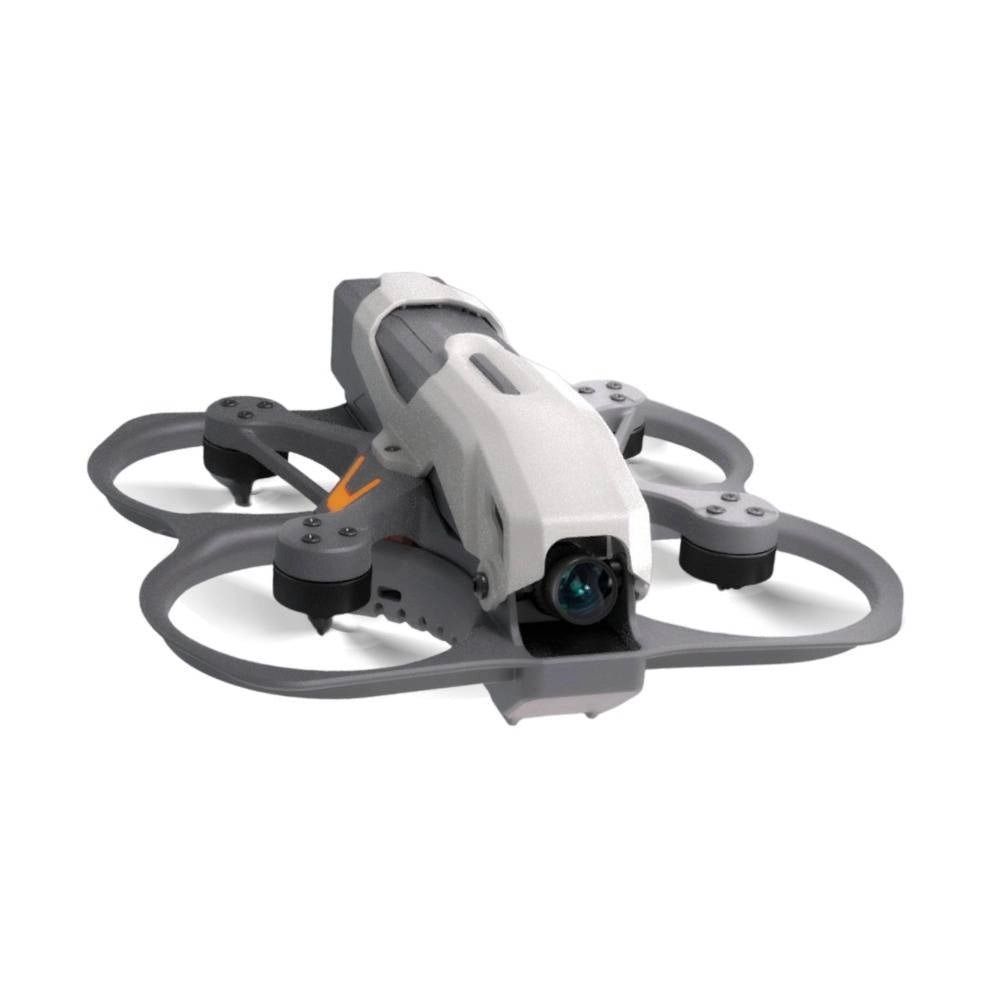

PROTOS DRONE
- Propeller: HQprop U40mm×3GR-PC-1.5mm
- Flight Control: Caddx Protos AIO 1.0
- Flight Endurance: 8.5min ±0.5min
- Video Transmission: Ascent Lite
- Motor Diagonal Distance: 78mm
- Dimensions: 110×102.8×41mm
- RC Receiver: ELRS 2.4GHz
- Motor: 1102 14000KV
- Weight: 104.4g ±1.5g
- Flight Controller:
- Main Control Chip: STM32-F405RGT6
- Gyroscope: BMI270
- Barometer: SPL06
- Onboard Receiver: ESP8285
- Receiver Protocol: ELRS 2.4GHz
- ESC Protocol Compatibility: Bluejay / BLHeli-S Optional
- ESC Maximum Current: 12A (Single Channel)
- Video Transmission:
- Resolution: 1080P 60FPS / 720P 60FPS
- Max Transmission Range: Up to 3km
- Image Sensor: 1/2.8 inch Sensor
- Latency: Average delay 35ms
- Built-in Storage: N/A
- Power: 25–100mW
- Model: Ascent Lite
- Ratio: 16:9
- FOV: 147°

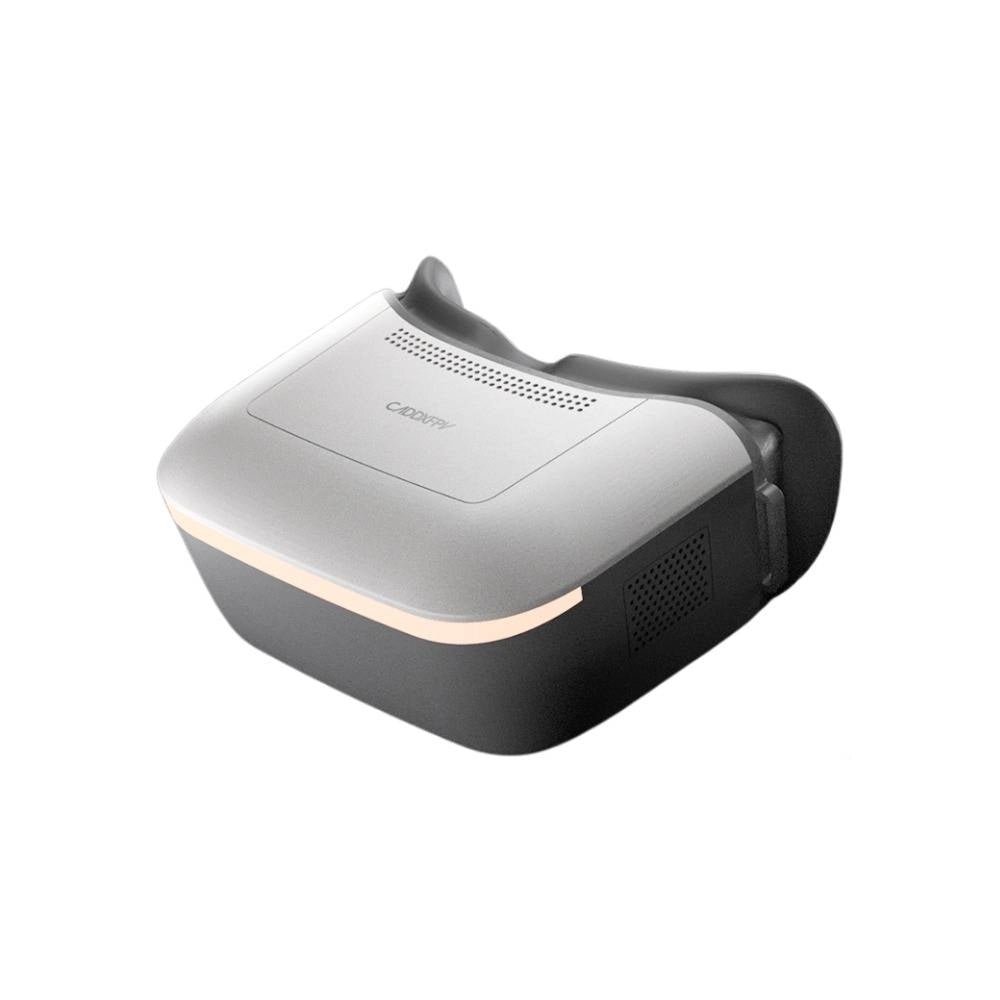

ASCENT GOGGLES
- Communication & Transmission Specs
- Communication Frequency: 5.725–5.850GHz
- Transmit Power (EIRP):
- FCC: <30dBm
- CE: <14dBm
- SRRC: <20dBm
- MIC: <25dBm
- I/O Interface: 4-Pin 3.5mm Plug, DC5.5×2.1mm, Micro SD Card Slot
- Transmission Resolution: 1080P 60FPS / 720P 60FPS
- Code Rate: Max 50 Mbps
- Minimum Latency: Average 32ms
- Average Gain: 4.9dBi
- Polarization: LHCP
- Transmission Distance: >4km
- Channel Count: 8
- Display
- Screen Resolution: 1920×1080 @ 60Hz
- Screen Material: LCD
- Screen Size: 4.5 inch
- Wide Voltage Input: 6V–25.2V (2S–6S)
- SD Card Slot: Supports up to 256GB

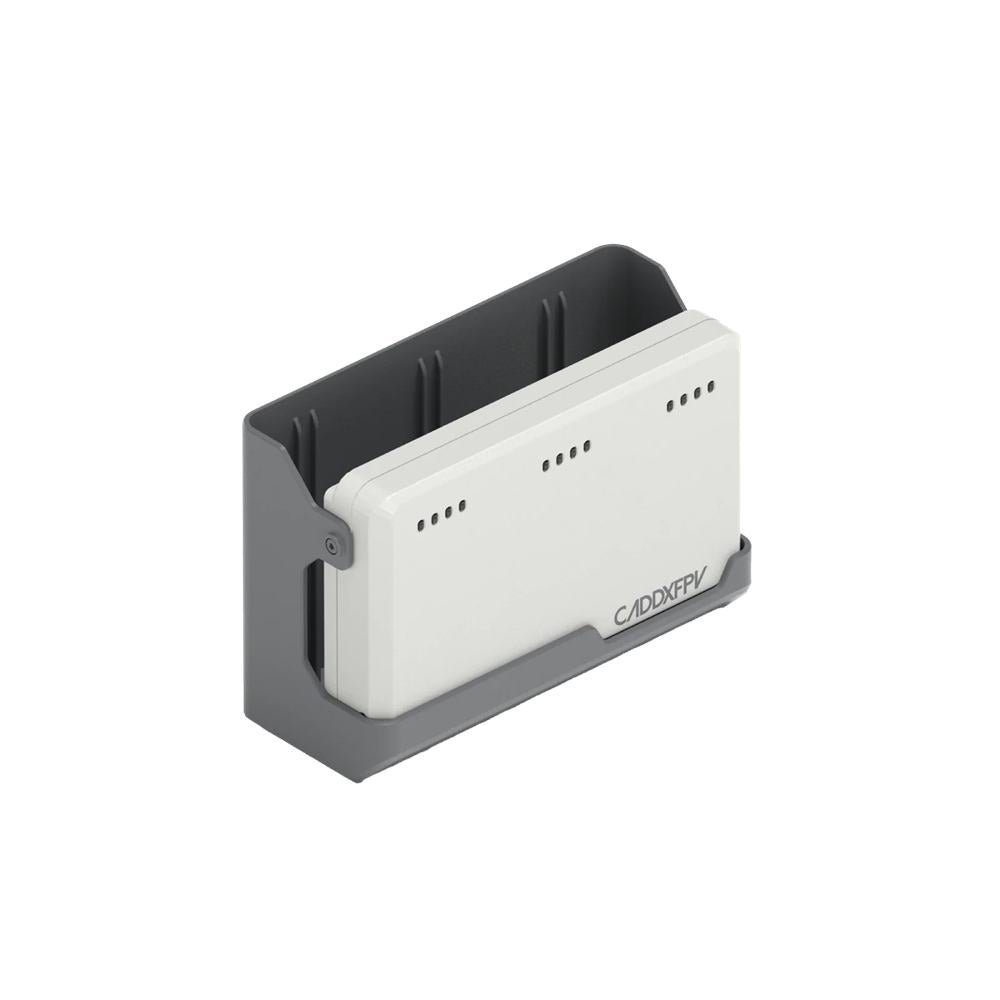

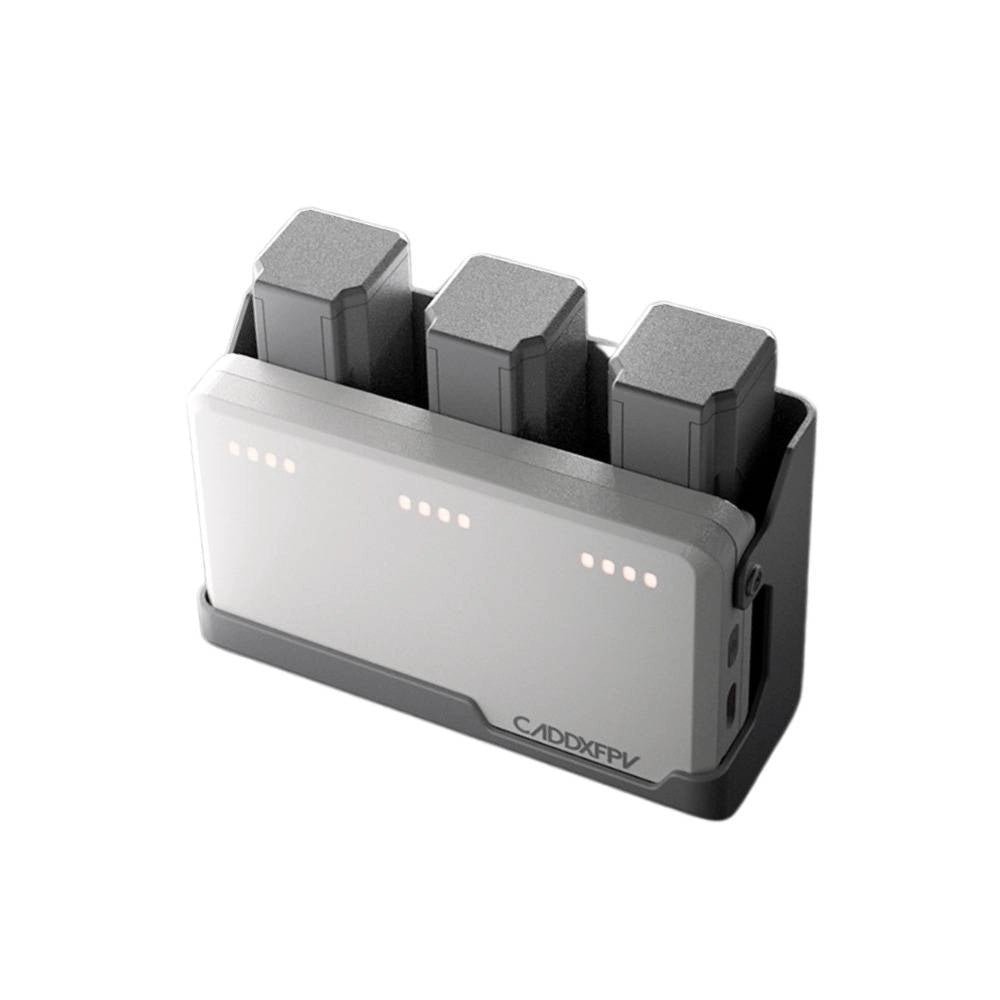

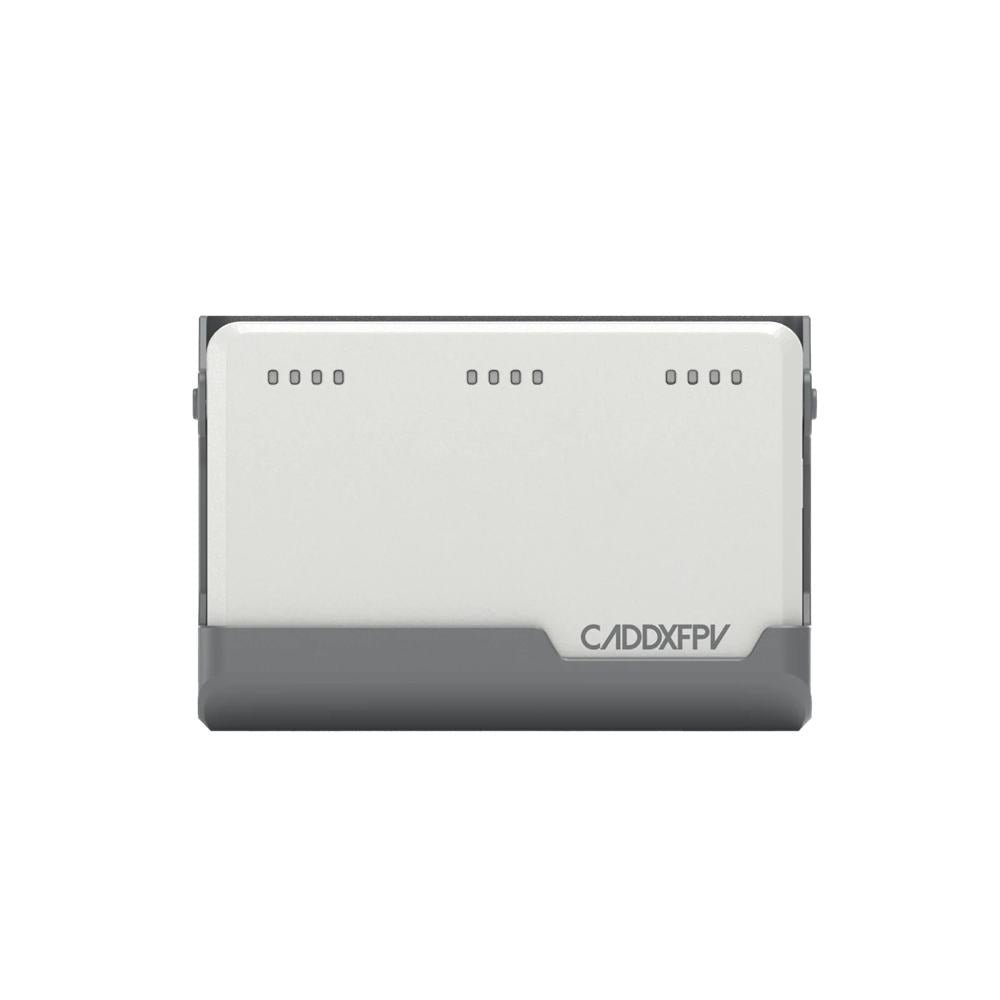

2S BATTERY CHARGER
- Display: LED ×4
- Channel: 3 (Sequential Charging)
- Function Selection: Charging, Storage
- Battery Type: Li-ion 2S 840mAh Battery
- Input Voltage: 12–15V (PD Input, 5V Adapter Not Supported)
- Output Voltage: 8.7V
- Input Current: Max 3A
- Charging Current: Max 3A
- Balancing Current: Max 0.21A
- Charging Power: Max 25W
- Discharging Power: Total 5W (Max 1.6W per Channel)
- Interface: Type-C
- Operating Temperature: -10~45°C
- Storage Temperature: -20~60°C
- Dimensions: 94×63×39.1mm
- Weight: 65±0.5g
2S BATTERIES
- Protection Mechanism:
- When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate.
- Battery Specification: 2S1P (2 Cells in Series, 1 in Parallel)
- Battery Type: Li-ion (Lithium-ion Battery)
- Battery Capacity: 840mAh
- Discharge Rate (C-Rate): 15C
- Maximum Power: 6.384Wh
- Voltage Range: 6.80V–8.70V
- Max Charging Voltage: 8.5V
- Charging Method: 2S Charger
- Charging Time: ≤20min
- Dimensions: 77.5×24×21mm
- Weight: 41.9g ±0.5g

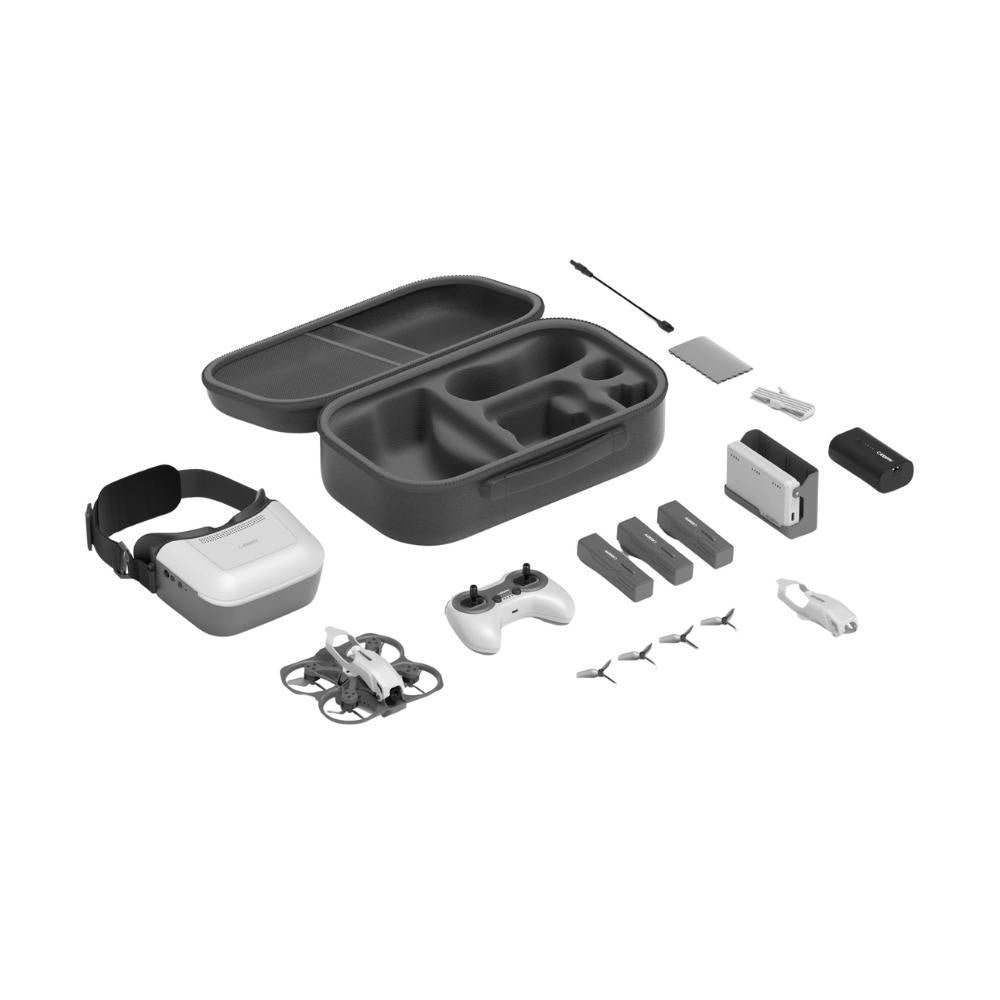

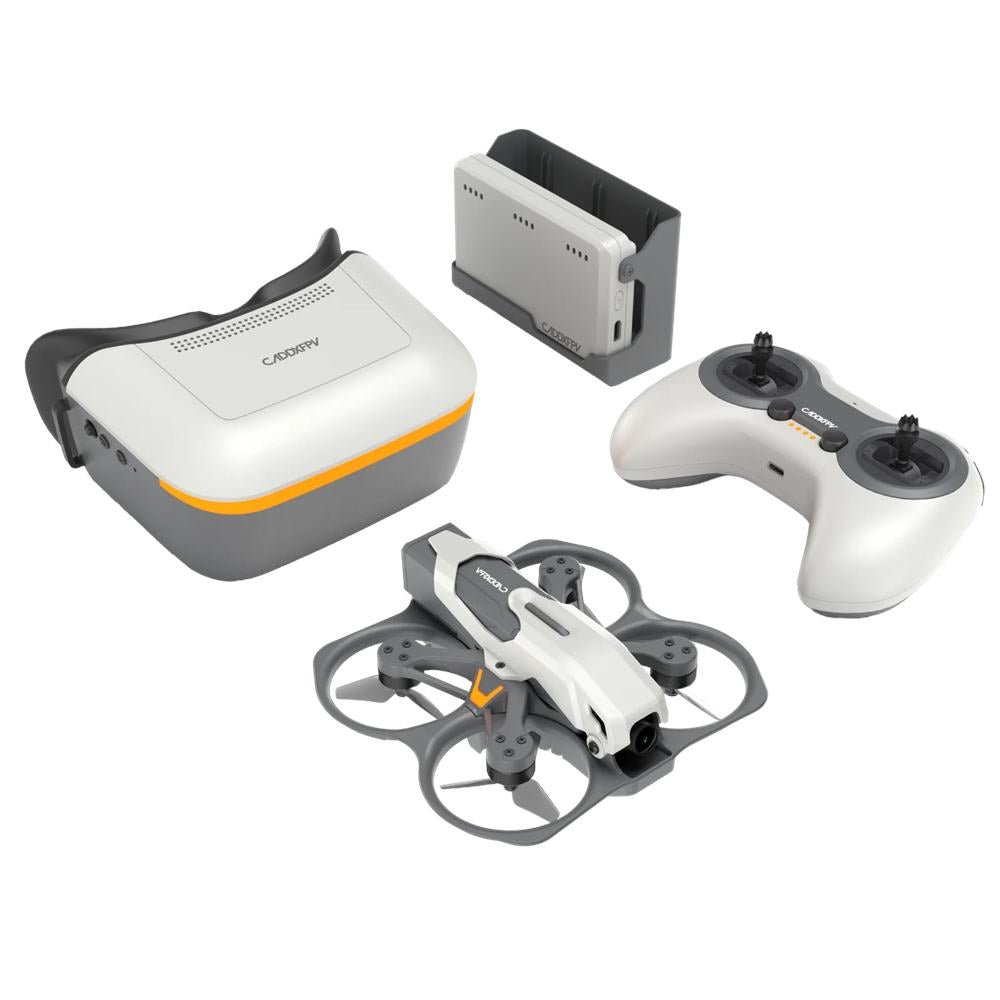

Package Includes:
- 1x Caddx Protos HD FPV Drone Combo
- 1x Caddx Protos HD FPV Drone
- 1x Caddx HD Goggles + Battery

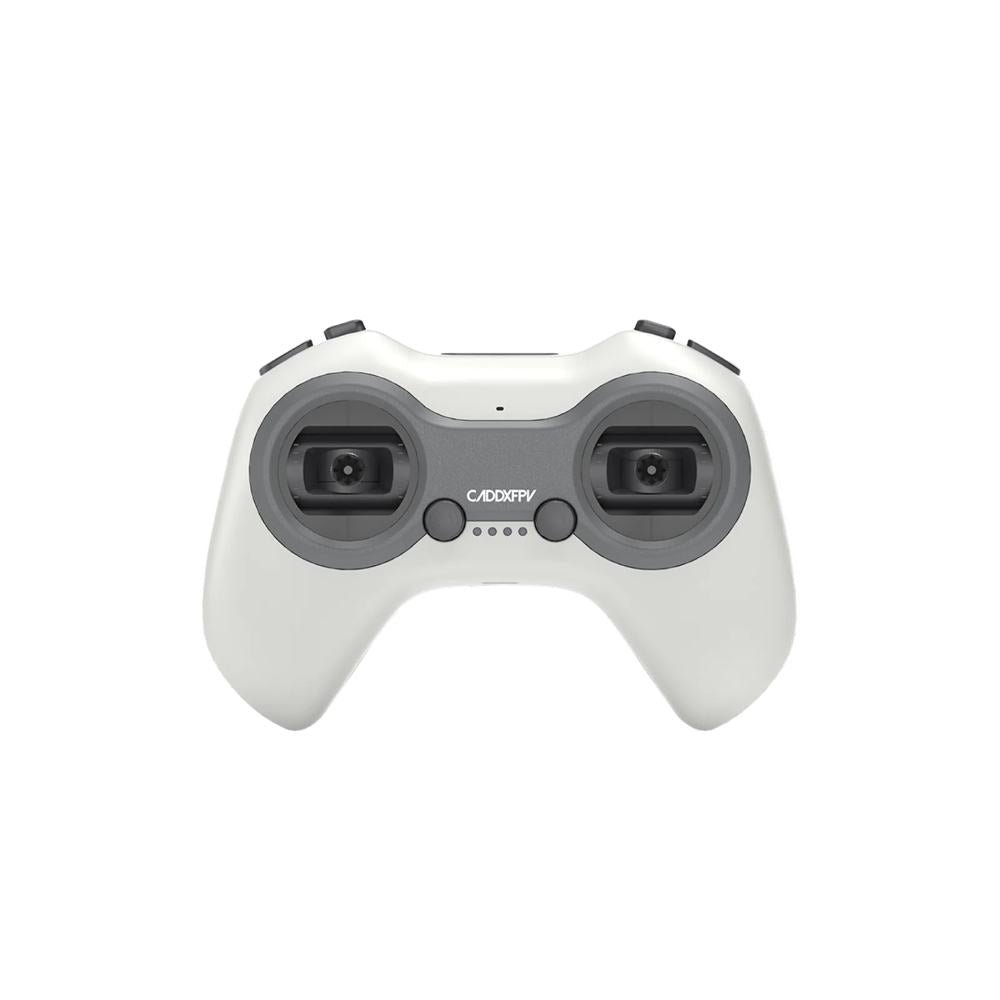

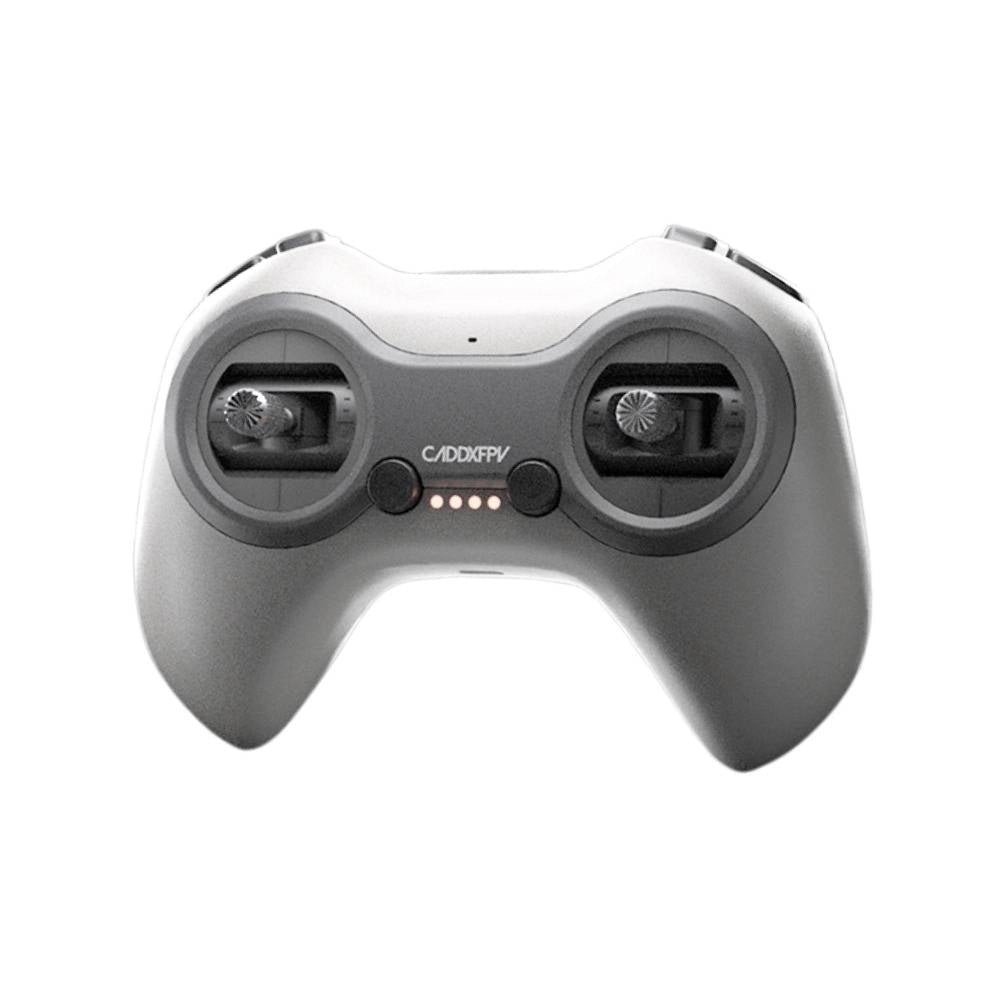

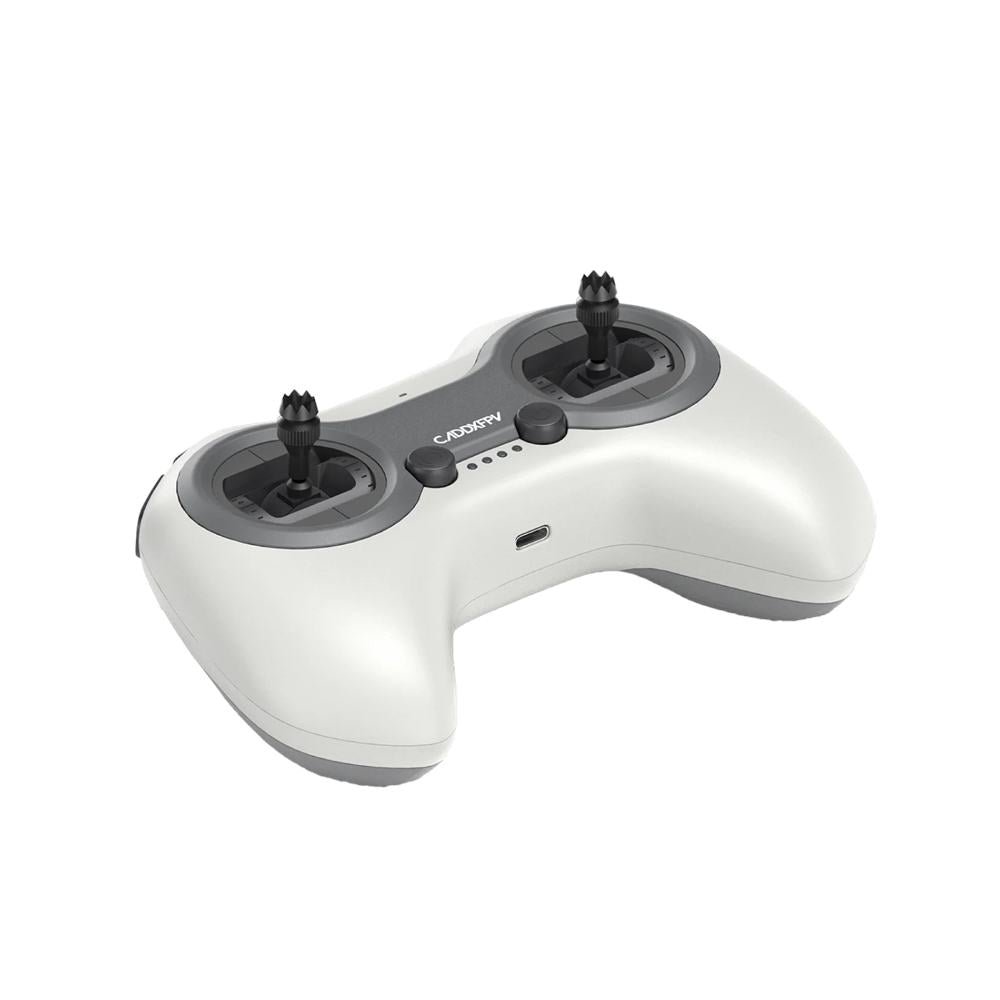

- 1x Caddx Radio Controller
- 1x Caddx Battery Charger
- 3x Caddx Protos Battery
- 2x Propellers (Set of 4)
- 1x Spare Canopy
- 1x Lens Cloth
