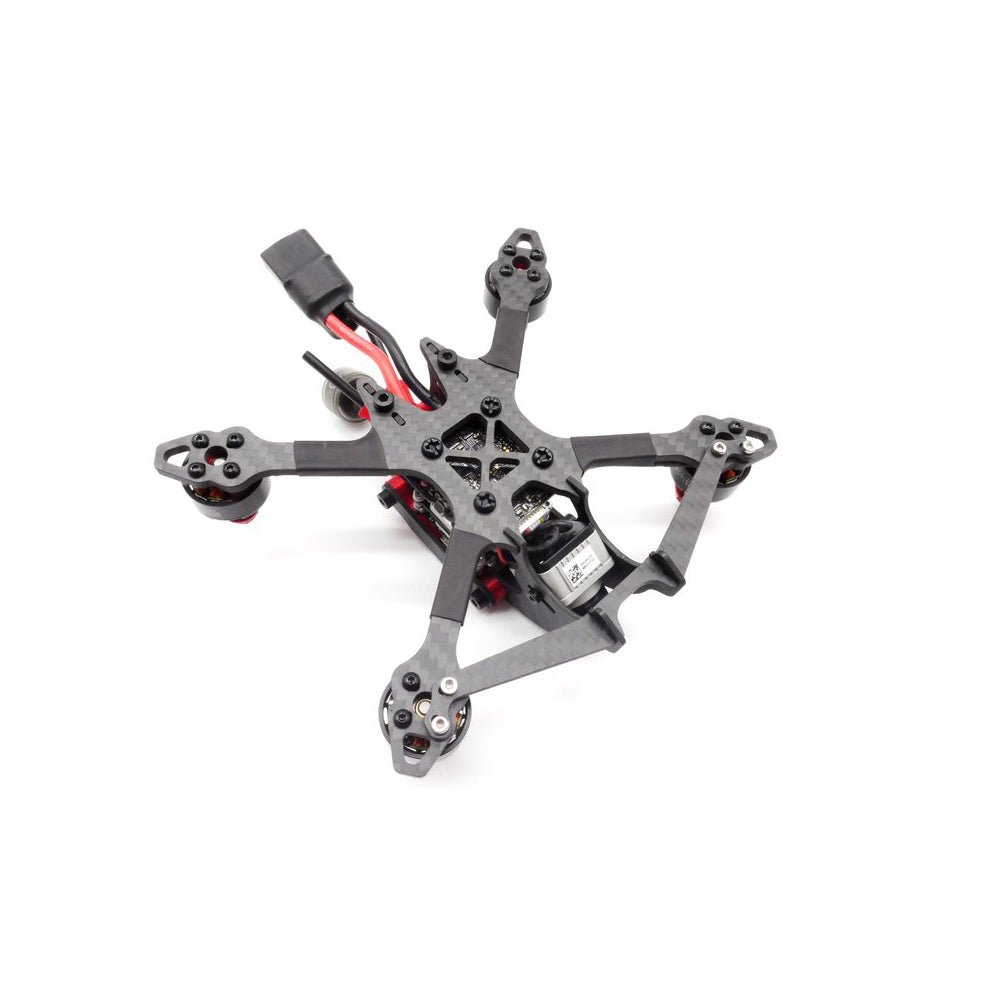

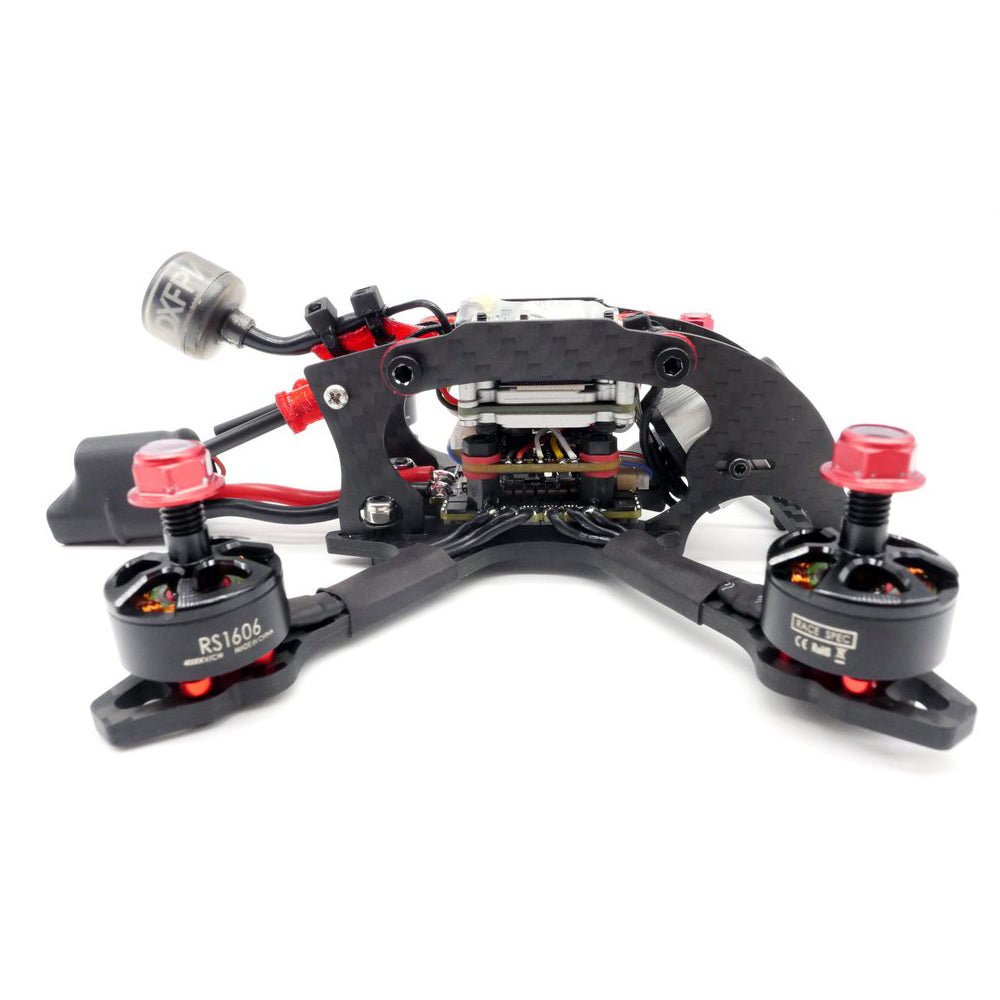

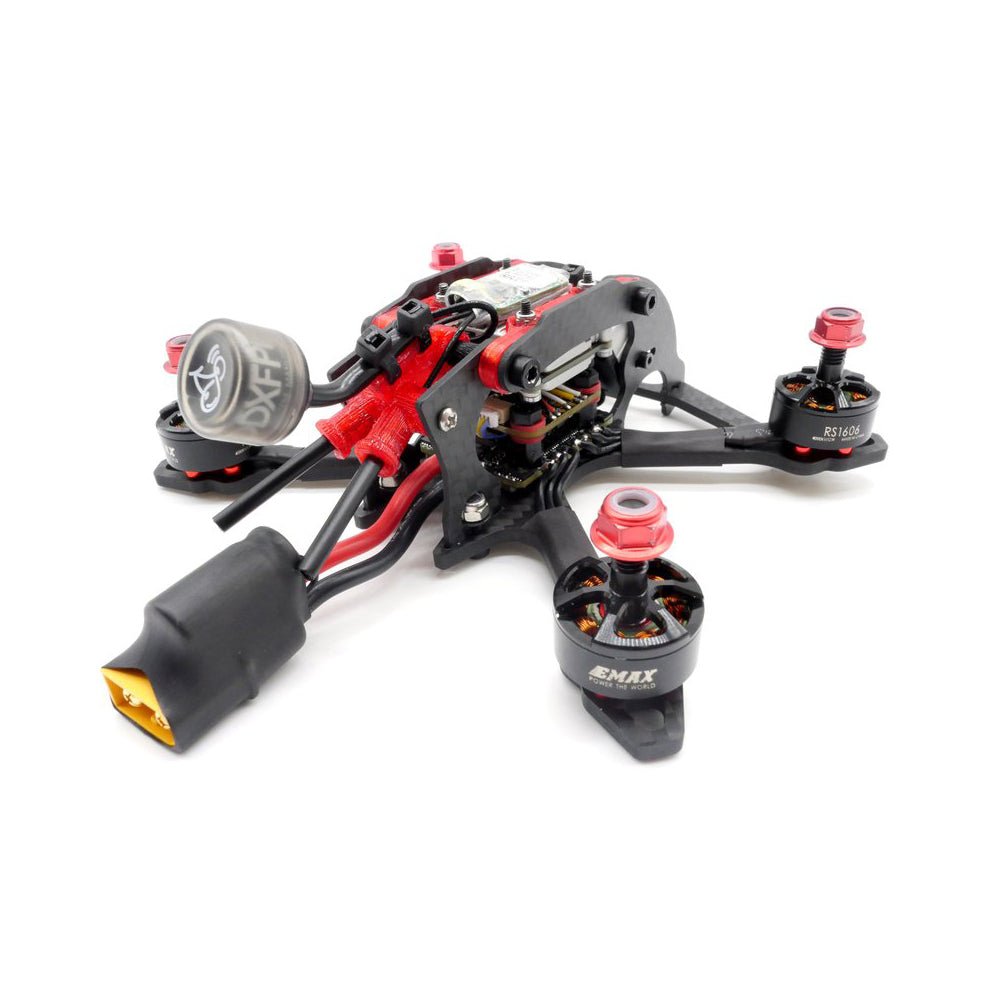

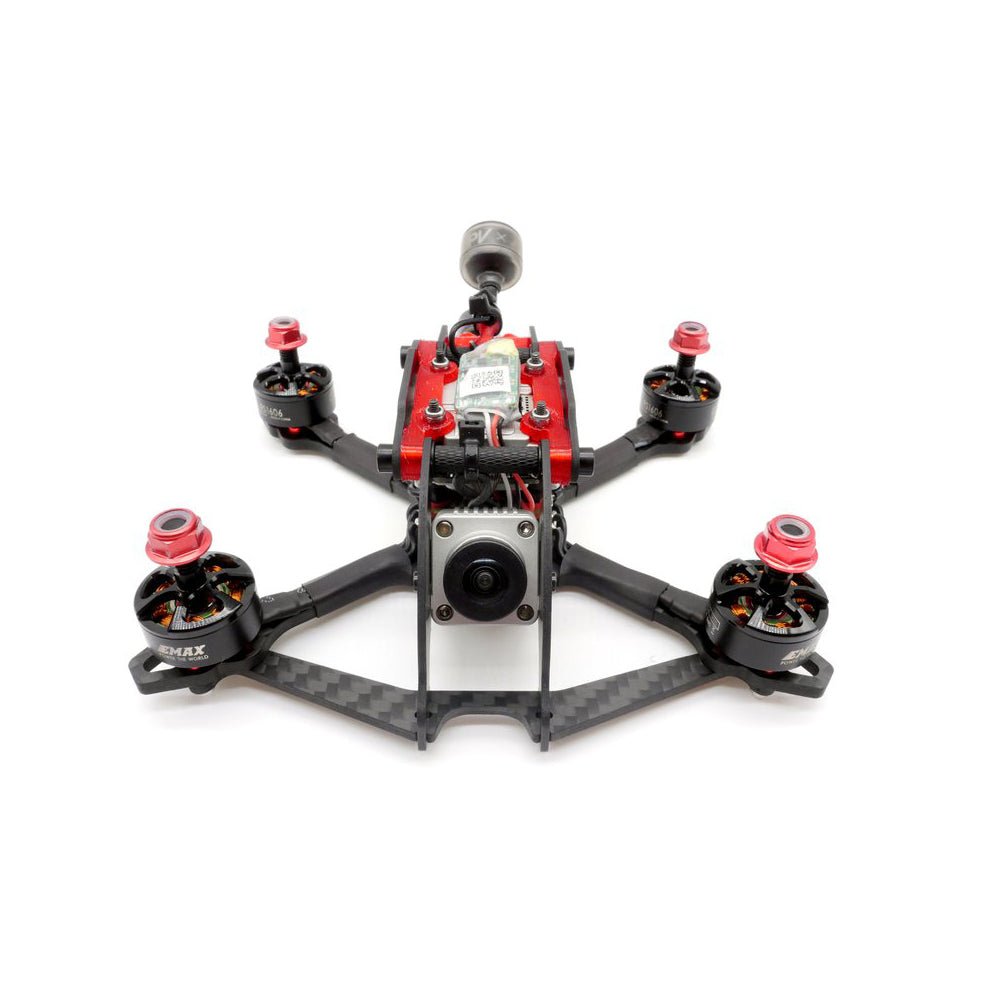

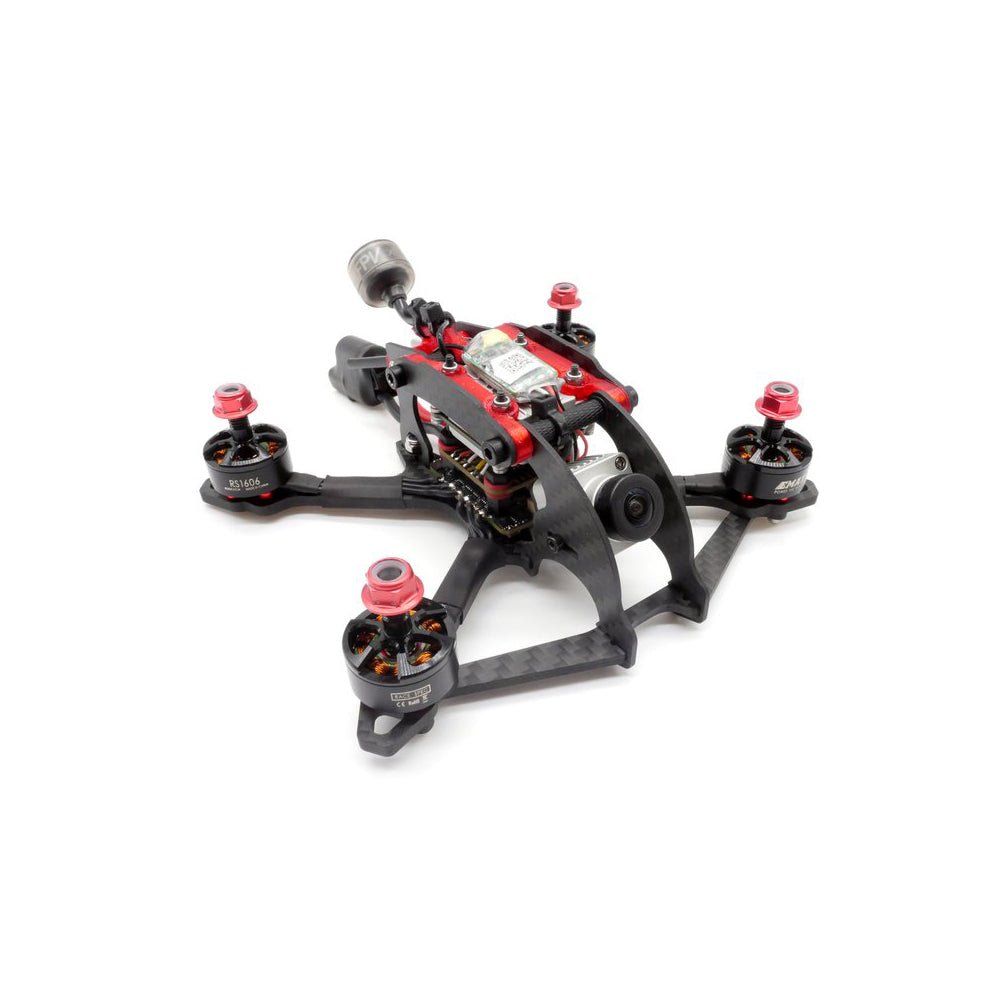

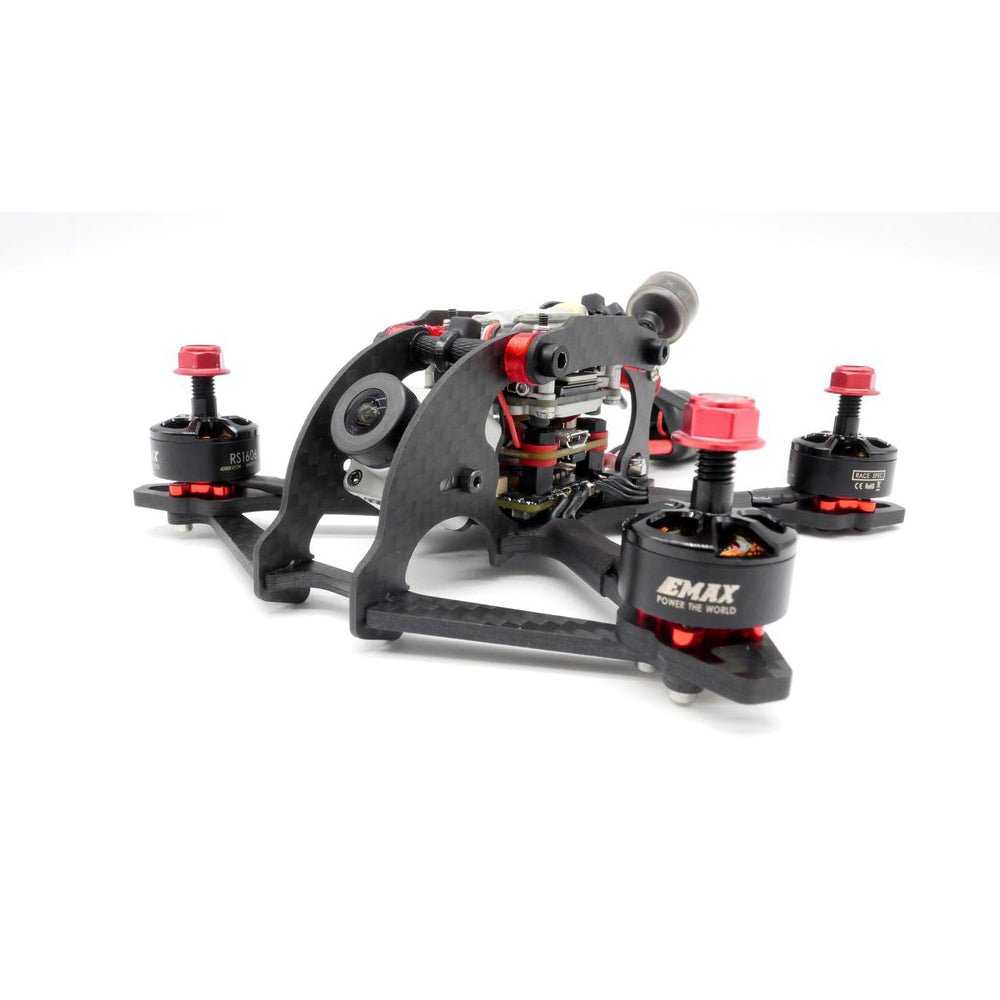

Catalyst Machineworks Massive Droner 3 INCH – HD Frame

The world famous More Massive Droner 3″ had been reborn! Now she is better than ever offering the magic of DJI HD FPV. This is a Caddx Vista specific machine which offers the single best frame configuration for this application on the market. With a 3″ rig weight is extremely important and this frame is lighter than a Kate Moss on a liquid diet. The original MD3″ was only 30g and this updated version is only 5g heavier despite all the extra gear we added to facilitate Vista mounting. Speaking of mounting how exactly is the Vista mounted you ask? For info about this and more please watch our detailed design review video below!

NOTICE: ALL TPU parts are supplied in BLACK, not red.

Check out all our 3″ Frames!

Features:

• Light Weight (35g with all hardware, excluding motor screws)
• Designed specifically for the Caddx Vista HD System

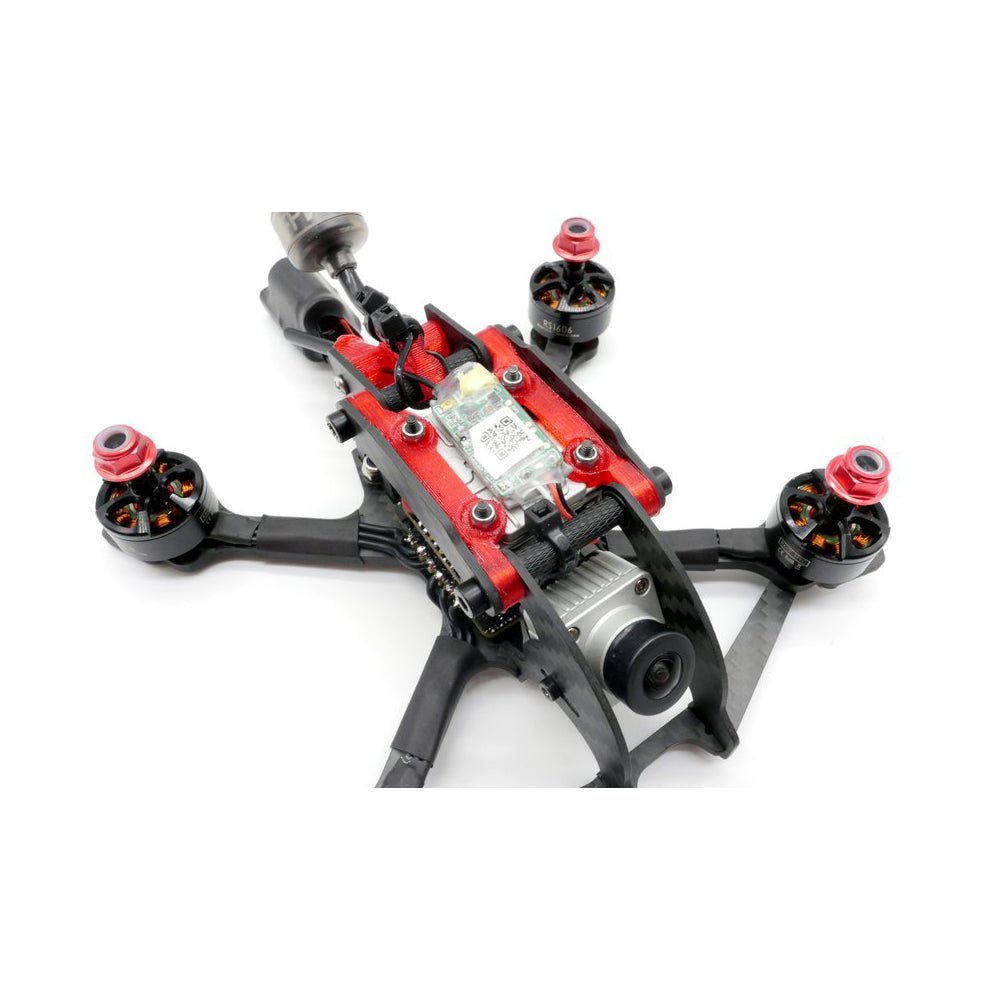

• Shock absorbing suspended mounting design for the Vista
• Integrated Vista FPV antenna mount
• Fits 3″ props

• Best camera adjustability in the industry
• Best camera protection in the industry
• Best crash durability in the industry
• Roll cage protects sensitive electronics from damage
• Roll cage provides multiple mounting locations
• Thin arm profile for excellent thrust and aero efficiency
• Plenty of space to fit any 20mmx20mm micro stack
• MASSIVE confidence
• MASSIVE ball ripping potential
• All electronics SOLD SEPARATE

Specifications:

• Materials: Matte finish twill weave carbon fiber, aluminum, steel, and plastic hardware
• Weight (no rear brace): 35g (includes all hardware)
• Bottom Plate: 3mm thick
• Required Front Brace: 2.5mm thick
• Roll Cage Fin Plates: 1.5mm thick
• Optional Rear Brace: 2.5mm thick
• Size (prop – prop): 131mm
• Prop size: 3″ props
• Motors: 1306, 1407, 1507, or similar (1407 or 1507 suggested)
• Motor mounting hole pattern: M2 screws on 9mm or 12mm diameter circle
• FC/ESC mounting: M3 or M2 @ 20mm x 20mm
• FPV Camera: Caddx Vista
• Confidence: YES, much confidence
• Lipo: 650mah 3s to 1050mah 4s (850mah 4s suggested)
• Lipo Strap Included: Catalyst brand standard size – fits 850mah 4s packs well

Package Includes:

• 1 x Massive Droner 3 INCH – HD

All electronics SOLD SEPARATE

All TPU parts are supplied in BLACK, not RED.
