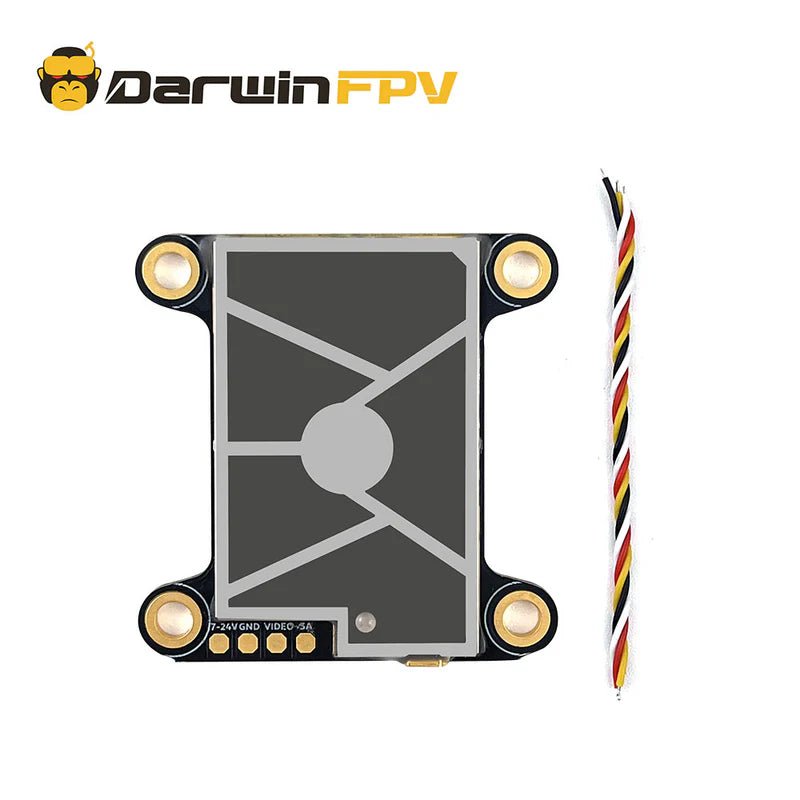

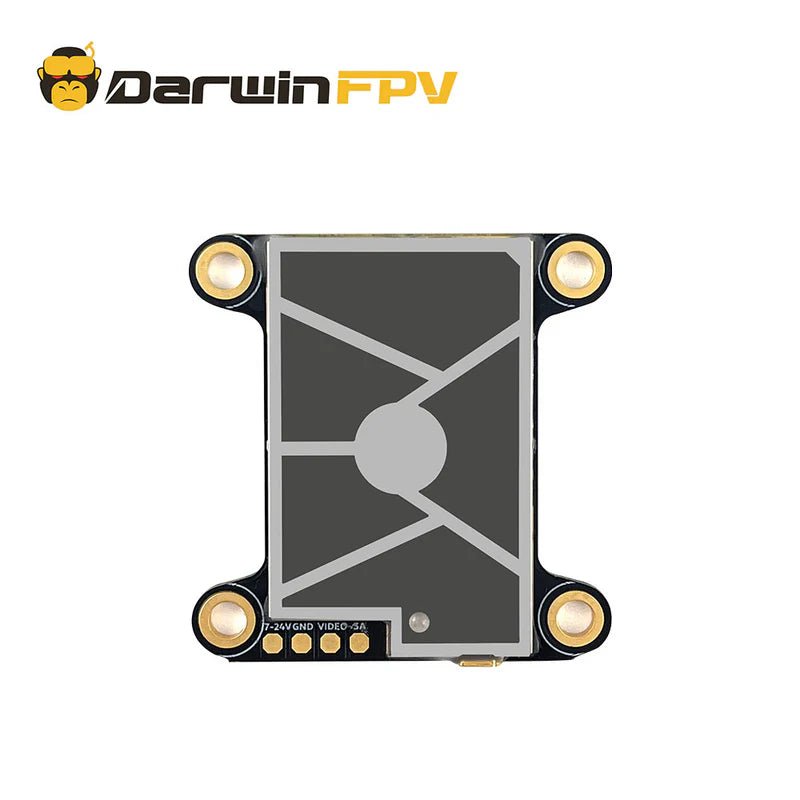

DarwinFPV Cement Ultra Durable 5.8G 1000mW VTX – 30x30mm

Darwin Cement VTX is a highly durable VTX that is IP67 waterproof and dustproof. With a maximum output power of 1000mW, it ensures reliable performance even in harsh conditions. It features anti-reverse connection and anti-surge protection, ensuring the VTX remains undamaged even without an antenna connected. Rest assured, this VTX is designed to thrive in challenging environments.

Check out all of our video transmitters and the rest of our DarwinFPV Products!

Features:

• Our VTX is rated IP67 for waterproofing, allowing it to withstand immersion in water up to 0.5 meters deep for 30 minutes without any damage.
• It features an anti-reverse connection, anti-surge, and over-temperature protection circuit for enhanced safety and reliability.
• With a military-grade power amplifier chip, our VTX is designed to prevent damage even if the antenna is not connected.
• With a high power output of 1000mW, it offers stronger signal penetration, ensuring a more stable picture and longer transmission distance.

Specifications:

• Input Voltage : DC7-24V(2-6S)
• The Output Voltage : Non
• Rated current(Tested at maximum power) : 10V/600mA@1000mW/30dBm
• Transmission distance : 3km(There is no interference at the seaside, and the original antenna is used for testing)
• Input Impedance : 75Ω
• Channel Indicate : 3 LEDs 1 power indicator light (red light)
• VTX protocol : SmartAudio
• Antenna interface :  MMCX
• Cable input interface : 4P double-ended tinned connecting cable

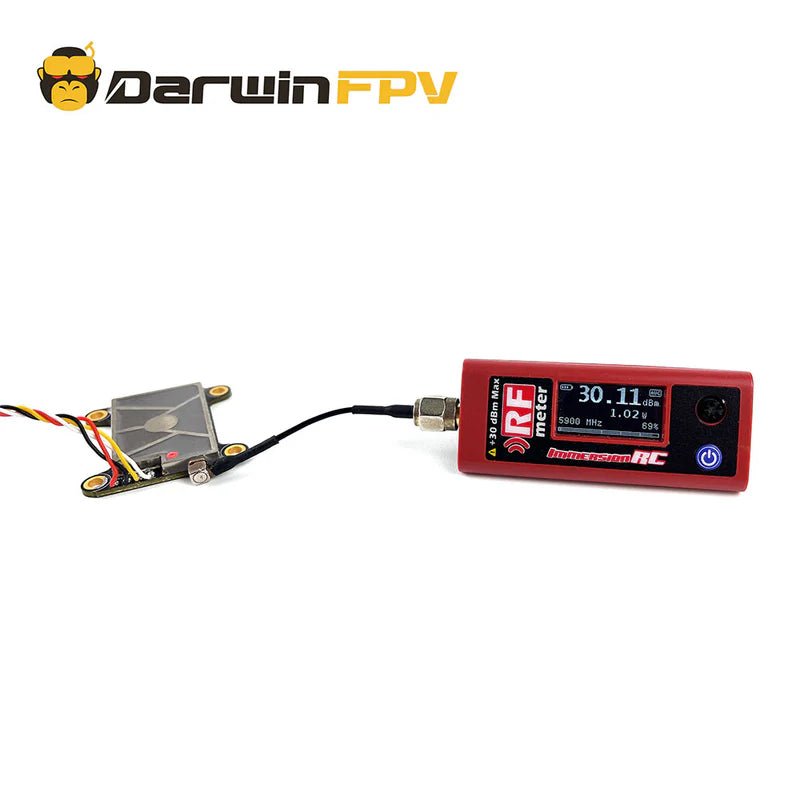

• Output power : 200mW/800mW/1W
• Method to adjust parameters(button/OSD) : OSD
• Frequency group : 40 channel(A/B/E/F/R frequency group)
• Frequency range  : 5645-5945MHz (5.645-5.945GHz）
• Operating temperature : -10℃-50℃
• Video format : NTSC/PAL
• Microphone : Non
• Mounting Hole Size :  30.5mm × 30.5mm（M3）
• Size :  38mm × 37mm × 4.5mm

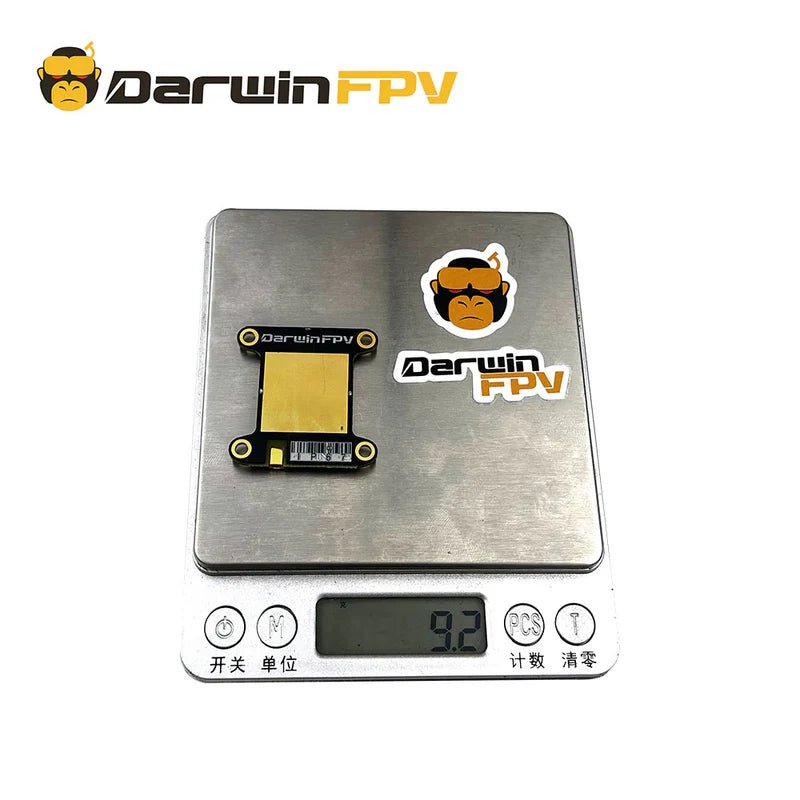

• Weight : 9.2g±5g (without antenna and power cable)

Package Includes:

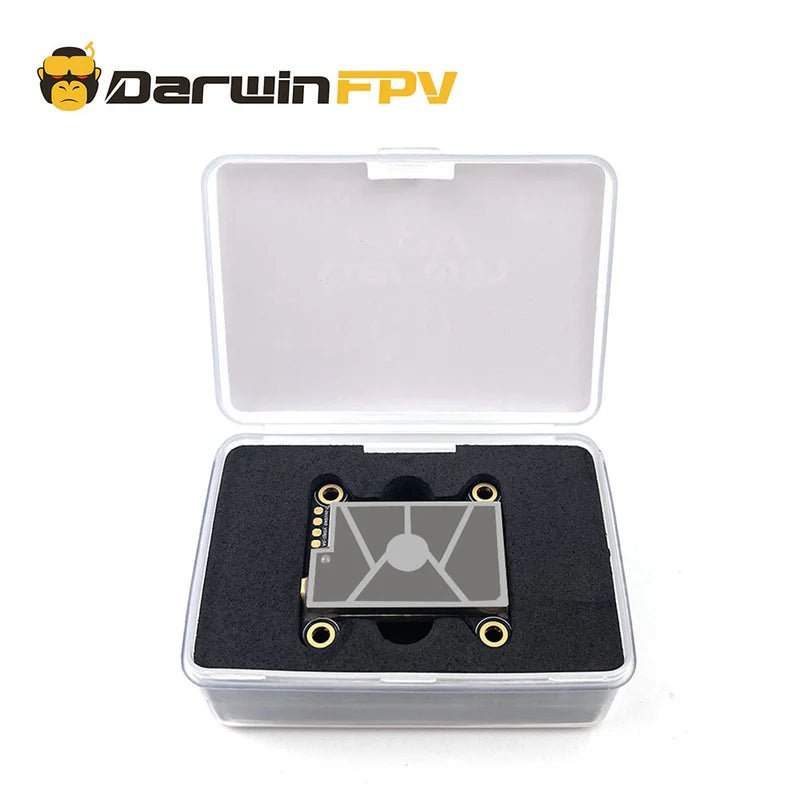

• 1 x DarwinFPV Cement 5.8G 1000mW VTX
• 1 x 1x4P 90mmVTX cable (#28AWG red/black/yellow/white)
• 1 x Sticker
