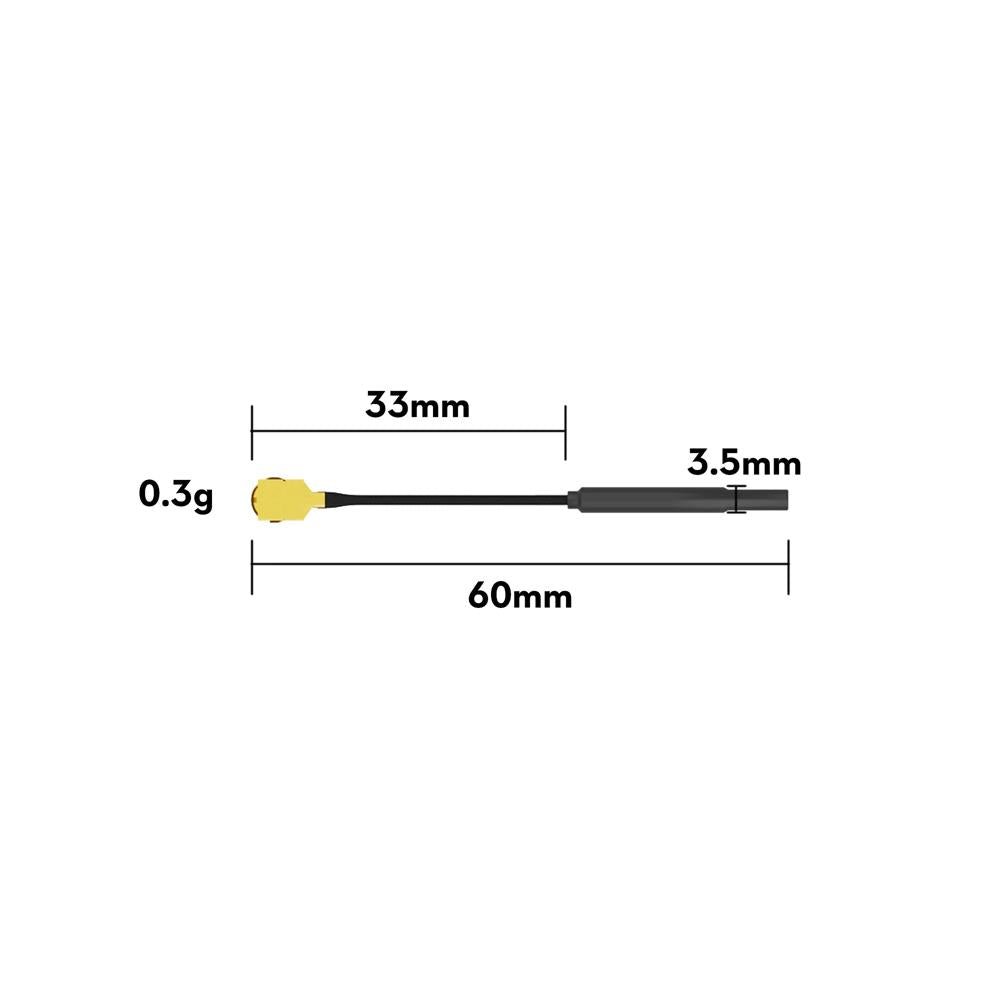

Flywoo Light 5.8G 3dBi Brass Antenna UFL 60MM for VTX (5 Pcs)

The Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL for VTX is a specialized product designed for ultra-light unmanned aerial vehicles.
There are two versions available: the 60mm version is suitable for traditional unmanned aerial vehicles, while the 80mm version is specifically designed for the FlyLens 85.

Check out all our UFL FPV Antennas and the Rest of our Flywoo Products!

Features:

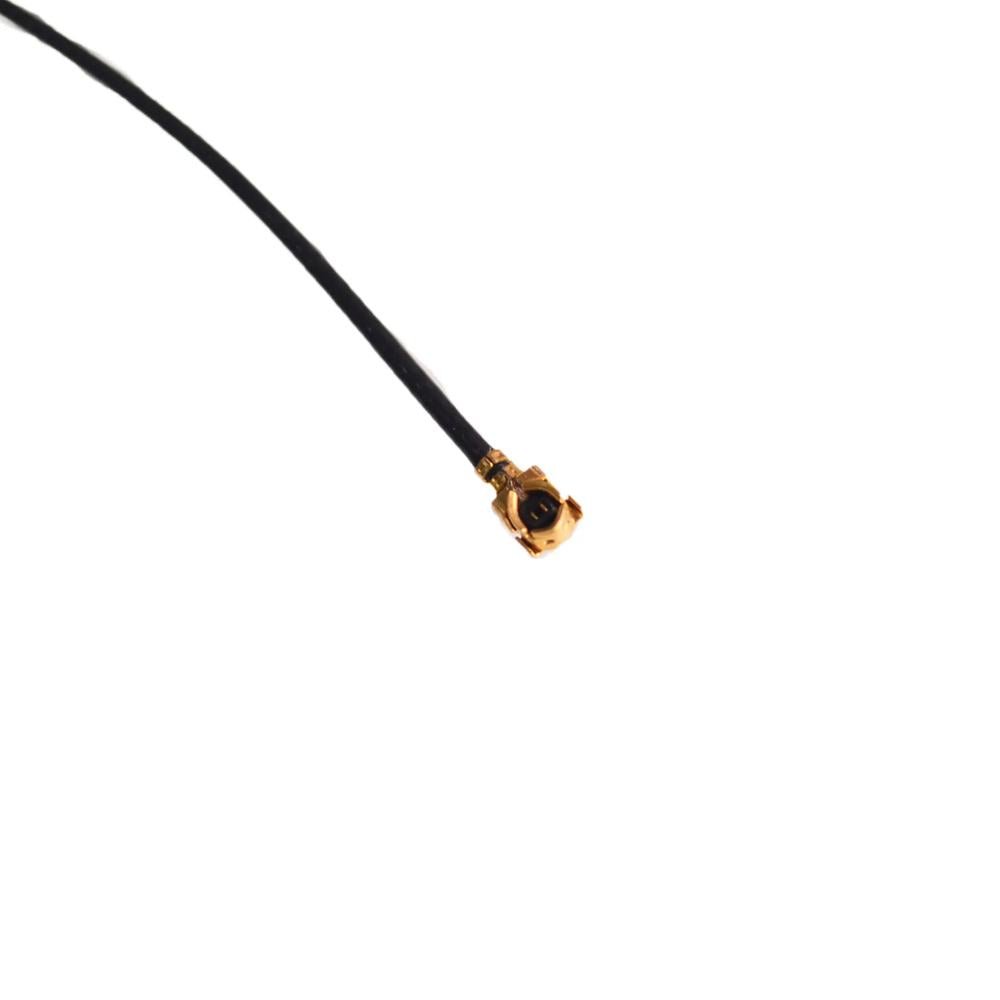

• Installation: It features an IPEX interface that makes installation simple and easy to replace.
• Lightweight: The ultra-lightweight and ultra-small size of the antenna reduces the flight burden, allowing for longer and farther flights. Signal
• Signal sensitivity: The antenna is vertically omnidirectional, which increases signal sensitivity and can be rotated 360°, receiving no dead ends.
• Durability: Additionally, the heat shrink technology and brass protection ensure wire flexibility and durability, allowing for bending without any damage to performance.

Specifications

• S.W.R.: <2:1
• Gain: 3dbi
• Interface: IPEX
• Weight: 0.3g.4g
• Polarization: vertical
• Maximum power: 50W
• Input resistance: 50Ω
• Minimum diameter: 1.13mm
• Thunder protection: DC ground
• Directionality: Omnidirectional
• Frequency Range: 5725-5850Mhz

Package Includes:

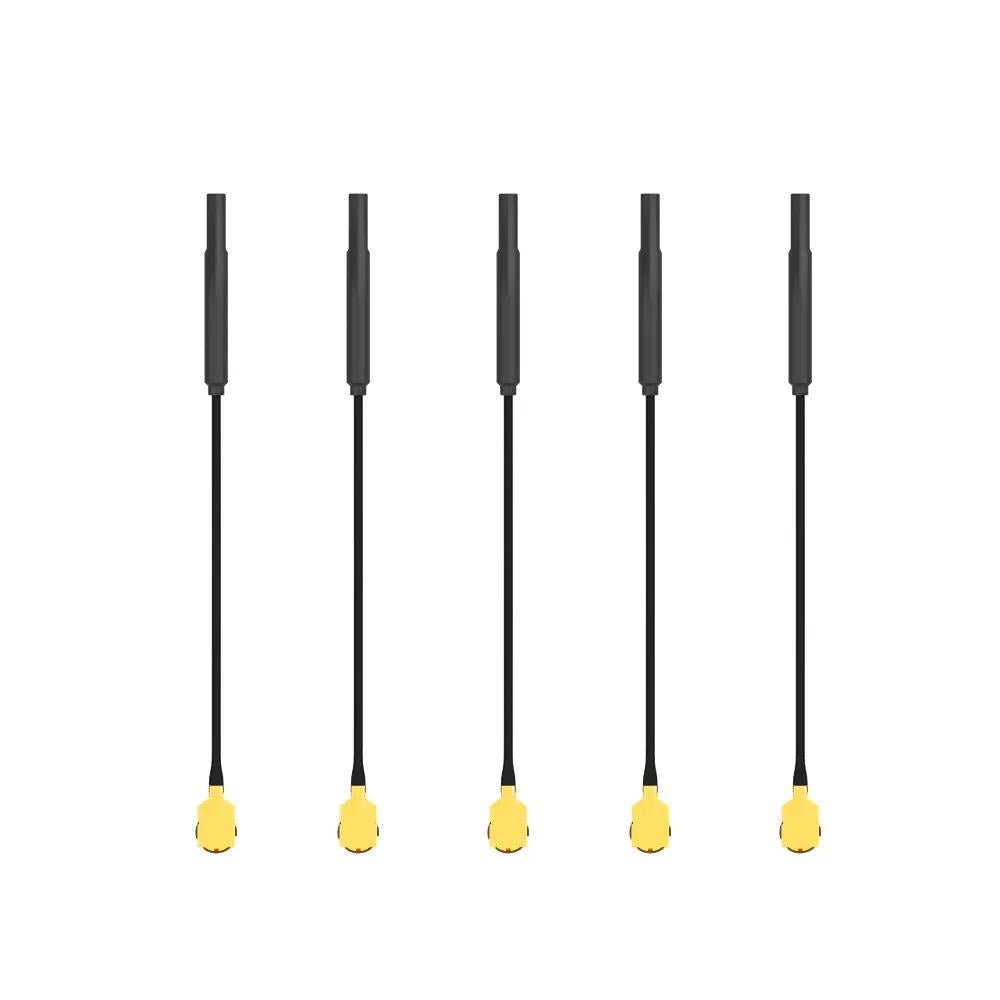

• 5 x Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL for VTX
