GEPRC CineLog35 3.5″ CineWhoop Drone Analog w/ Caddx Ratel 2

The GEPRC Team is excited to release the GEPRC CineLog 35 Analog CineWhoop drone!

The CineLog35 has improved upon the basis of the CineLog30. Featuring an integrated protection guard design, the overall structure is firmer and durable. Equipped with the latest FC with higher calculation speed and high efficiency… the 4S version uses GEP-F722-35A AIO and the 6S version uses GEP-F722-45A AIO. The 5 UART Ports bring enhanced performance.

The CineLog35 is equipped with a Caddx Ratel 2 camera, and the picture quality is extremely clear and clean. Upgraded power system, 2004 motor with D90-3 propellers provide stronger power output. Includes a 3D Print mount to install the GoPro 9 & GoPro 10. with a base that can carry Insta360 GO2 /  GEP Naked GoPro Hero 8 or Caddx Peanut camera mount.

Check out our BNF Cinewhoop Collection, All our Analog BNF/PNP/RTFs and the rest of our GEPRC Products!

Note: Action Camera not included. This is the Analog version with Caddx Ratel 2 camera.

VIDEO: This Cinematic FPV Drone Can ALMOST Do It All! (Cinelog 35 Review)

Features

• Camera mount base can carry Insta360 Go2 camera/Naked GoPro Hero 8/Caddx Peanut camera mounts
• Developed by GEPRC specifically for mounting complete GoPro HD cameras
• Upgraded 3.5-inch integrated protection guard
• Independent receiver cabin – binds quickly
• Equipped with the Caddx Ratel 2 camera
• 3D Print mount for GoPro 9 & GoPro 10
• Durable high-strength structural design
• Low vibration and noise reduction
• 2004 motor with D90-3 propeller
• Improved damping rings

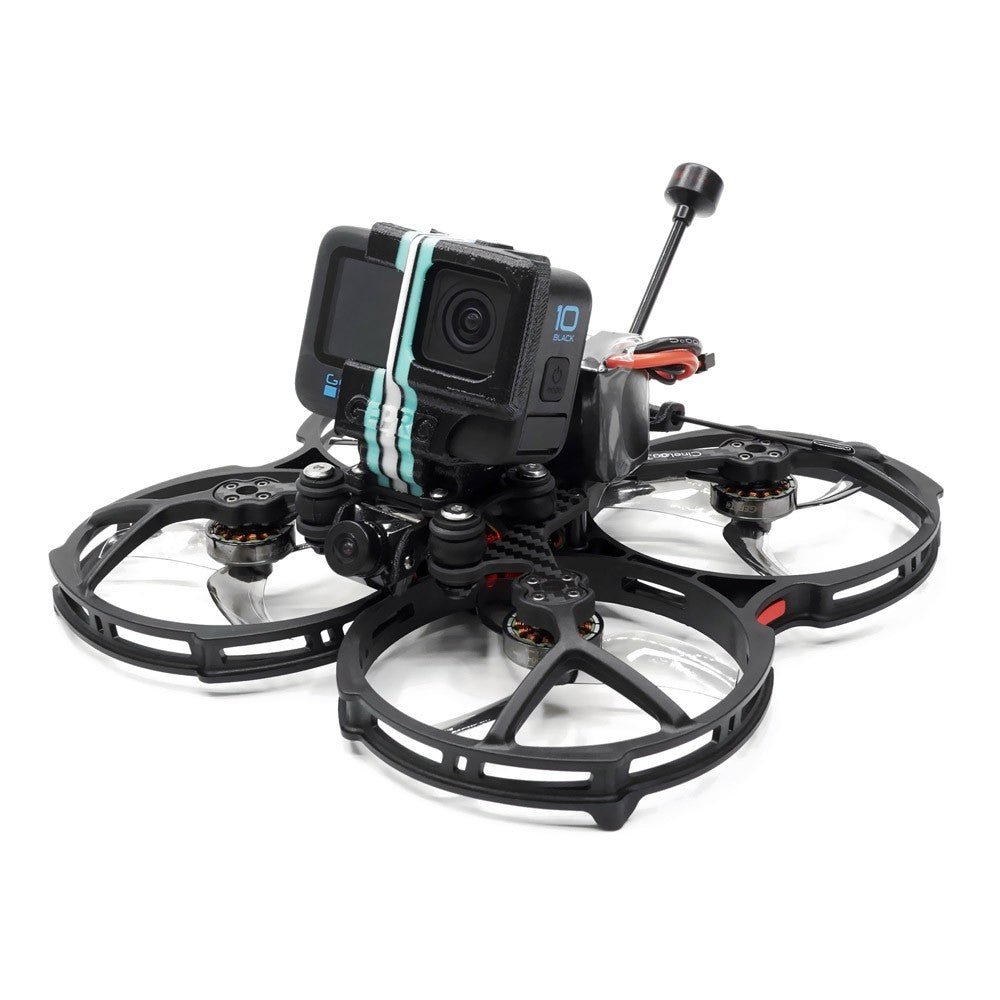

ACTION CAMERA MOUNT CAPABILITY

Features a 3D Print mount to install the GoPro 9 & GoPro 10. Camera mount base can carry Insta360 Go2 camera/Naked GoPro Hero 8/Caddx Peanut camera

INTEGRATED PROTECTION GUARD

Strengthens fuselage and guarantees flight safety.

CAMERA DAMPING SYSTEM

The New camera damping system basically eliminates the video’s jelly and the FPV camera’s vibration in terms of design. The damping construction can be adjusted the harder or softer to suit the Flight State. There are Three, Four, and Five damping rings that can be used to provide sufficient stability in vibration and noise.

NOISE REDUCTION

The Cinelog Whoop Quadcopter increases the air inlet volume with EVA foam cushioning, and reduces the airflow resistance in order to create extremely low flight noise and greater reduction of noise from external vibrations.

PUSHER FRAME

The CineLog Whoop Quadcopter adopts a brand-new stunning pusher frame design. The ultra-light carbon plate and new material increase strength by 20%, and increase efficiency by 15%.

Specifications:

• Receiver: PNP/Frsky R-XSR/TBS Nano RX
• Antenna: Momoda Long version MMCX RHCP 195mm Antenna
• FC: (4S) GEP-F722-35A AIO / (6S) GEP-F722-45A AIO
• Motor: GR2004  2550KV (4S) / 1750KV (6S)
• Weight: 220.5g (CineLog35 Analog 4S PNP)
• OSD: BetaFlight OSD w/AT7456E chip
• Model: CineLog35 Analog Ratel 2
• Camera: Caddx Ratel 2
• IMU: MPU6000(SPI)
• Bottom plate: 2.0mm
• Wheelbase: 142mm
• ESC: BLheli_S 45A
• MCU: STM32F722
• Frame: GEP-CL35
• Top plate: 2.5mm
• Arm plate: 3.5mm
• Propeller: D90-3
• Brand: GEPRC
• VTX: 600mW

Recommended (Not Included)

• Batteries: 850mAh-1500mAh (4S) or  850mAh-1100mAh (6S)

Includes:

• 1x GEPRC CineLog 35 Analog Quadcopter (Receiver Optional)
• 2x LiPo Strap (M15x200mm)
• 4x 15-degree damping rings
• 2x Battery Silicone Pads
• 2x D63-3 Props (Pairs)
• 1x Fixed Antenna tube
• 1x 3D Print Mount
• 2x Landing Pads
• 1x Hardware Kit
• 1x Screwdriver
• Note: Action Camera not included. This is the Analog version with Caddx Ratel 2 camera.
