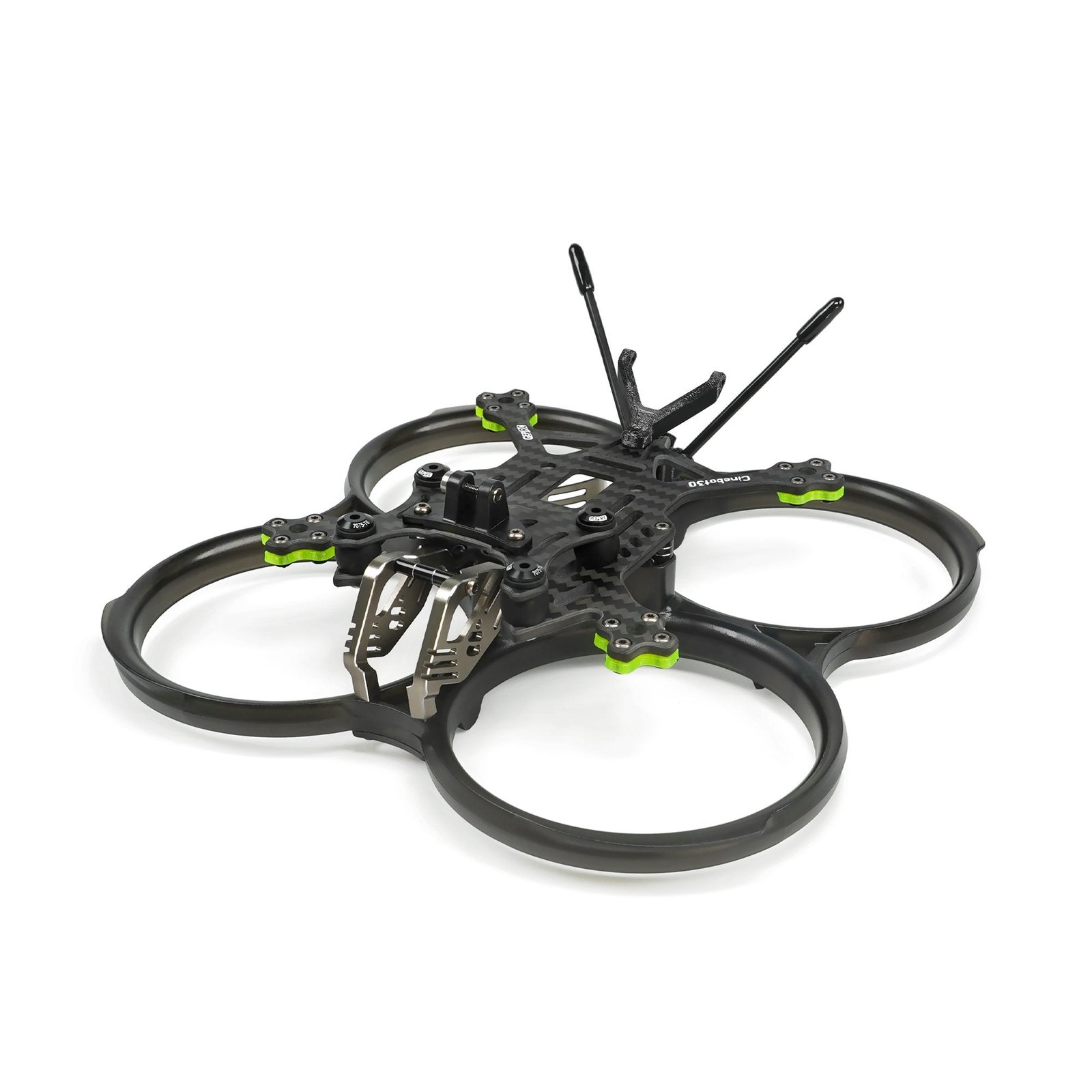

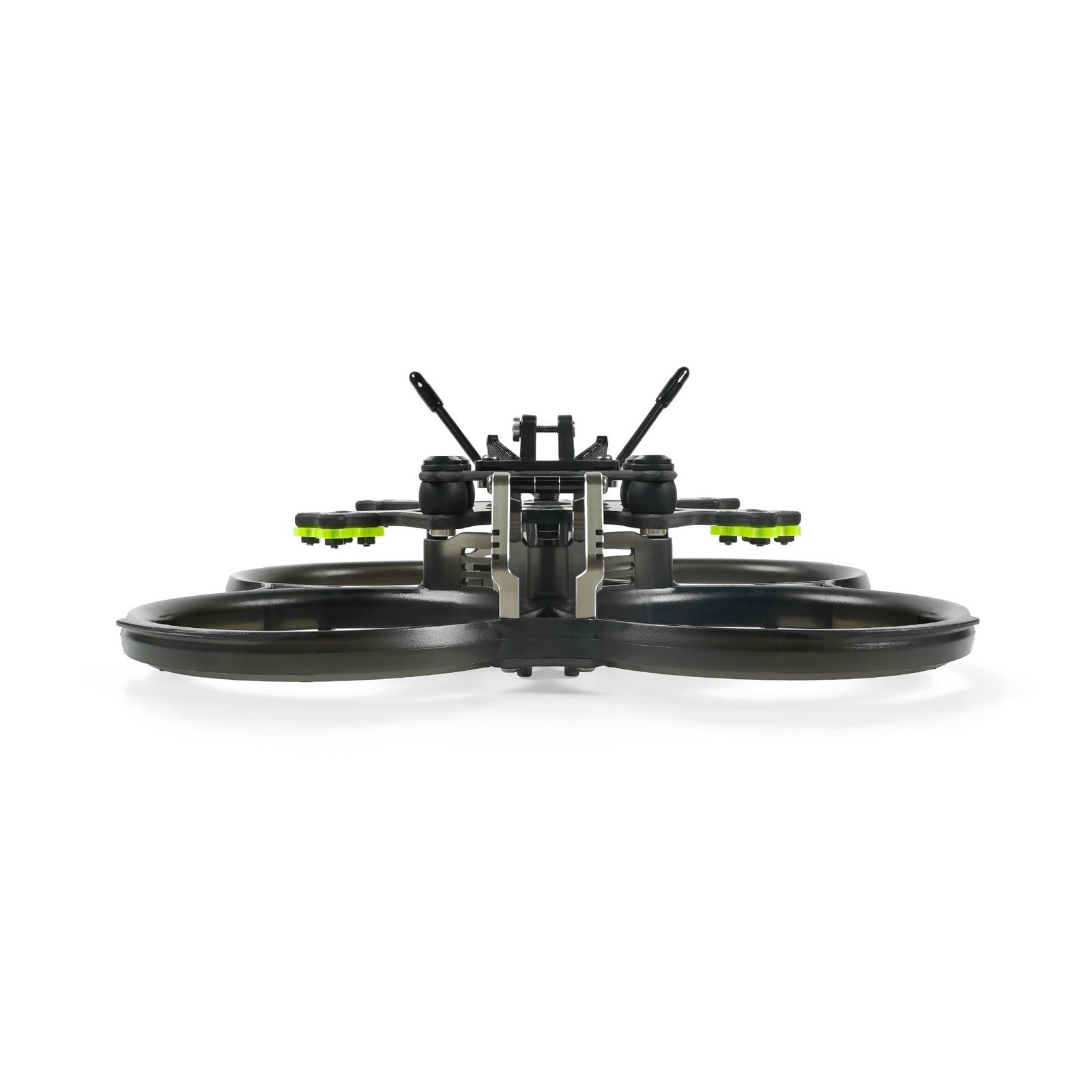

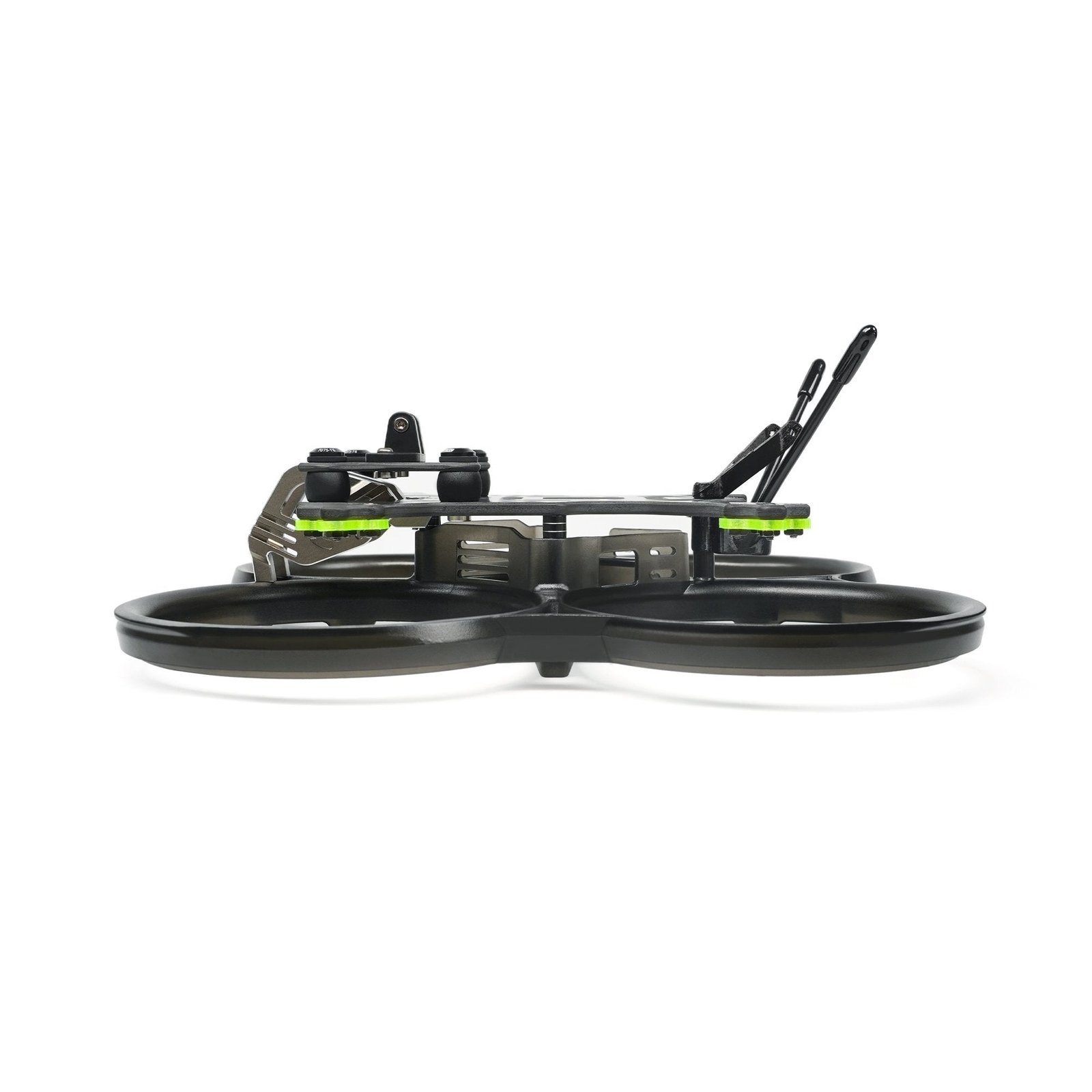

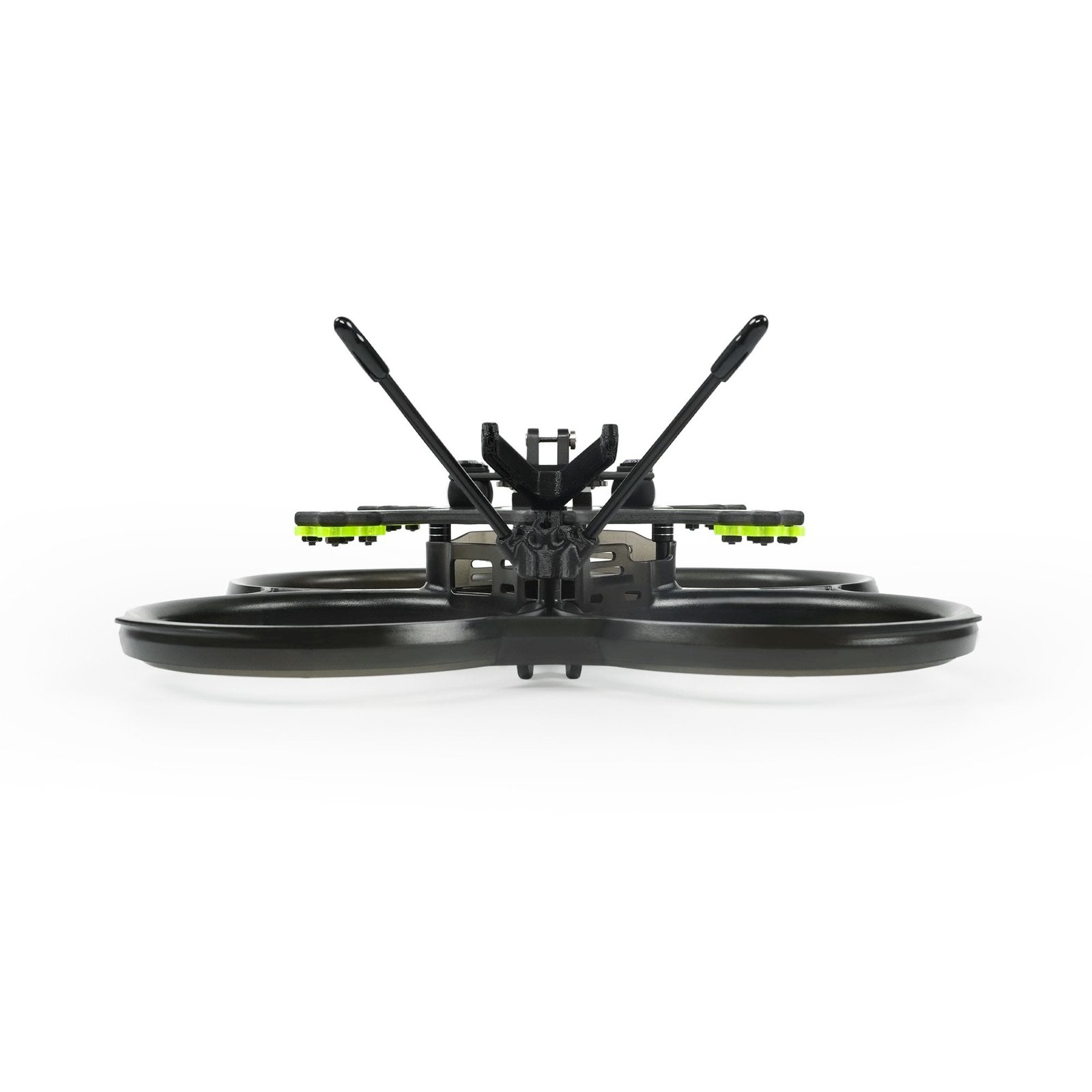

GEPRC GEP-CT30 Cinebot30 Frame Kit W/ COB Light Strip and BEC

The GEP-CT30 frame specially developed by CEPRC team for cinematic enthusiasts is now officially released.

As a cinematic FPV frame, the new series of GEP-CT30 frame using high-precision 7075-T aircraft-grade aluminum alloy bracket for FPV camera escort. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple action cameras which have stable and clear images, and it’s easy to film. GEP-CT30 frame supports the installation of mainstream AIO flight controllers with 25.5mm*25.5mm mounting holes, and is compatible with various VTX mounting holes on the market such as 20mm*20mm/25.5mm*25.5mm. With 12mm * 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with strong power output with 3-inch propeller. Ultra-light fuselage weight for more confident flying.

Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. Light strip kits are optional for flexible options. 7075-T aircraft-grade aluminum column, finely polished frame design, only 6 screws need to be removed to separate the aircraft top plate and propeller guard. Easy to cope with the urgent need to replace the accessories, at any time to restore the state.

Tuned by GEPRC professionals with high-quality production process, explore endless possibilities for your flight shooting. In the face of the headwind, we only go up to the wind, never go with the wind. Salute to the filmmakers!

Check out all our Cinewhoop Frames and the rest of our GepRC Products!

Specification:

• Model: GEP-CT30
• Motor to Motor: 127mm
• Isolation Plate: 2.0mm
• Main Plate: 3.0mm
• Bottom Plate: 1.5mm
• FC Mounting Hole: 25.5mm x 25.5mm
• VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
• Motor Mounting Hole: 12mm x 12mm
• FPV Camera Spacing : 19mm
• Suitable Propeller Size: 3 inch propeller
• Weight: 103.2g (including propeller guard, 3D printed parts, Naked GoPro 8 base mount, antenna tube)

Features:

• 1. Design that combines engineering and aesthetics.
• 2. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
• 3. Selected high-toughness and impact-resistant PC +PET material for injection molding.
• 4. Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.
• 5. Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
• 6. The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
• 7. Compatible with a variety of fpv system with the program, choose to belong to your first-person view.

Package Includes:

• 1 x Main Plate 3.0mm
• 1 x Bottom Plate 1.5mm
• 1 x Isolation Plate 2.0mm
• 1 x Set of Screws
• 1 x Bec Module
• 1 x Cob Light Strip
• 1 x Set of 3D Printed Parts
• 1 x 3 inch One-piece Injection-molded Propeller Guard
• 1 x Naked GoPro Base Mount
• 2 x Battery Non-slip Mat
• 2 x Receiver Antenna Tube 100mm
• 1 x Battery Straps M15*200
• 1 x Battery Straps M15*220
• 1 x Naked GoPro Power Cable 4S Balance Head
• 1 x Naked GoPro Power Cable 6S Balance Head
• 1 x L-shaped Screwdriver 1.5mm
• 1 x L-shaped Screwdriver 2.0mm
• 1 x Carbon Fiber Keychain
• 2 x GEPRC Stickers
• 1 x Service Card
