GEPRC GEP-F722-35A AIO F722 FC 35A 2-6S 8bit BLHeli_S ESC – 25.5×25.5mm

I am glad to introduce a new member of GEPRC FC AIO, the GEP-F722-35A AIO.

GEP-F722-35A AIO adopts MCU STM32F722, which has powerful performance and higher computing speed. It has 5 full UART ports and can connect more external devices.

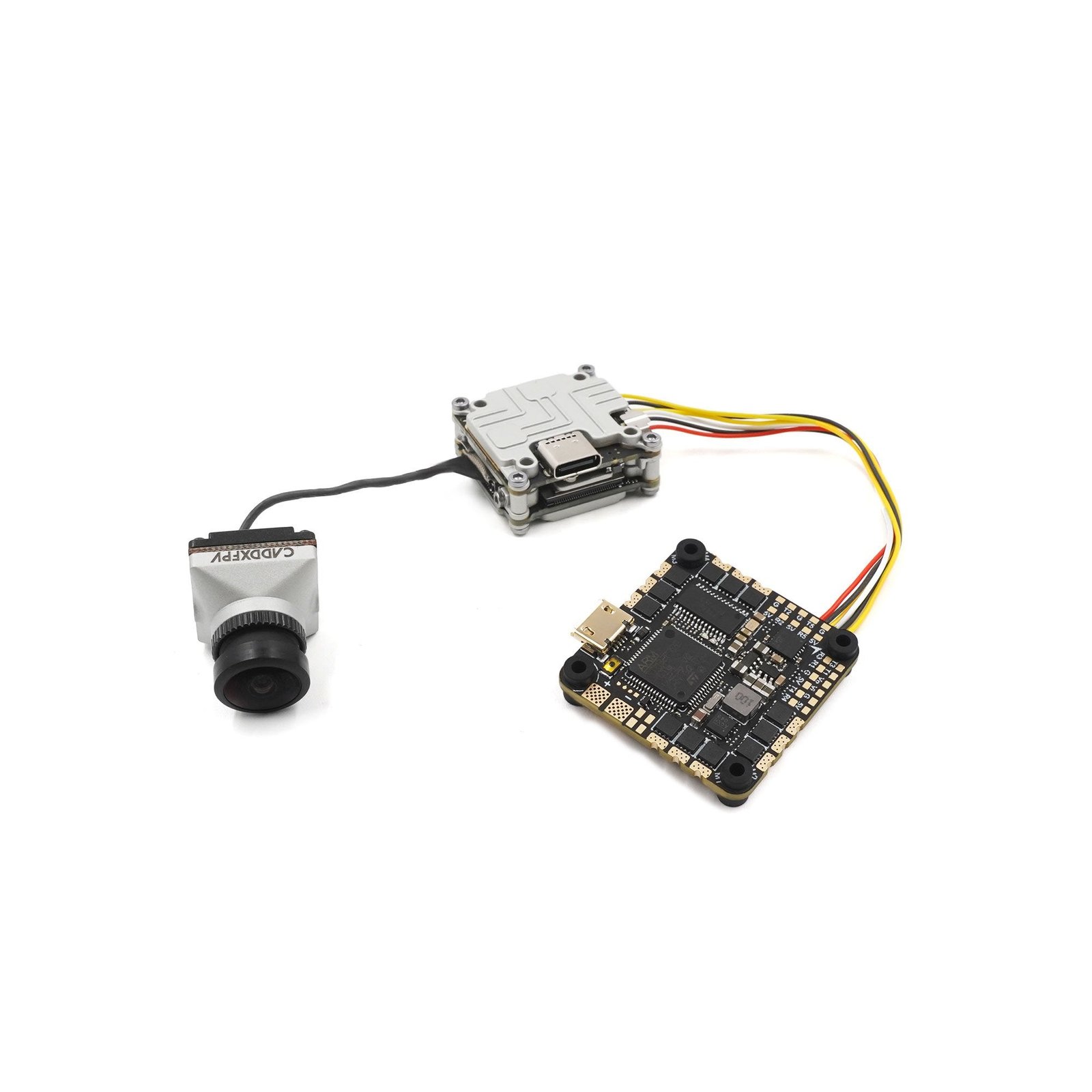

We designed a 6-pin connector for DJI air unit VTX plug and play.

The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance. It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

Checkout our wide variety of Whoop Style AIO Boards and our GEPRC Collection!

Changelog:

• June 14th,2022: Gyro updated to 42688.
• June 25th,2022: Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Features:

• MCU:STM32F722,with strong performance and higher computing speed.
• It has 5 full UART ports, which can connect more external devices
• Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
• The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
• Support OSD parameter adjustment, buzzer, led and other functions.

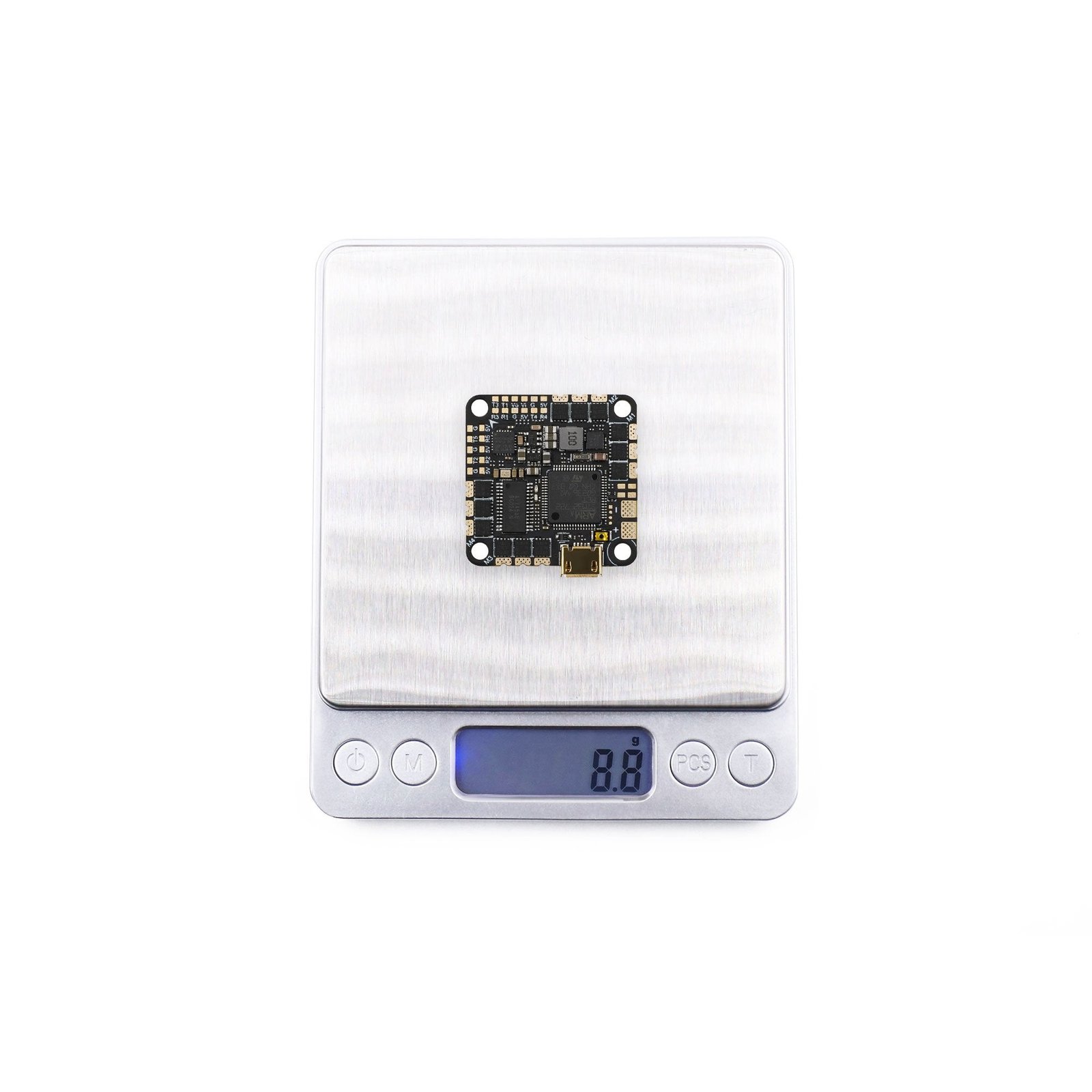

• 8.8g ultra light weight
• 5mm * 25.5mm mounting hole, suitable for most frames

Specifications:

• Model Name: GEP-F722-35A AIO
• MCU: STM32F722
• IMU: 42688 gyro/accelerometer(SPI)
• Firmware target: GEPRC_F722_AIO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Beeper: YES
• LED: YES
• USB: Micro USB
• BEC output: 5V@1A
• Intergrated LC Filter
• ESC MCU: 8BB21F16G
• Continuous current: 35A
• MAX current: 40A (10s)
• Input: 2~6S
• Supports: Dshot600,Oneshot,Multishot
• BlackBox: 16Mb
• Traget: G_H_30
• Size: 32x32mm Board
• Mounting Hole: 25.5×25.5mm
• Weight: 8.8g

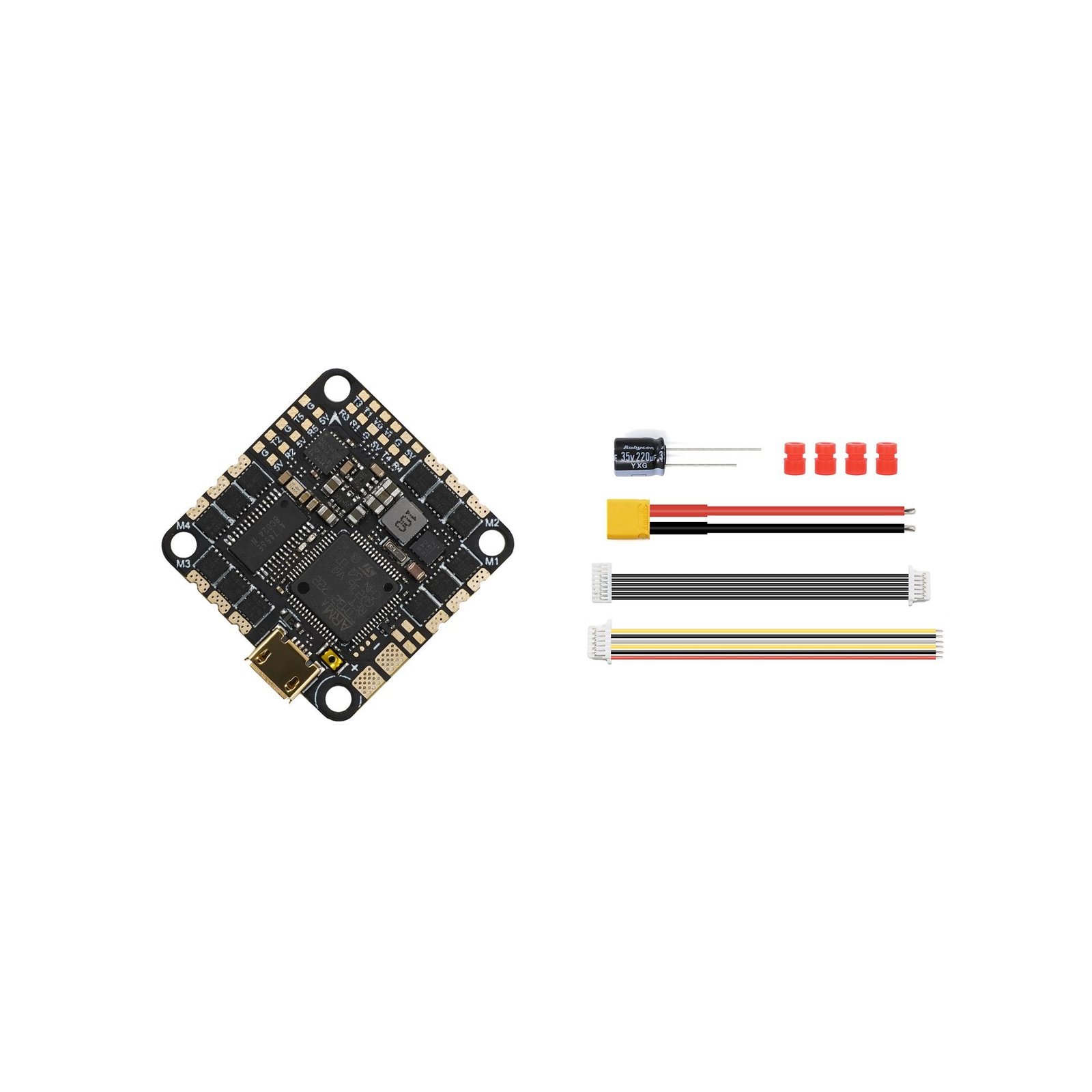

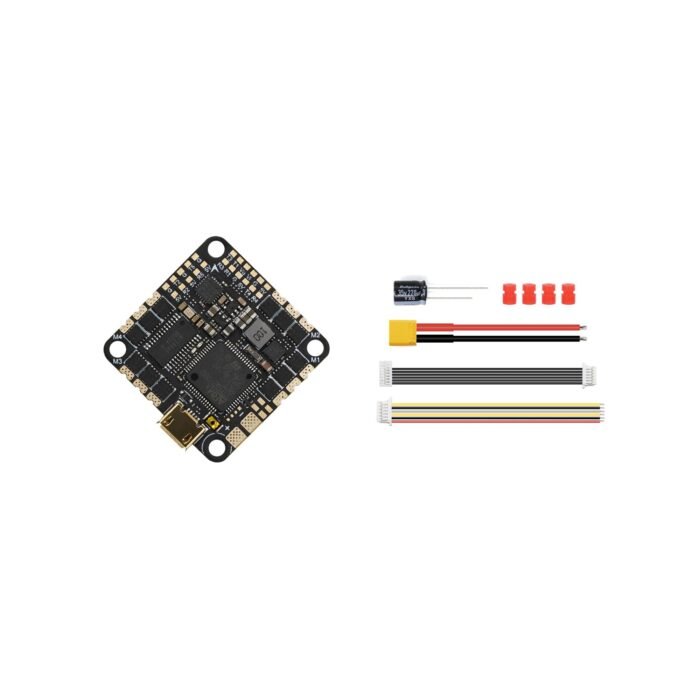

Package Includes:

• 1 x GEP-F722-35A AIO
• 1 x XT30-7CM-18AWG Power cables
• 1 x 35V220UF capacitor
• 1 x SH1.0-6Pin to GH1.25-8Pin cables
• 8 x M2*6.5mm Damping rings

Manual:

F722-35A AIO USER MANUAL.pdf
