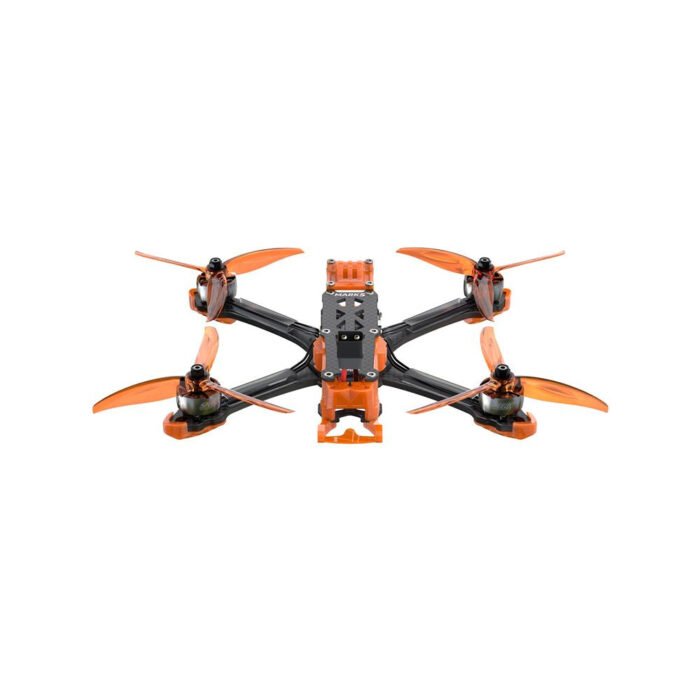

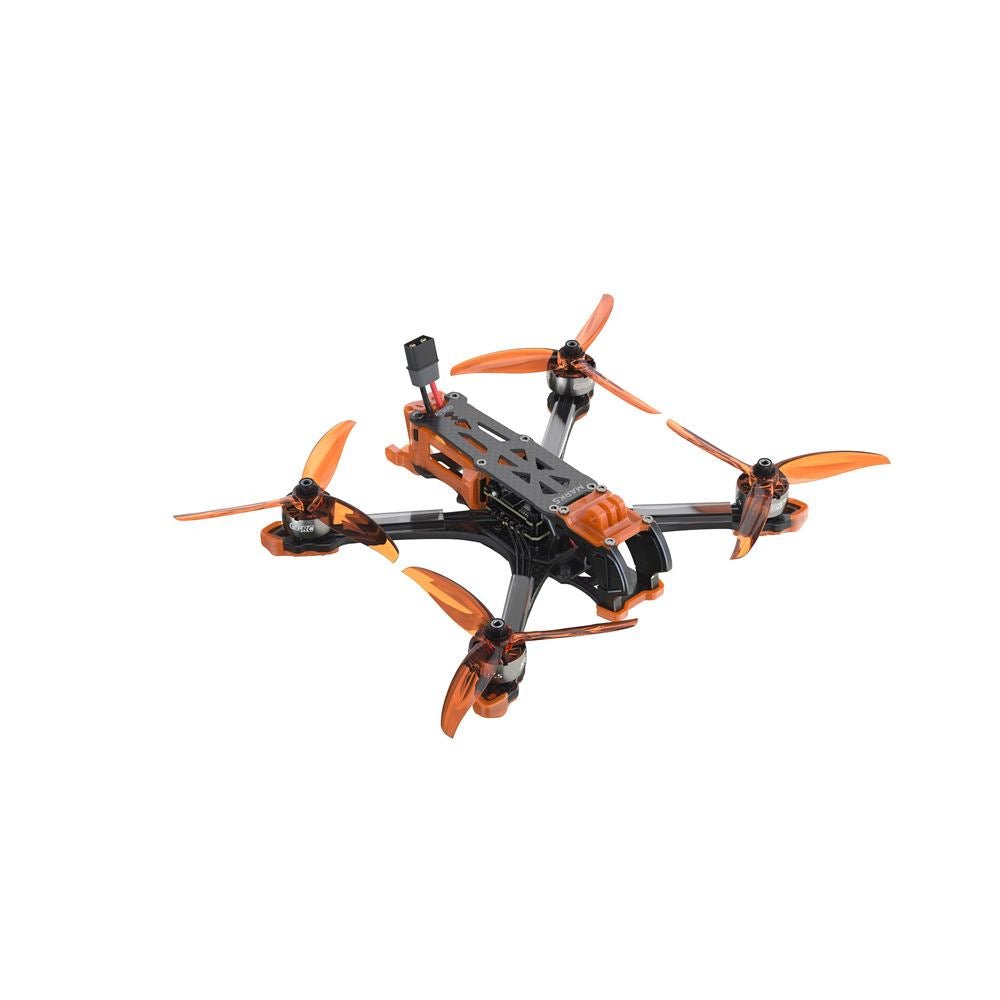

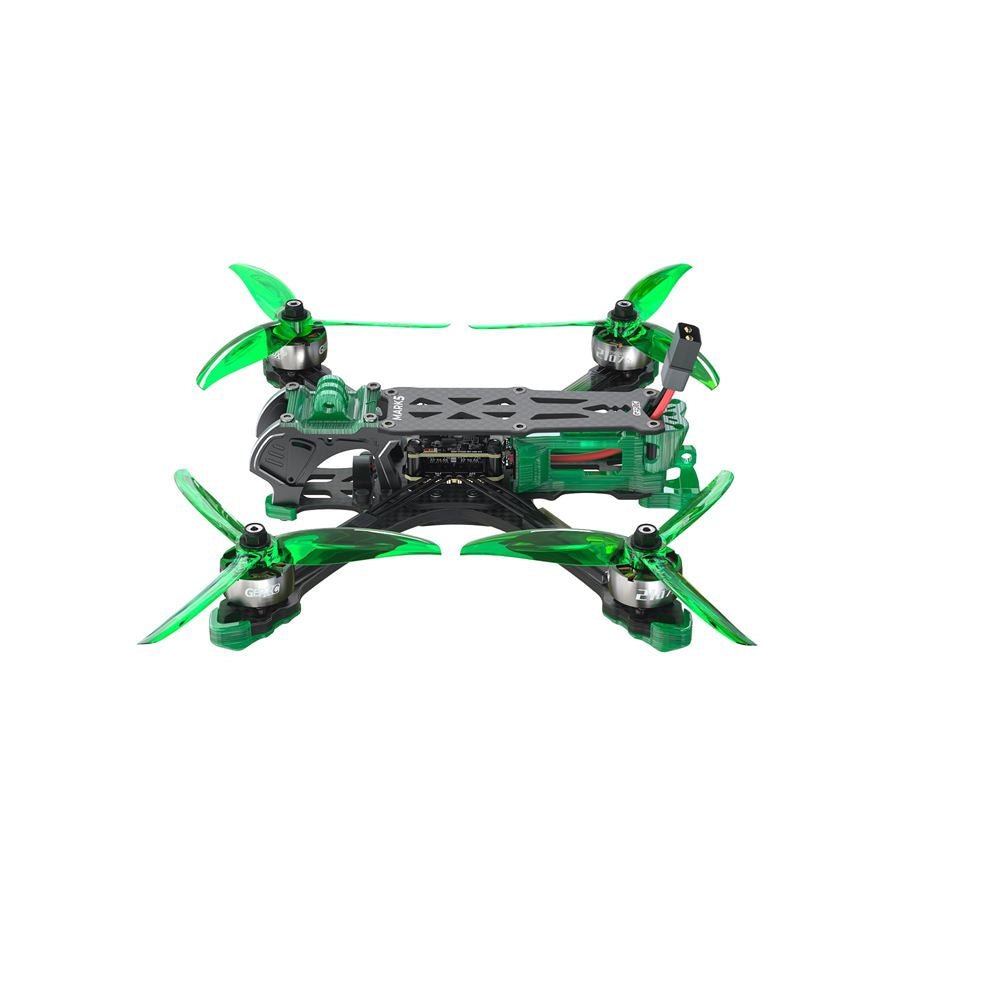

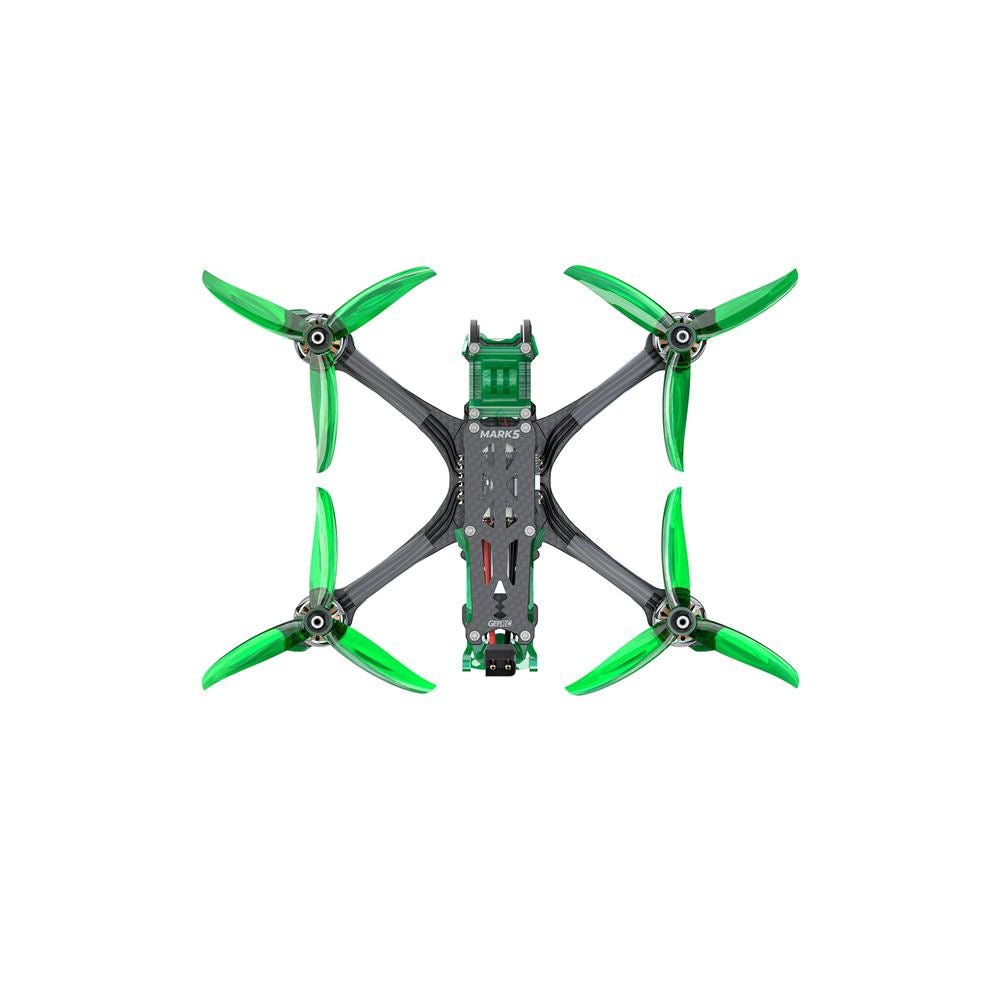

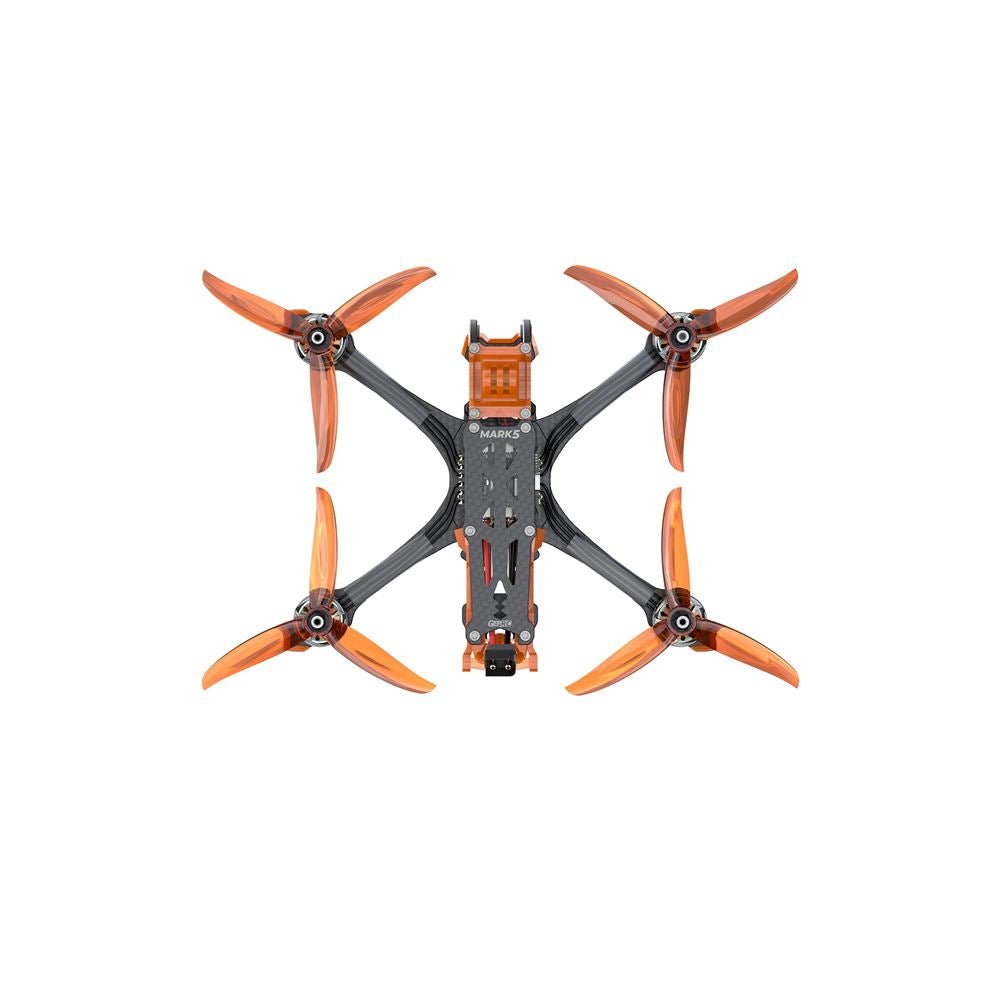

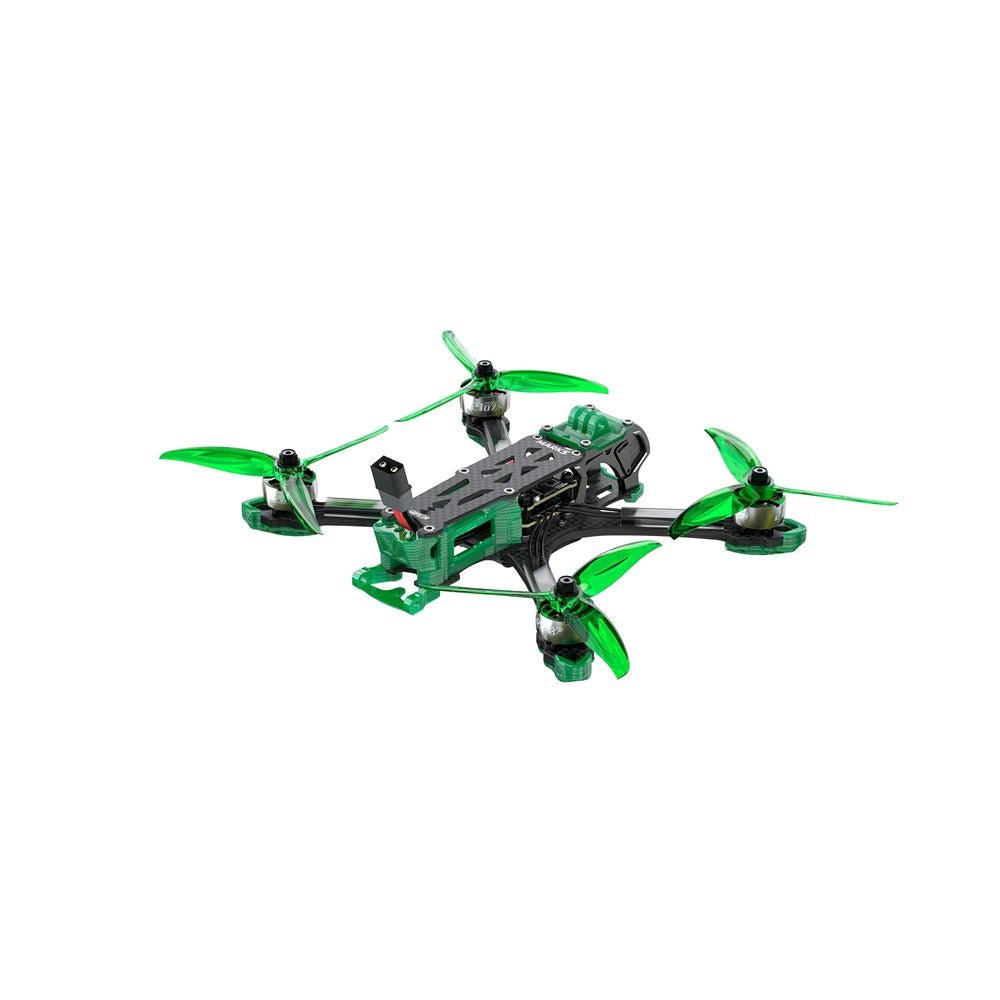

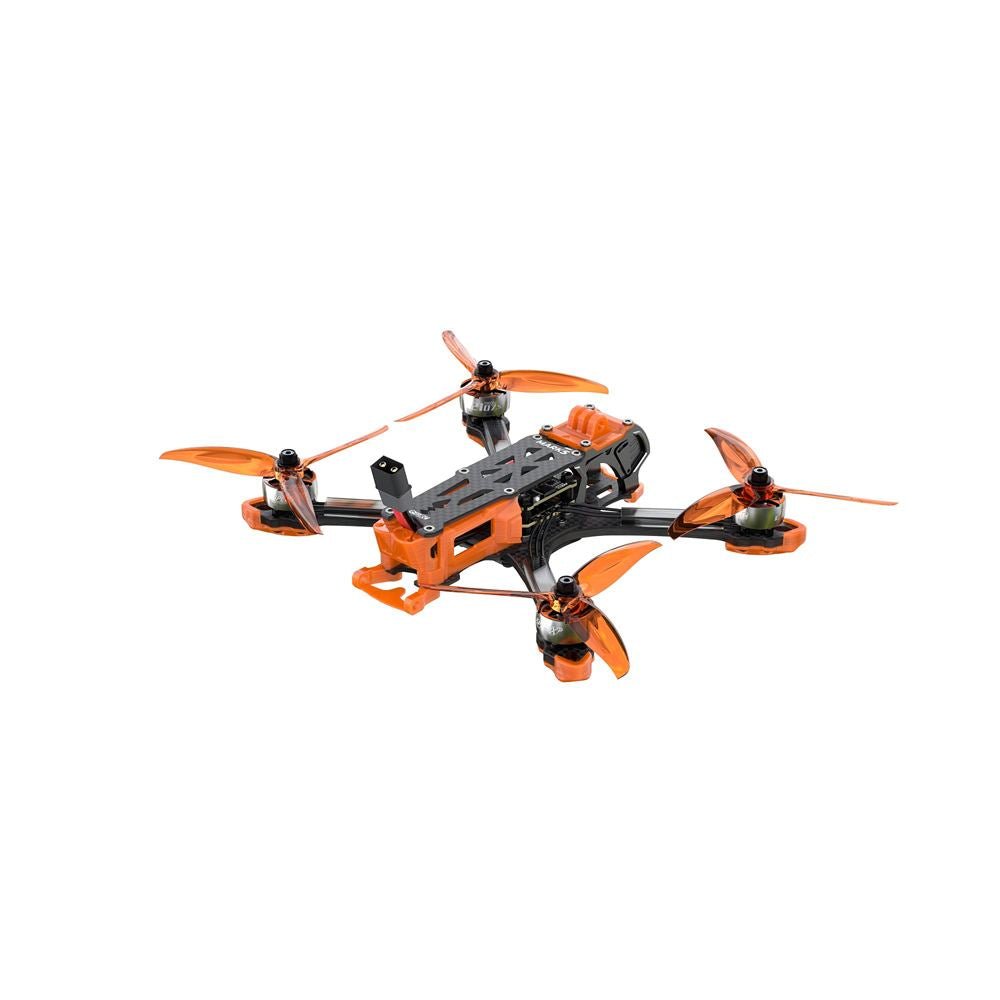

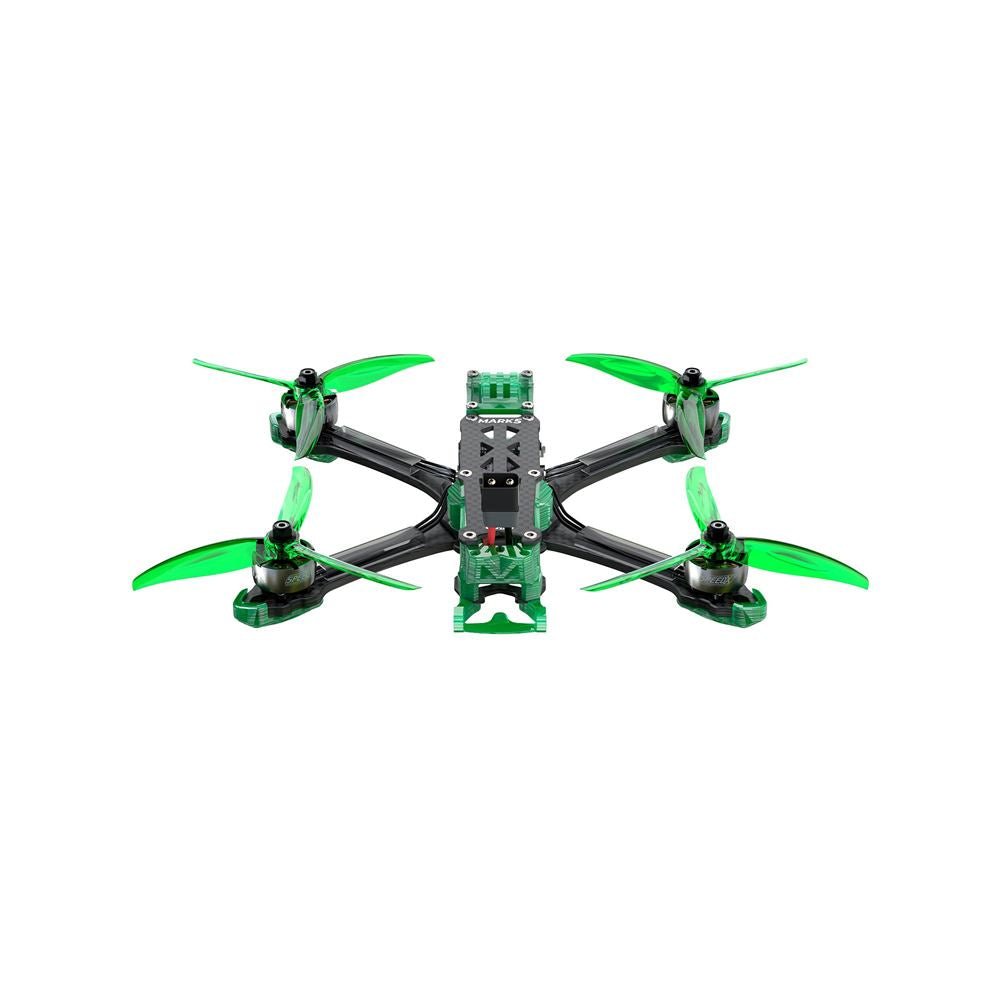

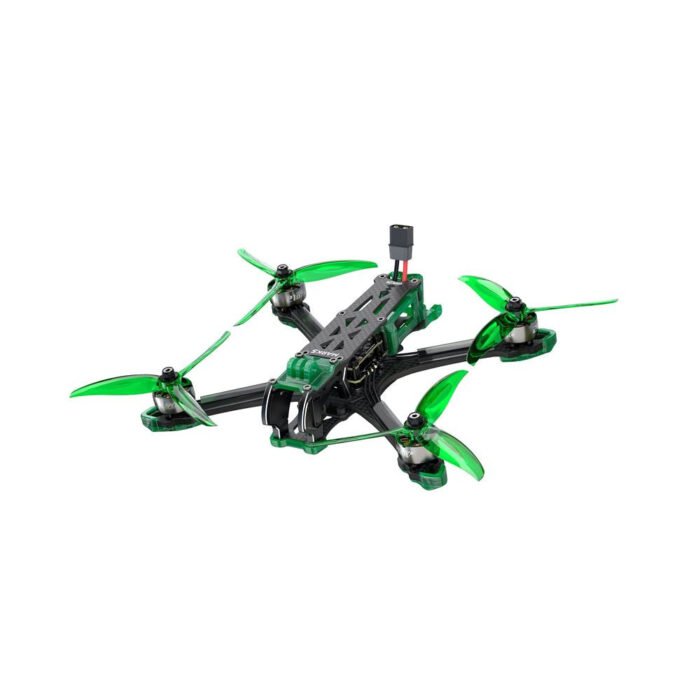

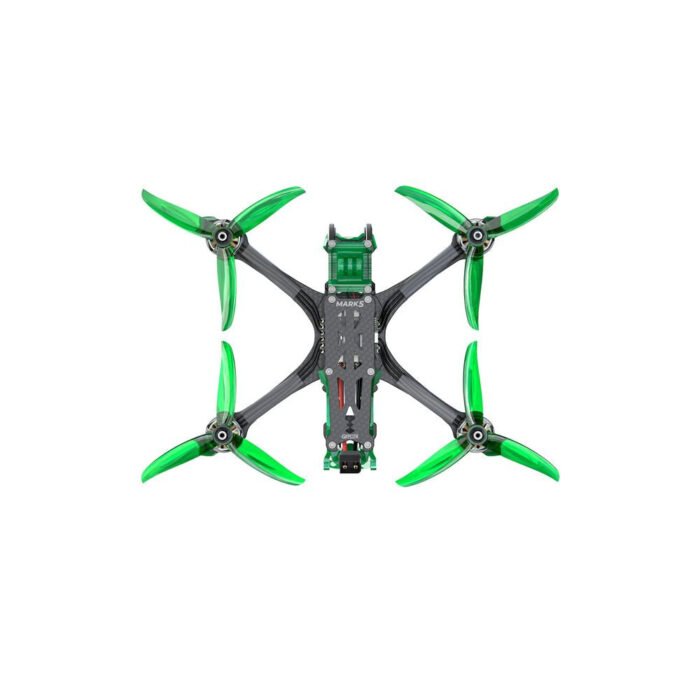

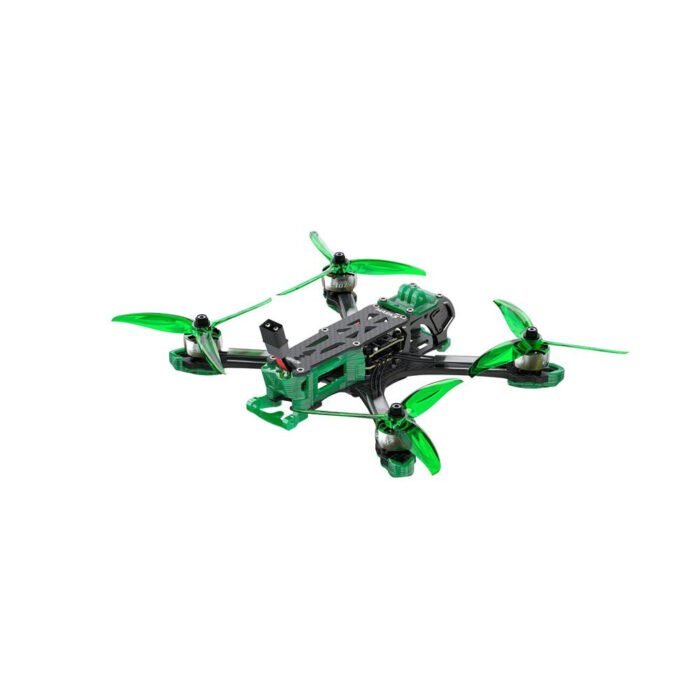

GEPRC Mark5 Wide X 6s 5″ O4 Pro Compatible WTFPV NO VTX – Choose Receiver and Color

N.B: The WTFPV Series is WITHOUT VTX, Compatible with DJI O4 Pro and the user have to add his own DJI Pro System.

The GEPRC MARK5 O4 series is expertly crafted for the DJI O4 Air Unit Pro VTX. Featuring a redesigned camera aluminum mount and custom shock-absorbing silicone, it significantly boosts compatibility and reduces vibrations. These upgrades ensure stable, smooth footage while effectively minimizing the impact of vibrations on the gyroscope during flight, resulting in a more stable and fluid flying experience.

Check out our other Digital BNF/PNP/RTFs, GEPRC Mark5 Parts and the rest of our GEPRC products!

Features:

• 1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.
• 2. DC and wide X frames, fit for a variety of flying situations.
• 3. Two TPU camera mounts, compatible with all action cameras.
• 4. Quick-release arms with just two screws for easy swapping.
• 5. 3K carbon fiber frame that is lighter, stronger, and more durable.
• 6. Separate capacitor and buzzer compartment for stable, jitter-free operation.
• 7. Vibration-dampening frame for stable electronics performance.

Specifications:

• Model: MARK5 O4 Pro Wide X WTFPV FPV
• Wheelbase: 225mm
• Weight: 380.6g ± 5g
• VTX: None
• Camera: None
• Antenna: None
• Motor: SPEEDX2 2107.5 1960KV
• Prop: Gemfan 5136
• FC: GEP-F722-BT-HD V3
• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• OSD: BetaFlight OSD w / AT7456E chip
• ESC: GEP-BL32 50A 96K 4IN1 ESC
• Power Connector: XT60
• Receiver: PNP / ELRS 2.4G / TBS NanoRX
• Recommended Battery: LiPo 6S 1050mAh-1550mAh
• Printouts Color: emerald green/coral orange

Package Includes:

• 1 x GEPRC MARK5 O4 Pro WTFPV FPV
• 1 x Gemfan 5136 (2CW 2CCW）
• 1 x 15*250mm Straps
• 2 x 20*250mm Straps
• 2 x Battery anti-slip pads
• 1 x 3D printouts pack
• 1 x Spare Screw Pack
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2mm
• 1 x L-shaped screwdriver 3mm
• 1 x M8 wrench

Spare Screws Include:

• 1 x M5 flanged nylon nut
• 2 x M2 stainless rivet nut
• 1 x M5*25 Stainless round-head hex screw
• 4 x M3*10 button-head hex socket screw
• 4 x M3*8 button-head hex socket screw
• 2 x m3*8 countersunk hex socket screw
• 2 x m3*5 countersunk hex socket screw
