GEPRC RAD VTX 1.6W 5.8GHz

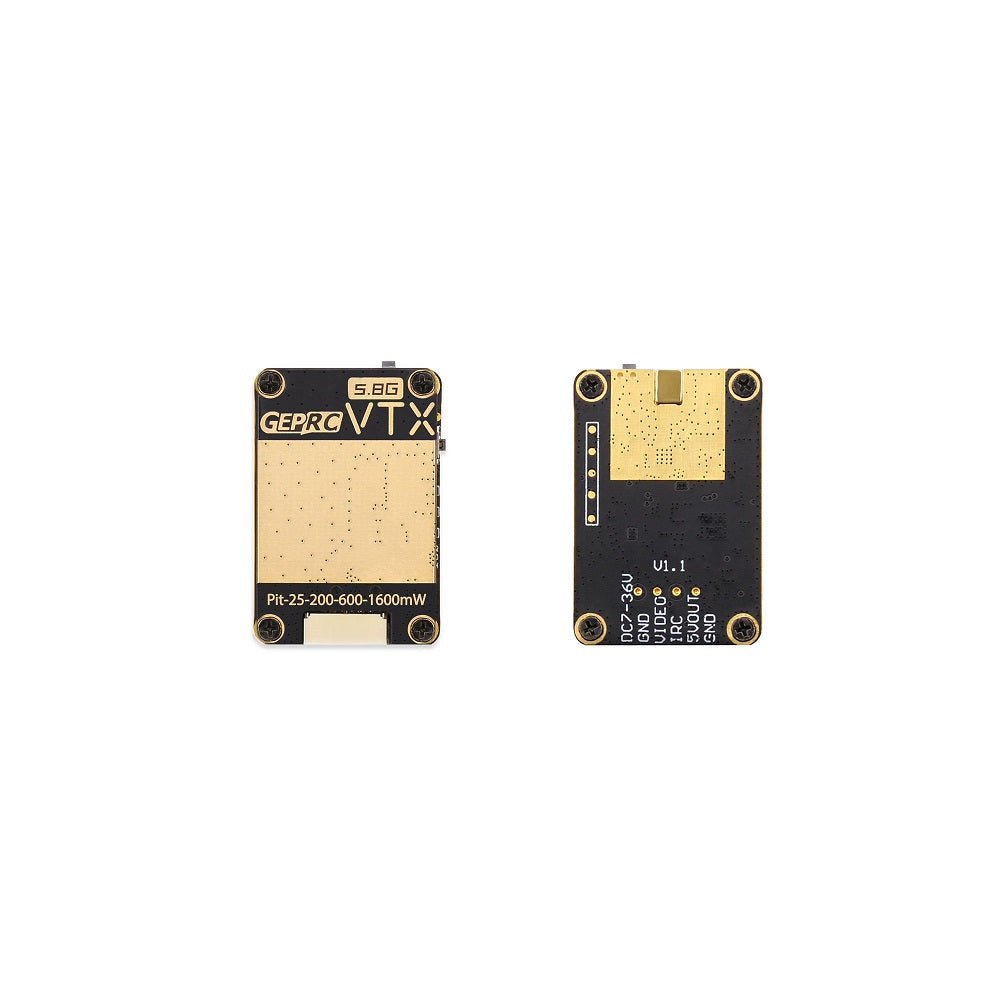

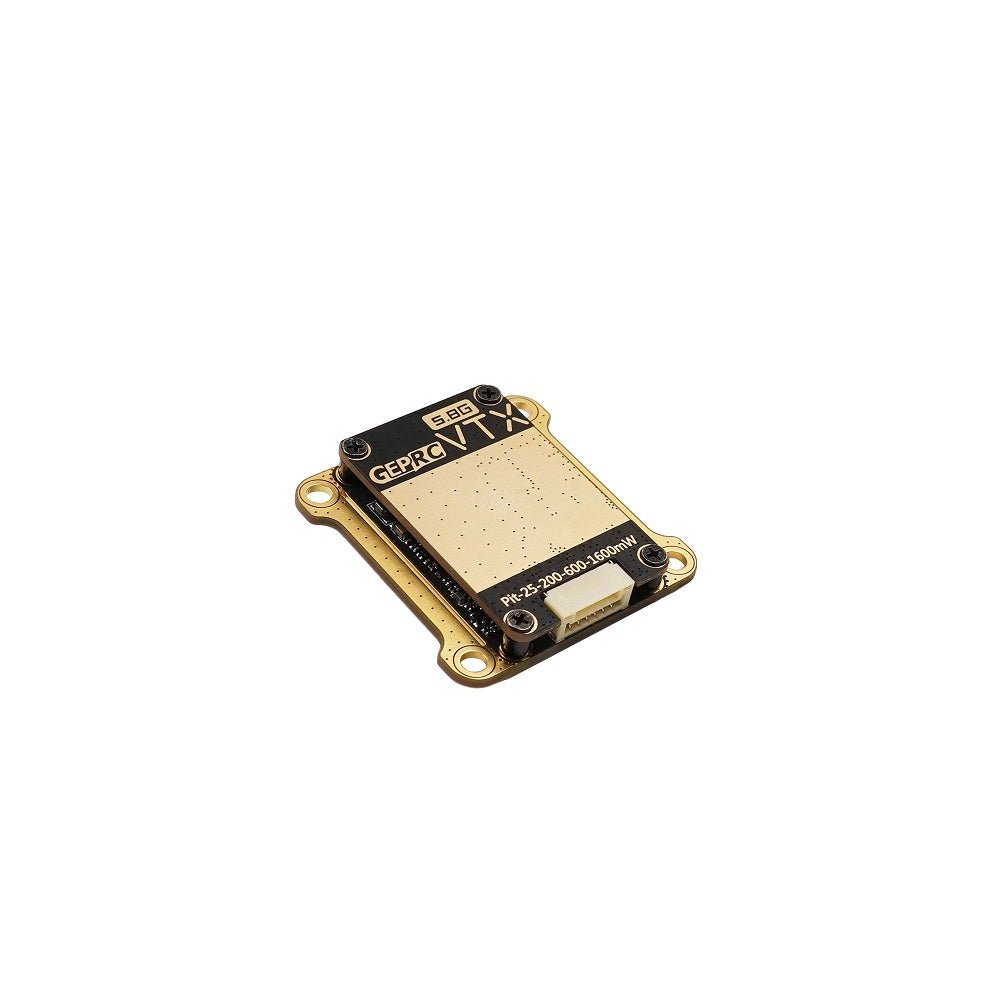

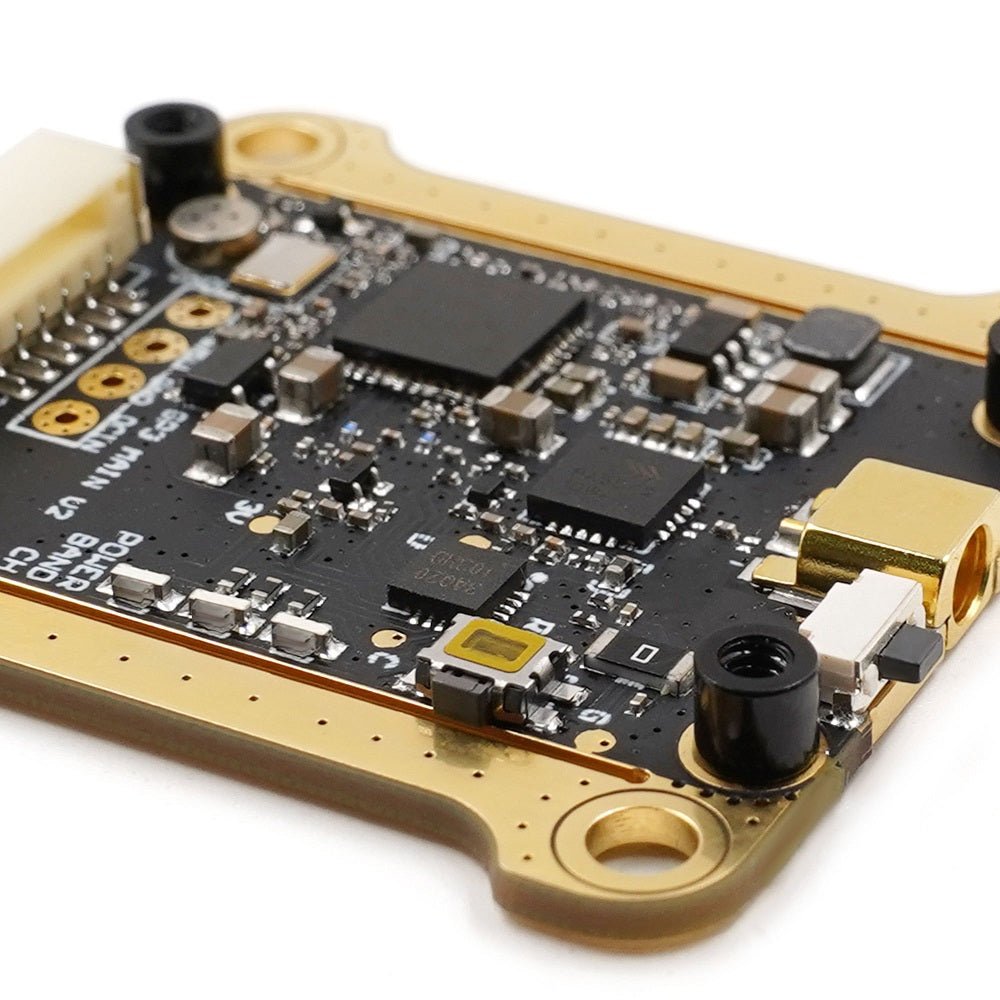

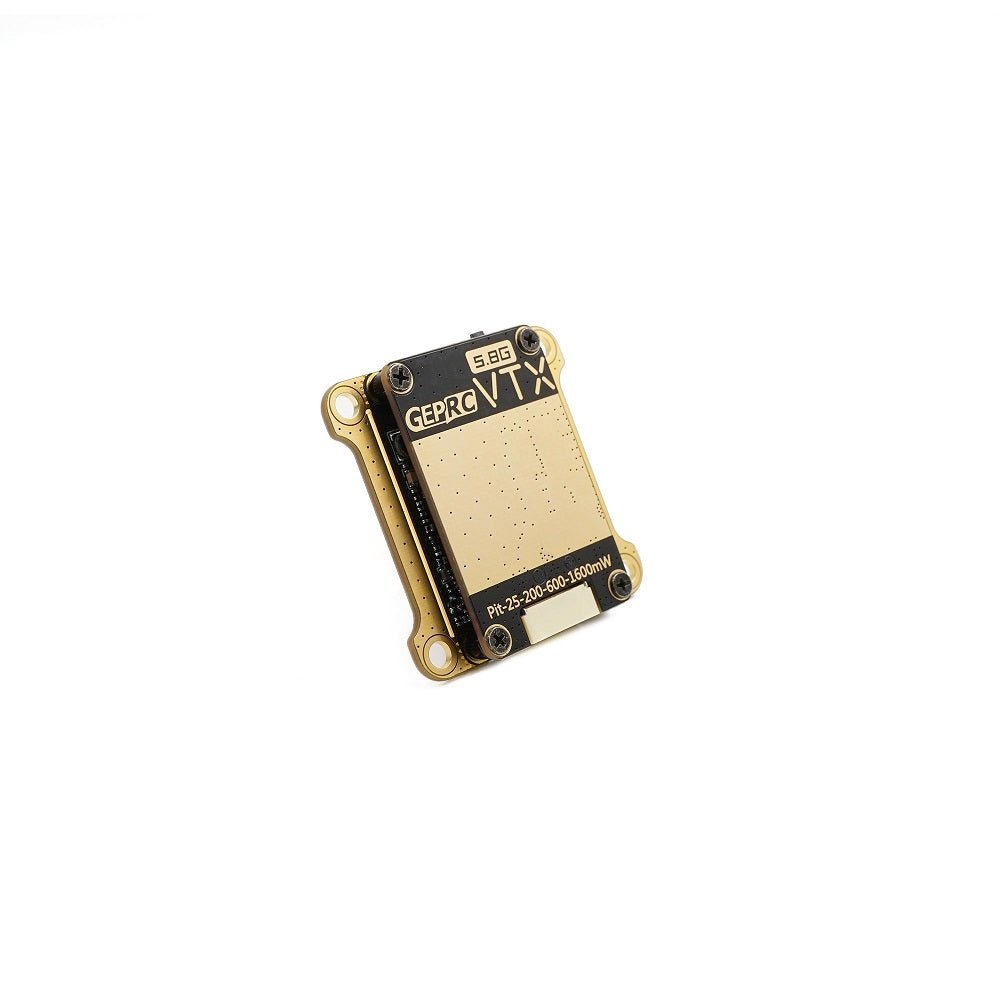

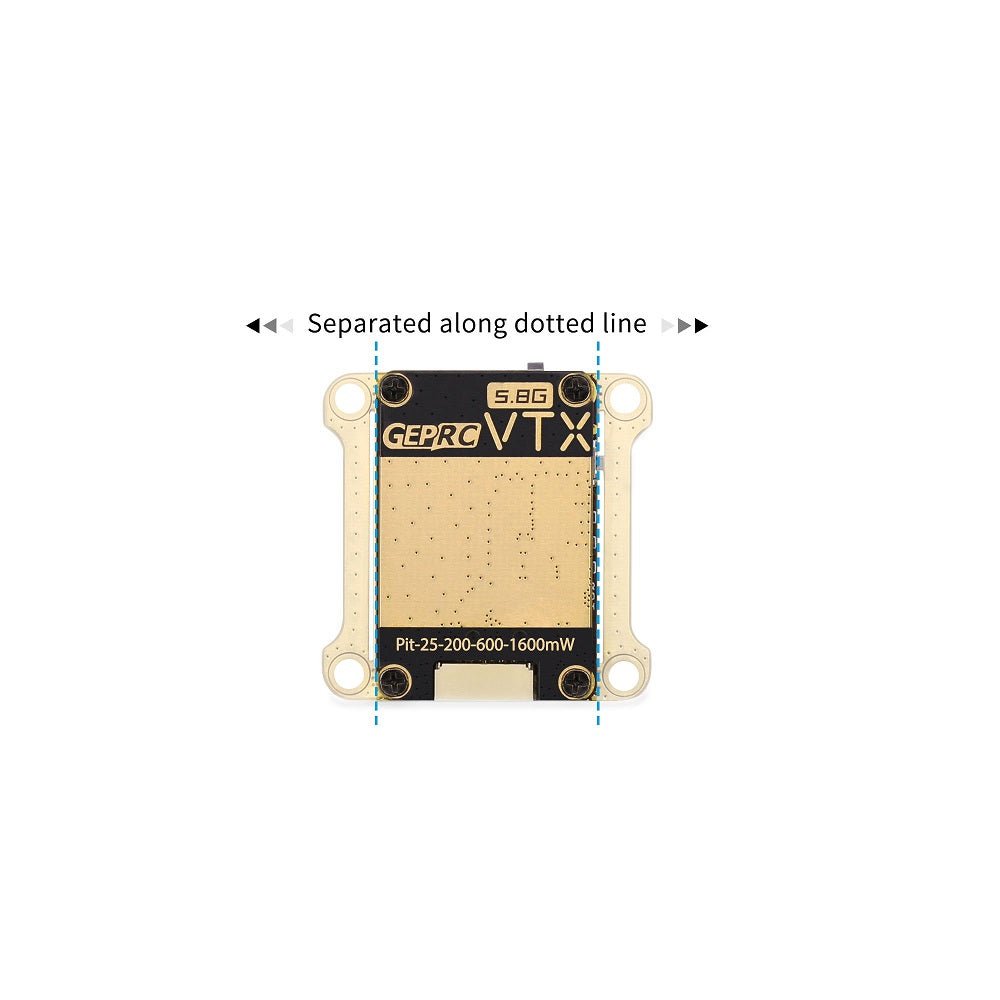

I’m glad to introduce the newly developed RAD VTX 1.6W by GEPRC. It is a super-power VTX with a maximum power of  1600mW and five adjustable power settings: Pit/25mW/200mW/600mW/1600mW. The RAD adopts a double-layer PCB  design to separate the power supply from the main-board, which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board, supports 7-36V voltage(2-8S Battery) input, uses the mainstream MMCX connector, and the mounting hole is 30.5×30.5mm.

• 1600mW Super power suitable for Long Range flight with good stability.

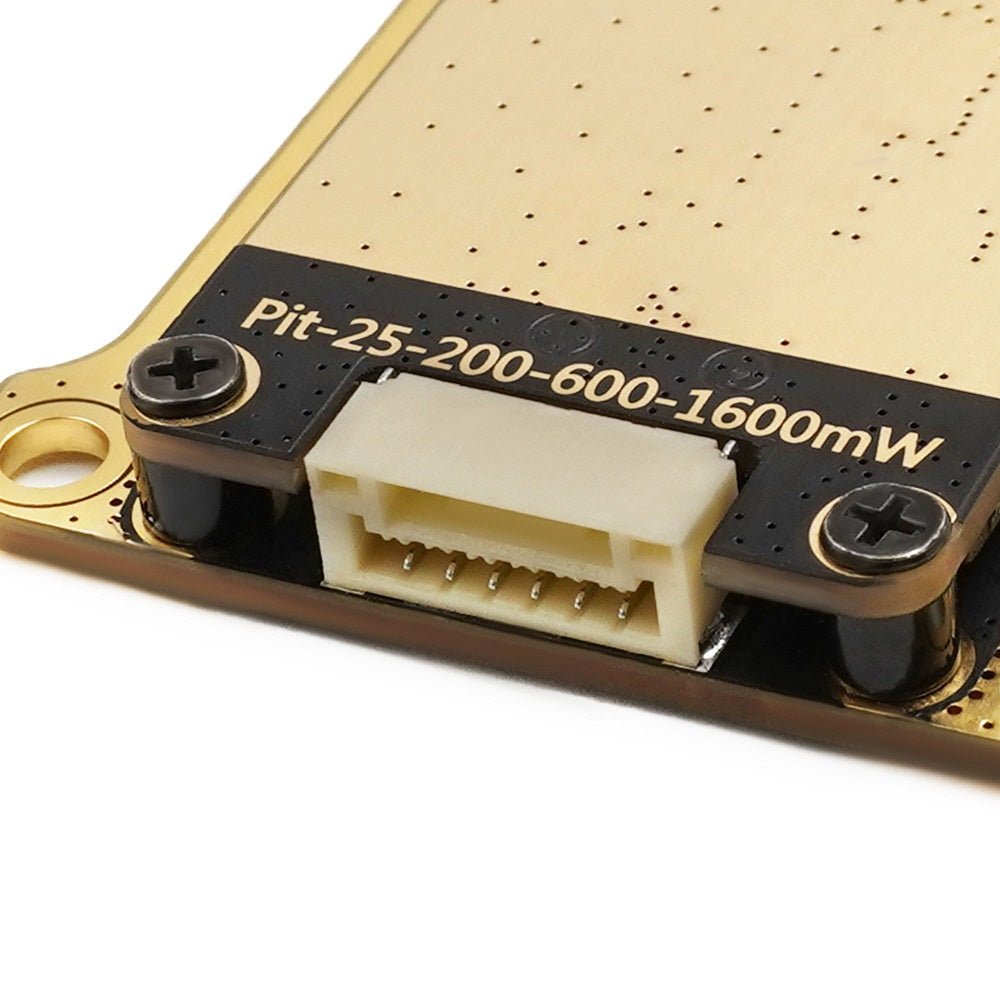

• Five power channel: PIT mode/25mW/200mW/600mW/1600mW.
• Two-layer board cooling structure
• Separate power BEC and main-boards, reducing and shielding from interference.
• Temperature control protection function that can prevent high temperature burning.
• Wide voltage input, supports 7V-36V Voltage input.
• VTX control protocol is IRC Tramp which supports OSD parameter adjustment.
• VTX built in microphone for real-time transmission of drone’s sounds.
• Has 3 regional frequency tables to meet the needs of various regions.

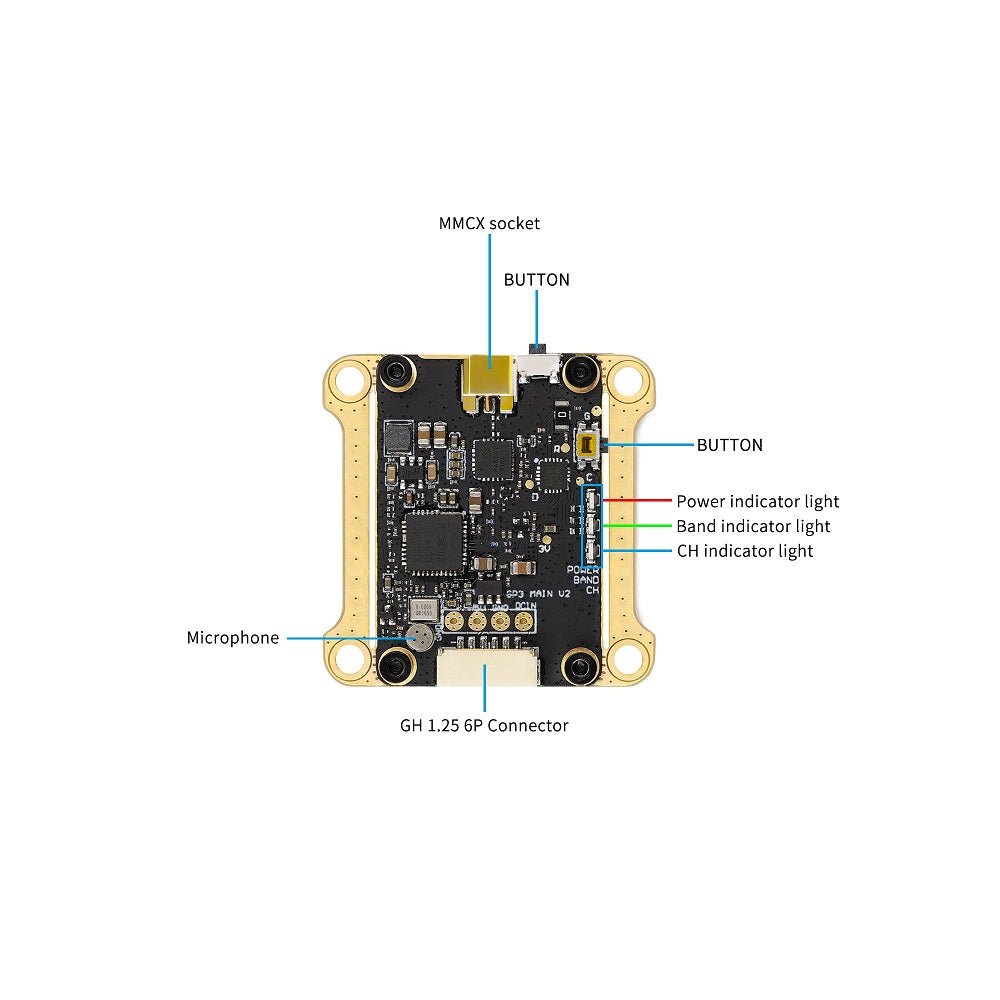

• Two function buttons, three indicator lights, easy to control.
• Mounting hole is 30.5mmx30.5mm.

Warning:

• Install Antenna before use.
• To prevent overheating, provide constant airflow and a well ventilated environment. Install a cooling fan if operating in confined conditions.
• The 5V Output is for a Camera/Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

• Model: GEPRC RAD VTX 5.8G 1.6W

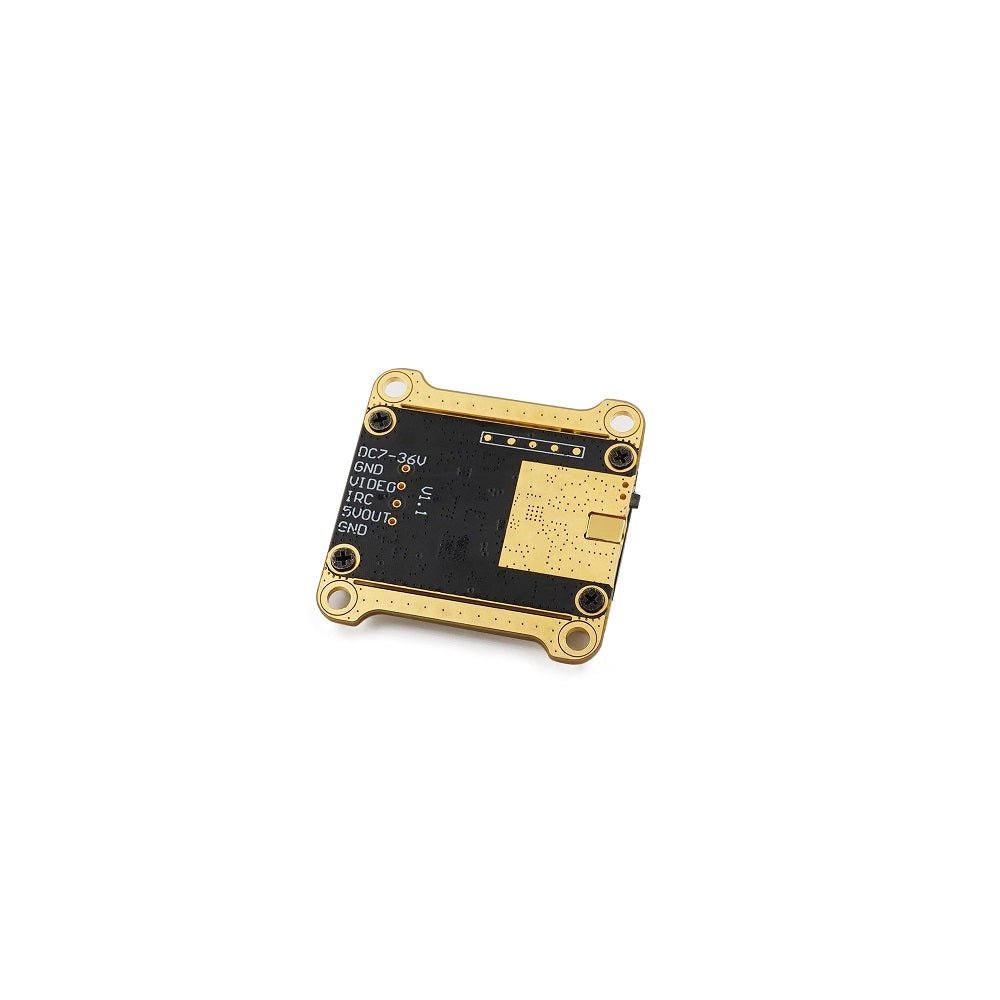

• Input voltage: DC 7-36V(2-8S Battery)
• Output: 5V@600mA(power 5V to Camera)
• Input impedance: 75Ω
• Protocol: IRC Tramp
• Antenna interface: MMCX
• Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE
• Frequency tables: American FCC frequency table(37CH)
• Video format: PAL / NTSC
• Microphone: Built in microphone

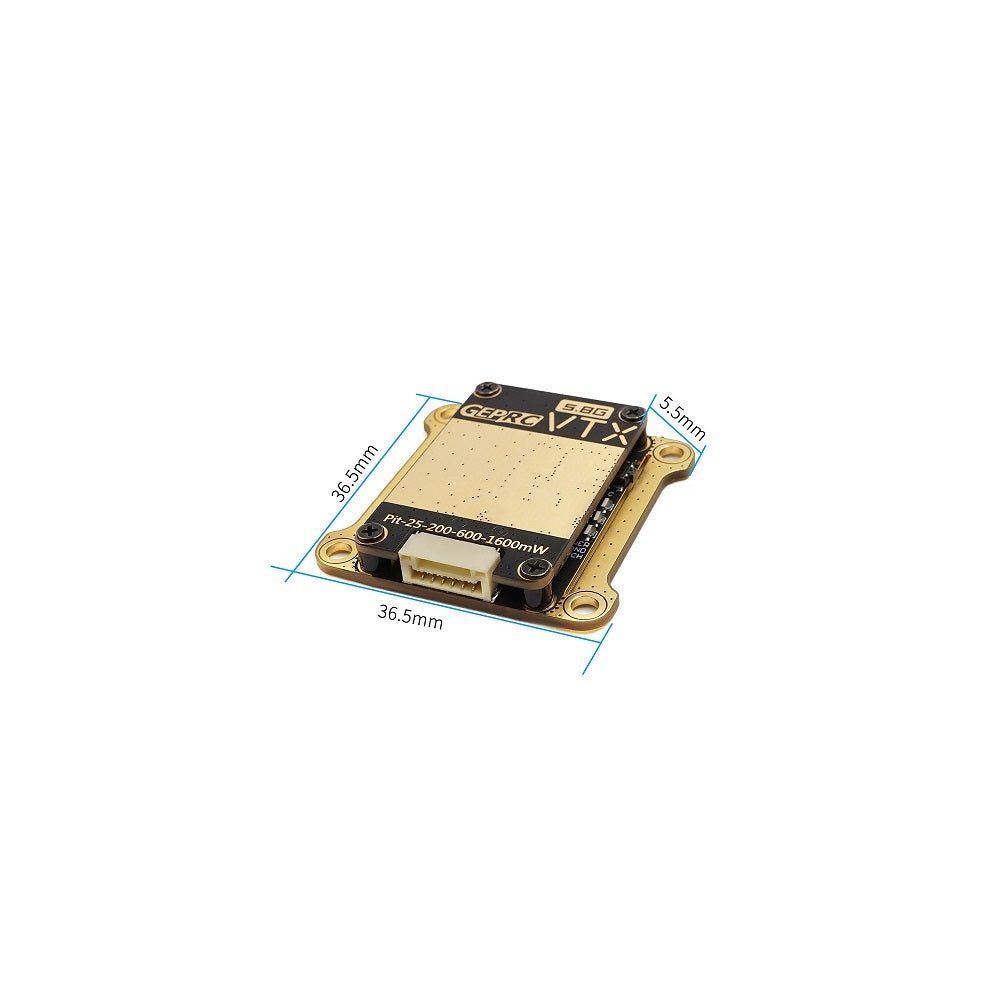

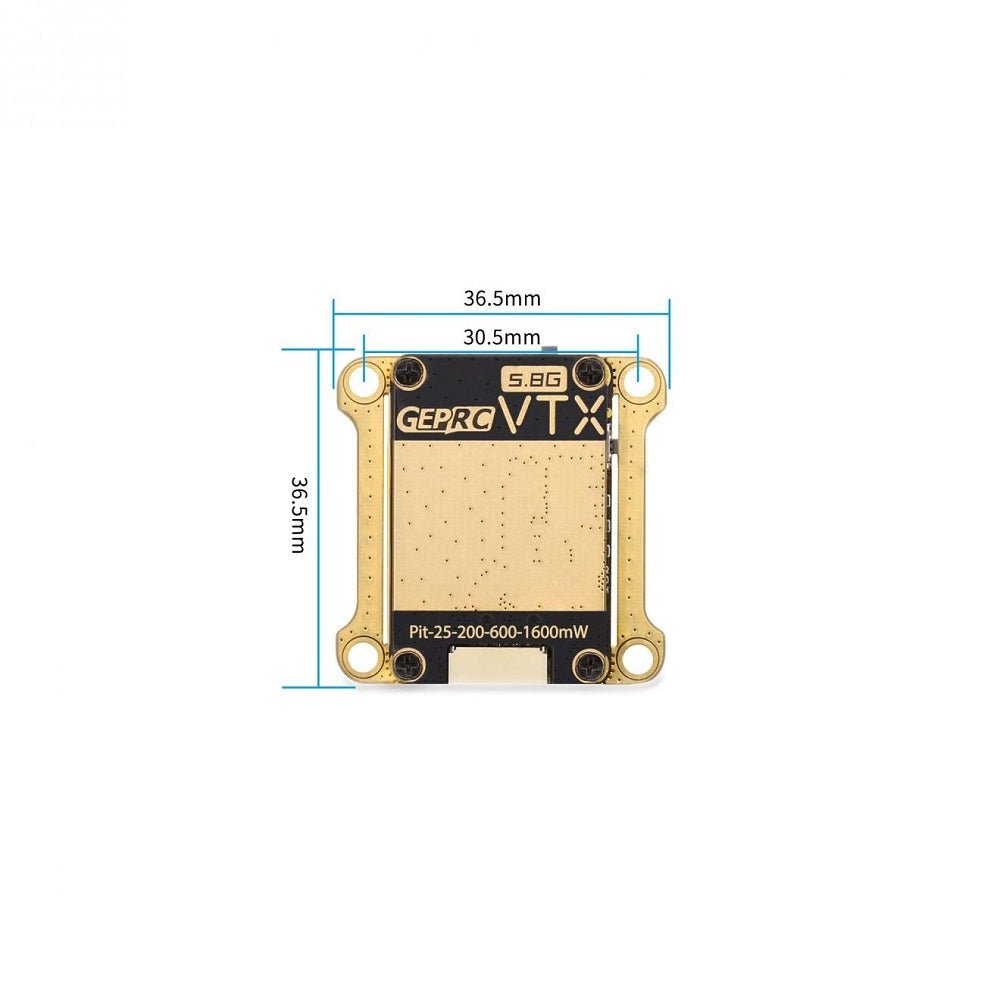

• Size: 36×36.5×5.5mm

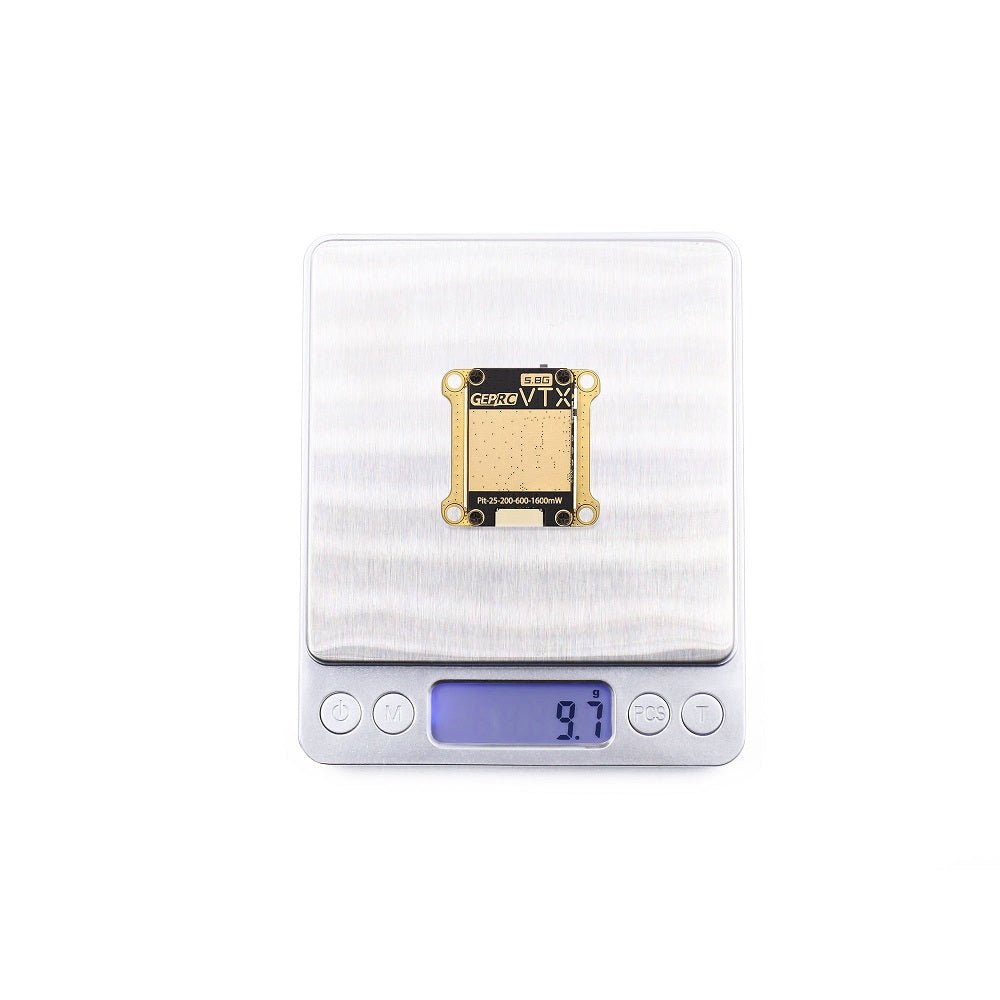

• Weight: 9.7g(without cable)
• Mounting hole: 30X30mm(M3)

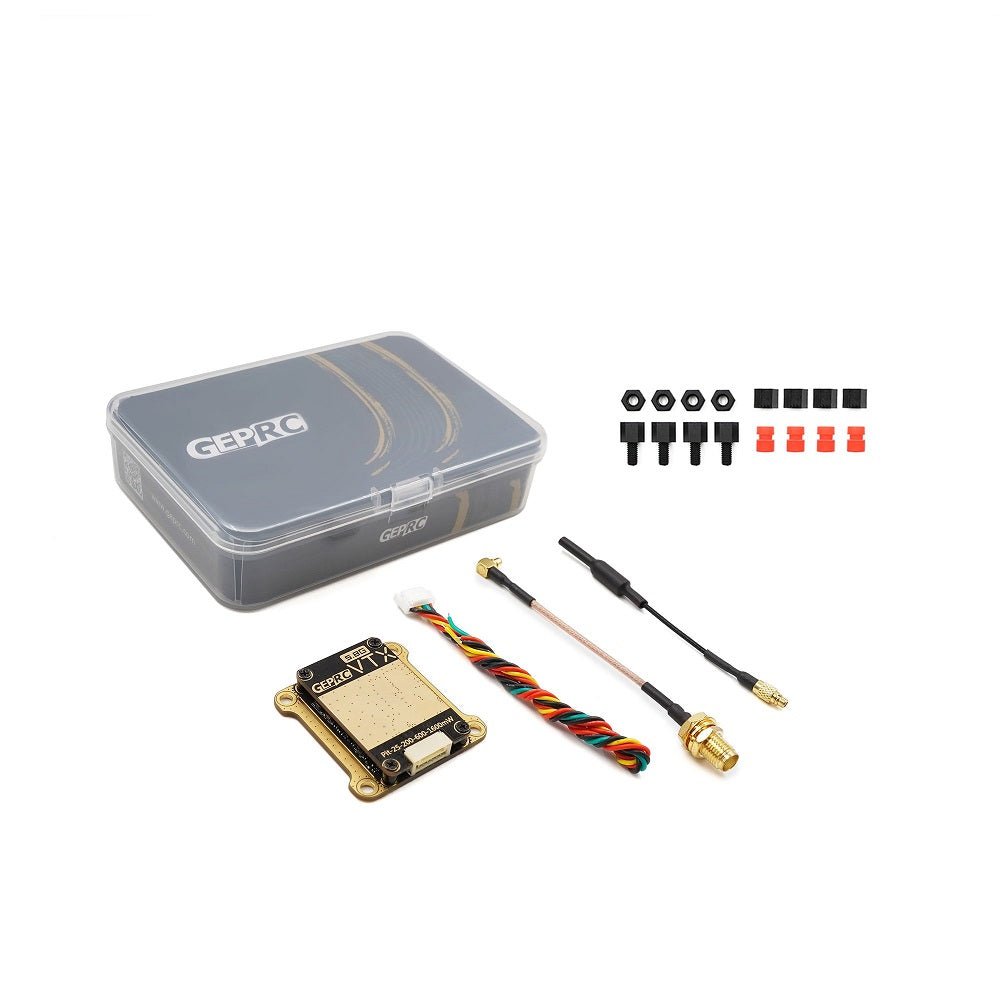

Package Includes:

• 1 x GEPRC RAD VTX 5G8 1.6W
• 1 x 72mm MMCX Copper tube antenna
• 1 x GH 1.25*6P 150mm Connecting cable
• 1 x MMCX to SMA connector
• 1 x Matching screw package.

User Manual: LINK
