GEPRC RAD Whoop 5.8G VTX has 4 adjustable power levels, the maximum power up to 400mW. The transmission signal is stable, has good heat dissipation, uses IRC Tramp protocol, and can use OSD fast parameter tuning. Also has temperature control protection function to prevent overheating and burning.

One button adjustment with three easy to operate indicator lights. Use the mainstream UFL antenna connector and SH1.0 cable connector. Installation hole is compatible with 25.5mm-26.5mm mounting patterns. Added four RGB LED lights, the color of the four LEDs can be adjusted by the flight controller so that your quadcopter is no longer monotonous.

Check out the rest of our Analog Video Transmitters as well as the rest of our GEPRC Collection!

Features:

1. 400mW power, low heat generation, stable operation, suitable for short and medium range flight
2. 3 power channel adjustable PitMode/25mW/200mW/400mW
3. With temperature control protection function to prevent high temperature burnout
4. DC5V input, power consumption is only 400ma, can be powered directly from flight controller 5V
5. VTX control protocol IRC Tramp, support OSD parameter tuning
6. One adjustment button, three indicator lights, easy to operate
7. The mounting holes are compatible with 25.5mm-26.5mm

Warning:

Install Antenna before use.
To prevent overheating, provide constant airflow and a well ventilated environment. Install a cooling fan if operating in confined conditions.
The 5V Output is for a Camera/Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

Specifications:

Model: RAD Whoop 5.8G VTX
Input voltage: DC 5V
Output voltage: 5V@500mA (power supply 5V to the camera)
Input Impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: UFL
Cable connector: SH1.0
Output power: PitMode/25mW/200mW/400mW
Frequency: 37CH
Video format: PAL/NTSC
Microphone: none

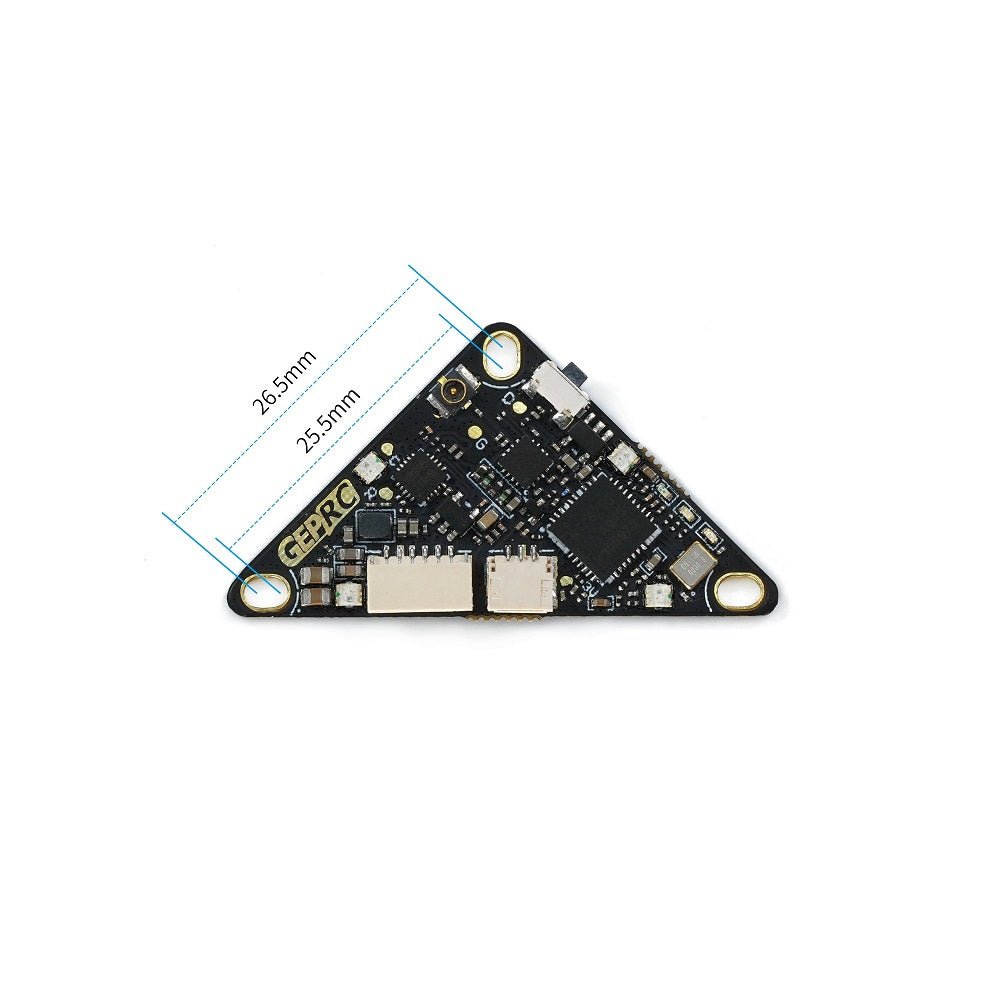

Mounting hole: 25.5mm-26.5mm dual compatible (M2)

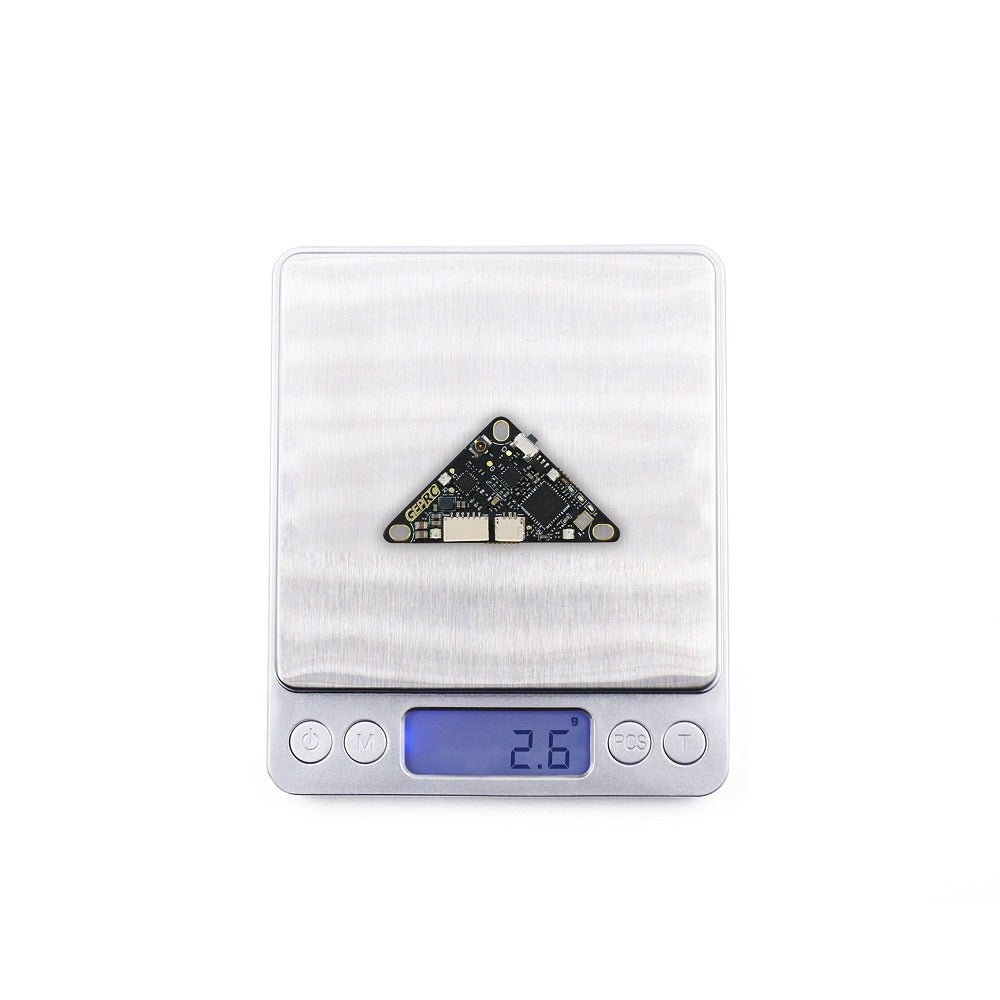

Weight: 2g (Without cables)

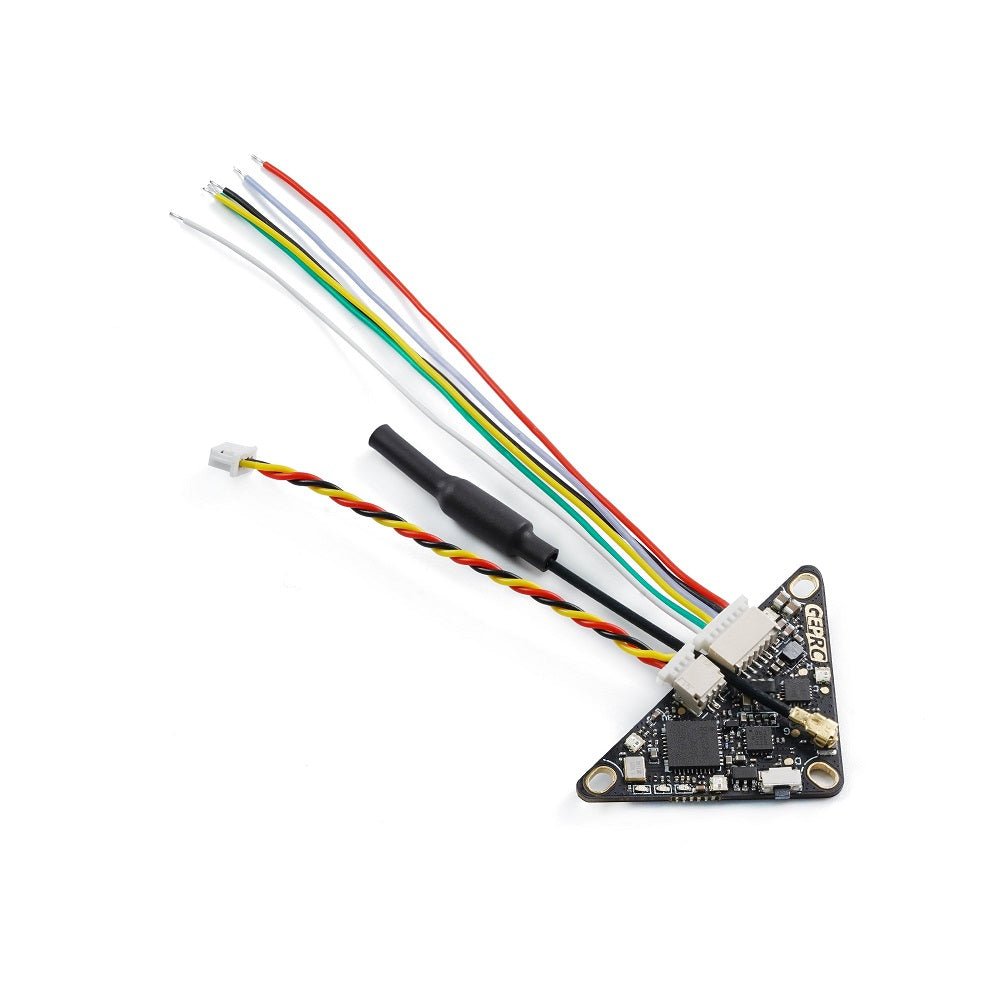

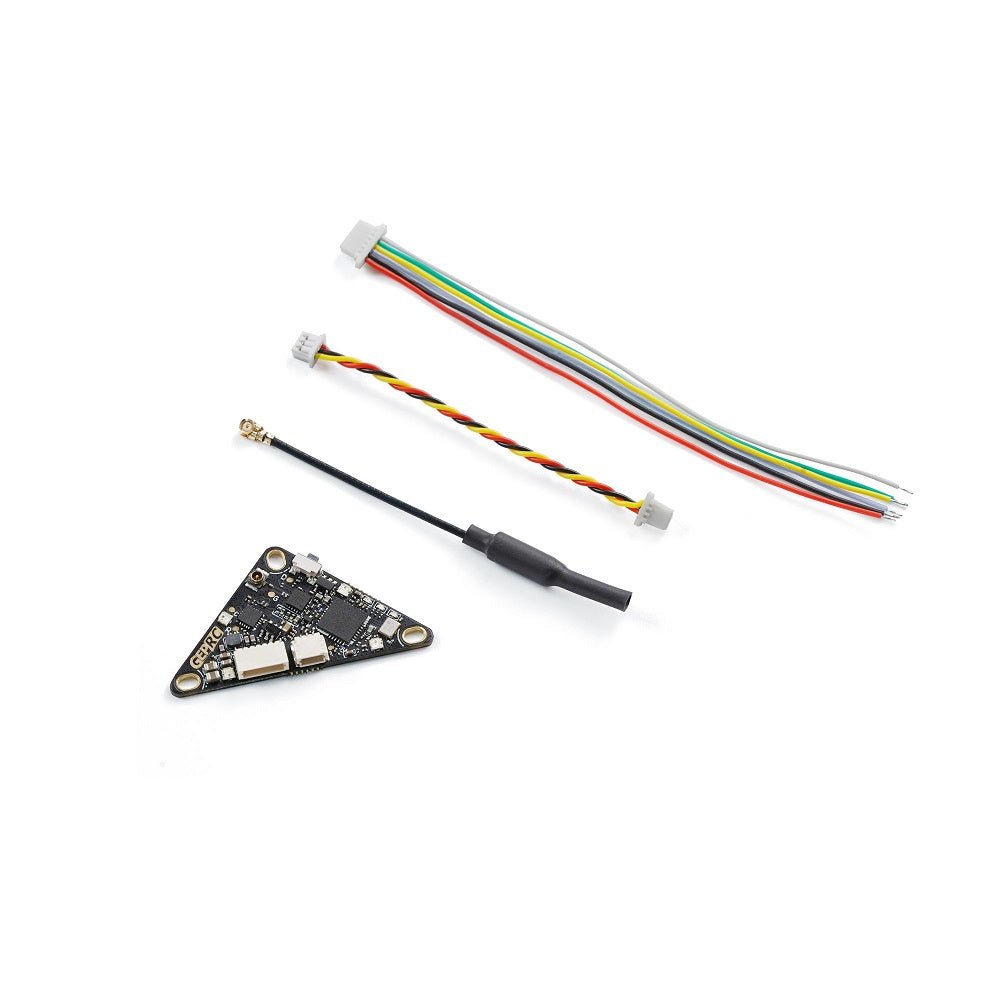

Package Includes:

1 x RAD Whoop 5.8G VTX
1 x UFL 72mm copper tube antenna
1 x SH1.0 6P 100mm cable
1 x SH1.0 to SH1.25 3P cable

USER Manual: LINK
