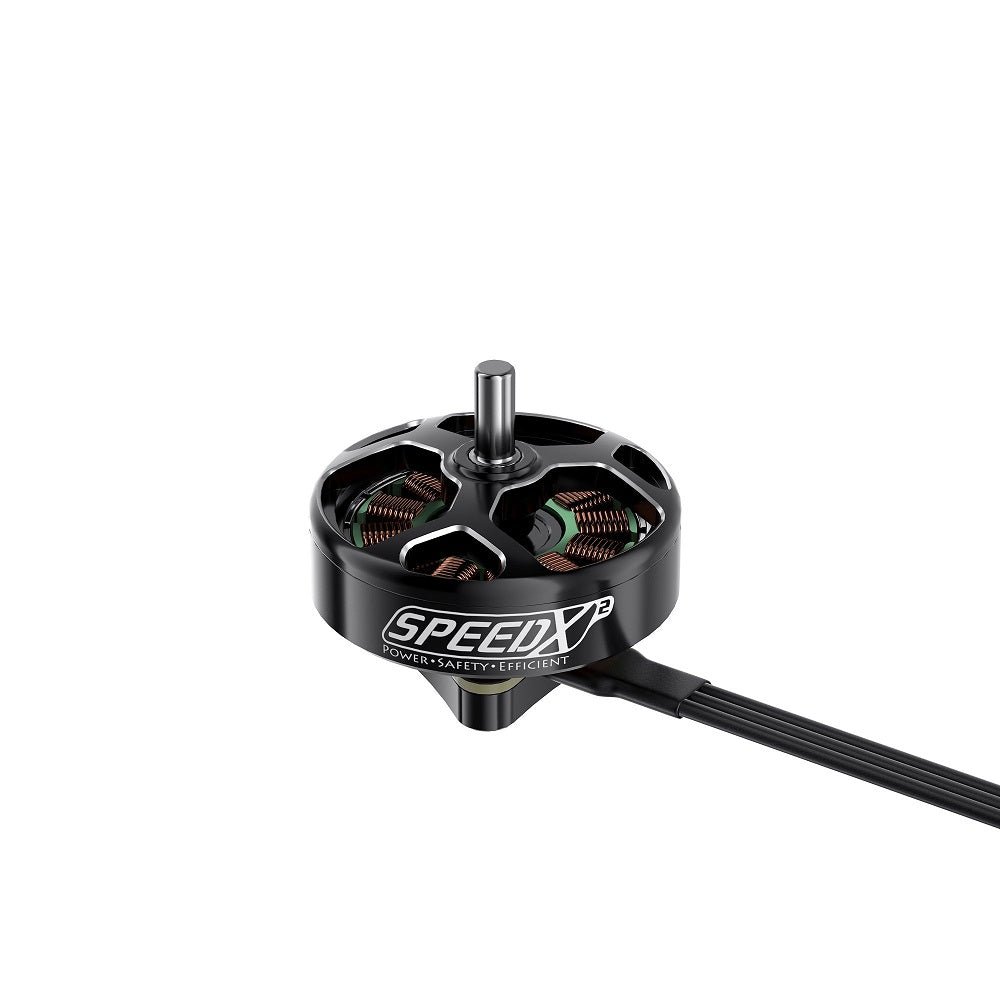

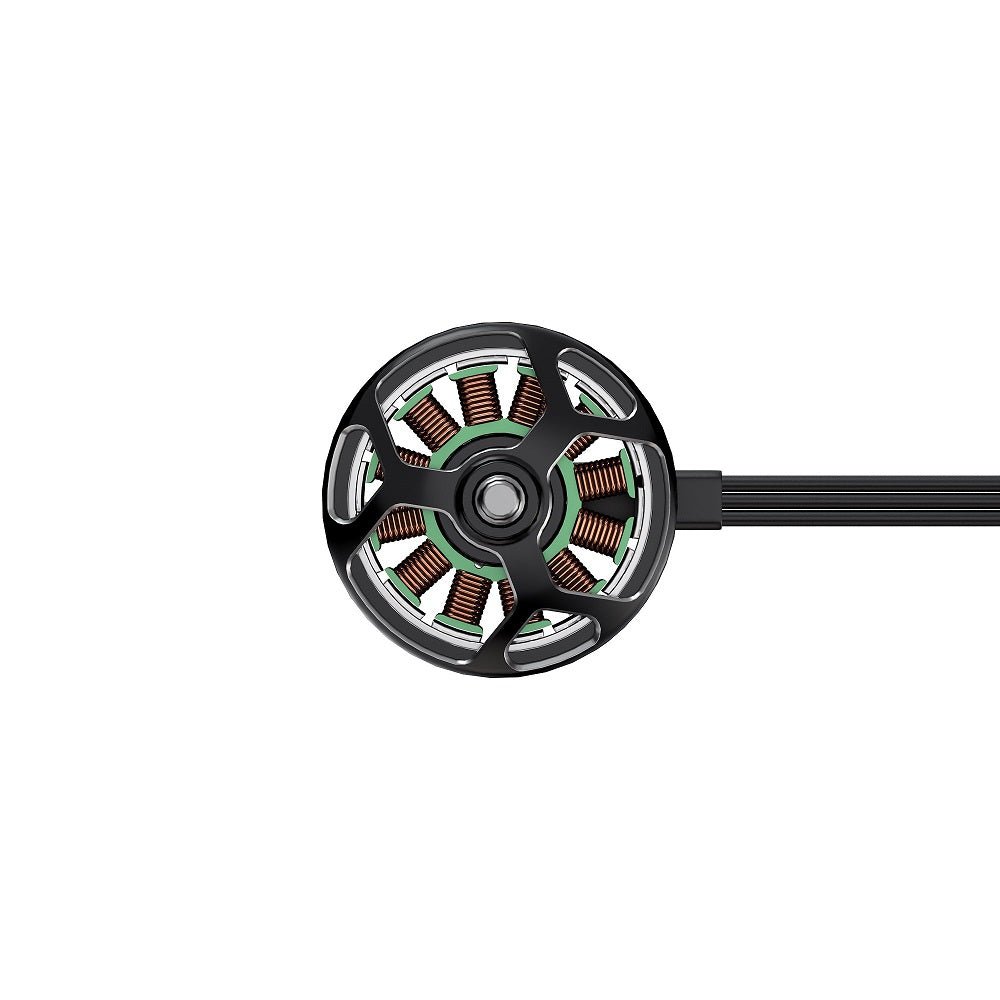

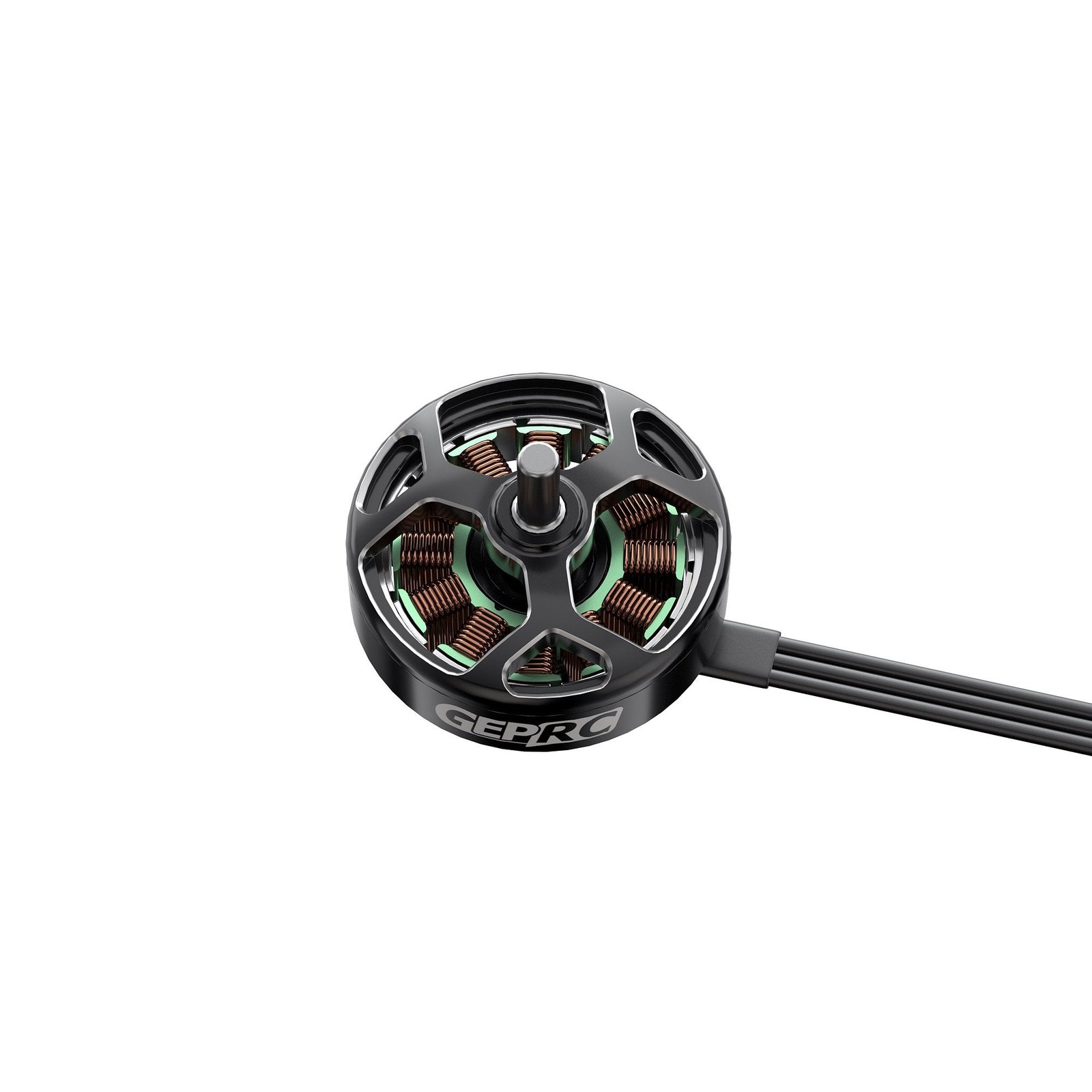

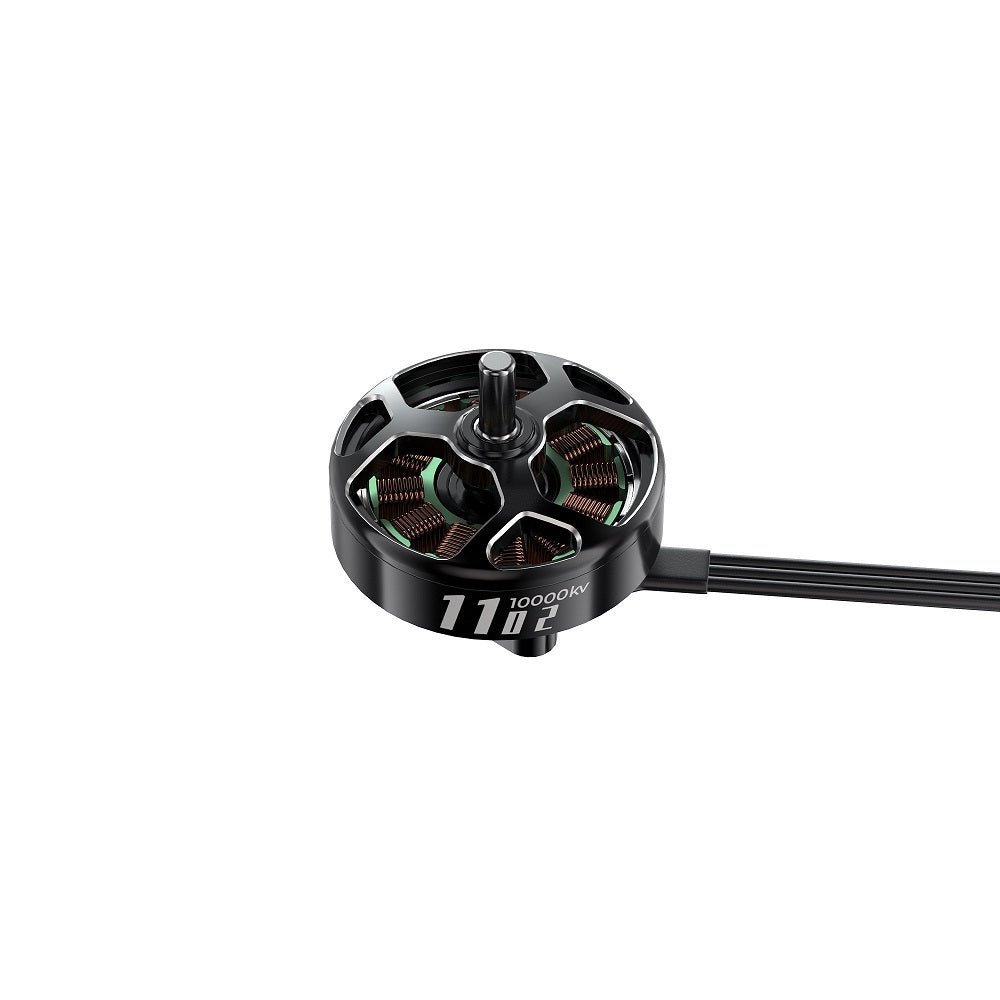

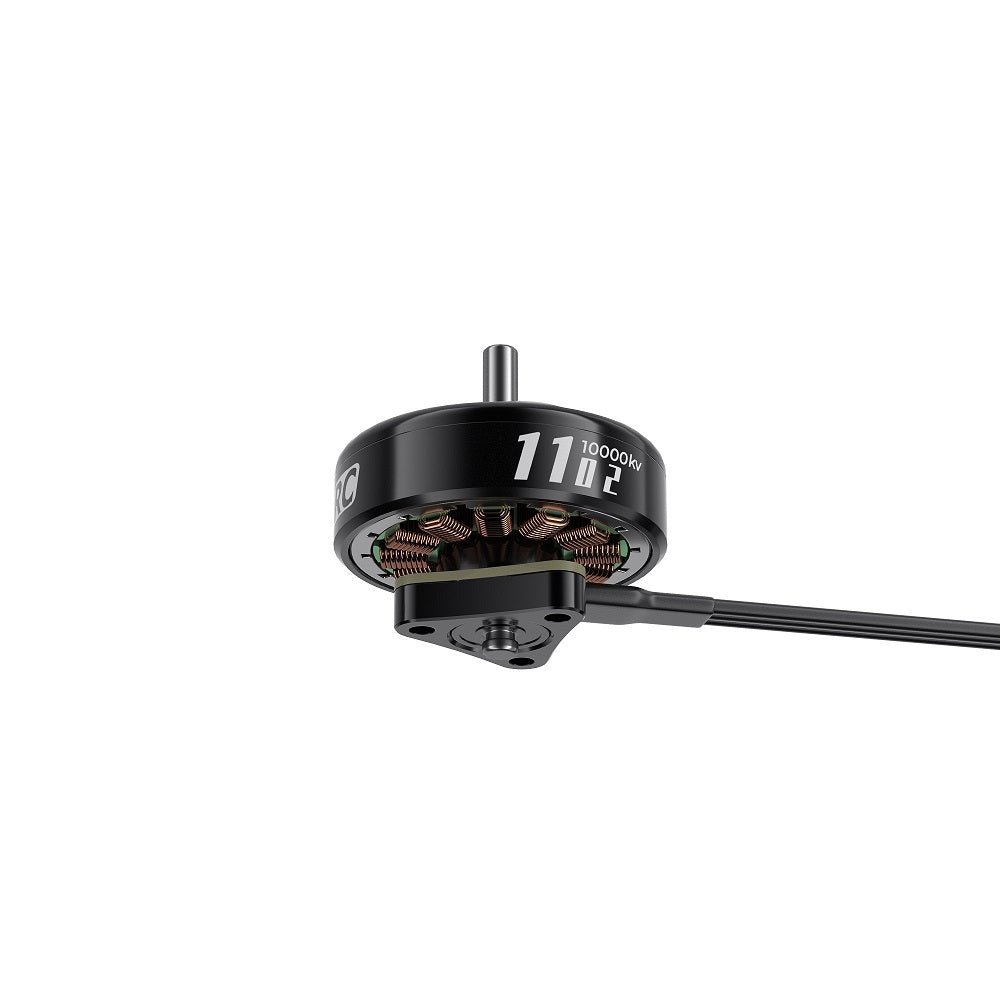

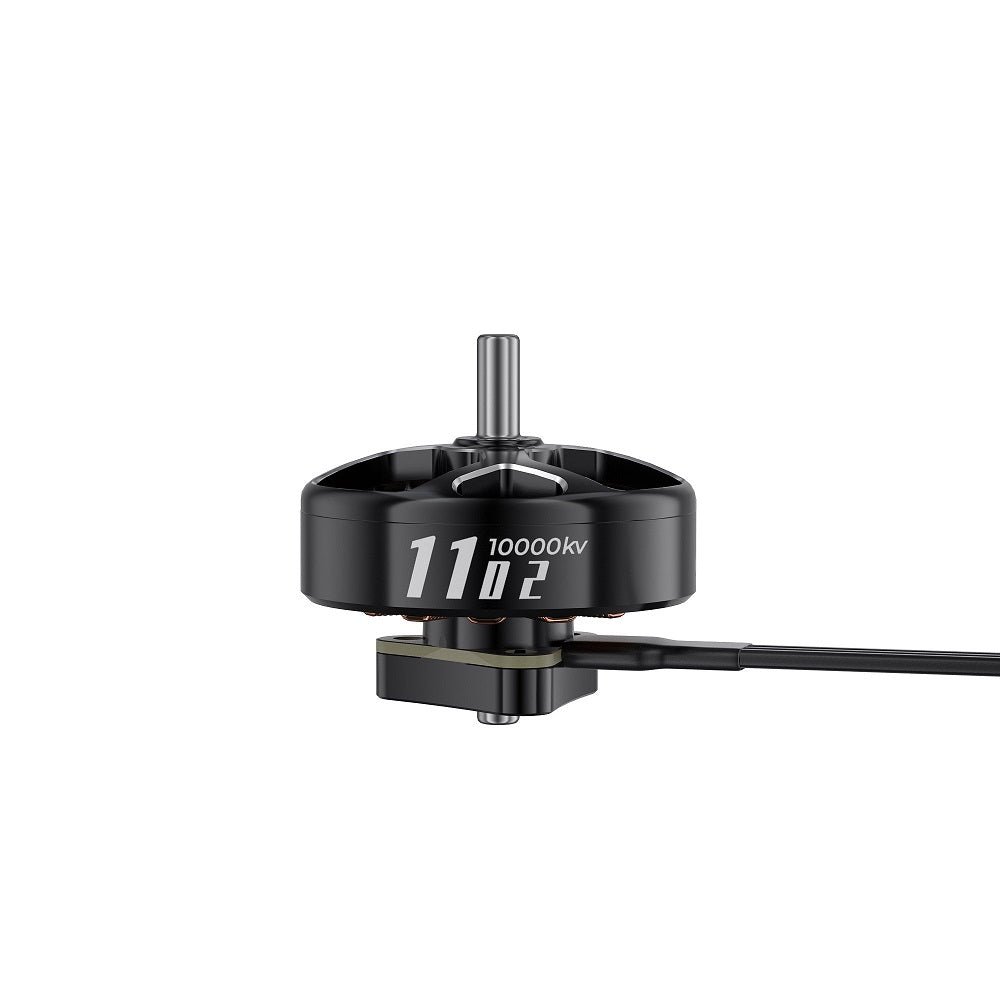

GEPRC SPEEDX2 1102 10000KV 3 Holes 1.5mm Shaft Whoop Motor (1 Pc)

Improve the performance of your drone with GEPRC SPEEDX2 1102 10000KV Motor. Designed to fit in GEPRC Darkstar and similar drones with 3 hole motor base.

Check out all our 11XX Motors and the rest of our GEPRC Products!

Features:

• The appearance is matte black with bright edges, which is exquisite and beautiful.
•  Use high-quality bearings with high precision and durability.
• Three-hole screw base, light weight.
•  Suitable for 1.6-inch-2-inch lightweight models.

Specifications:

• Model: SPEEDX2 1102 10000KV Motor
• Max Watt: 59.6W
• Peak current: 7.45A
• Interphase resistance: 251mΩ
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 9N12P
• Dimension: φ13.8mmx12.7mm
• Shaft Diameter: φ1.5mm
• Shaft Protruding Length: 3.5mm
• Mounting holes: 3-φ6.6mm
• Lead: 35mm/28AWG
• ESC:12A
• Input Volts: 8.4V（2S LiPo)
• Winding: multi strand copper winding
• Weight: 2.83g (included wire)
• Suitable for:1.6 inch -2 inch lightweight models

Package Includes:

• 1 x SPEEDX2 1102 motor
• 6 x M1.4*3 Round torx screw
