GEPRC Tern-LR40 4″ 4S Analog Long Range FPV Drone BNF – Choose Receiver
$271.99 – $309.99Price range: $271.99 through $309.99
| Weight | N/A |
|---|---|
| Receiver Type: | ELRS 2.4GHz, ELRS 915MHz, PNP (add your own RX), TBS Crossfire Nano Rx |
SKU:
geprc-tern-lr40-4-4s-analog-long-range-fpv-drone-bnf-choose-receiver
Category: BNF
Tags: 4", Analog BNF/PNP/RTF, BNF/PNP/RTF, Frame Size_4", Long Range, Long Range Frames, LR BNF, New Products, TERN, Video Protocol_Analog
Description

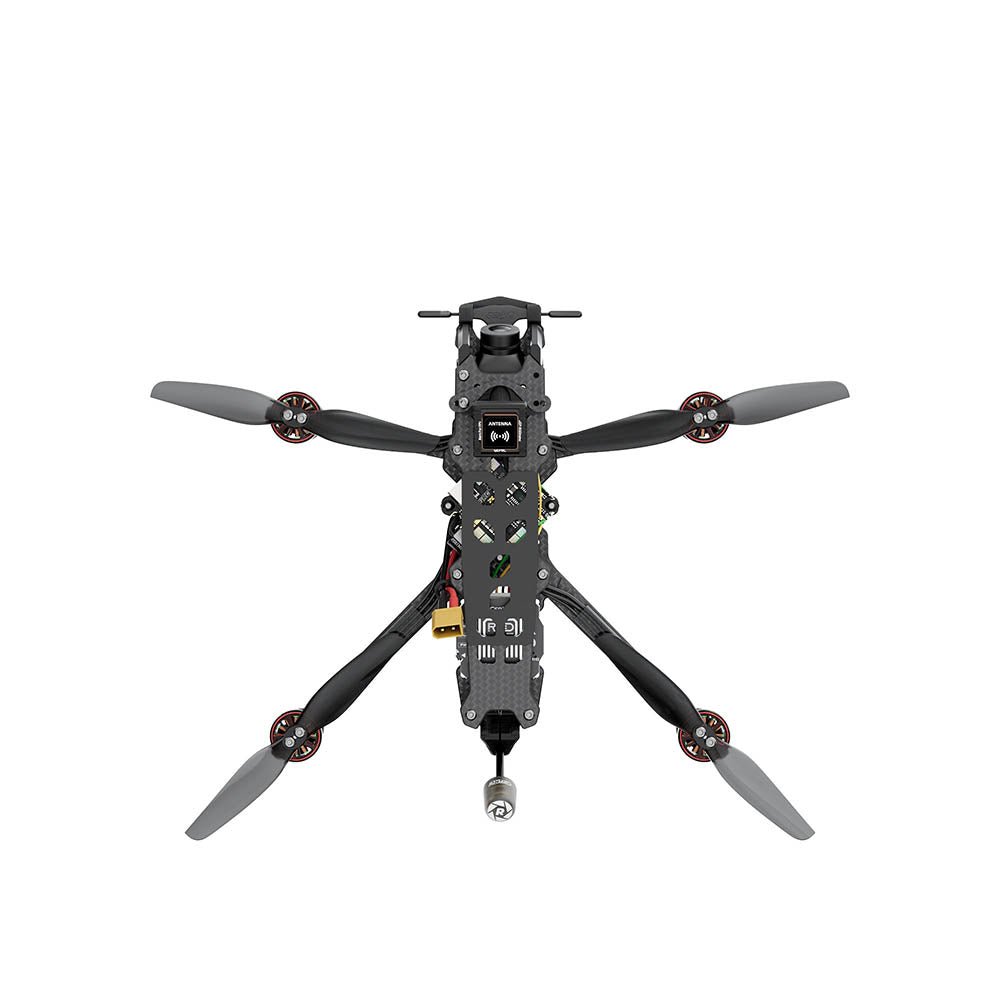

In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.
Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jello from O3 camera.
The Tern-LR40 is like a bird with spread wings, flying freely through the blue sky without being restrained. Choosing it is not only a high-quality flight, but also an artistic journey.
You can find all the Tern-LR40 Frames and related parts in The GEPRC Tern-LR40 Long Range Drone Collection
Check out our other Analog BNF/PNP/RTFs and the rest of our GEPRC products!




Features:
- New lightweight design, weight under 249g.
- Expand interference GPS fixation method and stay away from interference sources
- DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
- Install BB ring to set the battery low voltage alarm
- Using GEP-M10nano GPS, the satellite search speed is faster and the rescue mode is more stable.
- Compatible gopro mount installation, expandable shooting creation.
Specifications:
- Model: Tern-LR40
- Frame: Tern-LR40 frame
- Top plate: 1.5mm
- Middle plate: 2.0mm
- Bottom plate: 1.5mm
- Arm thickness: 3.5mm
- FC: Taker G4 45A AIO
- MCU: STM32G473CEU6
- Gyro: ICM 42688-P
- OSD: Betaflight OSD w/AT7456E
- ESC: 32Bit 45A
- VTX: RAD mini 1W
- Camera: Caddx Ratel2
- Antenna: GEPRC Peano 5.8G RHCP UFL
- Connector:XT30
- Motors: GEP-SPEEDX2 1404 3000KV
- Propellers: HQProp T4X2.5Grey (2CW+2CCW)
- Tern -LR40 Analog ELRS24 version weight: 159g±5g
- Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
- Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
- Flight time: 10-25min
Package Includes:
- 1 x Tern-LR40
- 2 x HQProp T4X2.5Grey (2CW+2CCW)
- 2 x battery anti-slip mat
- 1 x screw pack
- 4 x Battery strap M15*170mm
- 1 x L-shaped screwdriver 1.5mm
- 1 x GoPro camera mount holder
- 1 x T-type Antenna mount
- 1 x RC Printed
